Coolant Temperature Sensor/Switch (For Computer): Description and Operation

Engine Coolant Temperature (ECT) Sensor:

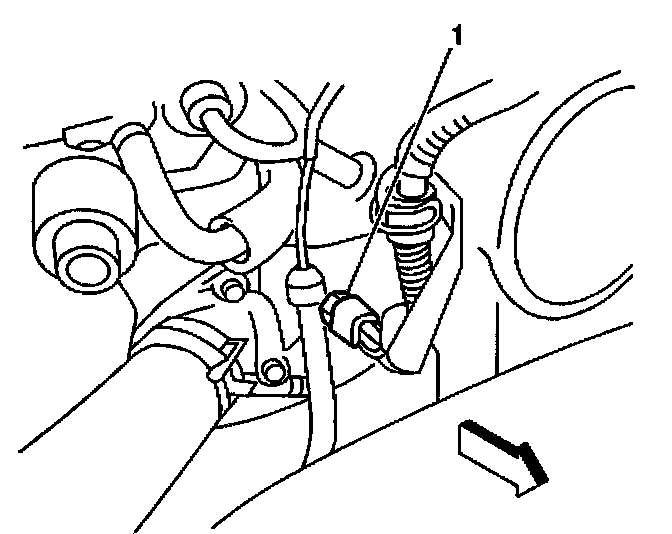

The Engine Coolant Temperature (ECT) sensor (1) is located at the front of the intake manifold, near the thermostat housing. The ECT sensor is a thermistor (a variable resistor that changes value when the temperature changes). The ECT sensor is connected in series with a fixed resistor in the Powertrain Control Module (PCM). The PCM applies 5 volts to the ECT sensor. The PCM monitors the voltage drop across the ECT sensor and converts the voltage reading into a temperature value. The ECT sensor voltage reading at the PCM will vary with the changes in the engine temperature.
