Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL PROCEDURE
1. Drain the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.

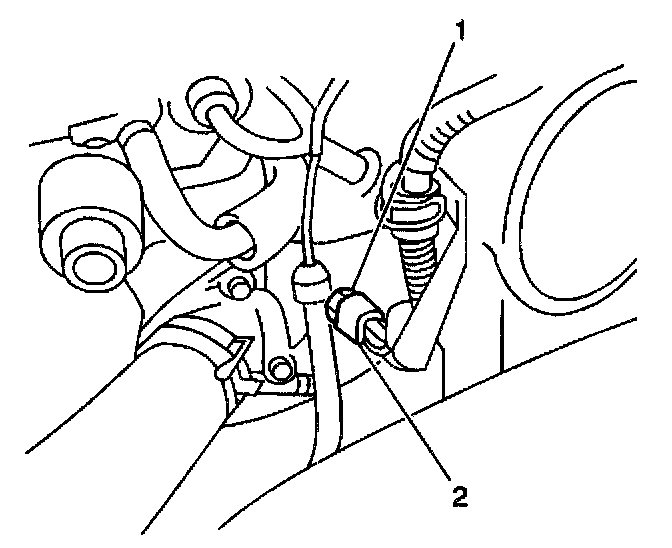

2. Disconnect the ECT sensor electrical connector (2).
3. Remove the ECT sensor (1).

INSTALLATION PROCEDURE

NOTE: Refer to Component Tightening Notice in Cautions and Notices.

1. Install the ECT sensor (1).

Tighten
Tighten the ECT sensor to 15 N.m (11 lb ft).

2. Connect the ECT sensor electrical connector (2).
3. Fill the cooling system. Refer to Draining and Filling Cooling System in Engine Cooling.
