Main Relay (Computer/Fuel System): Locations

Locations View:




Locations View:




Locations View:




Locations View:




Locations View:

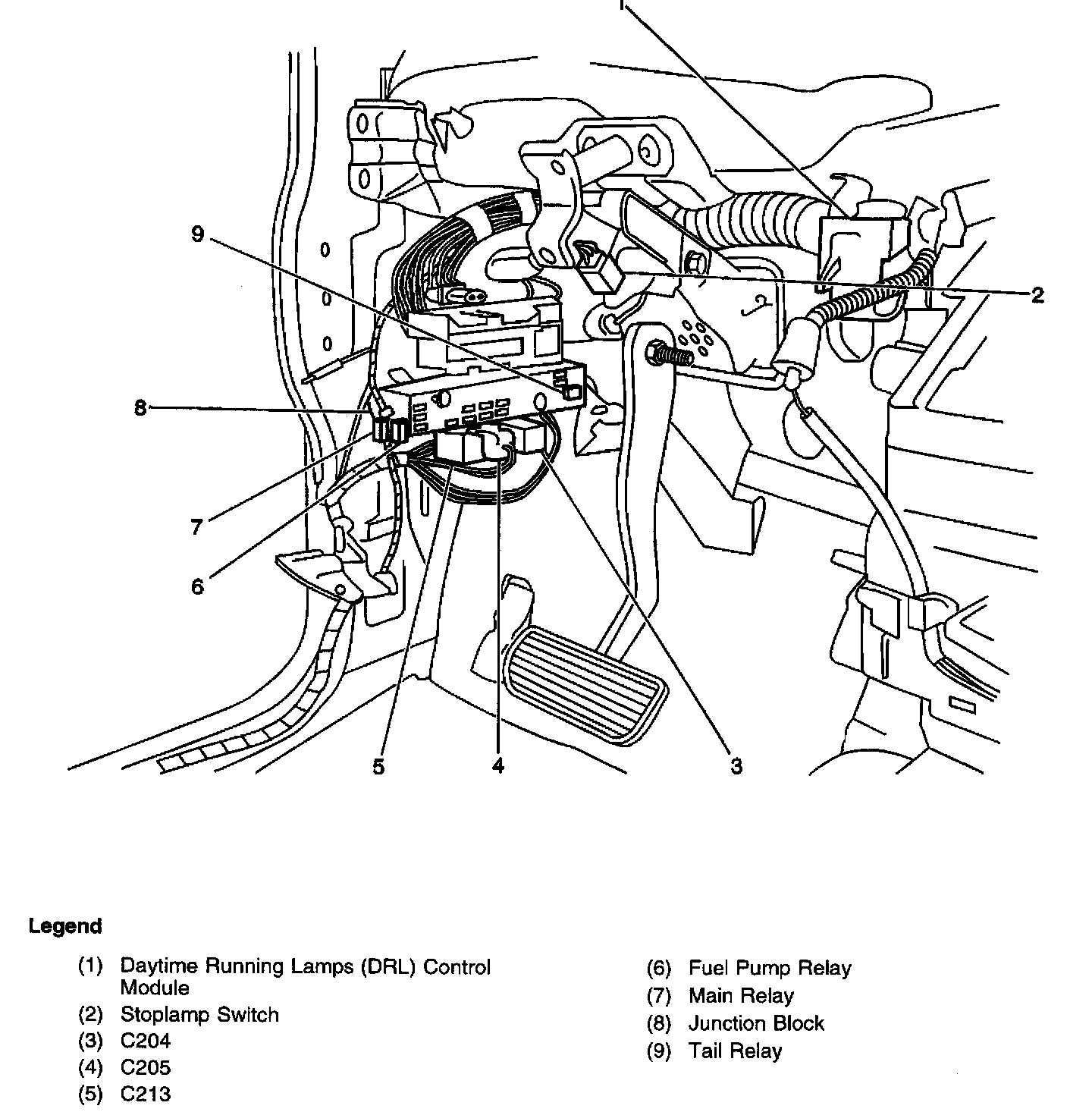

Left side of the instrument panel attached to the junction block on the left side

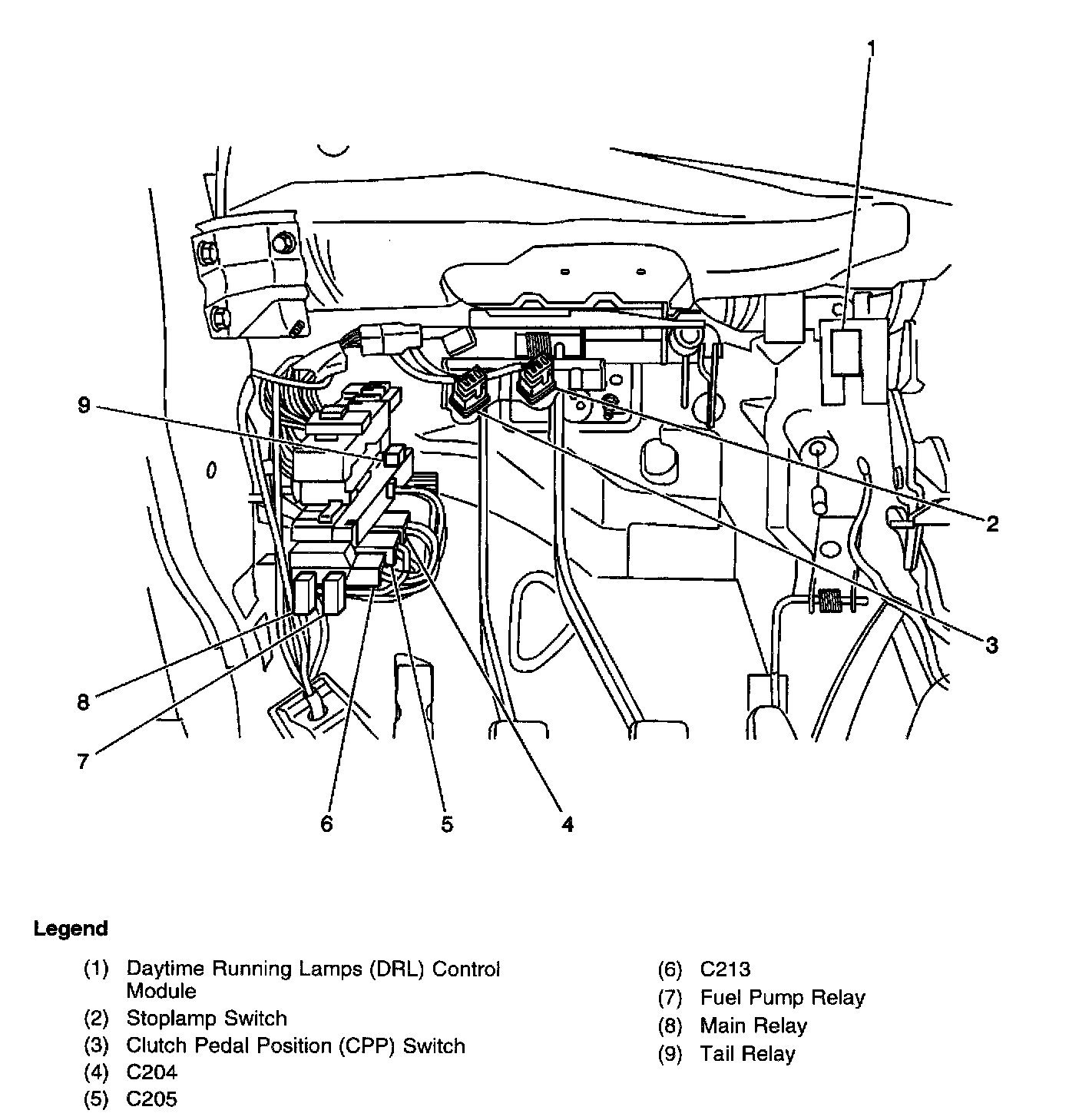

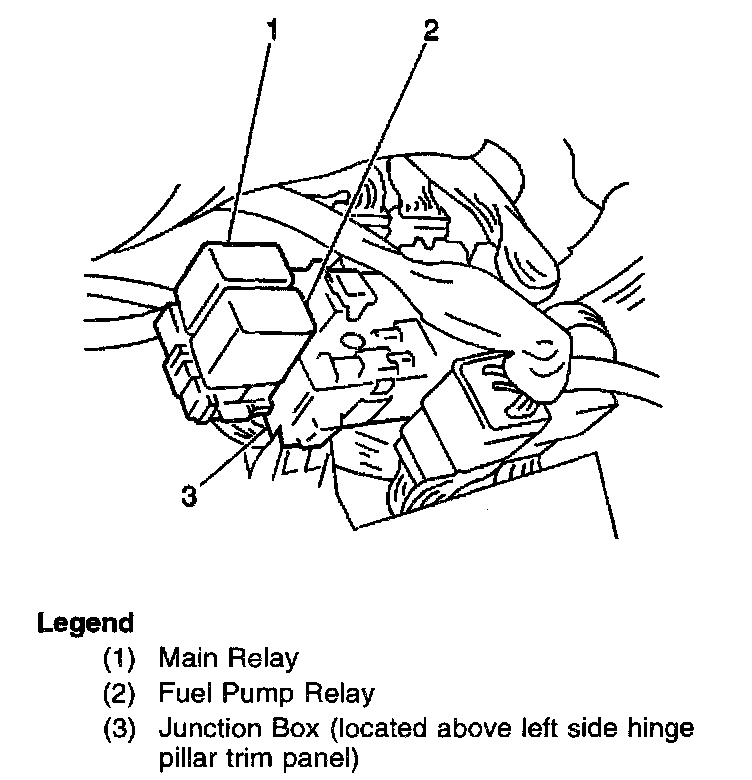

Left front side of the junction block

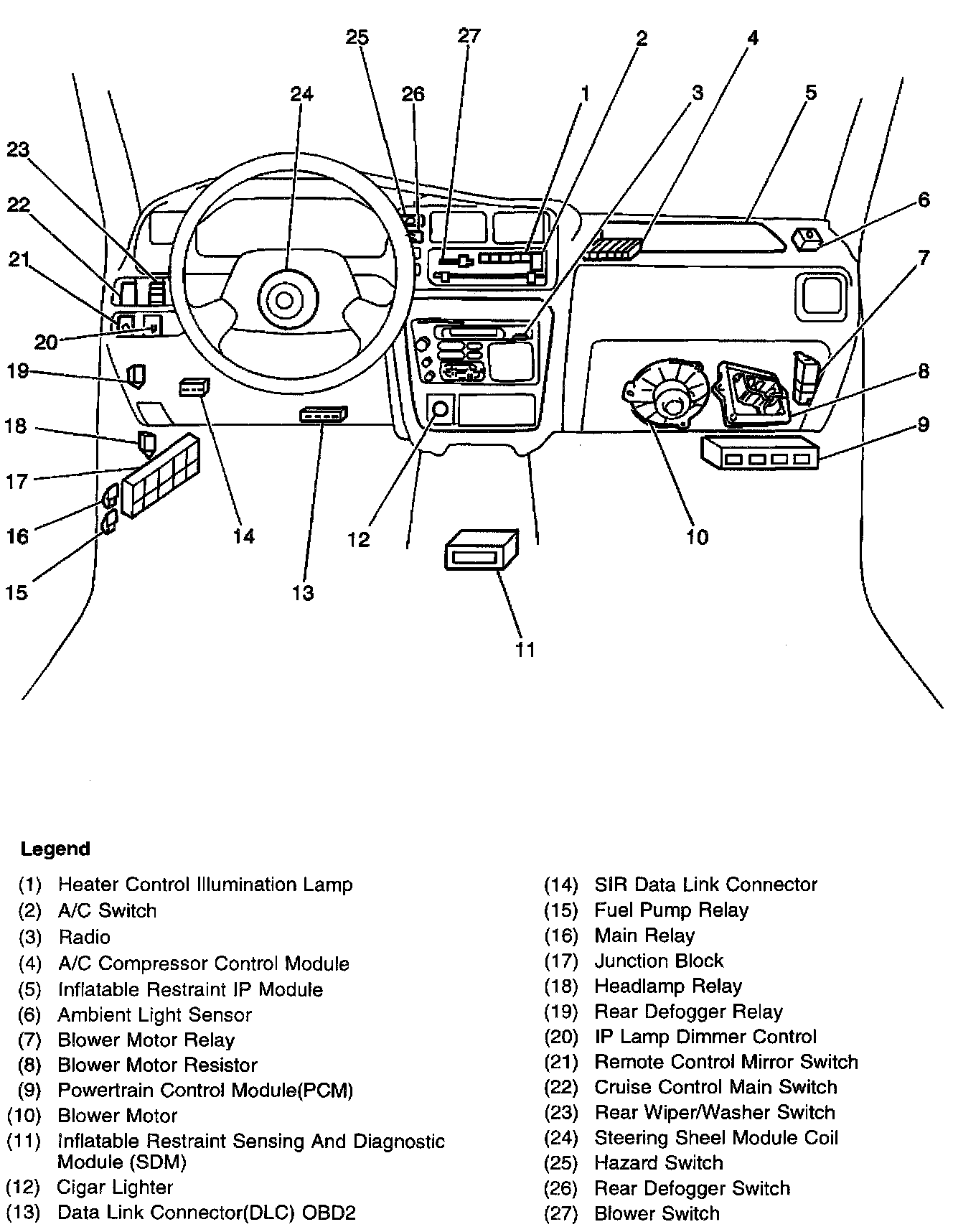

Left side of the instrument panel above the junction block
