Electronic Brake Control Module (EBCM)

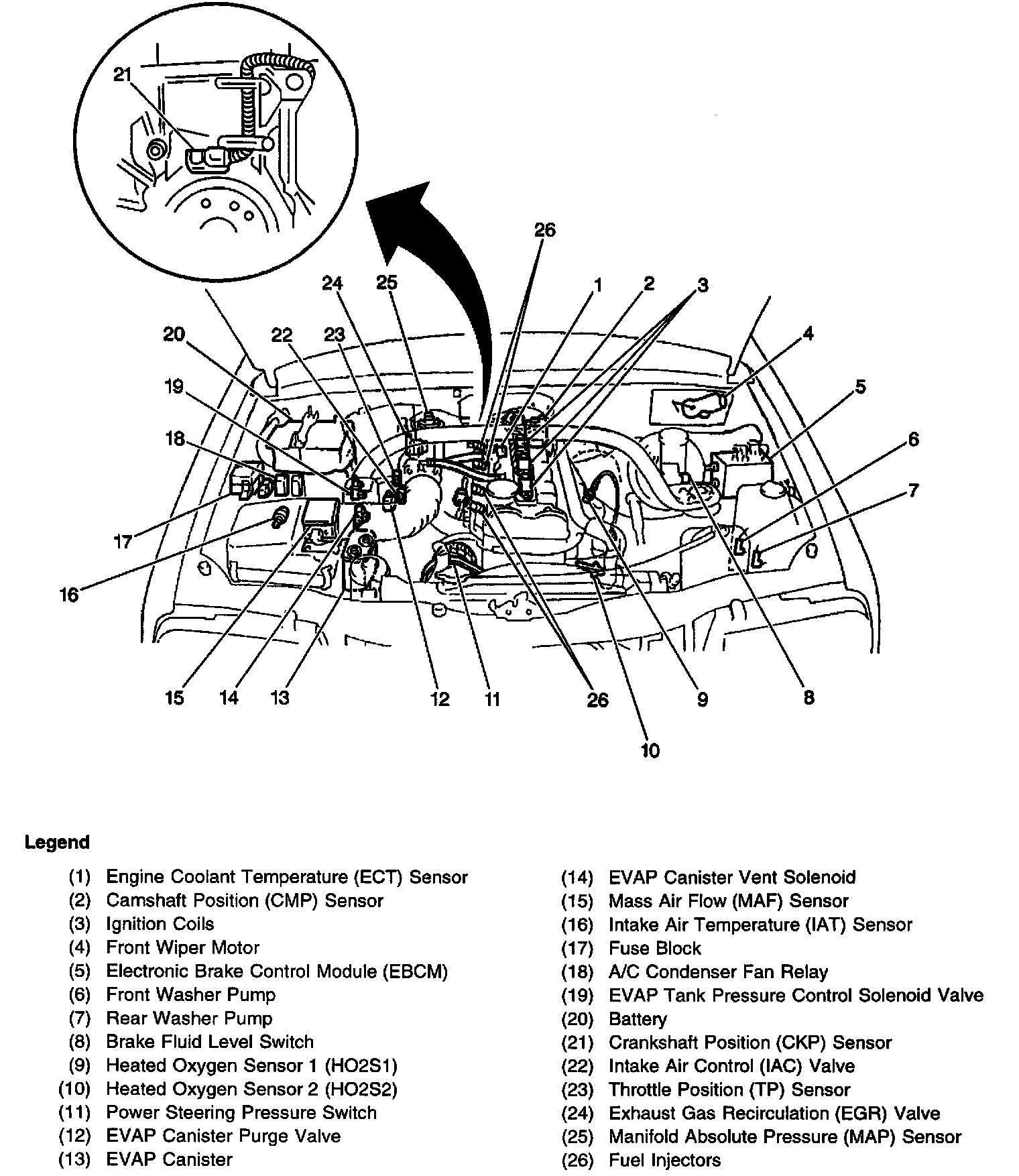

Locations View:

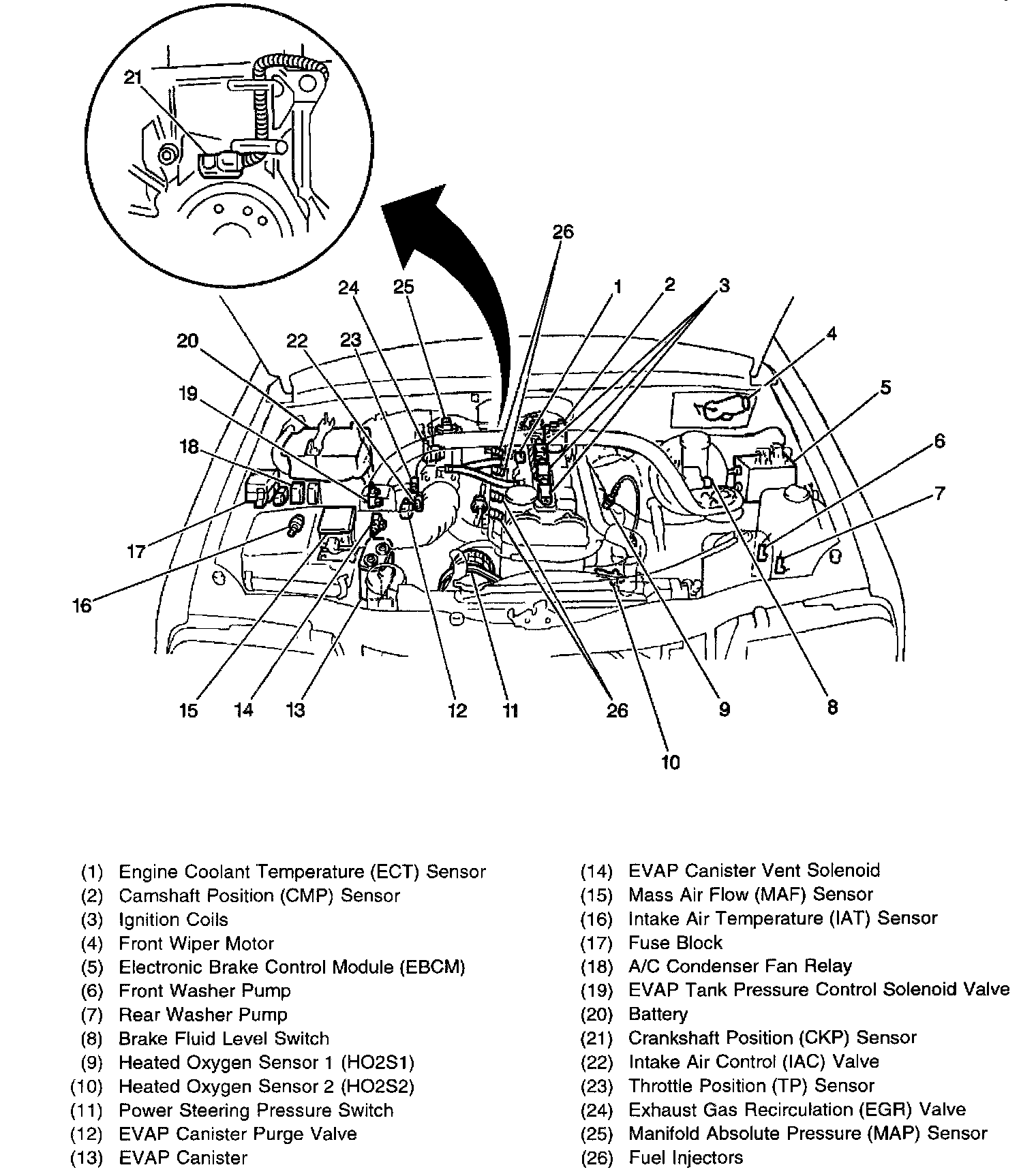

Locations View:




EBCM/BPMV Assembly Component View:




Locations View:




Locations View:
