Entertainment Connector End Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

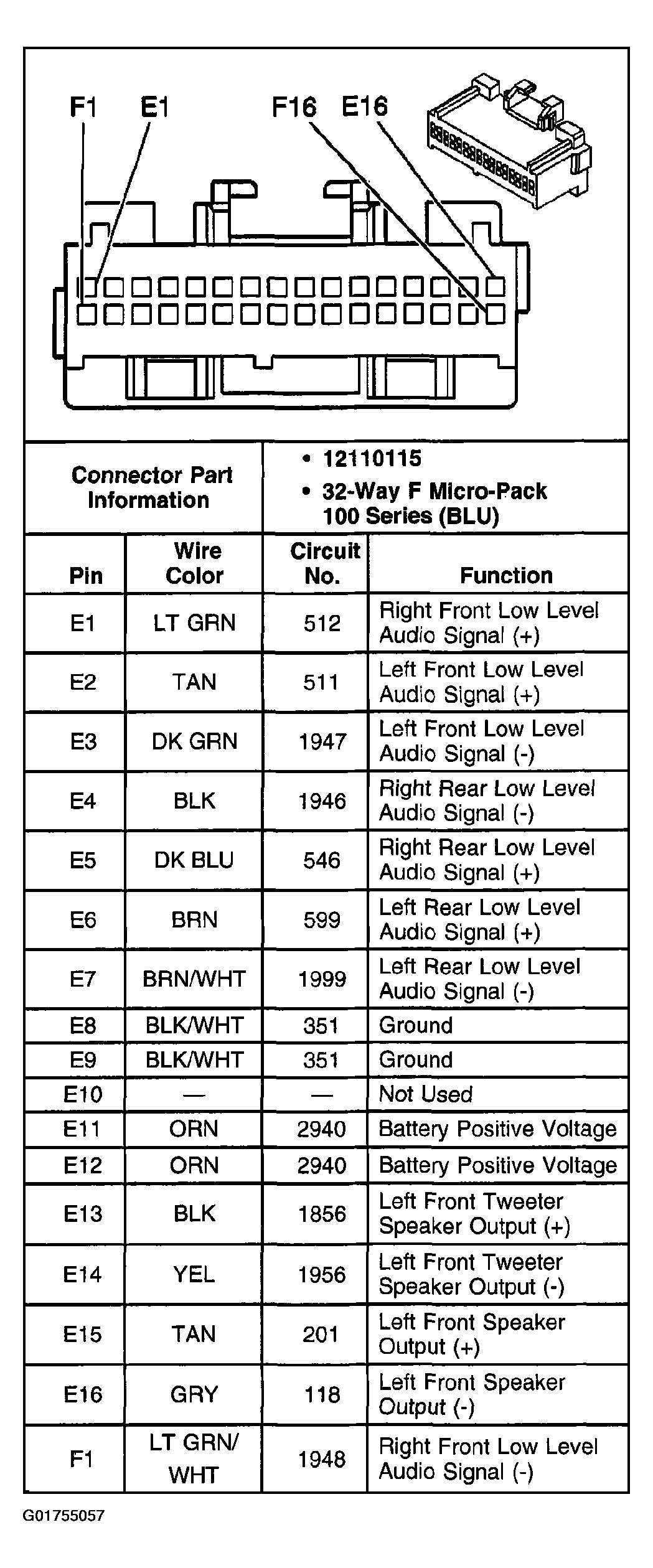

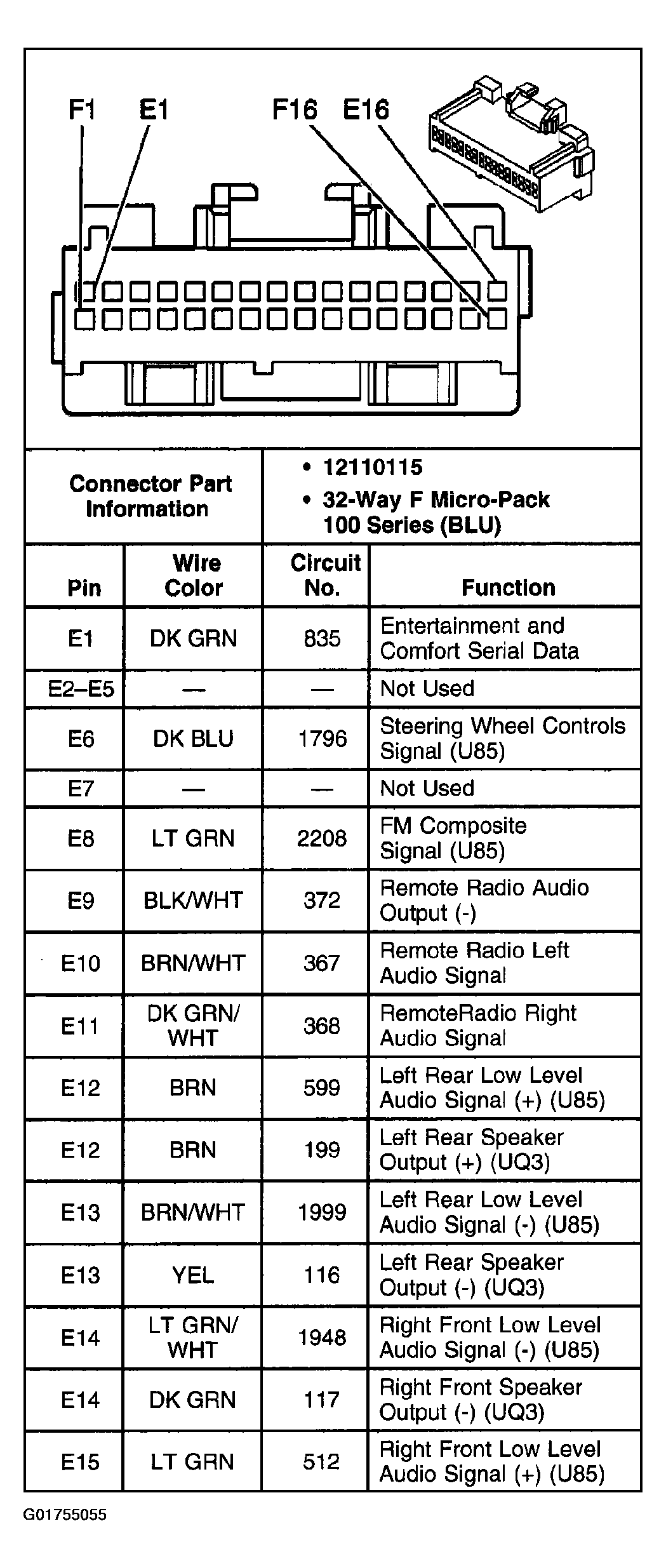

Fig 1: Identifying Radio Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

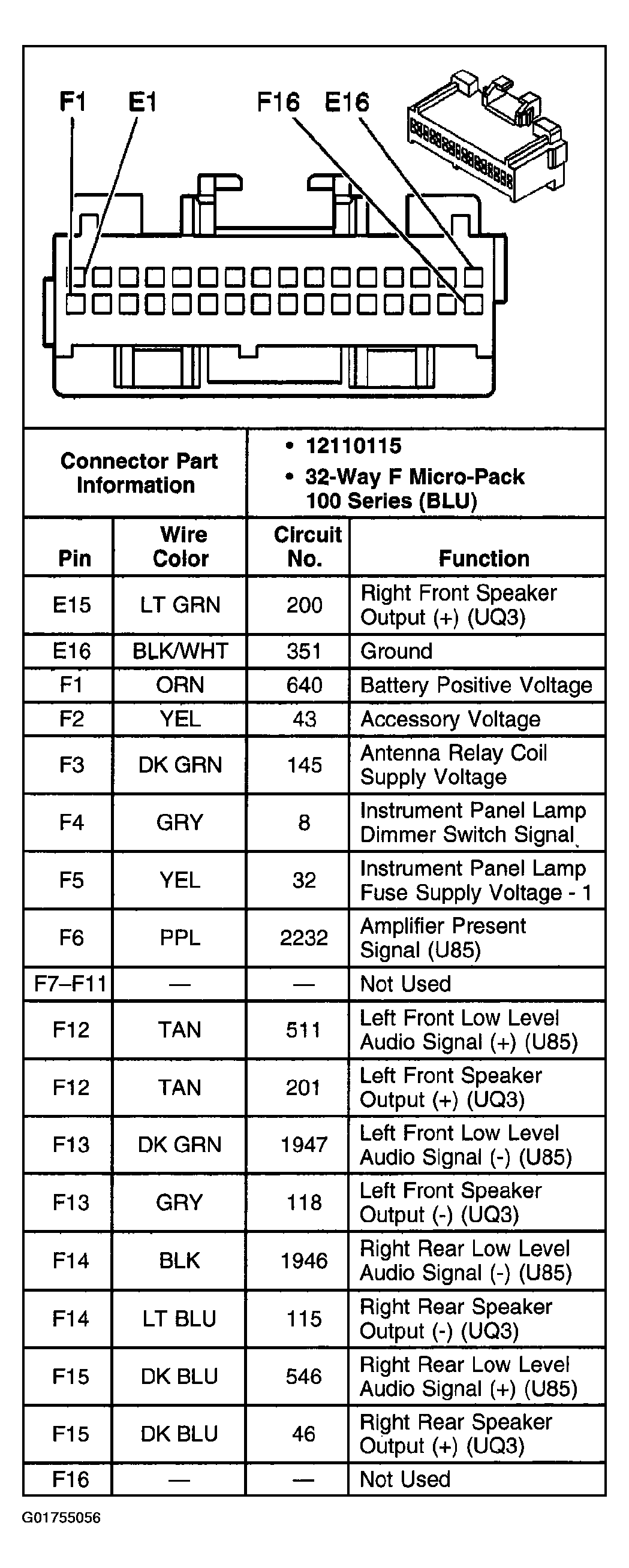

Fig 2: Identifying Radio Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

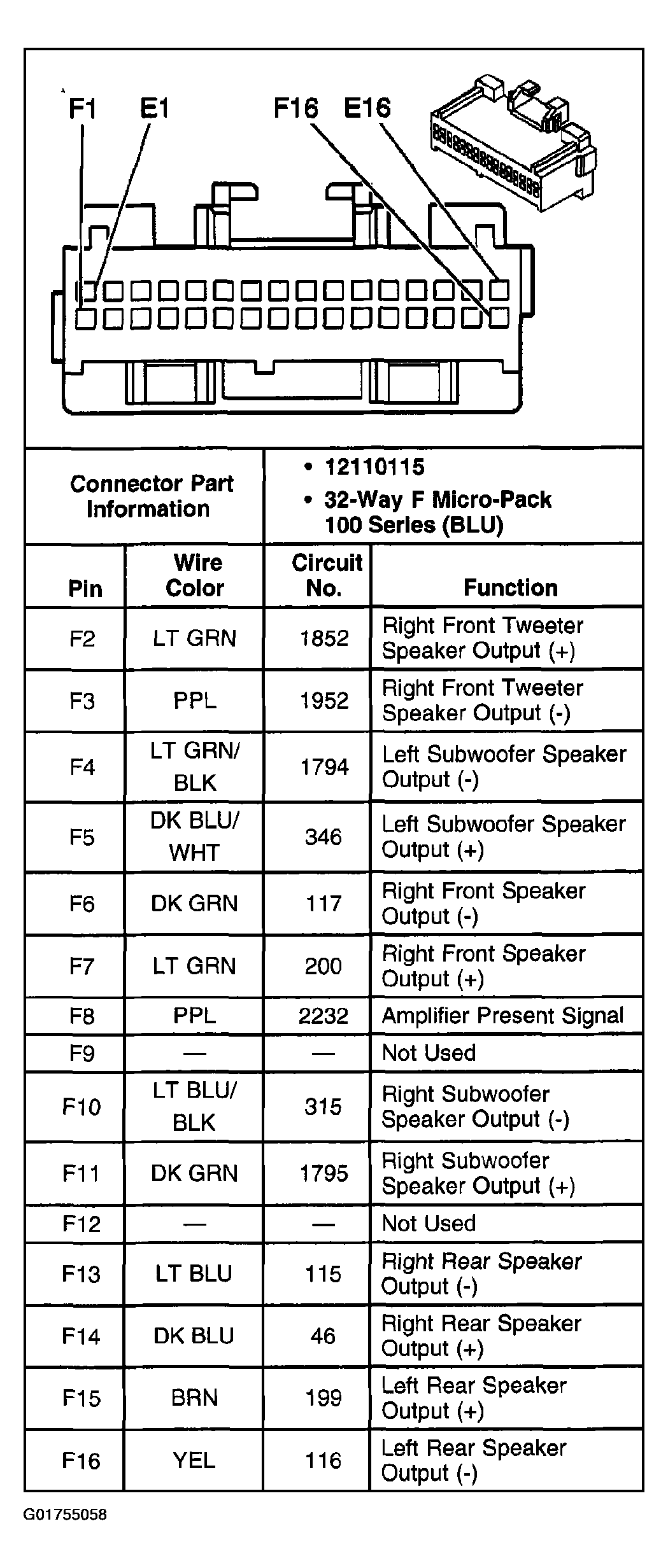

Fig 3: Identifying Audio Amplifier (U85 - Speaker System 8, Quad Front Door Mounted) Connector End View (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Audio Amplifier (U85 - Speaker System 8, Quad Front Door Mounted) Connector End View (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

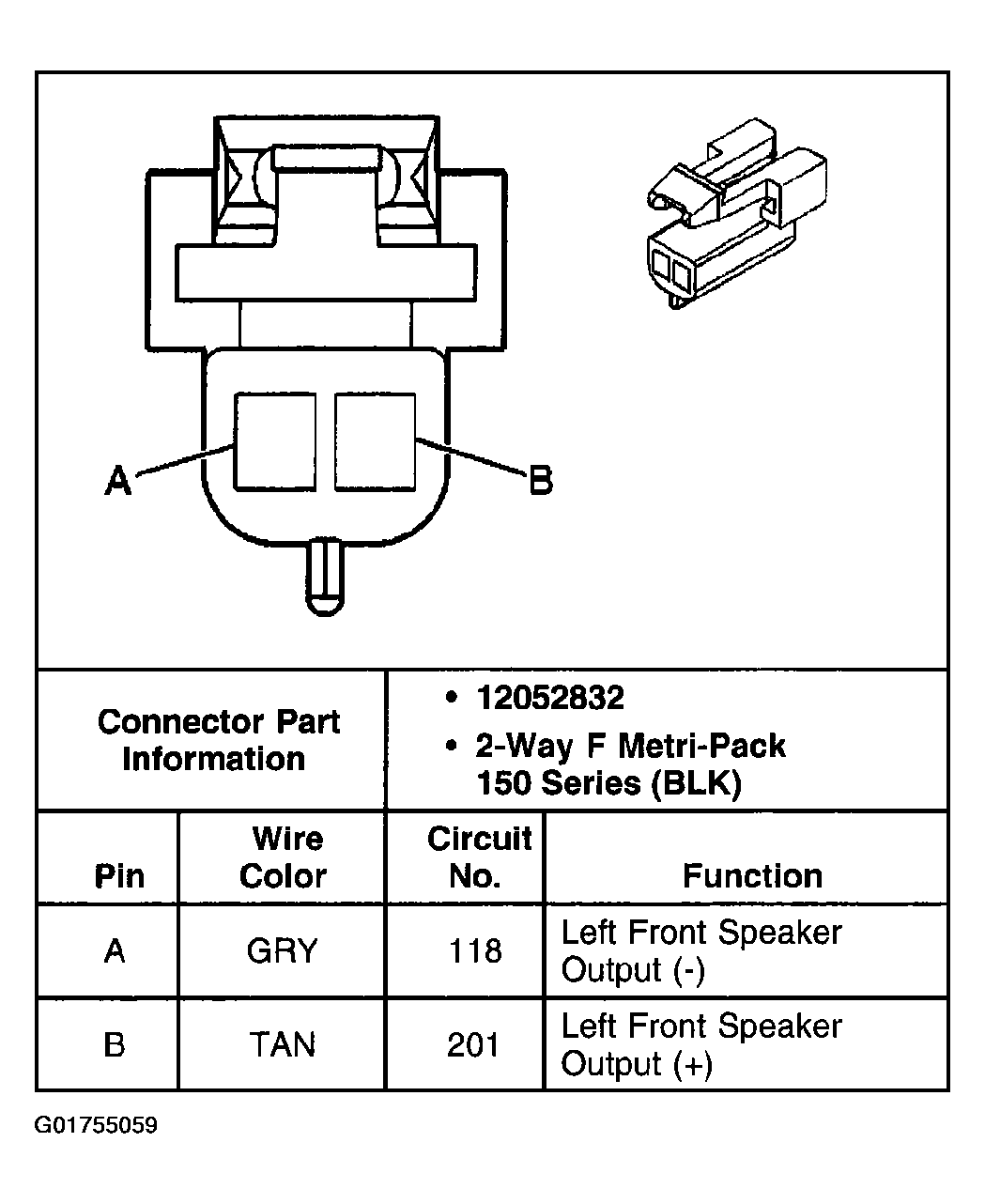

Fig 5: Identifying Speaker-LF Door Midrange Connector End View

Courtesy of GENERAL MOTORS CORP.

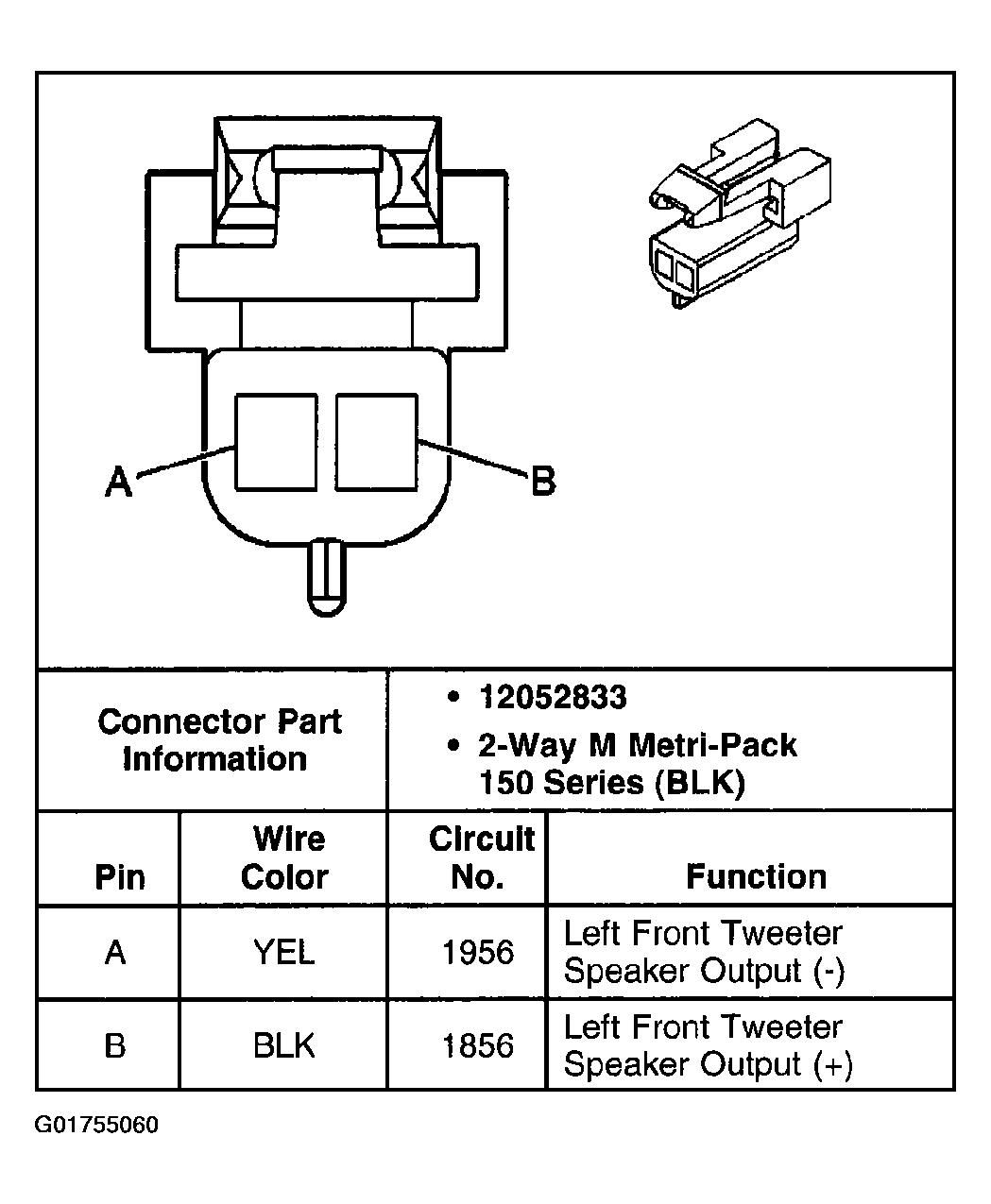

Fig 6: Identifying Speaker - LF Door Tweeter (U85 - Speaker System 8, Quad Front Door Mounted) Connector End View

Courtesy of GENERAL MOTORS CORP.

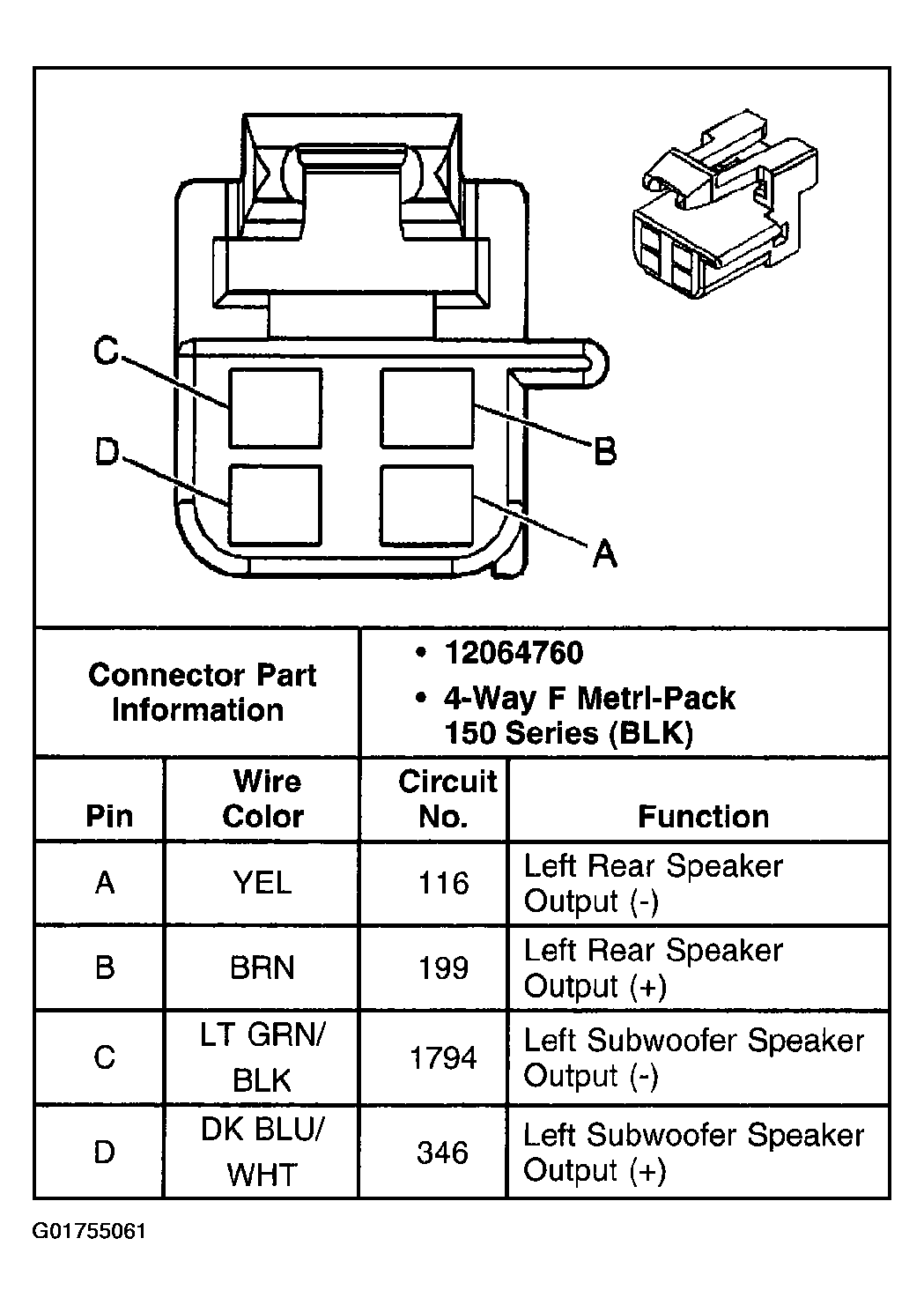

Fig 7: Identifying Speaker - LR (U85 - Speaker System 8, Quad Front Door Mounted) Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Speaker - LR (UQ3, Performanced Enhanced Audio Speakers) Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Speaker - RF Door Midrange Connector End View

Courtesy of GENERAL MOTORS CORP.

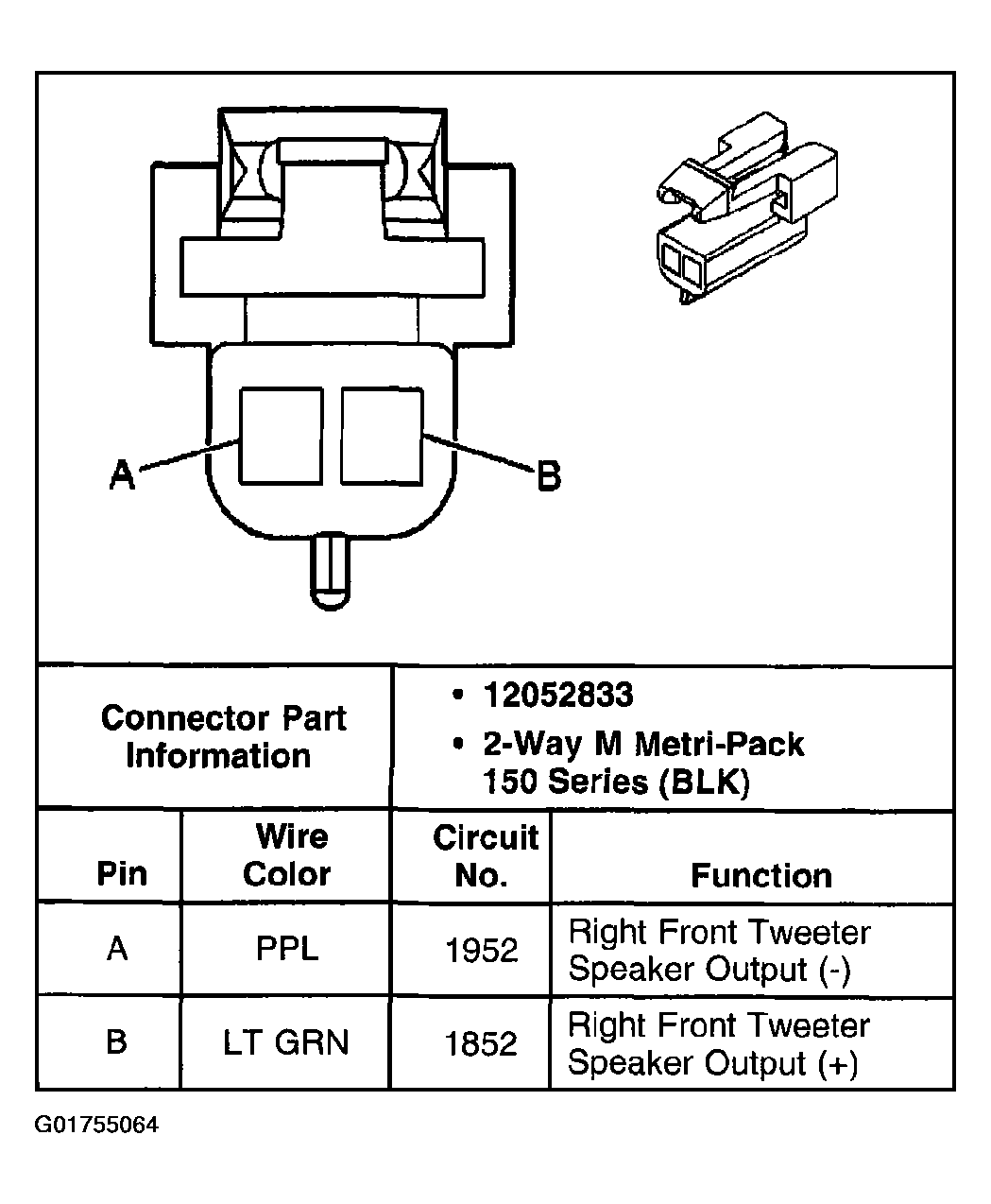

Fig 10: Identifying Speaker - RF Door Tweeter (U85 - Speaker System 8, Quad Front Door Mounted) Connector End View

Courtesy of GENERAL MOTORS CORP.

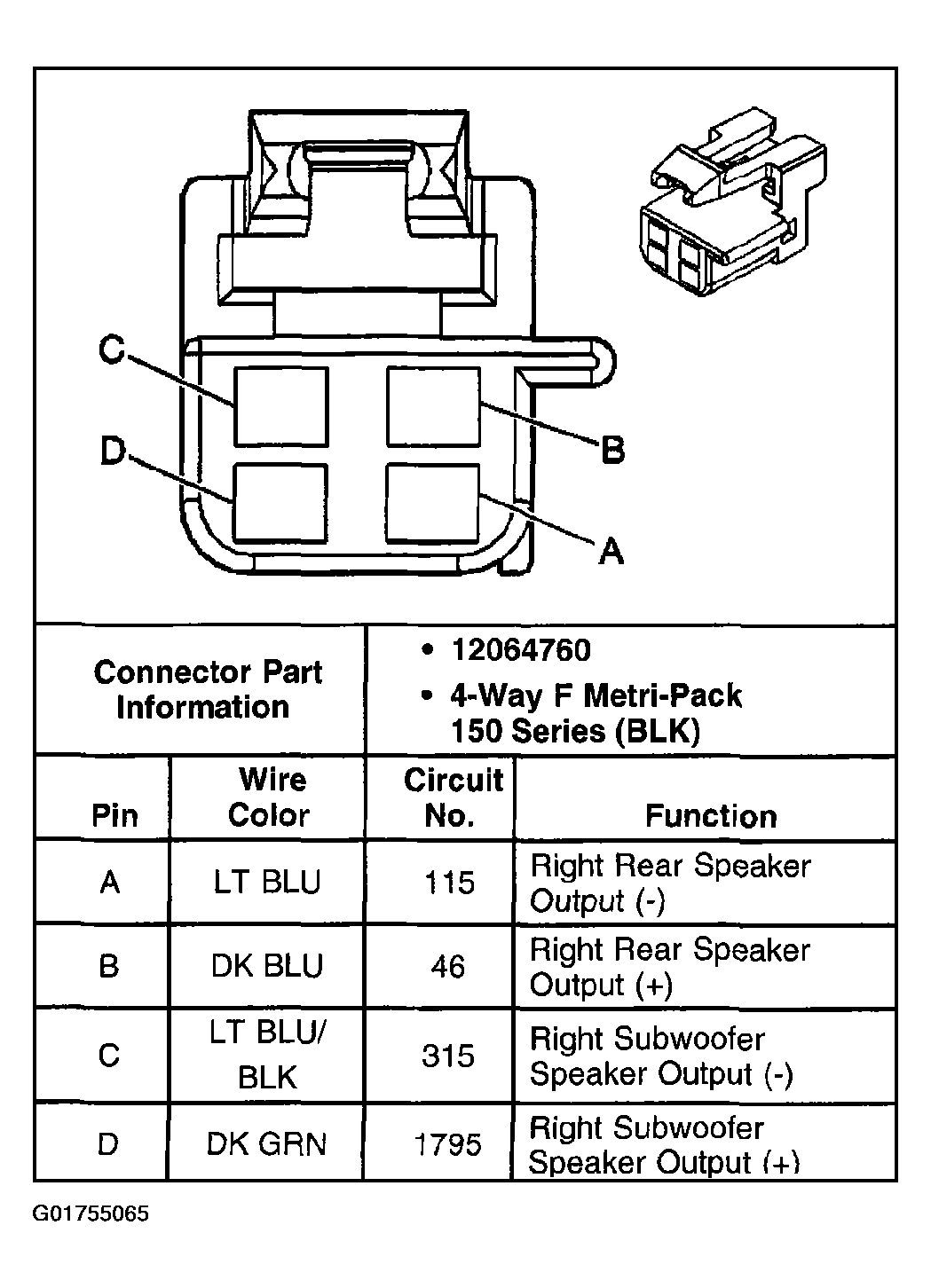

Fig 11: Identifying Speaker - RR (U85 - Speaker System 8, Quad Front Door Mounted) Connector End View

Courtesy of GENERAL MOTORS CORP.

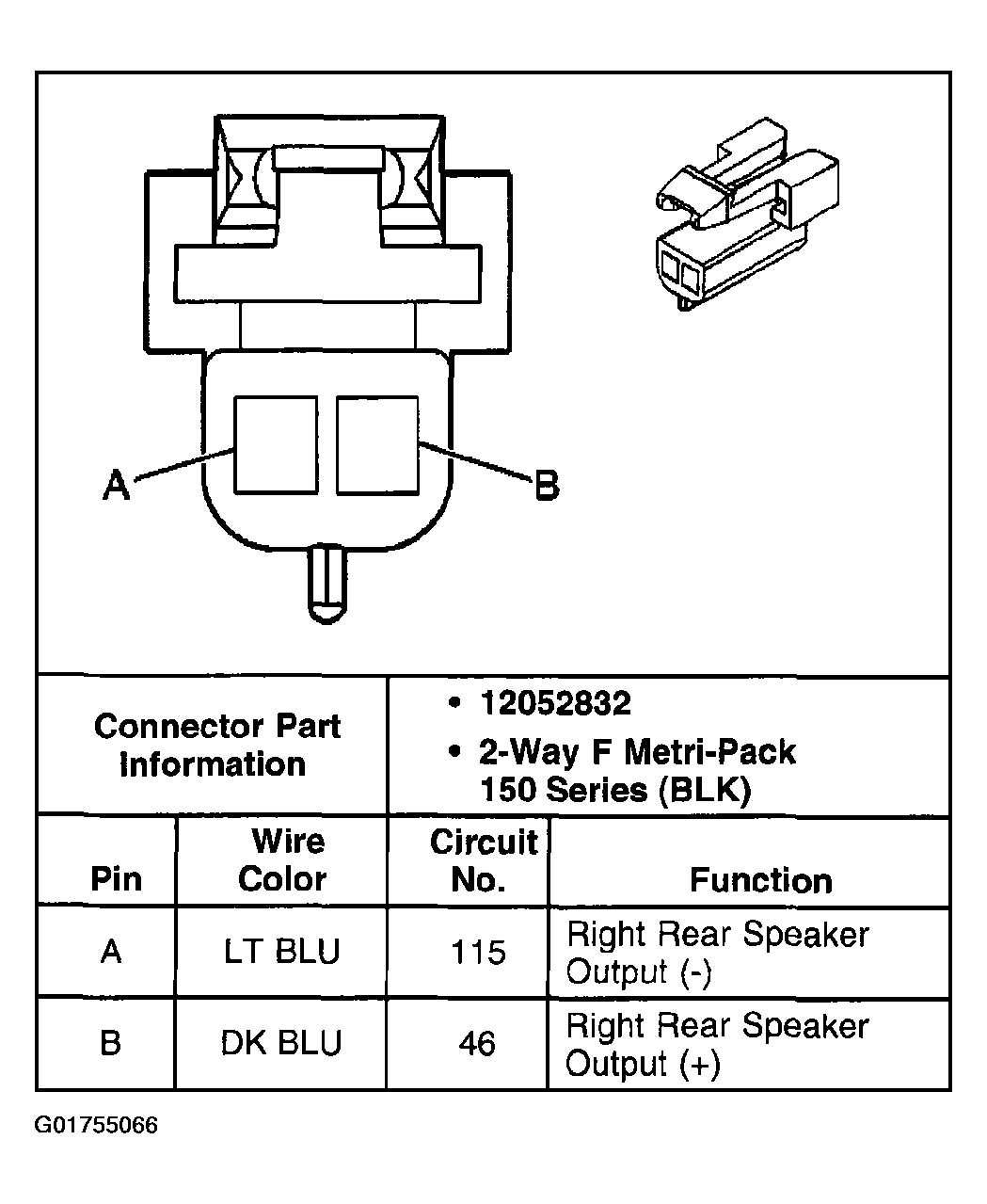

Fig 12: Identifying Speaker - RR (UQ3, Performanced Enhanced Audio Speakers) Connector End View

Courtesy of GENERAL MOTORS CORP.
