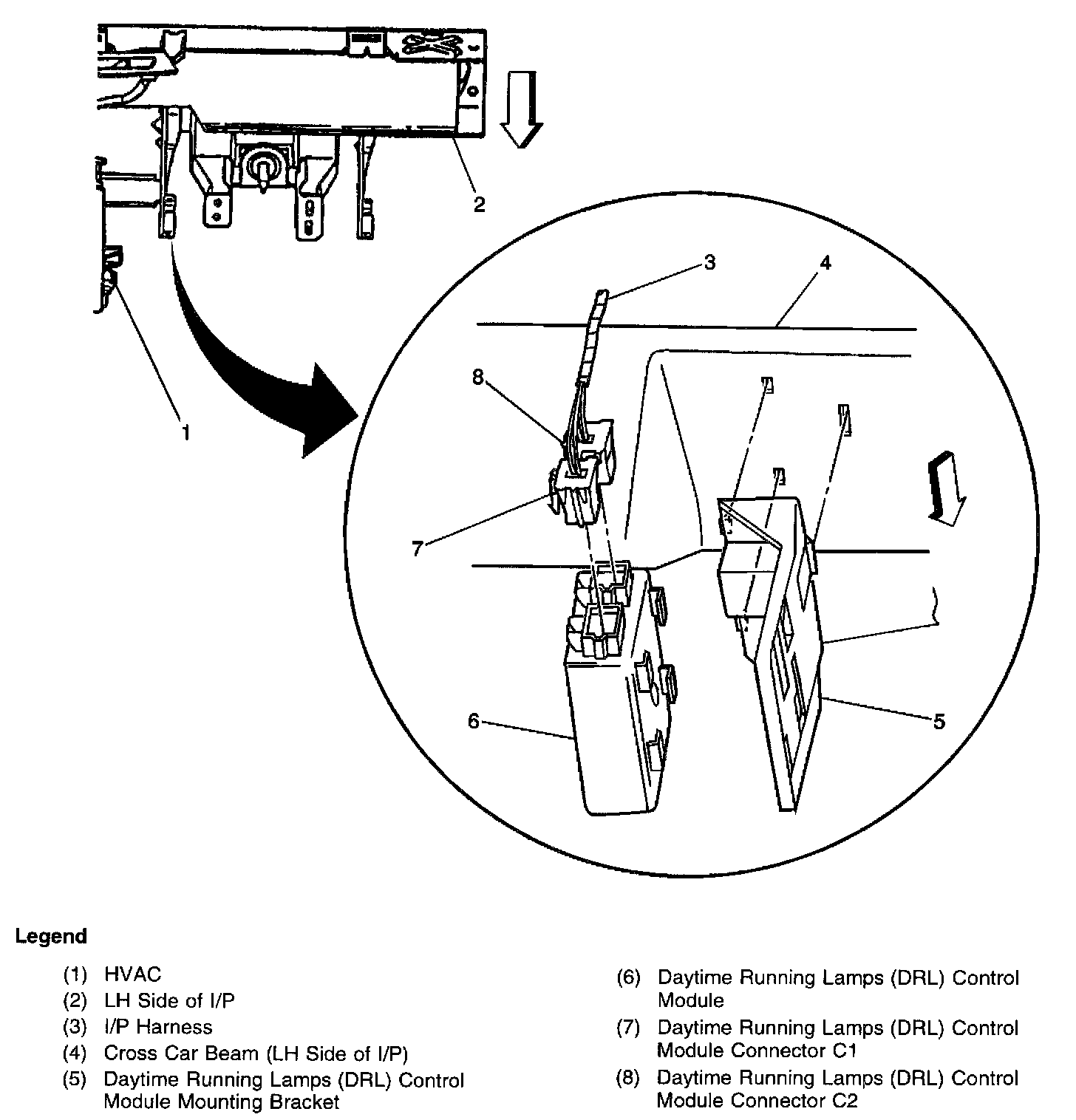

Daytime Running Lamps (DRL) Control Module

Locations View:

Right of the steering column, behind the IP
