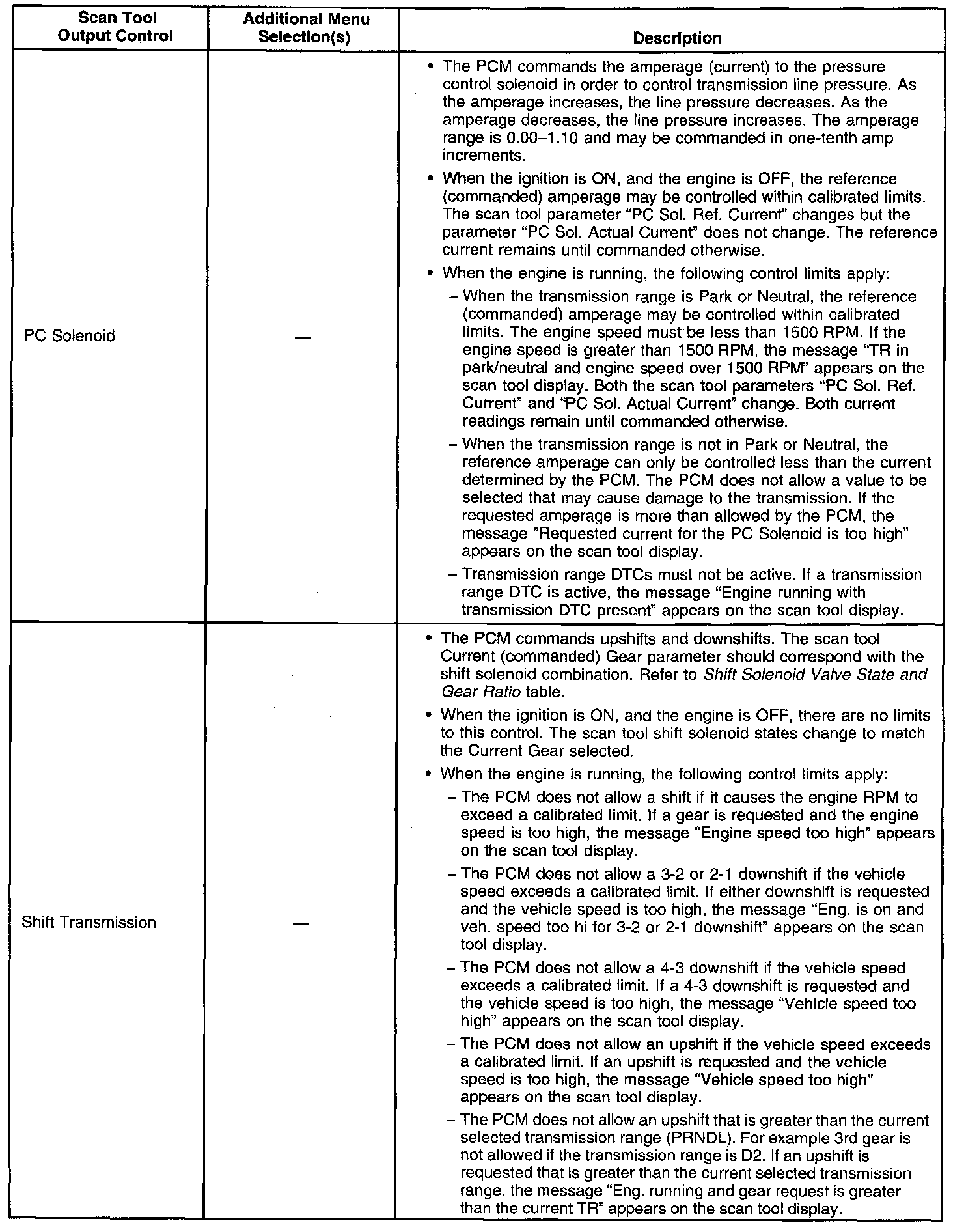

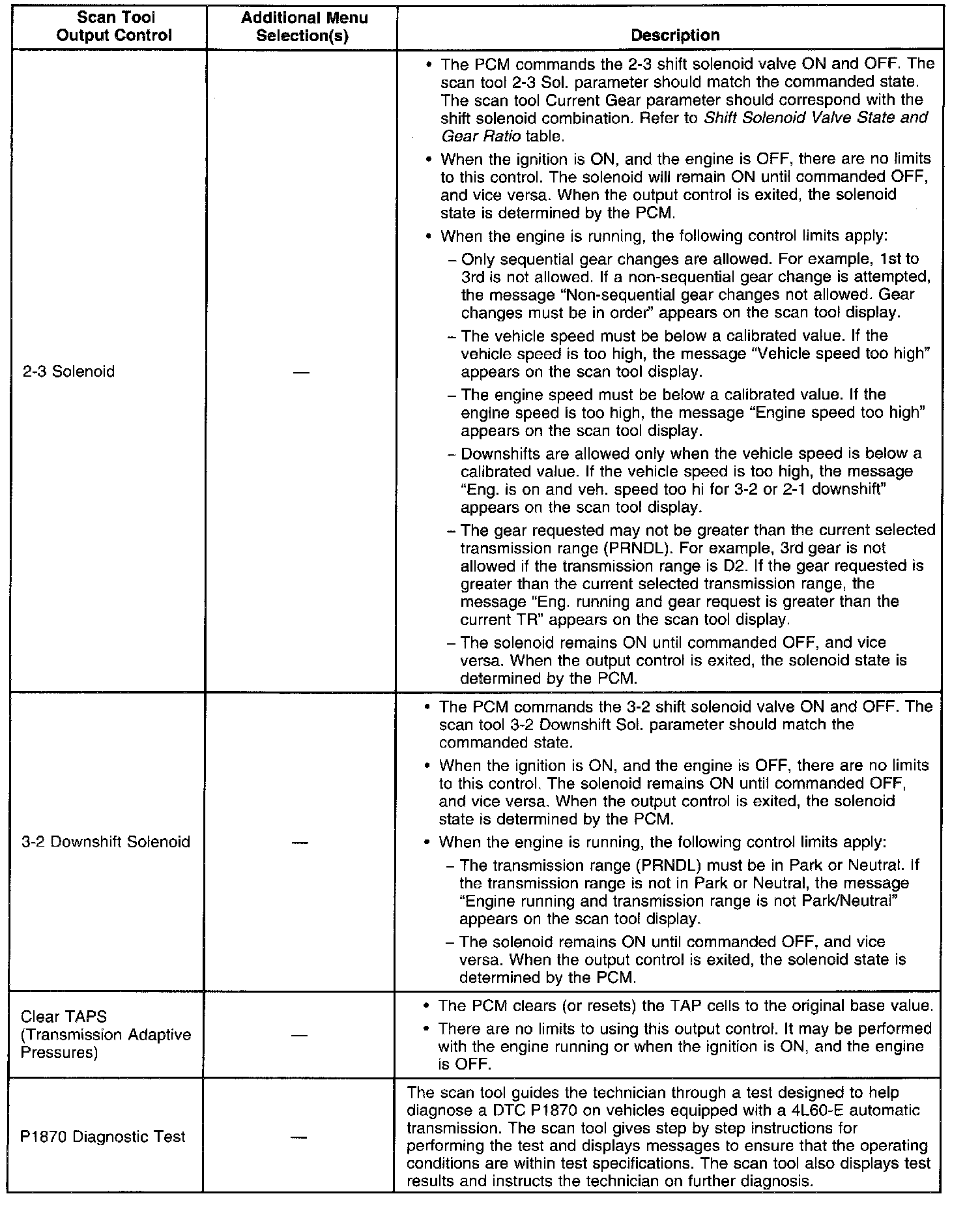

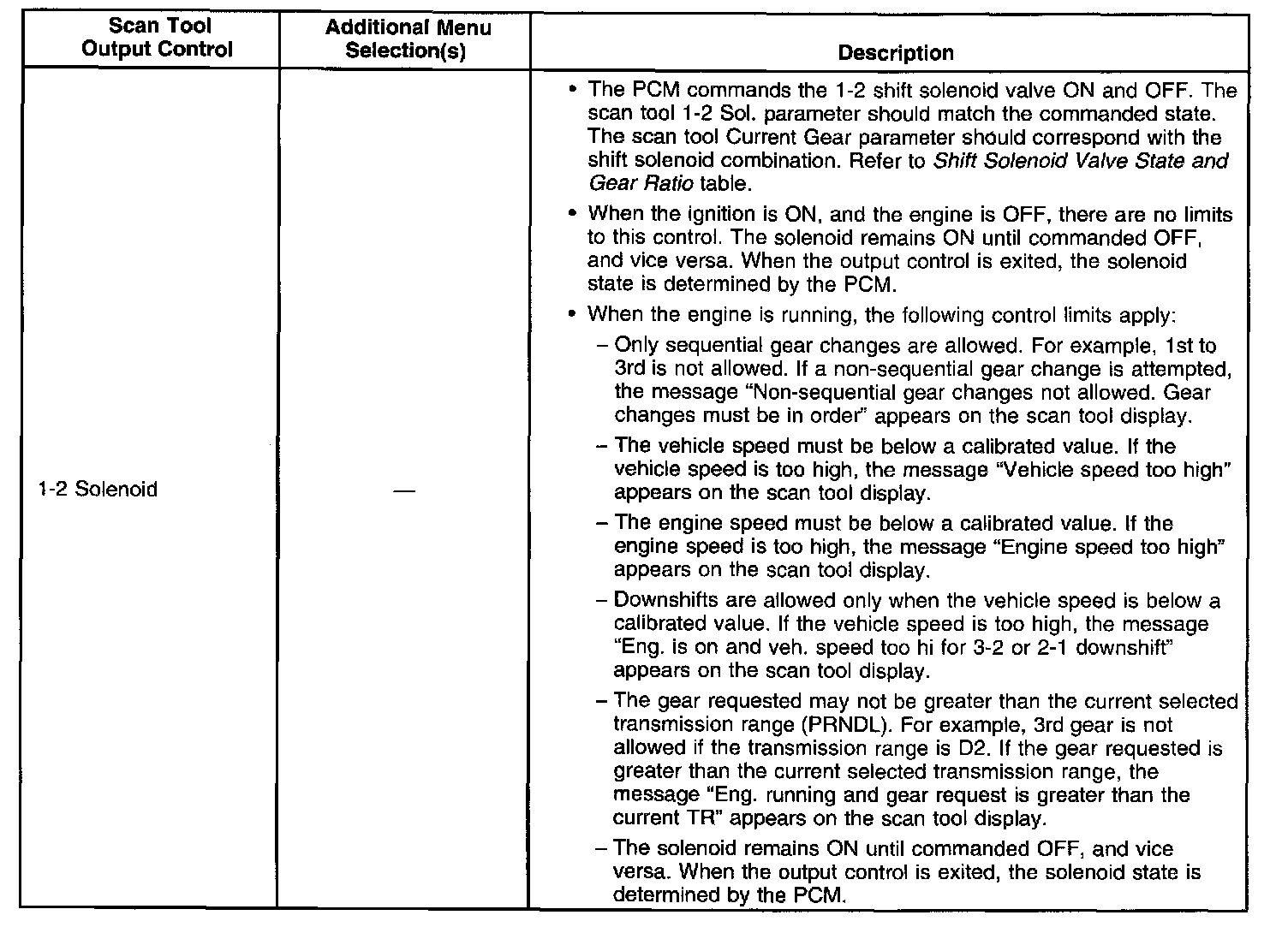

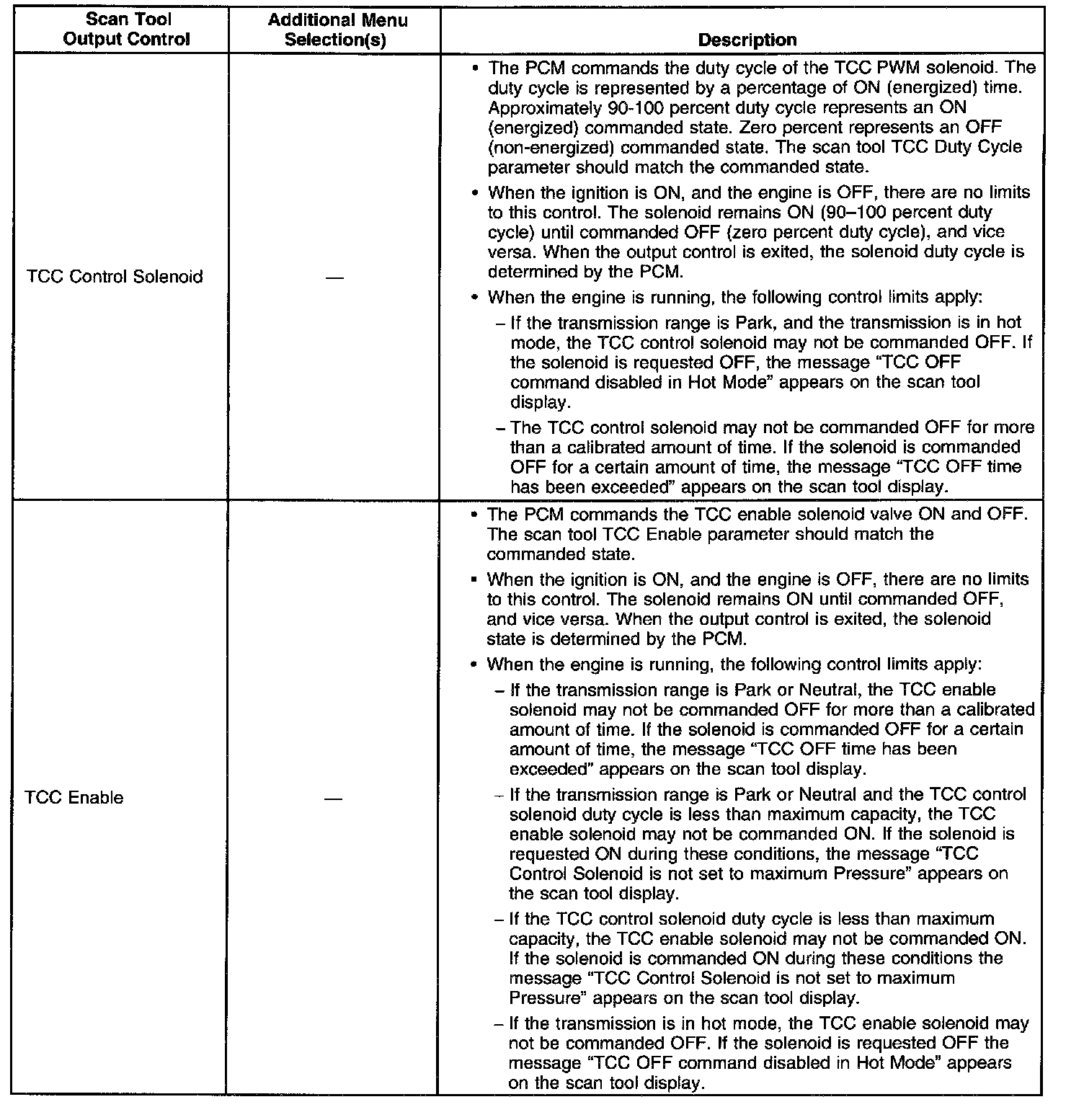

Scan Tool Output Controls





Part 1 of 2





Part 2 of 4





Part 3 of 4





Part 4 of 4

Scan Tool Output Controls
