Thread Repair Specifications

Thread Repair Specification

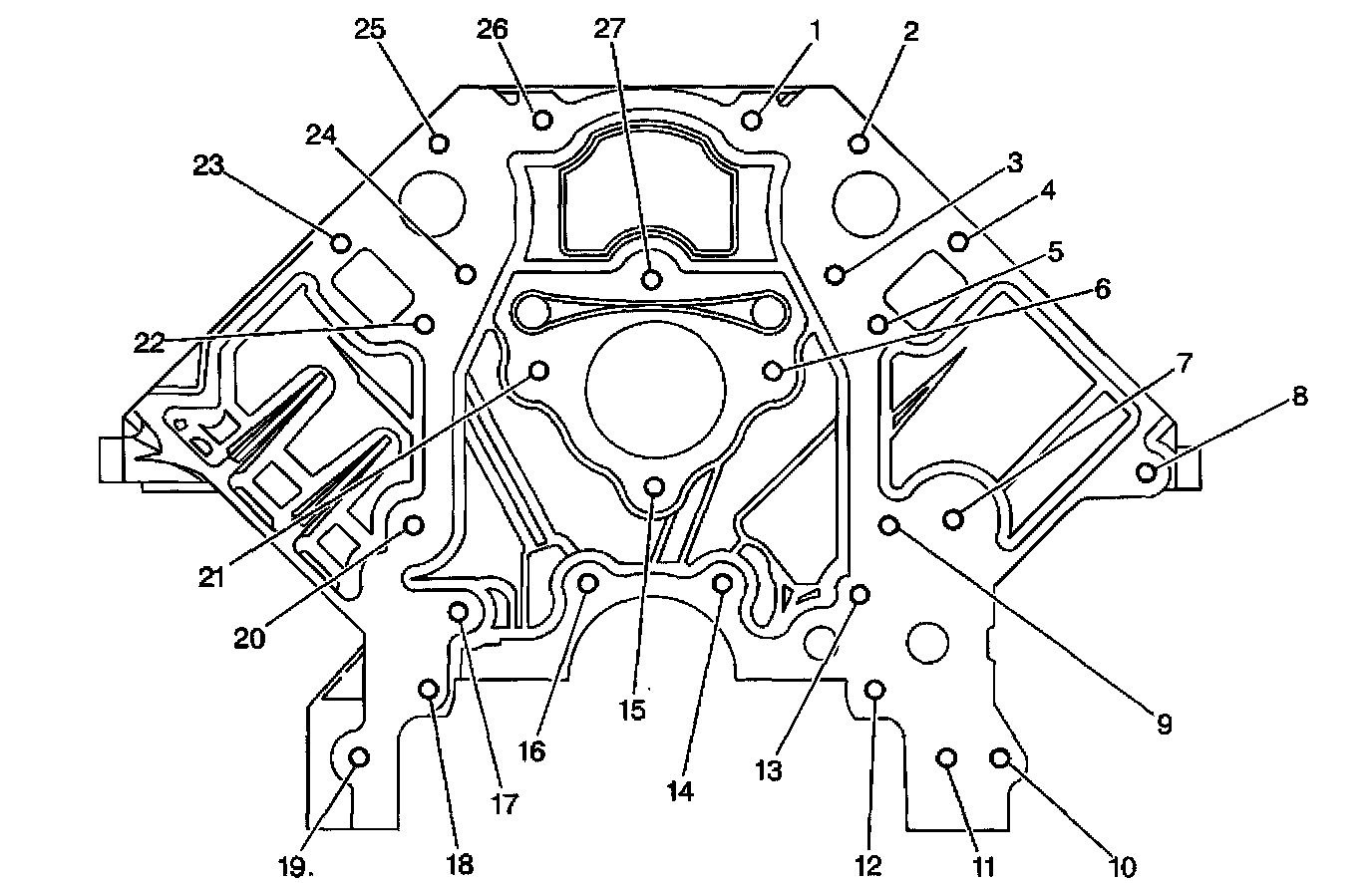

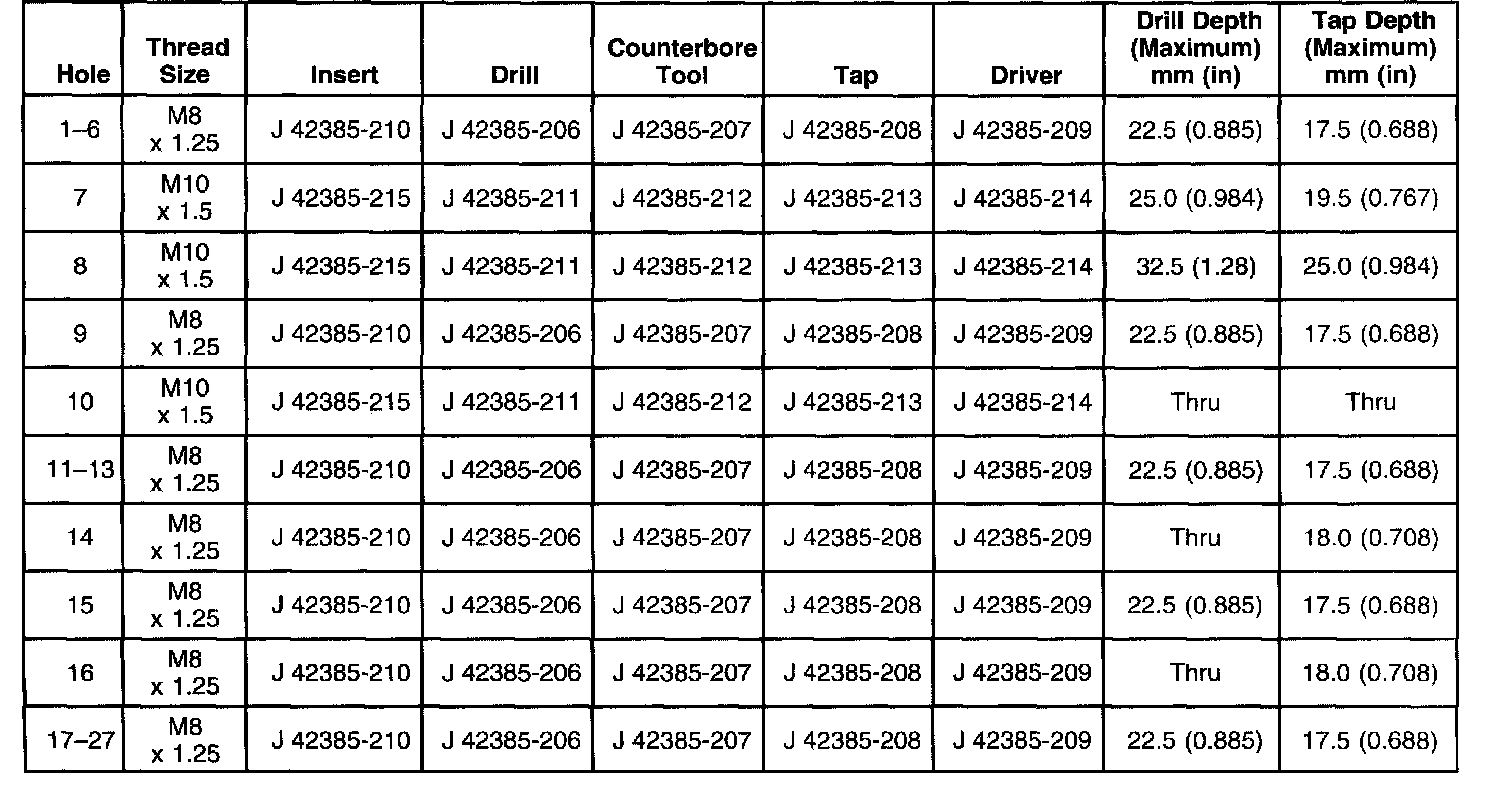

Engine Block-Front View

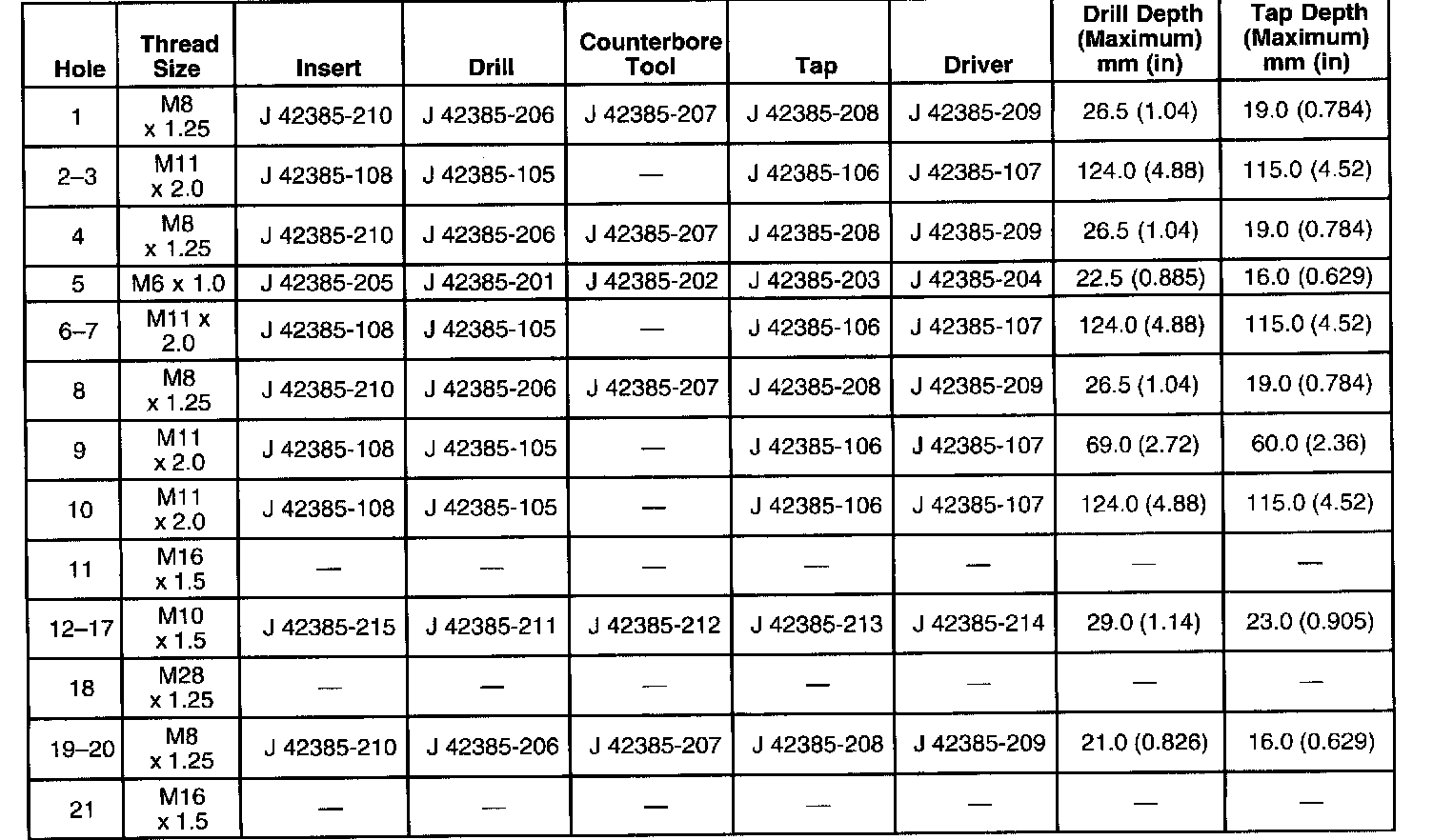

Part 1 of 2

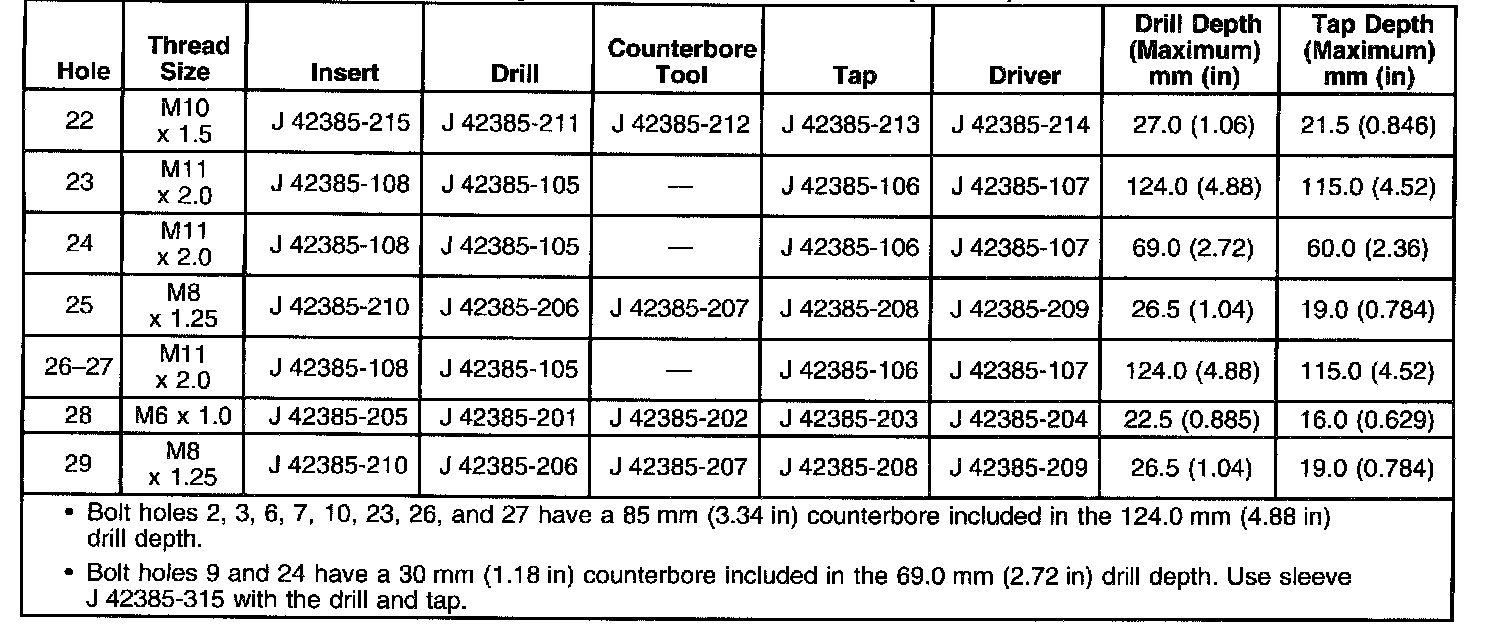

Part 2 of 2

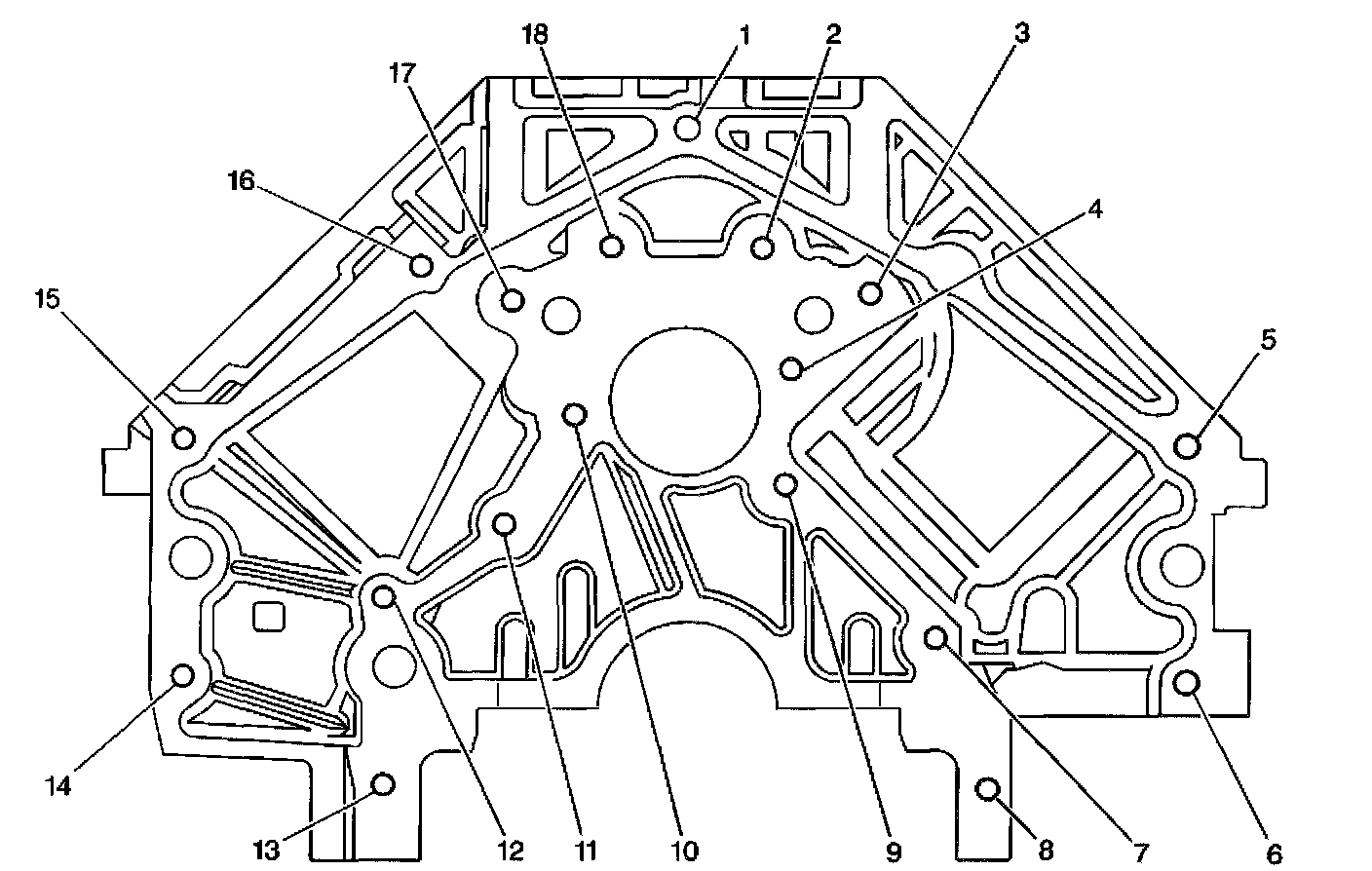

Engine Block-Rear View

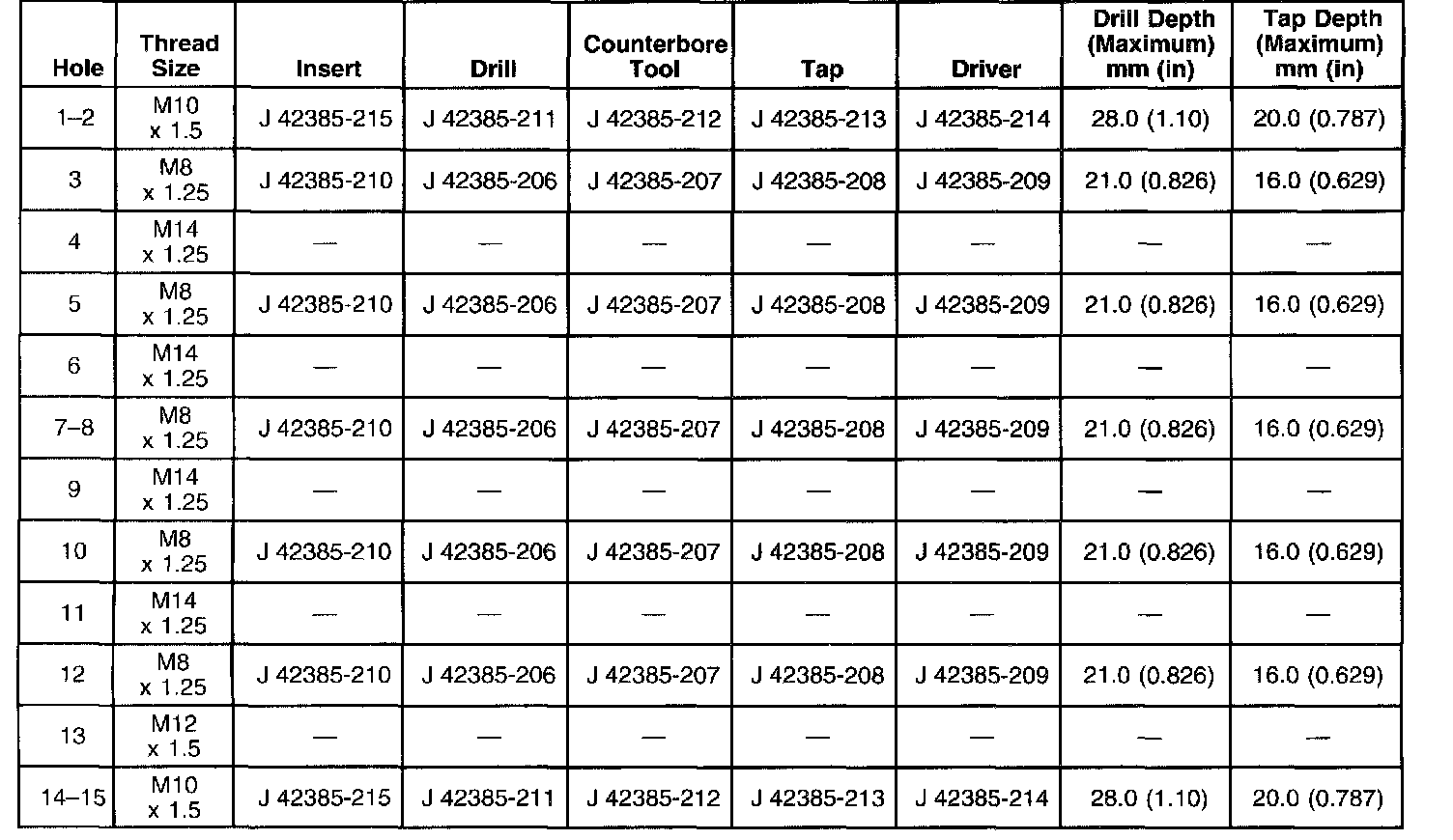

Part 1 of 2

Part 2 of 2

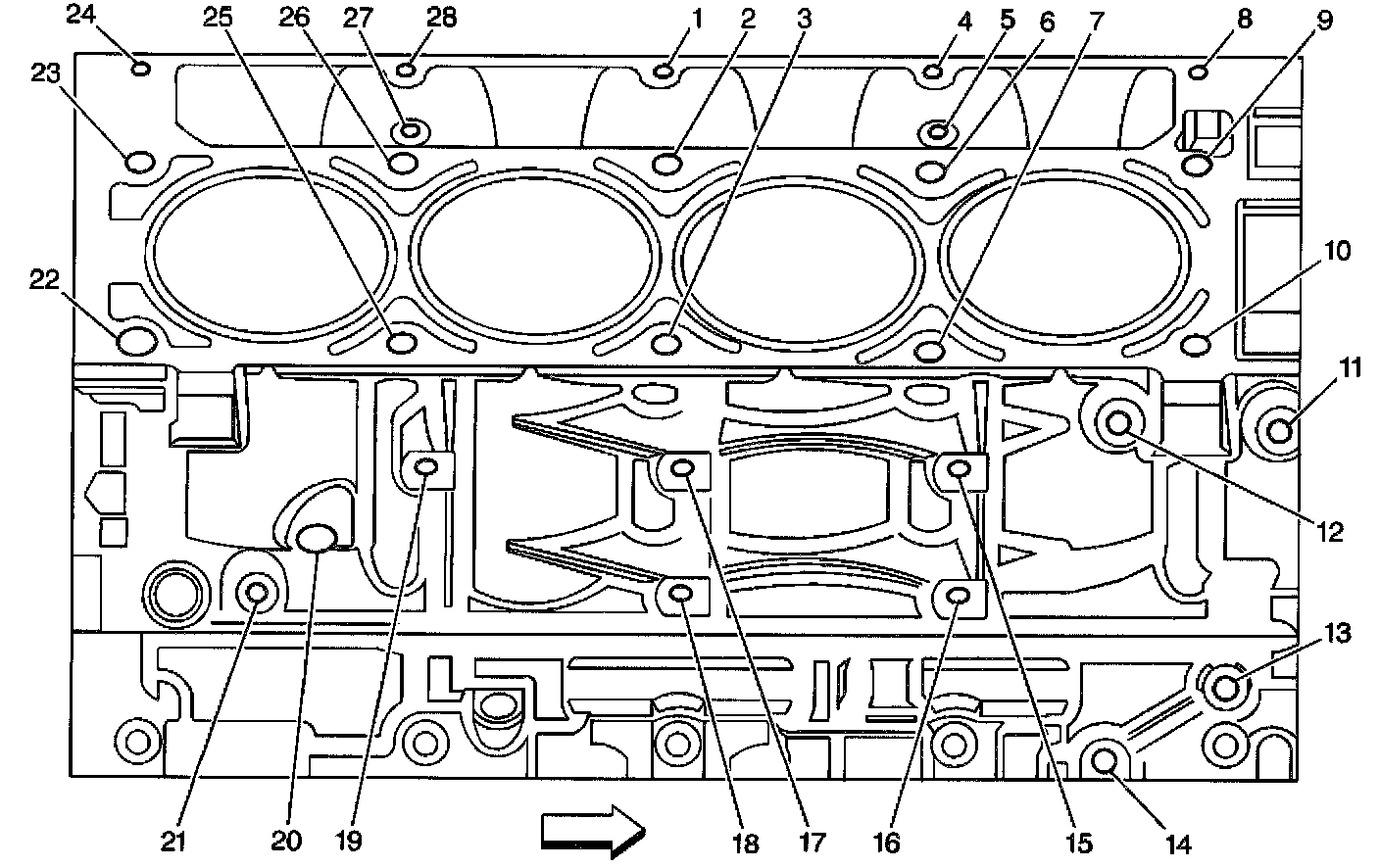

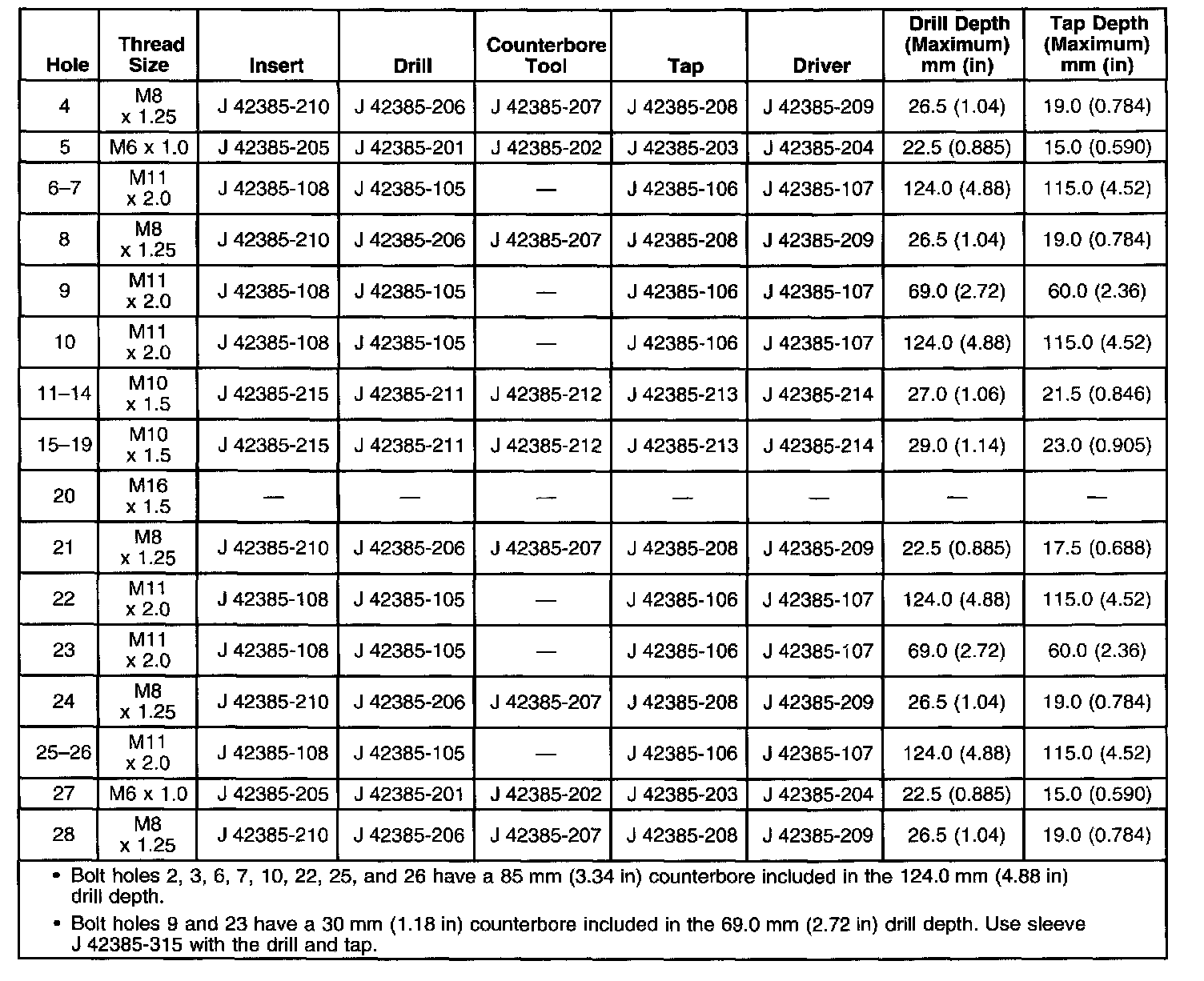

Engine Block-Left Side View

Part 1 of 3

Part 2 of 3

Part 3 of 3

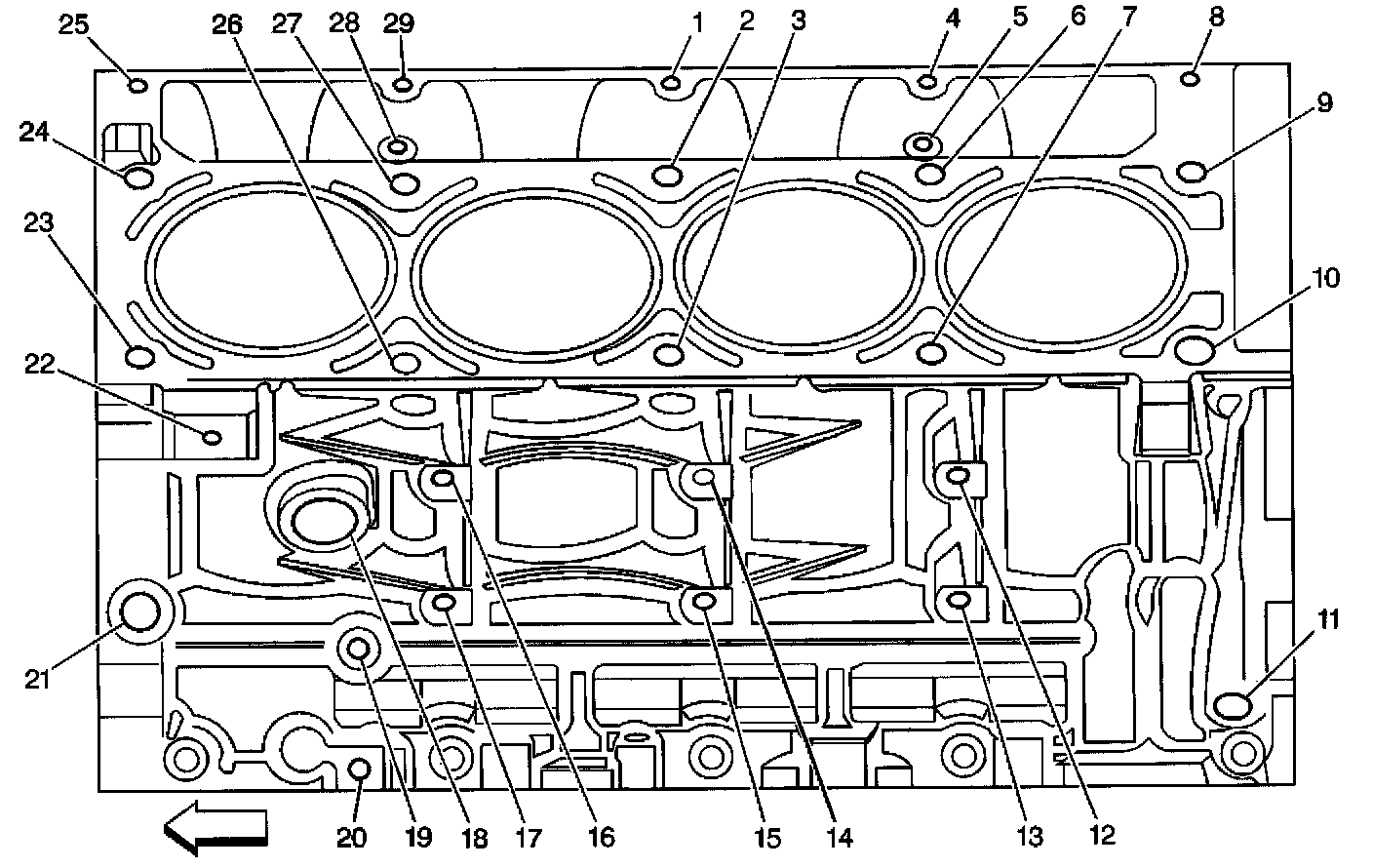

Engine Block-Right Side View

Part 1 of 3

Part 2 of 3

Part 3 of 3

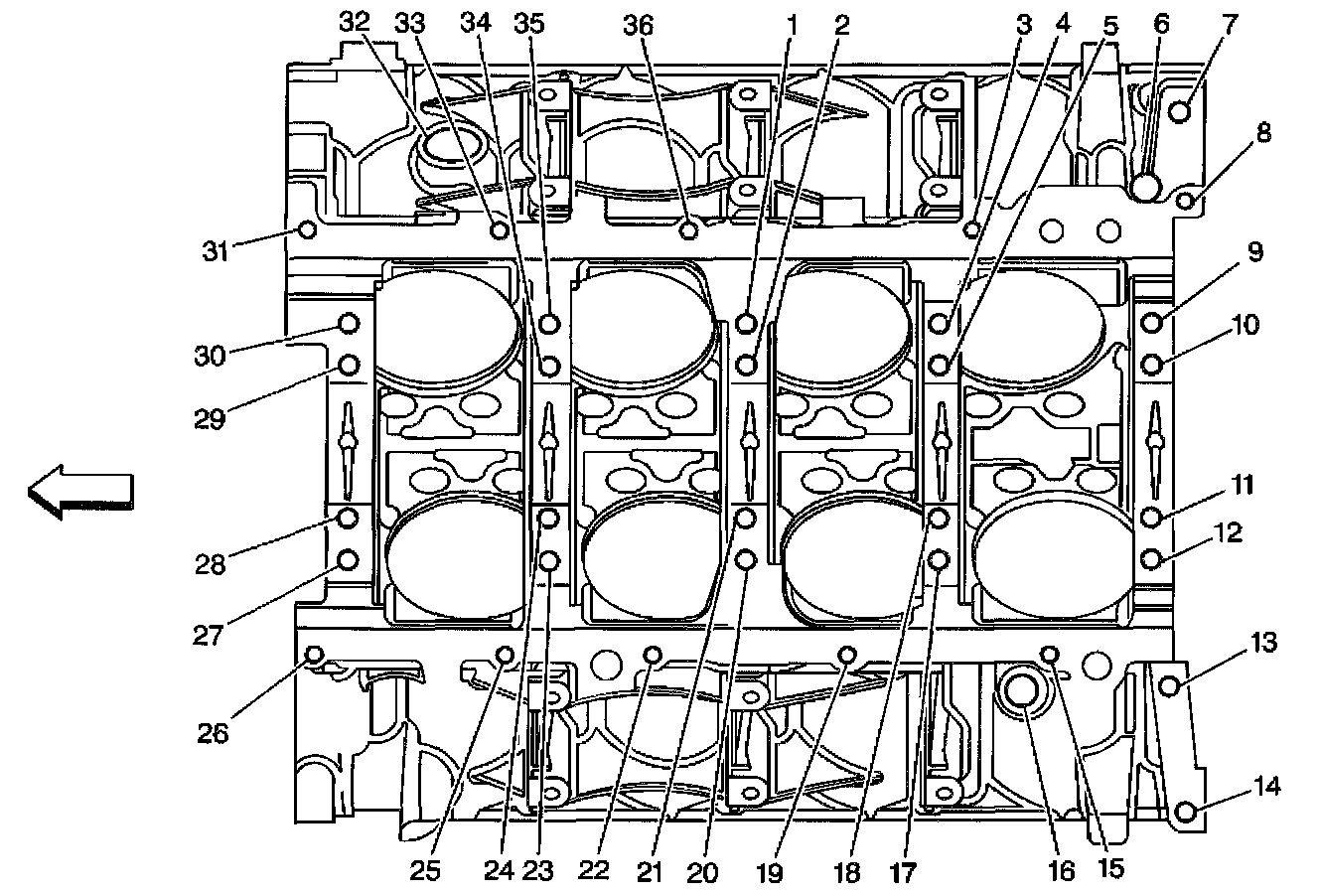

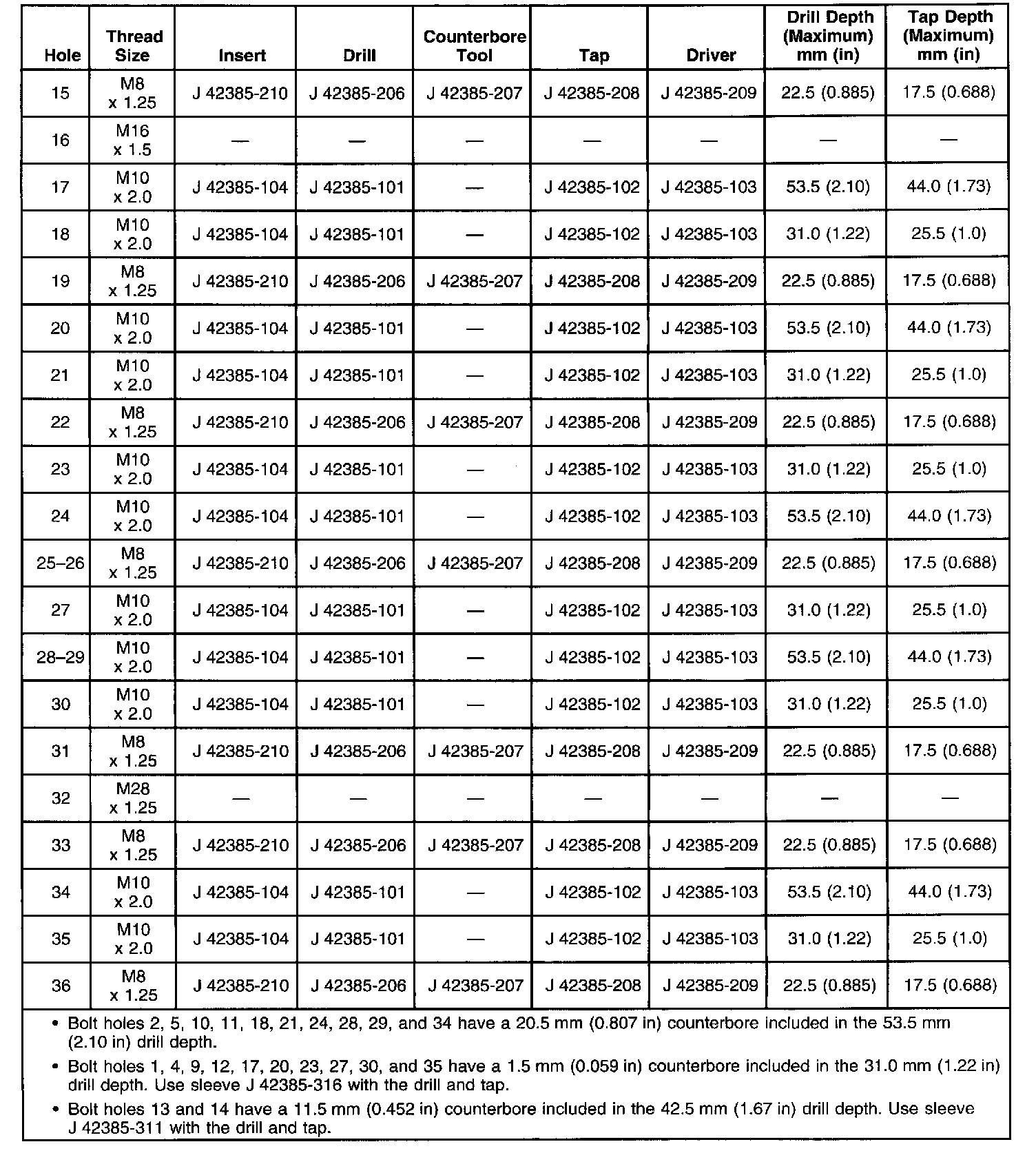

Engine Block-Bottom View

Part 1 of 3

Part 2 of 3

Part 3 of 3

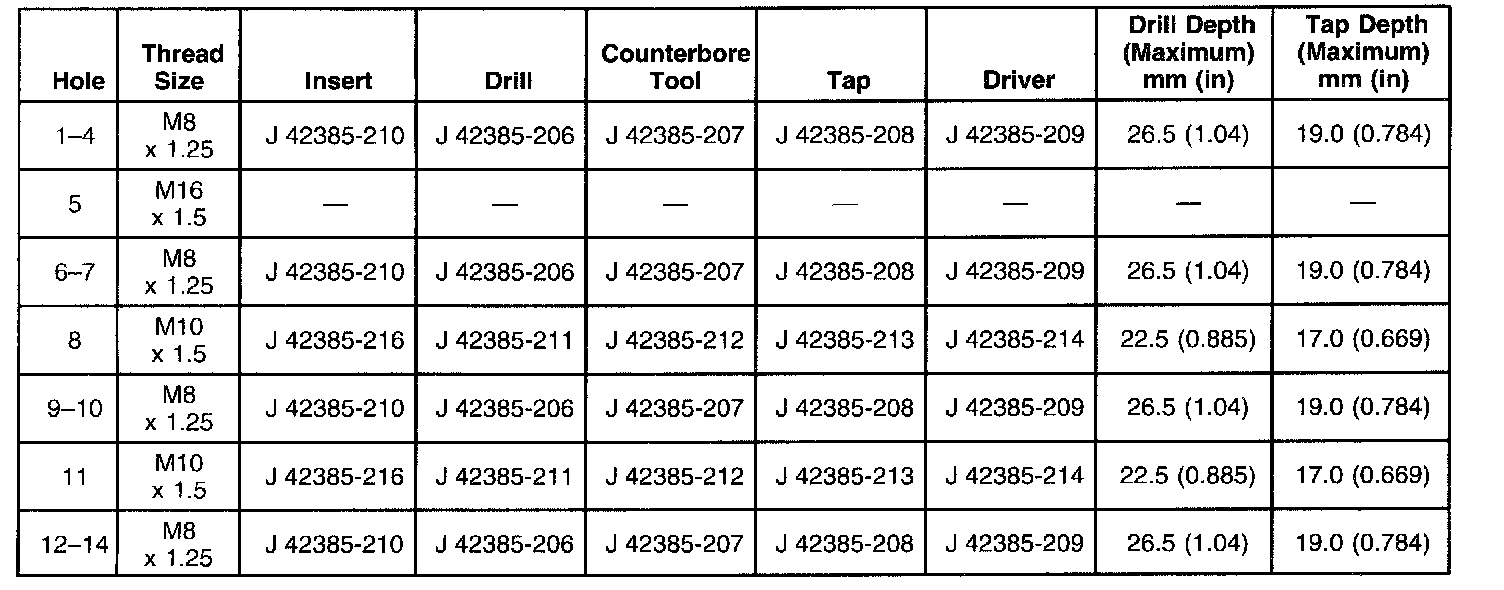

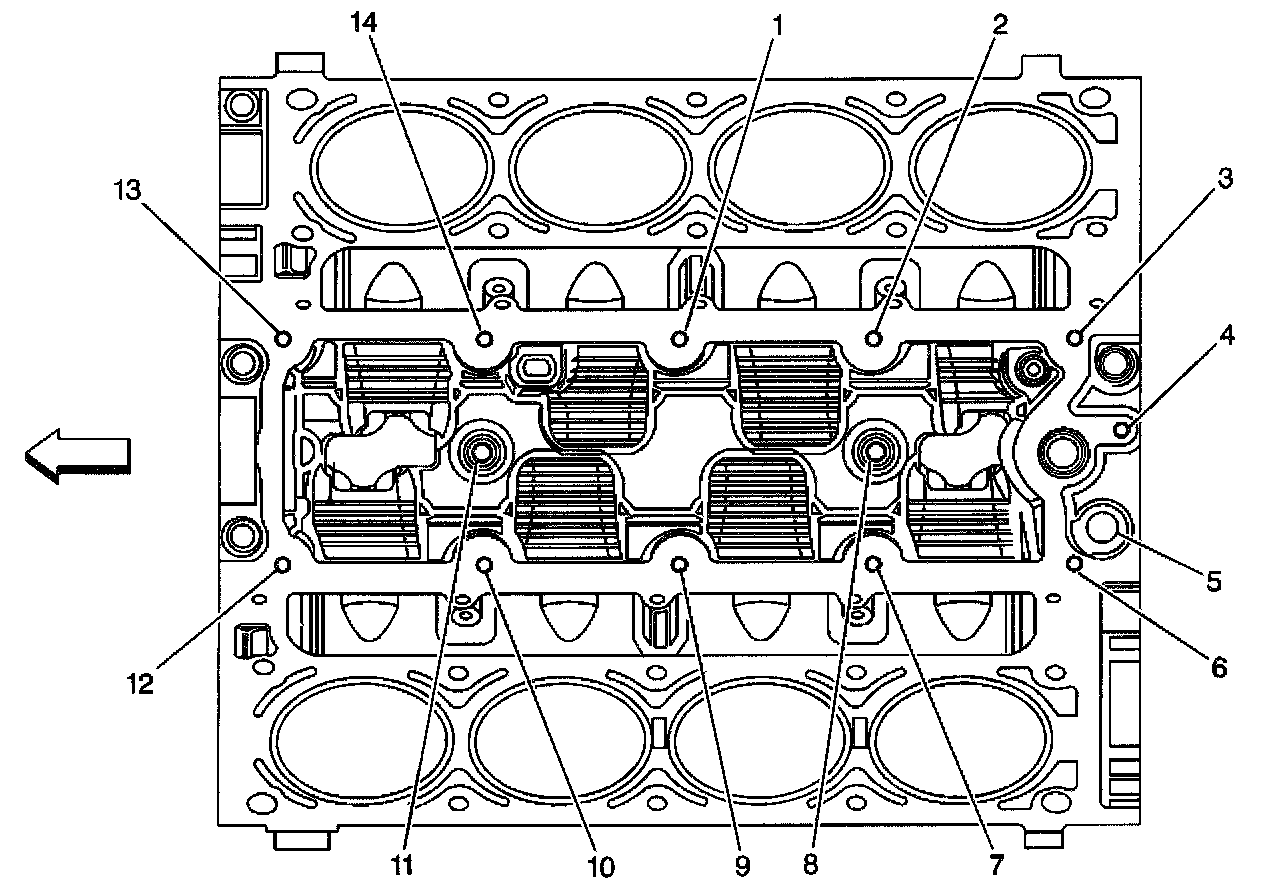

Engine Block-Top View

Part 1 of 2

Part 2 of 2

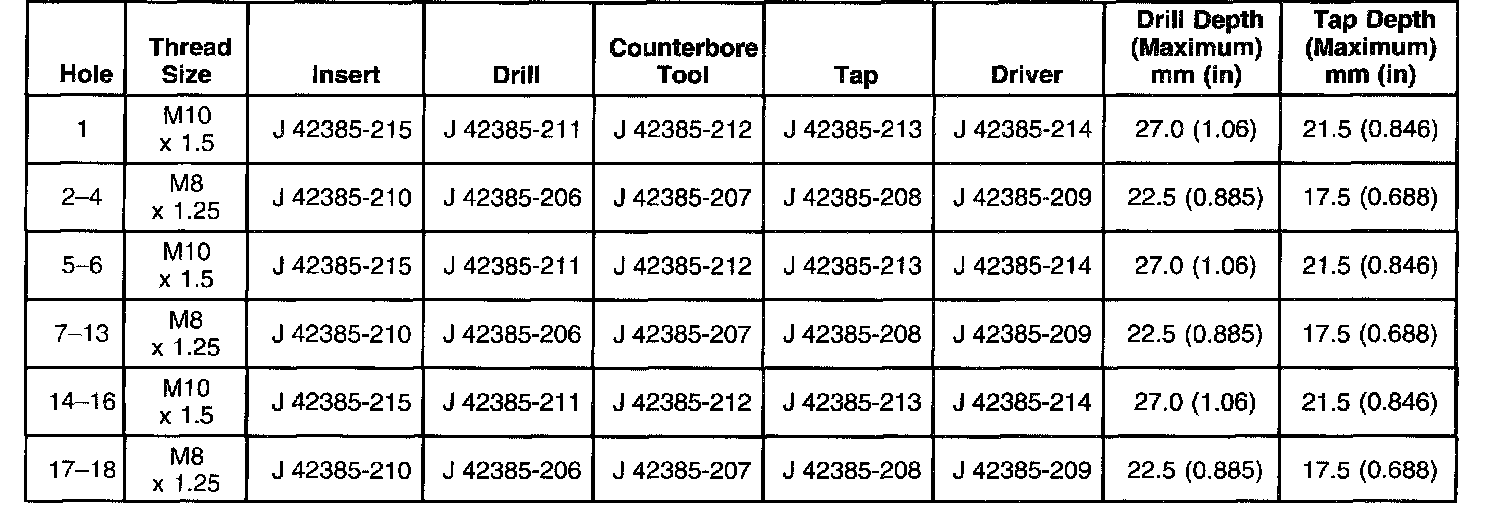

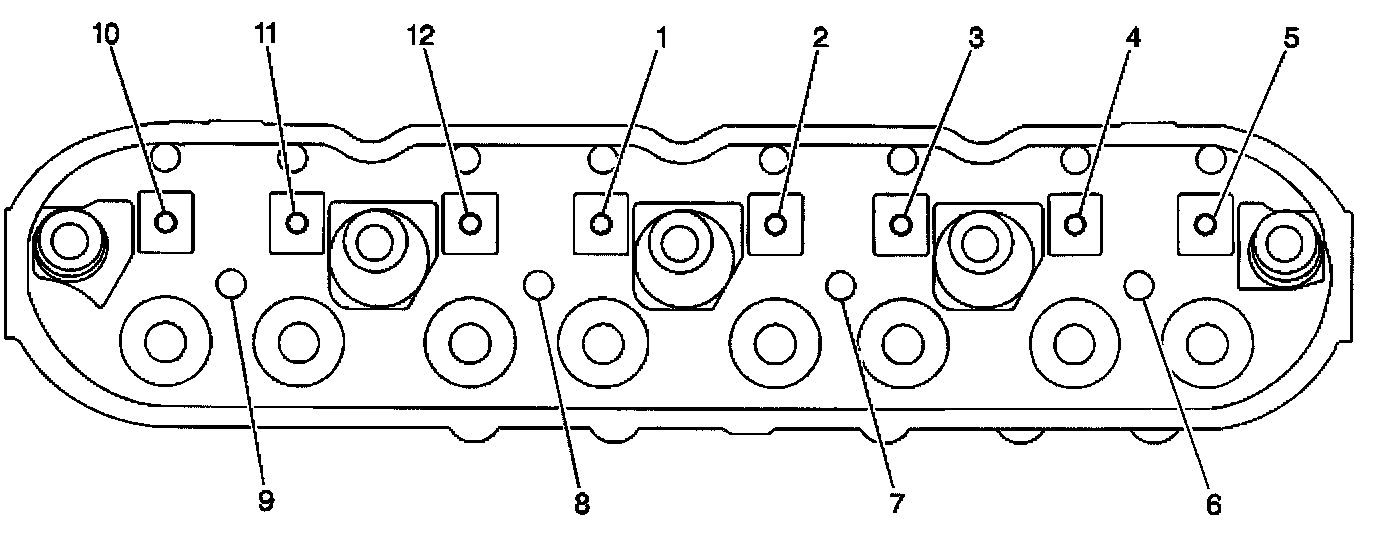

Cylinder Head-Top View

Part 1 of 2

Part 2 of 2

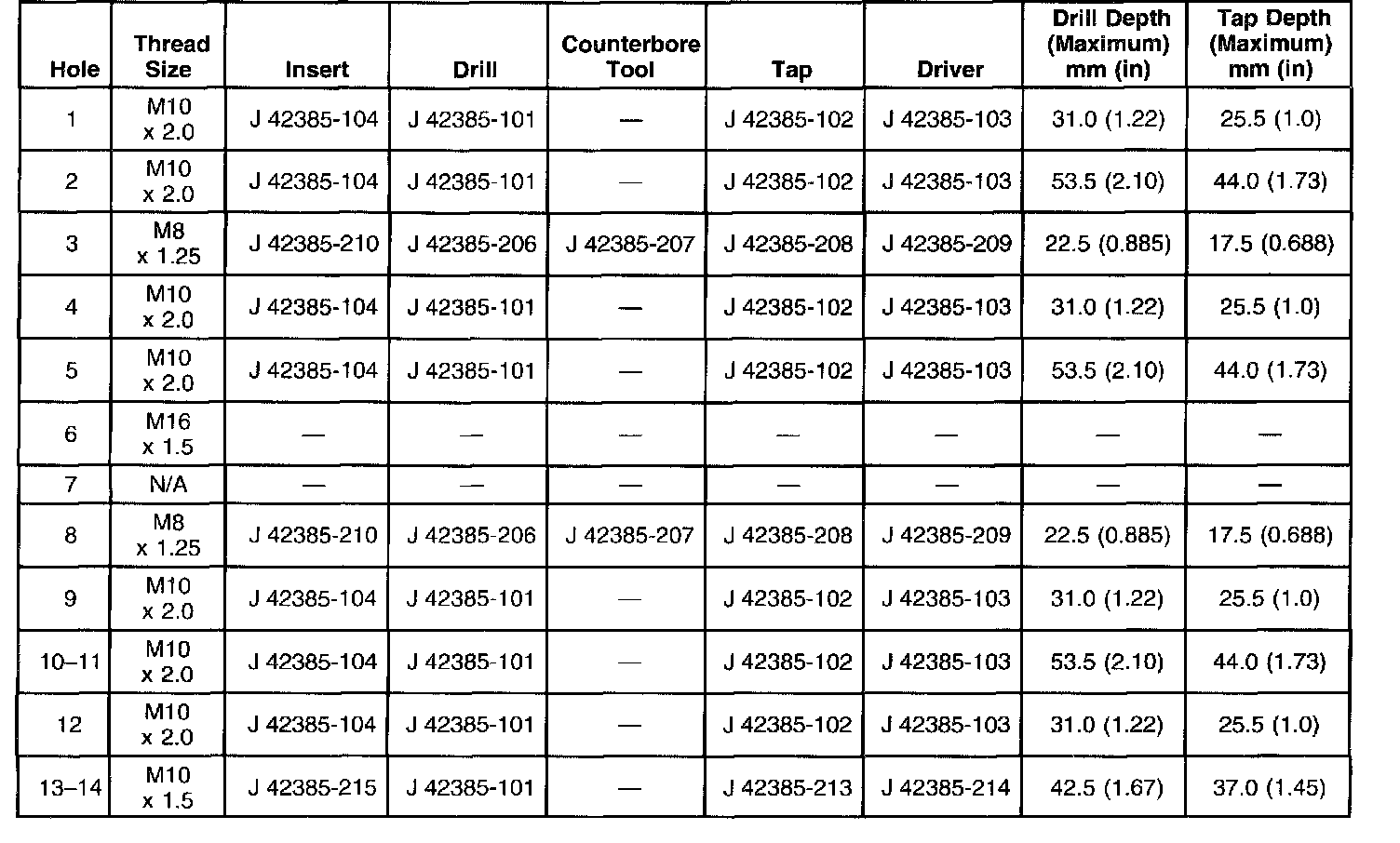

Cylinder Head-End View

Part 1 of 3

Part 2 of 3

Part 3 of 3

Cylinder Head-Exhaust Manifold Deck View

Part 1 of 2

Part 2 of 2

Cylinder Head-intake Manifold Deck View

Part 1 of 2

Part 2 of 2
