Cruise Control Module, ECT Sensor, Engine Oil Level Switch and Generator

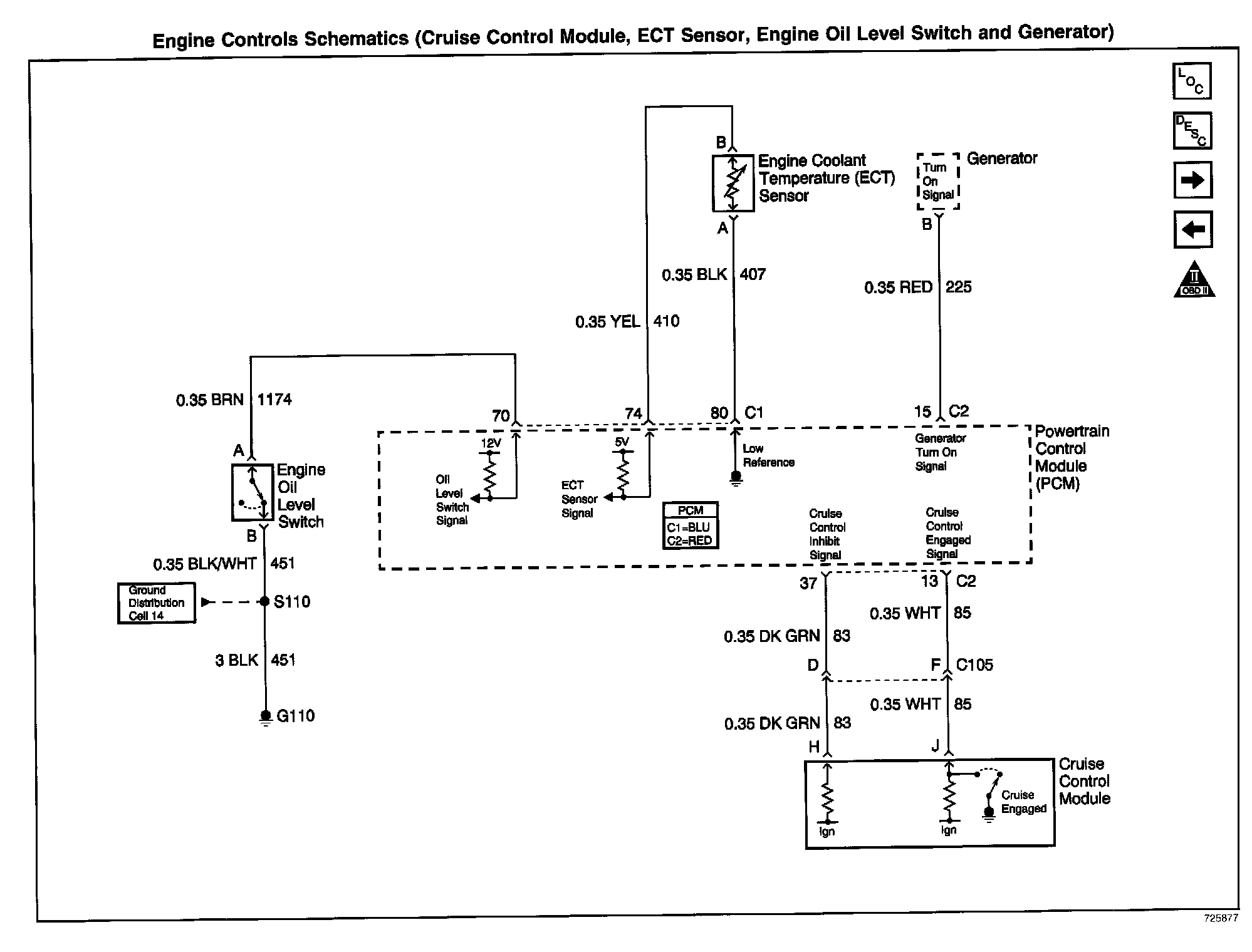

Engine Controls Schematics: Cruise Control Module, ECT Sensor, Engine Oil Level Switch And Generator:
