WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

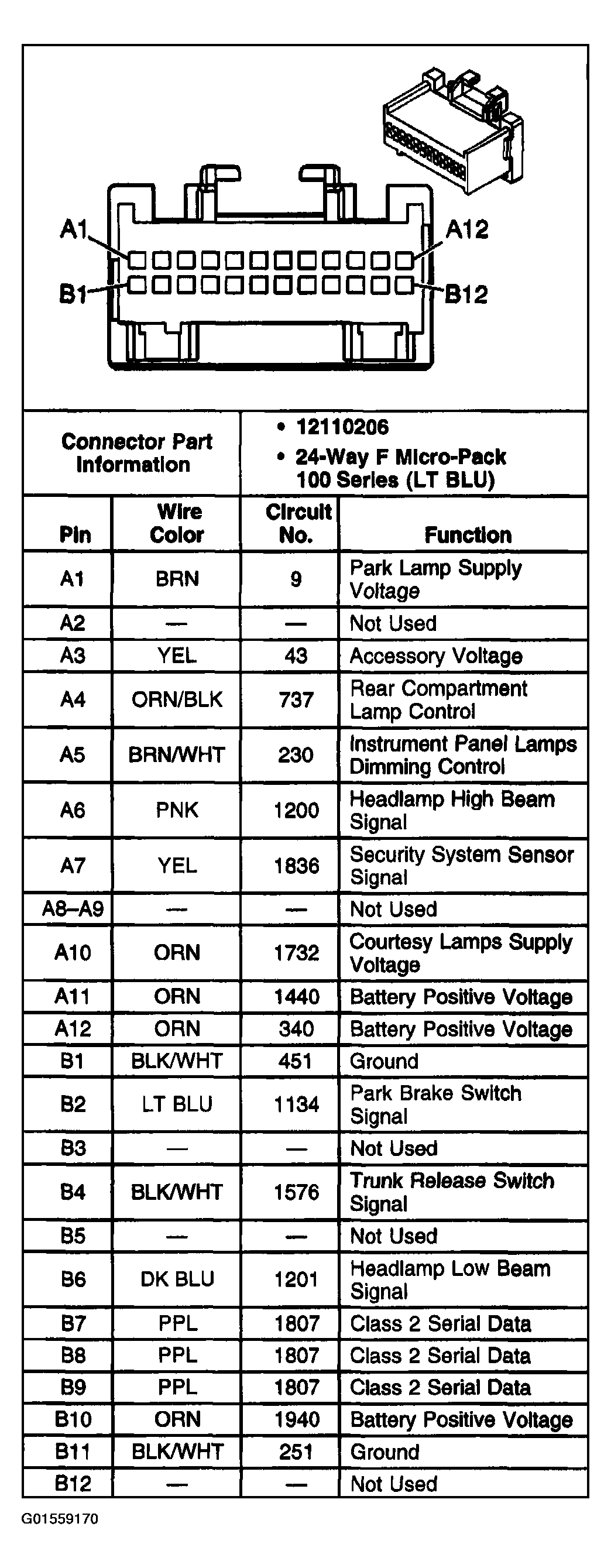

Fig 1: Identifying Body Control Module (BCM) C1 Connector
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Body Control Module (BCM) C2 Connector
Courtesy of GENERAL MOTORS CORP.

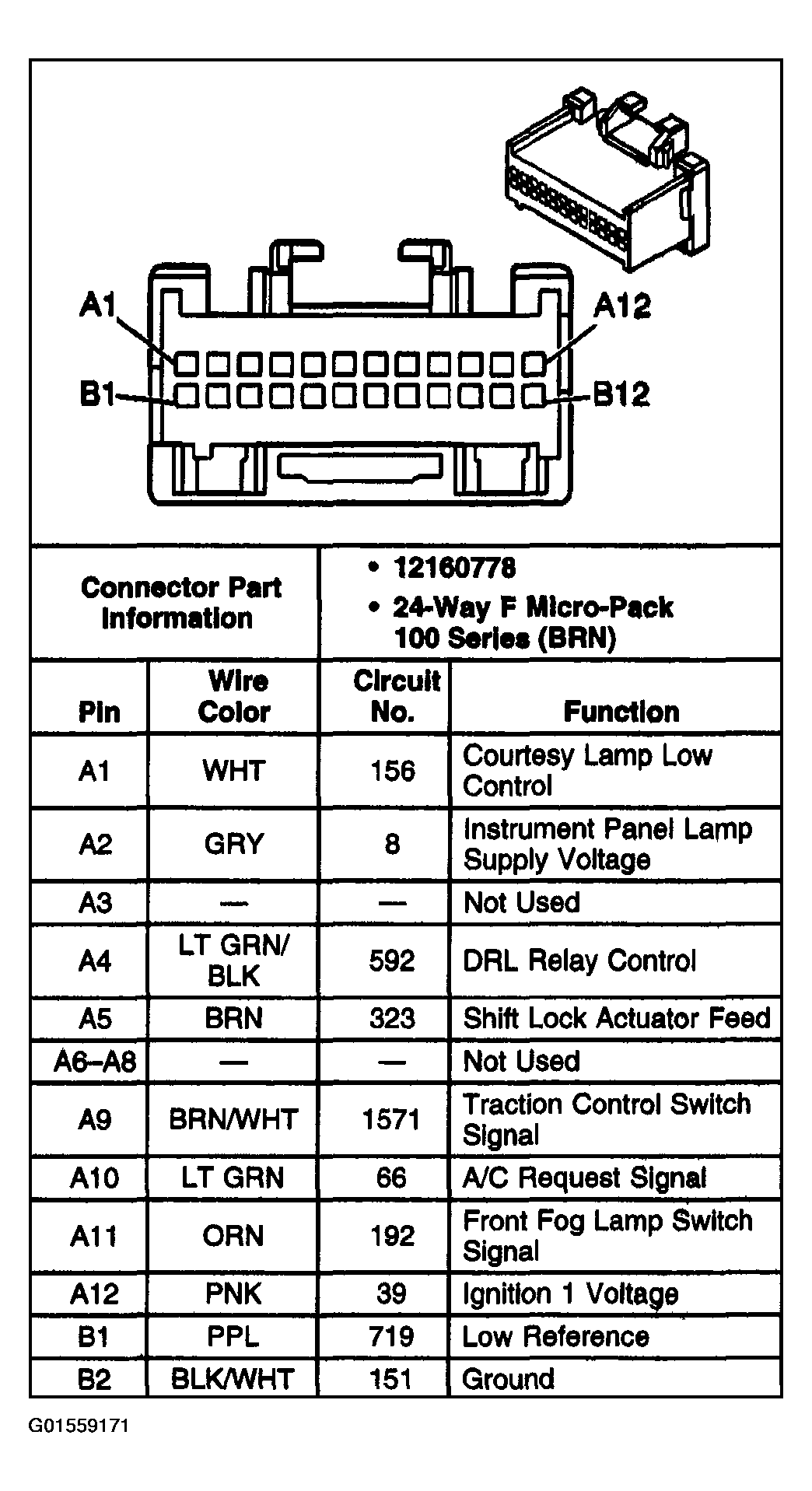

Fig 3: Identifying Body Control Module (BCM) C3 Connector (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

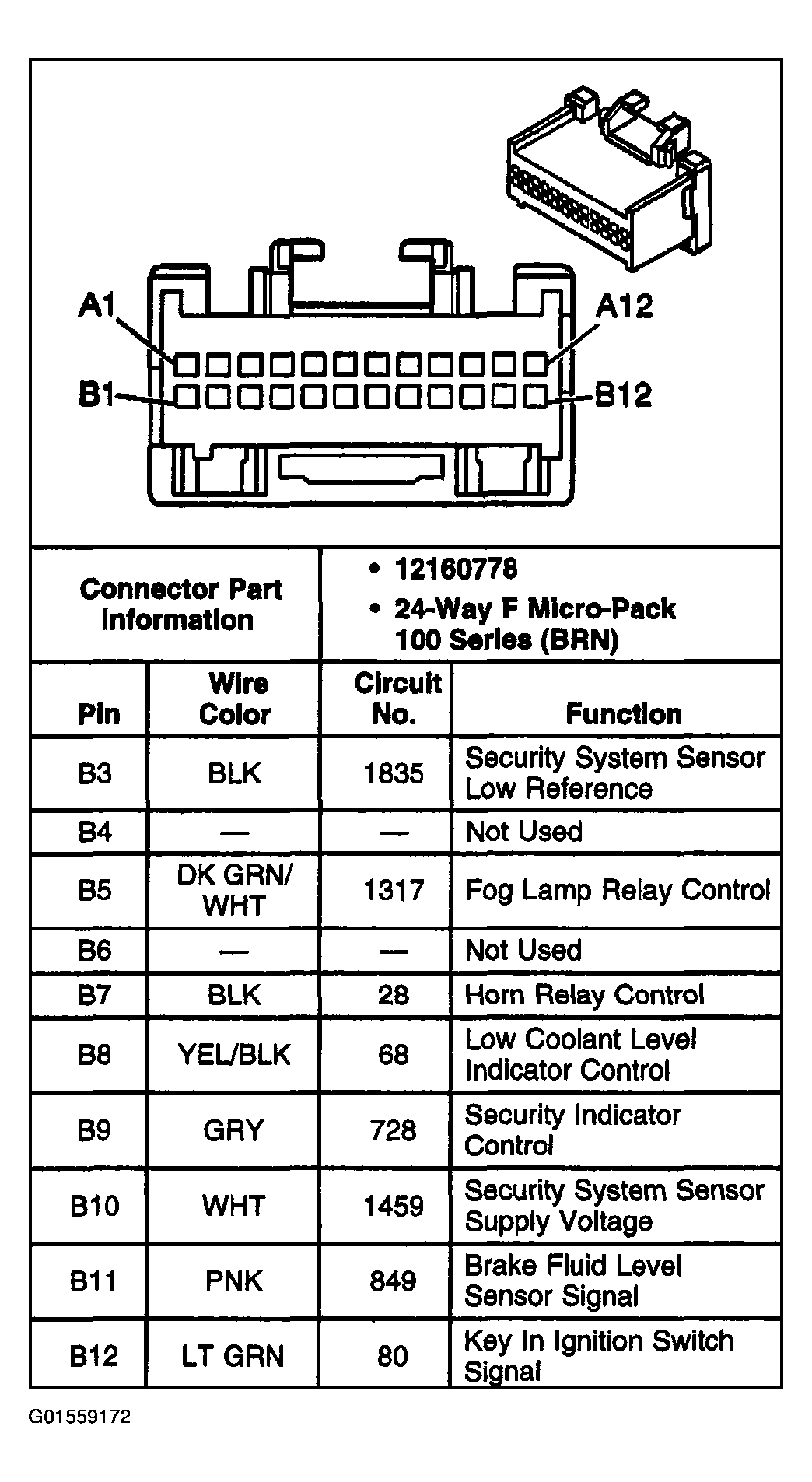

Fig 4: Identifying Body Control Module (BCM) C3 Connector (2 Of 2)
