Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the BCM bracket (1) as an assembly if required.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the BCM bracket nuts (2) if required.

    Tighten

    Tighten the nuts to 5 N.m (44 lb in).

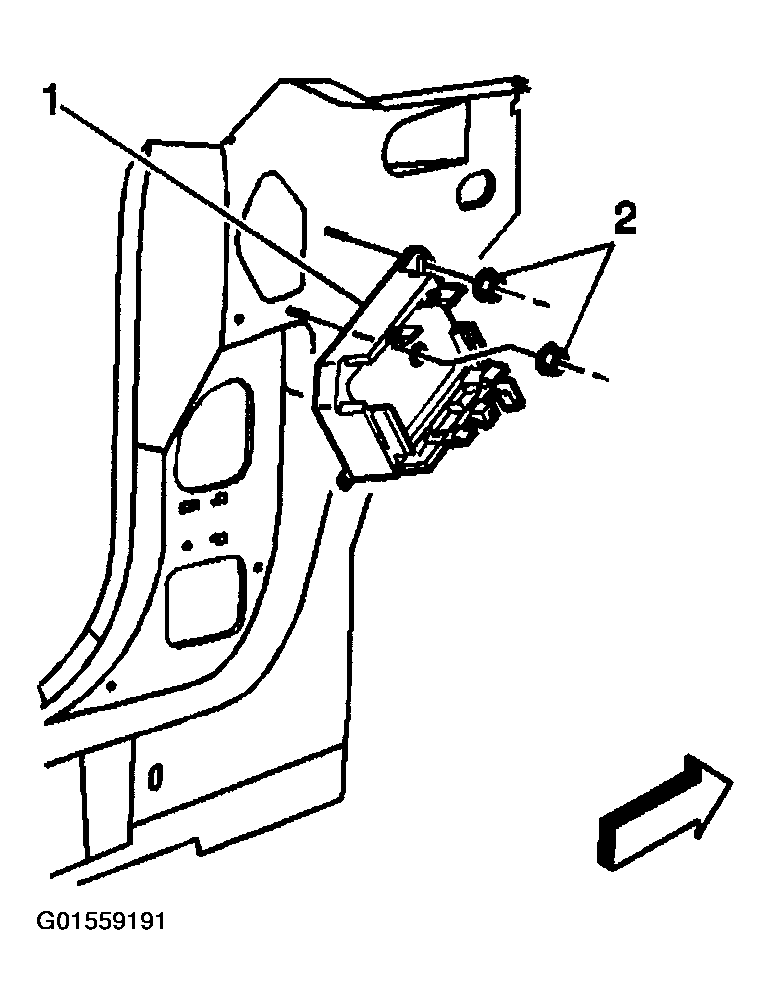

    Fig 1: Installing BCM Bracket
    G01559191Courtesy of GENERAL MOTORS CORP.
  3. Install the BCM into the BCM bracket until lock tabs are fully seated.
  4. Connect the BCM electrical connectors to the BCM.
  5. Install the BCM wire harness retainer to the BCM bracket.
  6. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  7. Reprogram the BCM. Refer to BODY CONTROL MODULE (BCM) PROGRAMMING/RPO CONFIGURATION  .

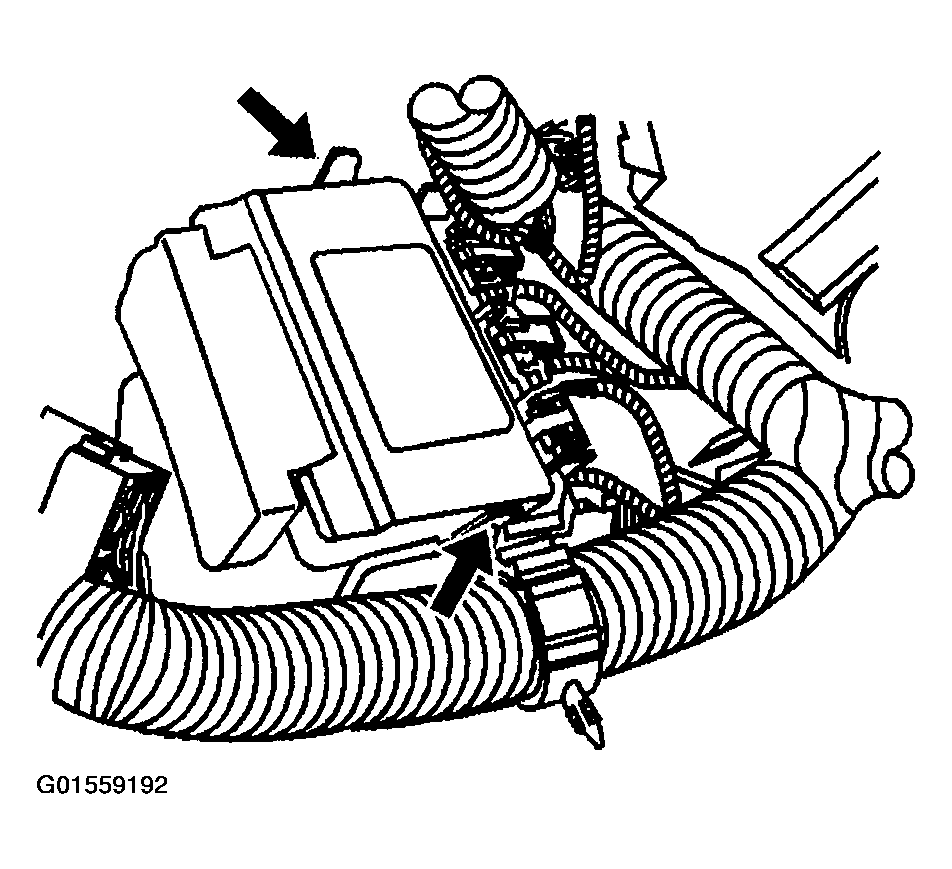

    Fig 2: Installing BCM Into BCM Bracket
    G01559192Courtesy of GENERAL MOTORS CORP.
