Body Control System Schematics (Power, Ground, Serial Data)

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

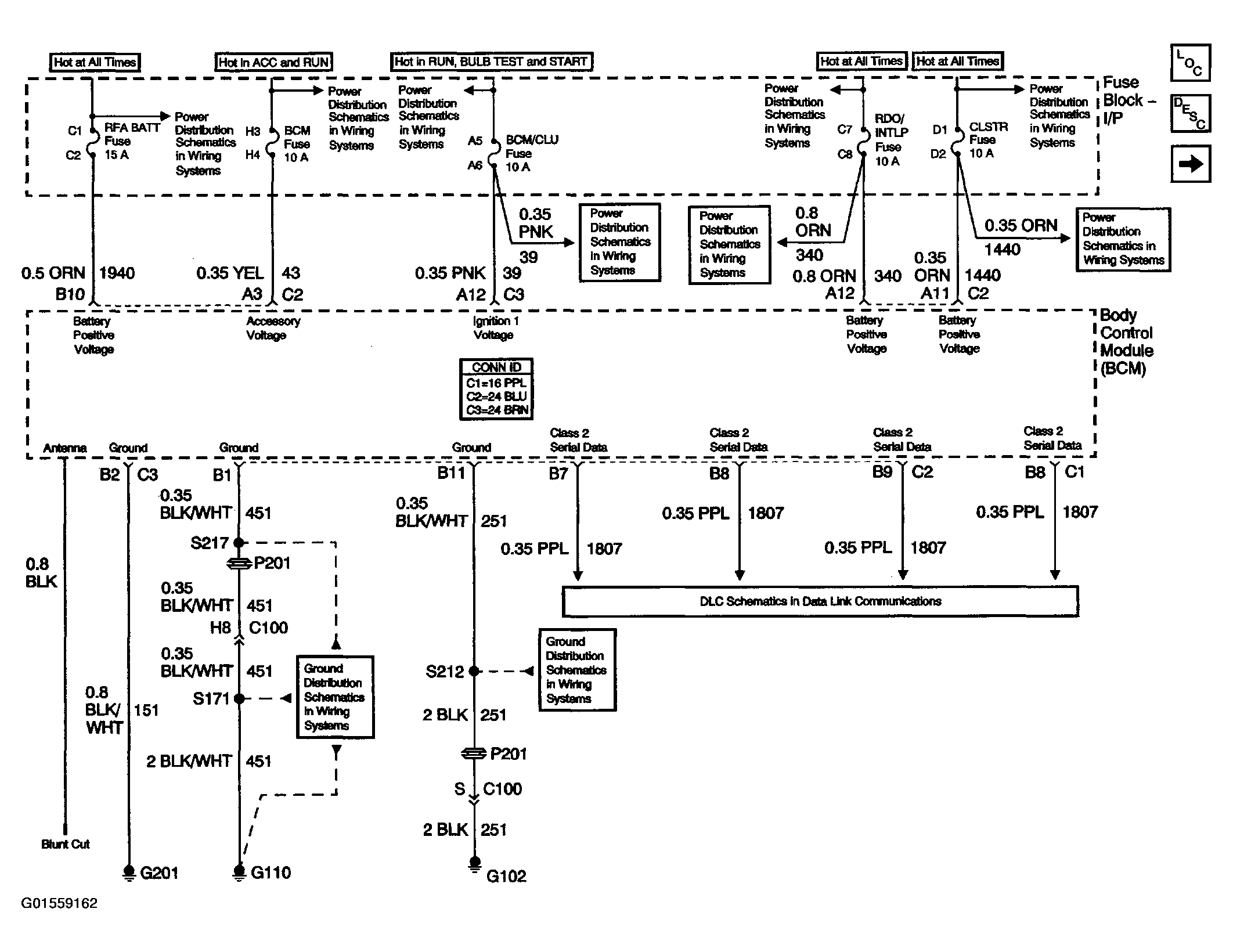

Fig 1: Body Control System Schematics (Power, Ground, Serial Data)

Courtesy of GENERAL MOTORS CORP.

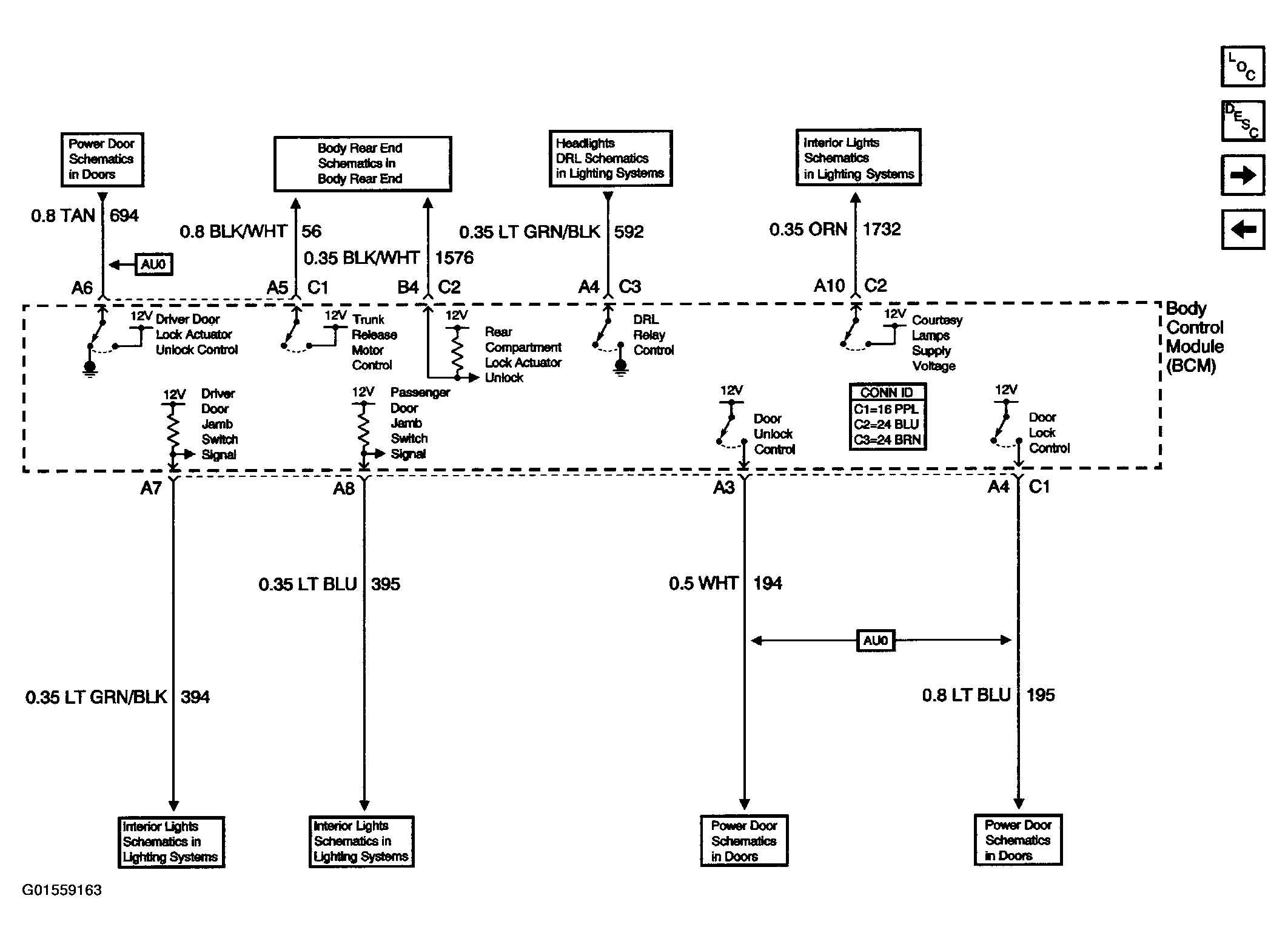

Fig 2: Body Control System Schematics (Controlled/Monitored Subsystem References (Page 1 of 3))

Courtesy of GENERAL MOTORS CORP.

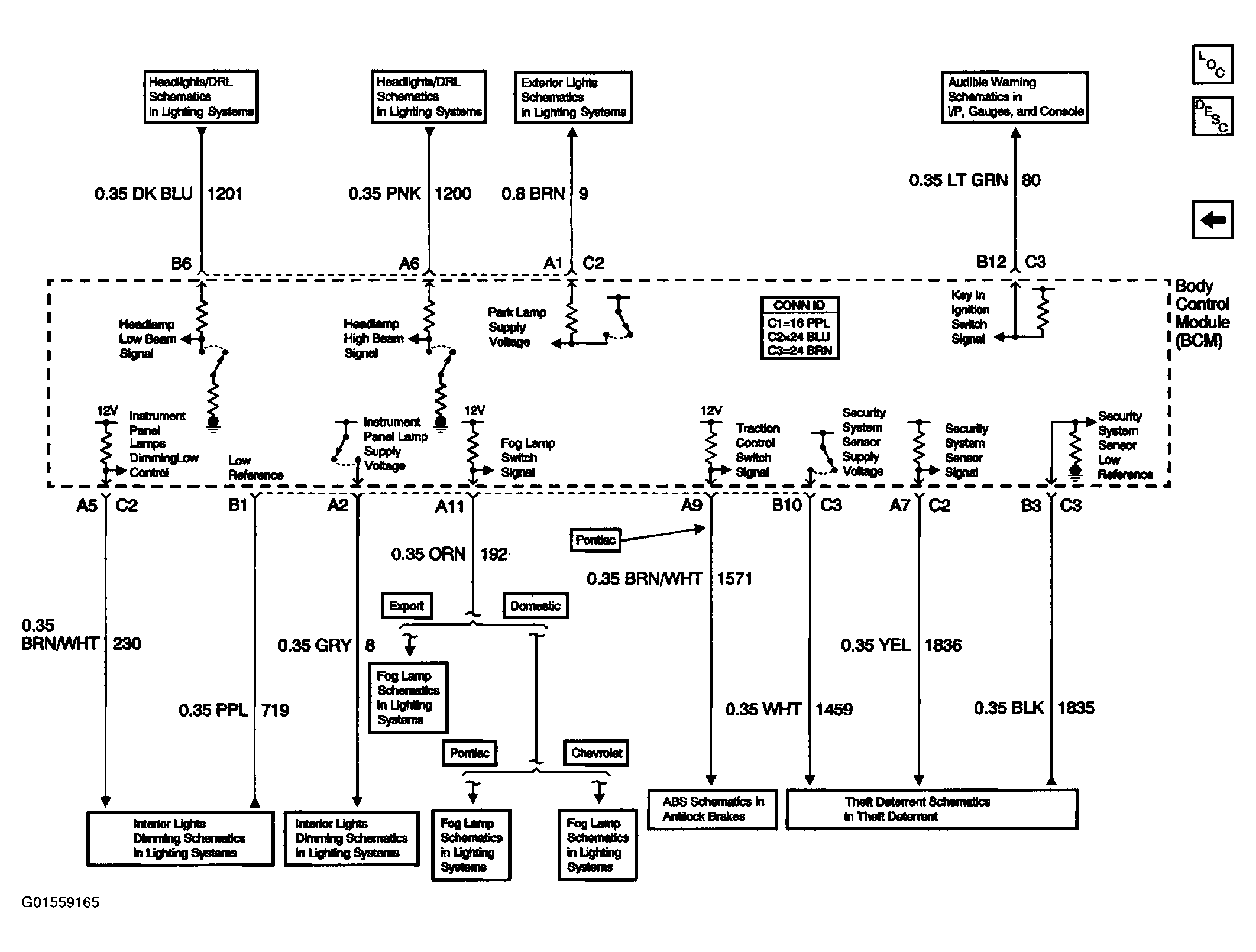

Fig 3: Body Control System Schematics (Controlled/Monitored Subsystem References (Page 2 of 3))

Courtesy of GENERAL MOTORS CORP.

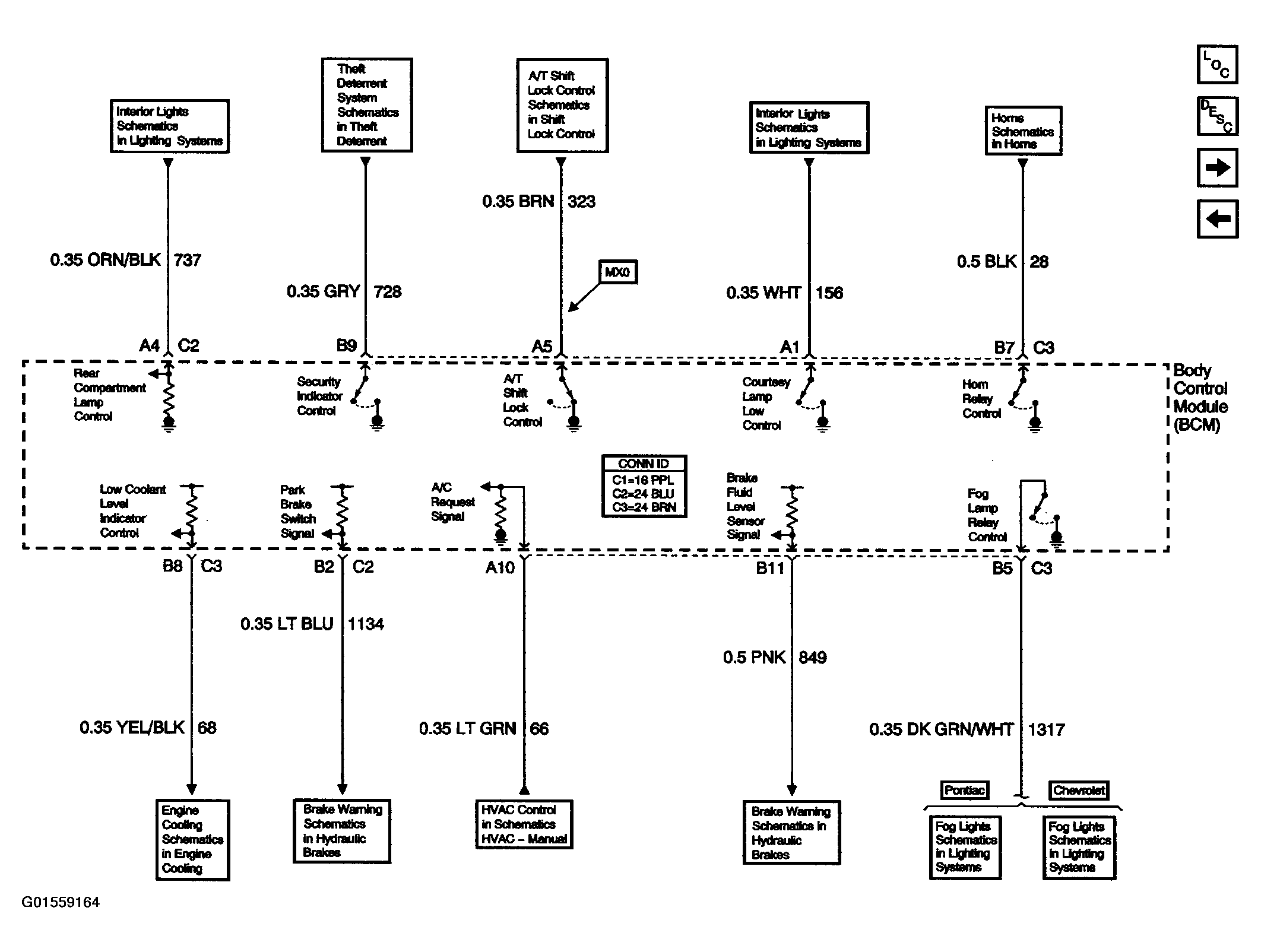

Fig 4: Body Control System Schematics (Controlled/Monitored Subsystem References (Page 3 of 3))

Courtesy of GENERAL MOTORS CORP.
