Center Console: Installation

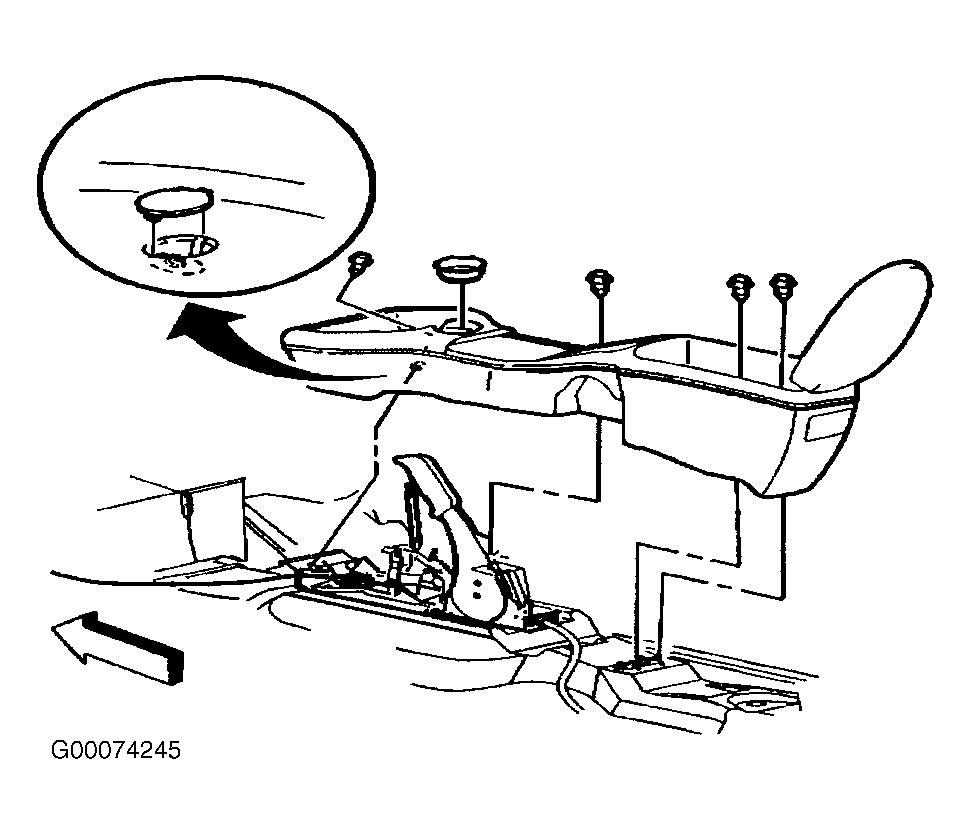

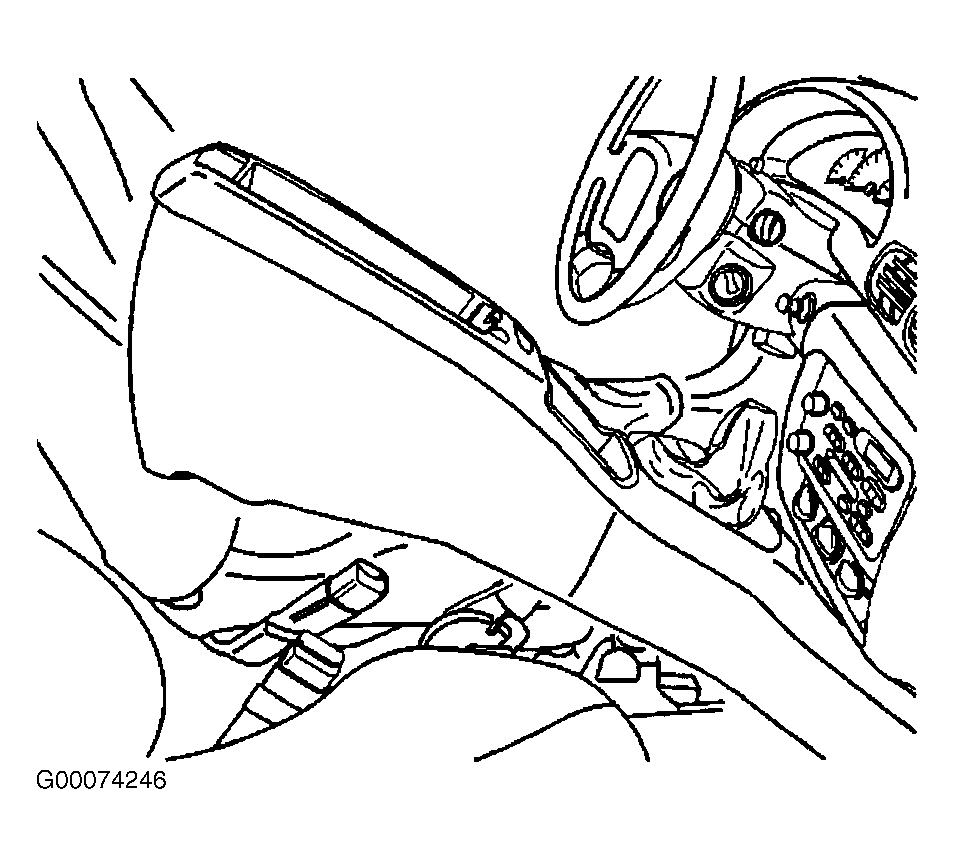

  1. Install the front floor console by guiding it over the shifter and emergency brake handle. See Figure . Install the bolts to the front floor console. See Figure . Tighten the bolts to 89 INCH lbs. (10 N.m). Lower the armrest.

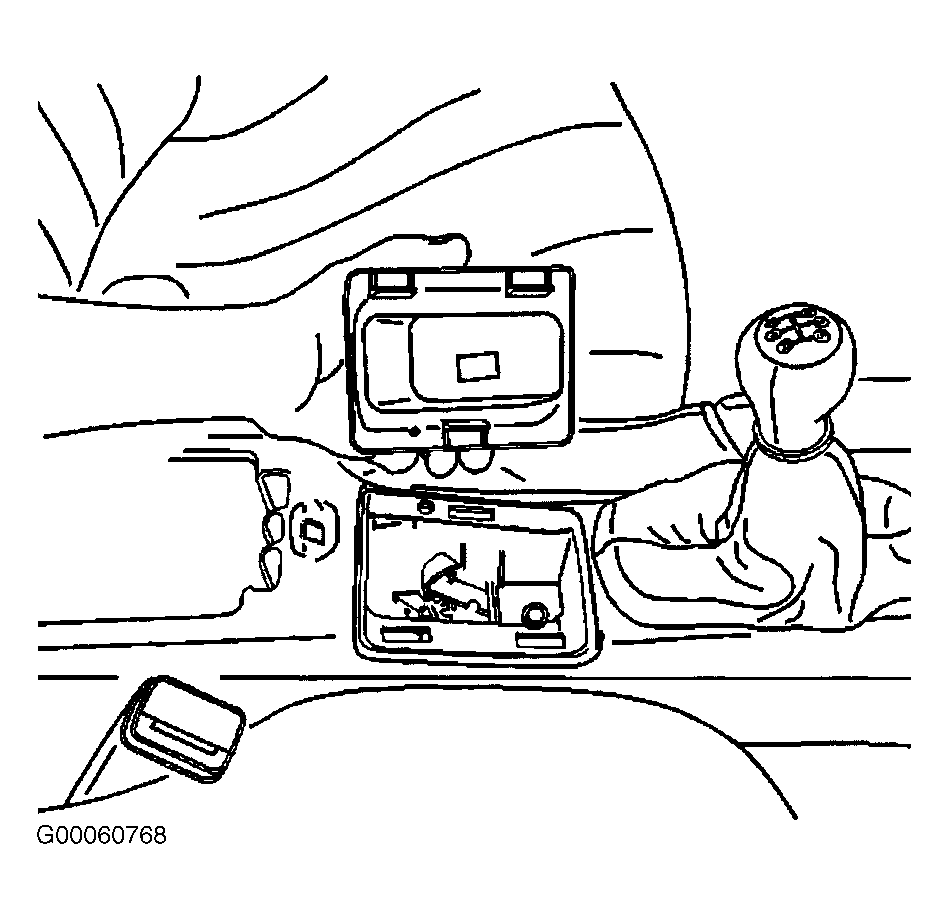

  2. Install the optional center storage pocket. See Figure . Press into place until fully seated. Install the optional power window switch plate.
