Electronic Brake Control Module & Brake Pressure Modulator Valve Assembly: Installation

1. To install, reverse removal procedure. Ensure brakelines are installed in original locations. Ensure EBCM harness connector tab is locked down. Tighten bolts, nuts and brakelines to specification. See TORQUE SPECIFICATIONS .
2. If NEW BPMV assembly is being installed, ensure shipping plugs are removed from valve openings. Refill brake master cylinder reservoir, bleed brakes and check for leaks. See BLEEDING BRAKE SYSTEM .
3. Using scan tool, perform DIAGNOSTIC SYSTEM CHECK  under DIAGNOSIS & TESTING and check if any DTCs have been set. Diagnose and repair as necessary.

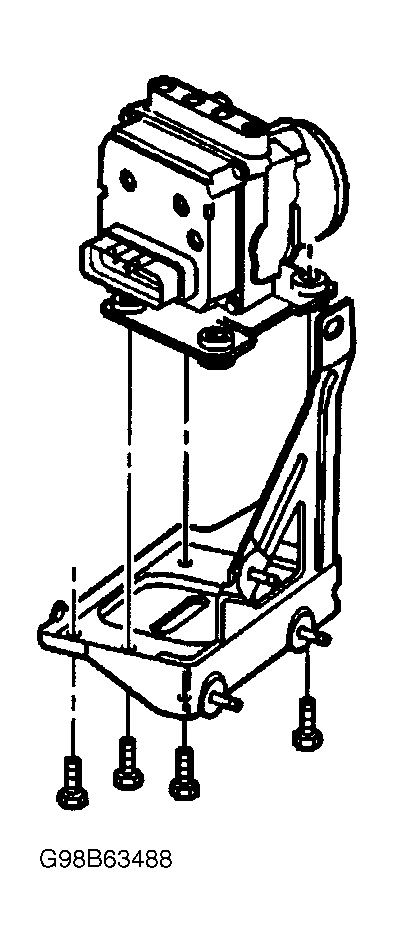

Fig 1: Removing EBCM & BPMV Assembly

Courtesy of GENERAL MOTORS CORP.

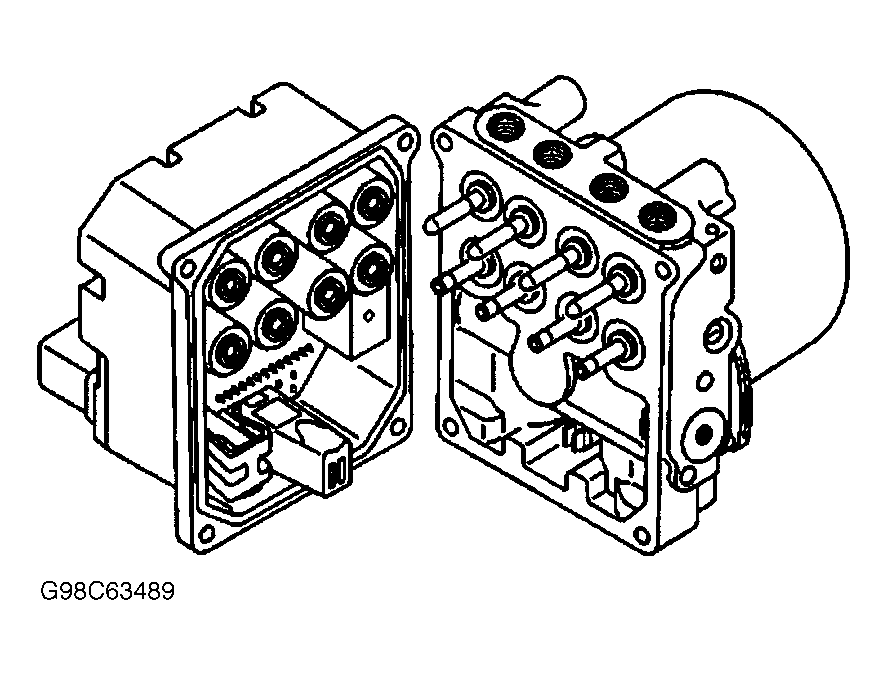

Fig 2: Separating EBCM from BPMV Assembly

Courtesy of GENERAL MOTORS CORP.
