Component Locations

Locations View:

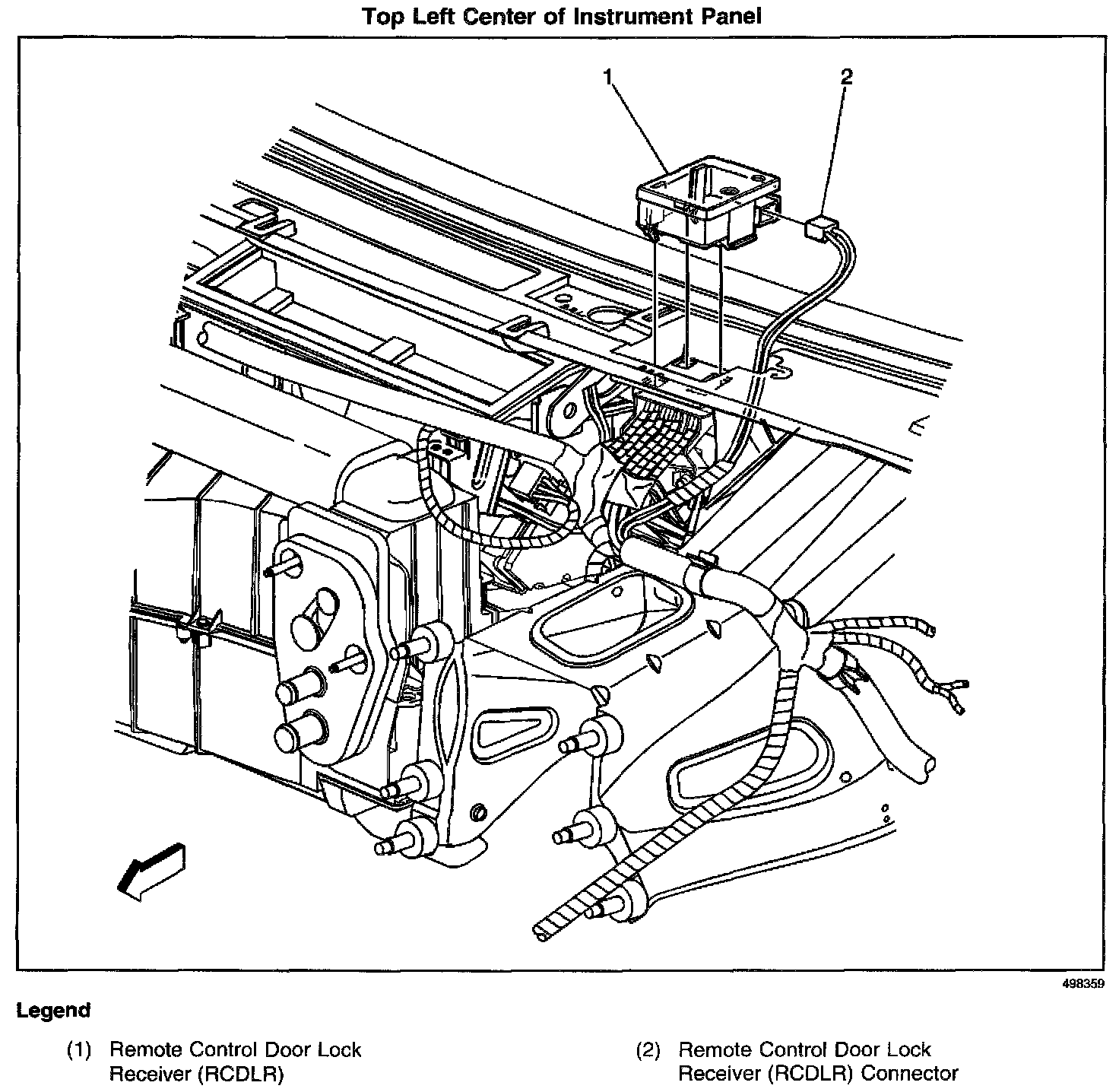

On the upper center of the I/P, under the defroster grill panel
