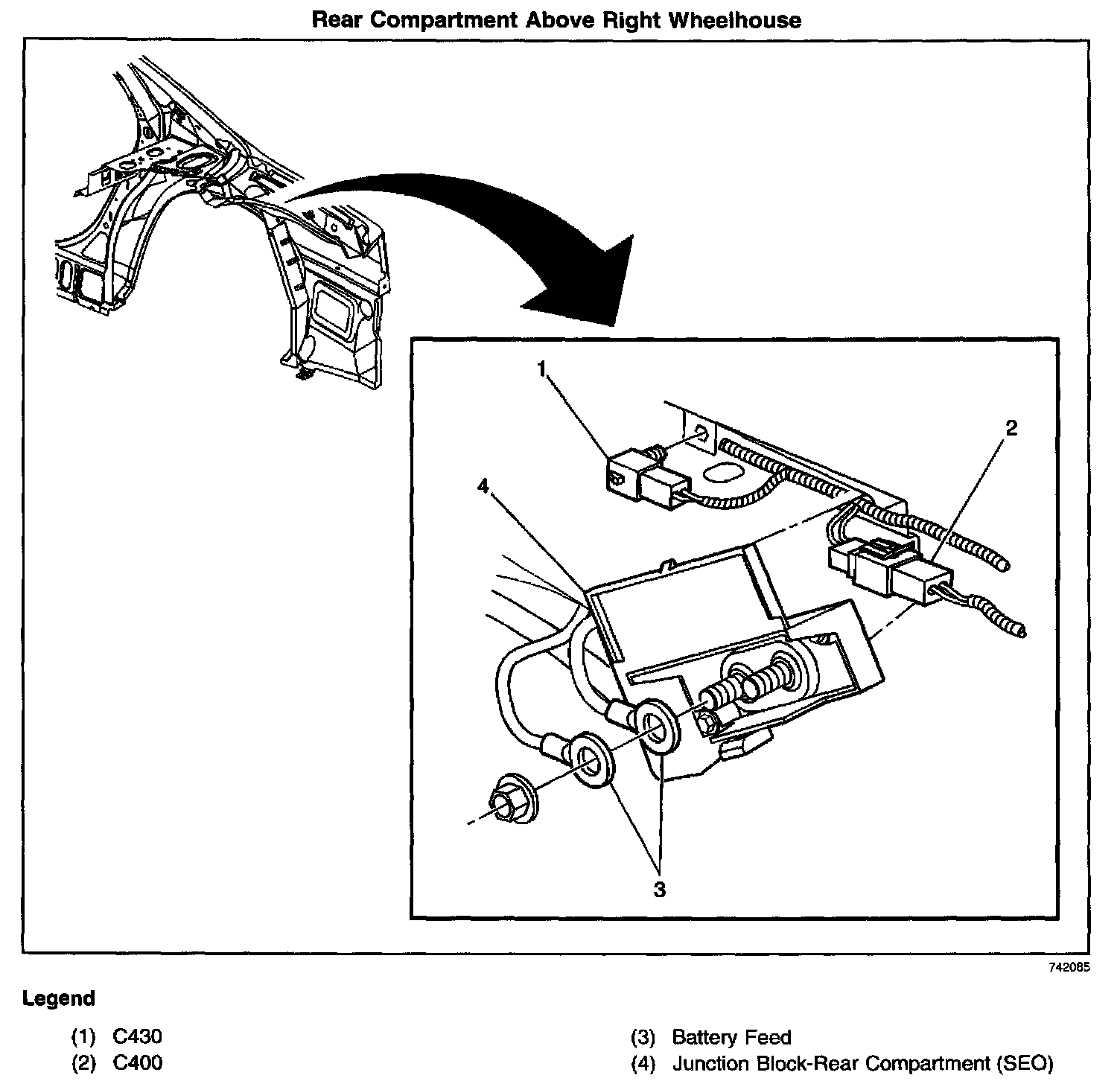

Junction Block-Rear Compartment (SEO)
Locations View:
In the rear compartment, behind the right rear wheelhouse
