Powertrain Control Module: Removal

  1. Disable supplemental inflatable restraint (SIR) system. See appropriate AIR BAG RESTRAINT SYSTEMS article.
  2. Disconnect negative battery cable.
  3. Remove glove box (1). See Fig 1 .
  4. Remove console support bracket (2).
  5. Remove left knee bolster trim panel (4).
  6. Remove left knee bolster (3).
  7. Remove center trim panel (1). See Fig 2 .
  8. Remove radio (2), if equipped.
  9. Remove shifter trim plate (1) from front floor console (2) (A/T only). See Fig 3 .
  10. Remove manual shifter knob (3) and shifter boot (2) from shifter lever and front floor console (1) (M/T only). See Fig 4 .
  11. Remove 2 bolts in rear console box.
  12. Remove 2 screws on each side of front floor console.
  13. Slide center console back toward rear seats.
  14. Remove 2 upper screws of front floor console.
  15. Remove front floor console.
  16. Remove 3 bolts and PCM, from console carriage.
  17. Remove 3 PCM wiring harness electrical connectors from PCM.

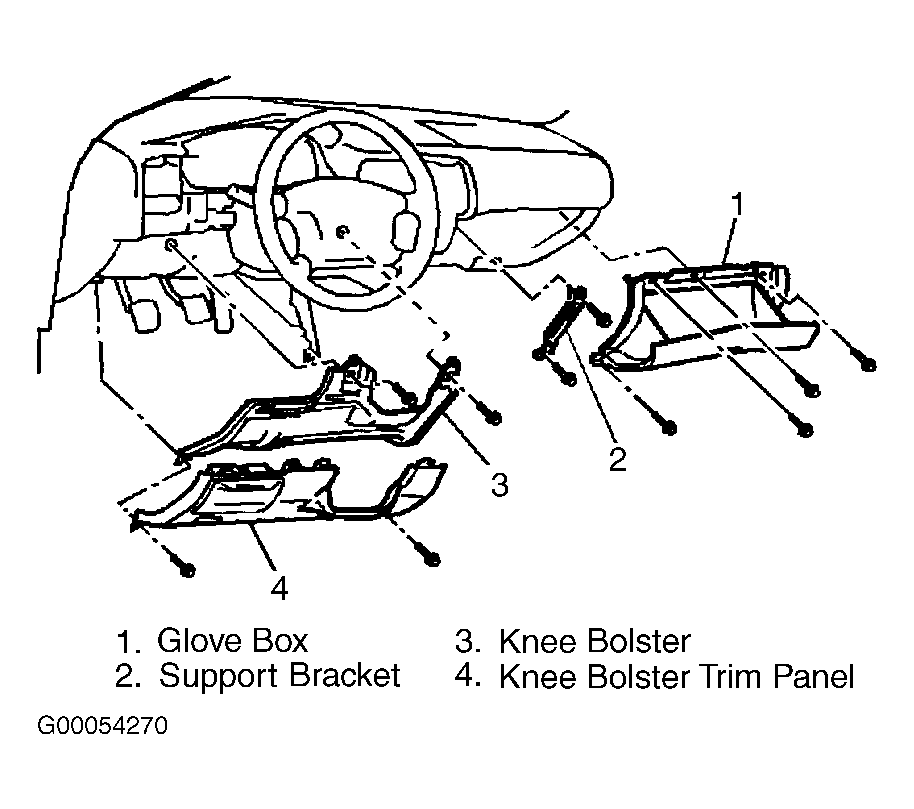

Fig 1: Removing Glove Box & Knee Bolster
G00054270Courtesy of GENERAL MOTORS CORP.

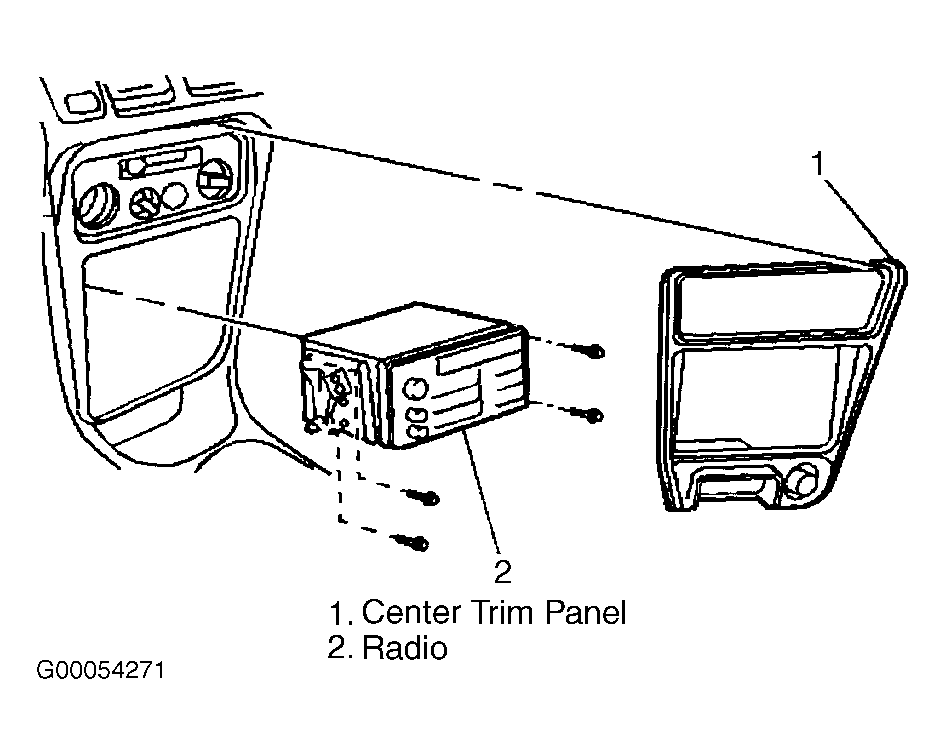

Fig 2: Removing Radio
G00054271Courtesy of GENERAL MOTORS CORP.

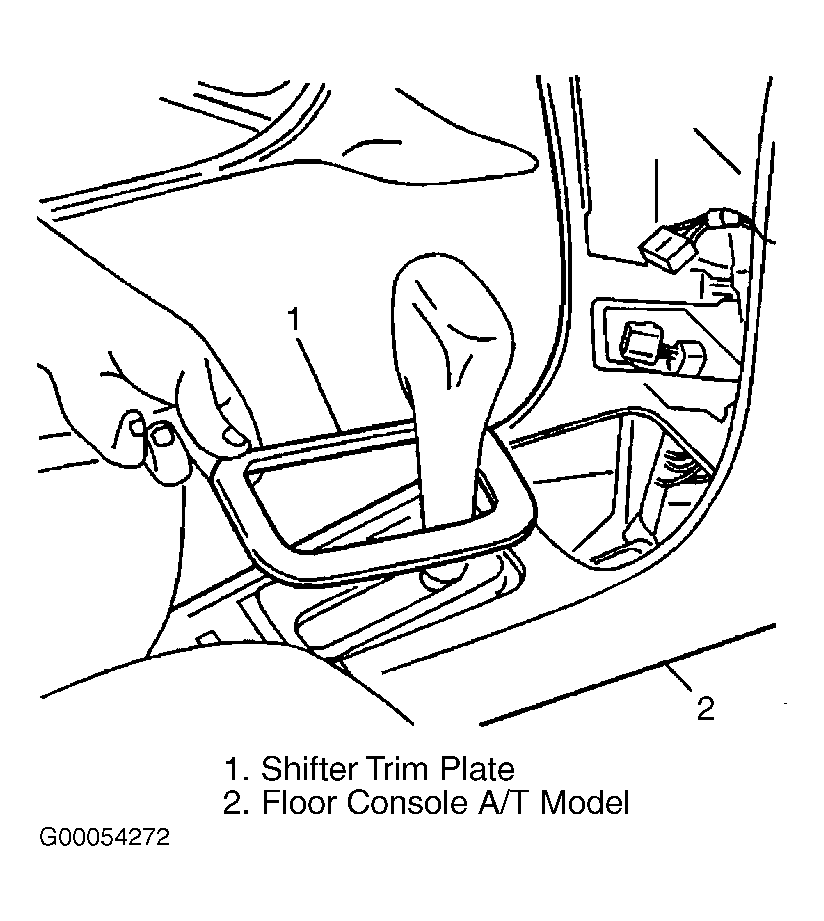

Fig 3: Removing Floor Console (A/T Models)
G00054272Courtesy of GENERAL MOTORS CORP.

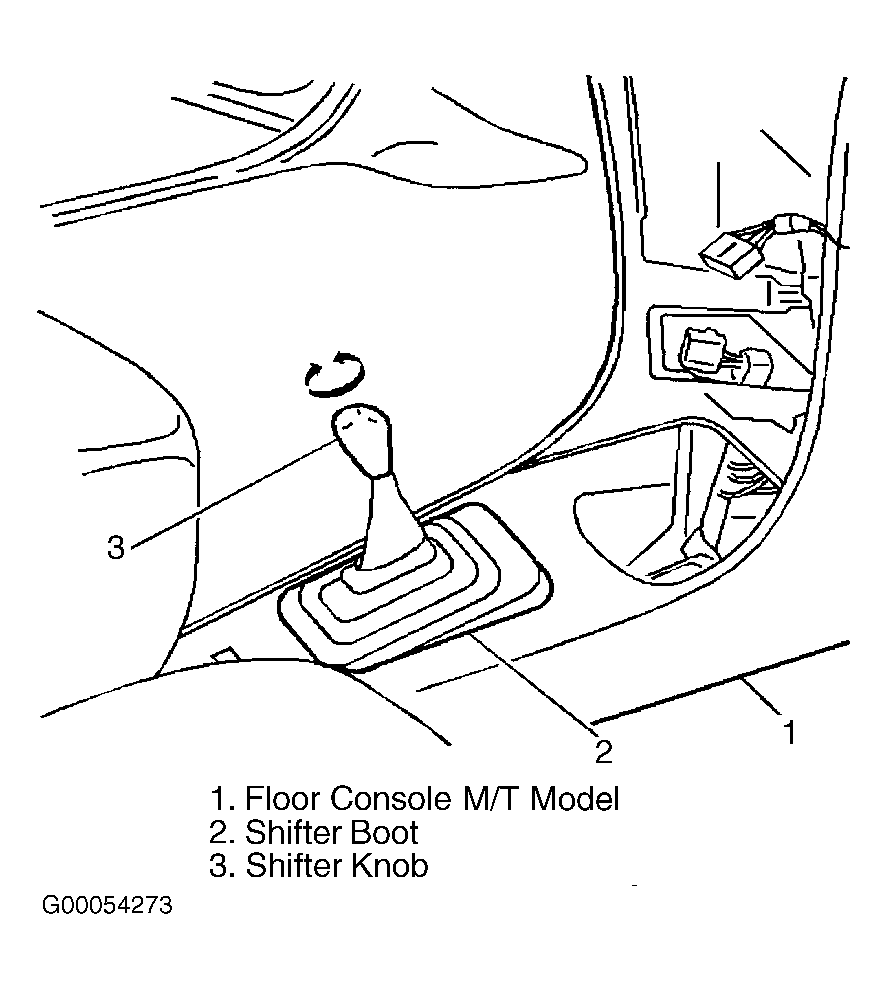

Fig 4: Removing Floor Console (M/T Models)
G00054273Courtesy of GENERAL MOTORS CORP.
