Front Door Trim Panel: Installation

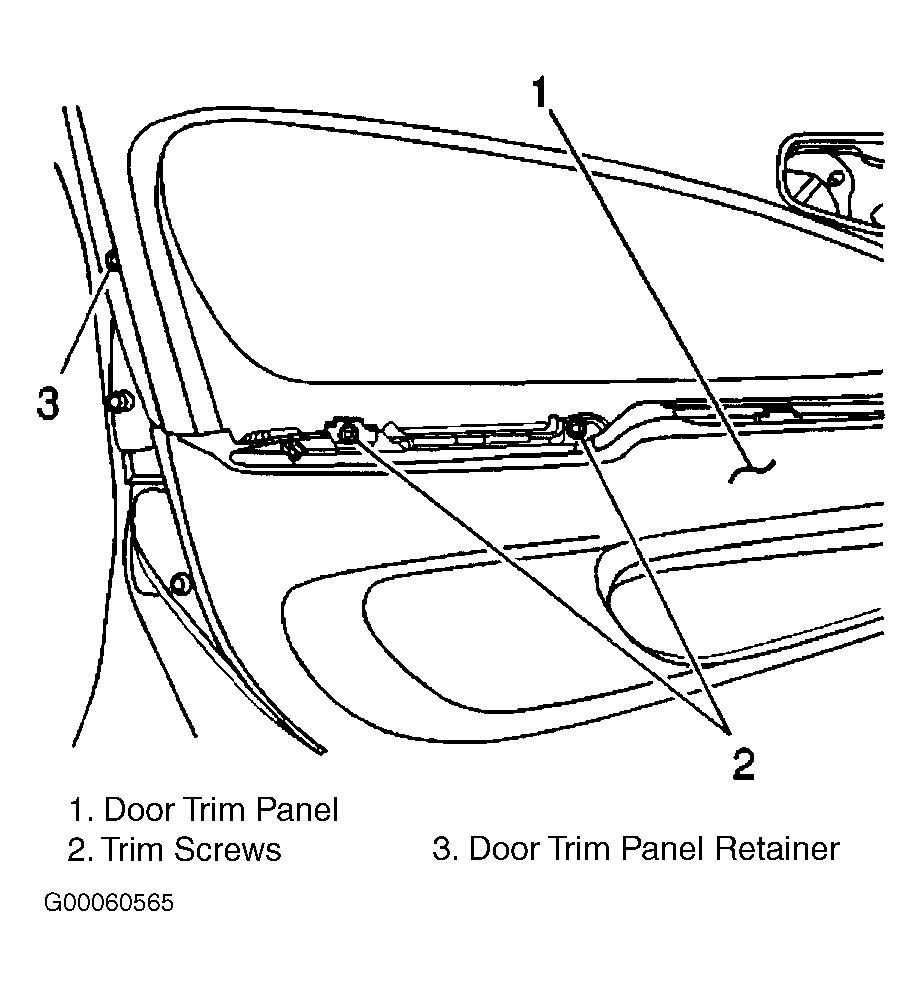

  1. Position and install front side door trim (1) to door and press plastic retainers into place. Ensure plastic retainers are completely engaged. Secure door trim with plastic retainer (3). See Figure .
  2. Connect front side door window and/or lock switch electrical connectors.

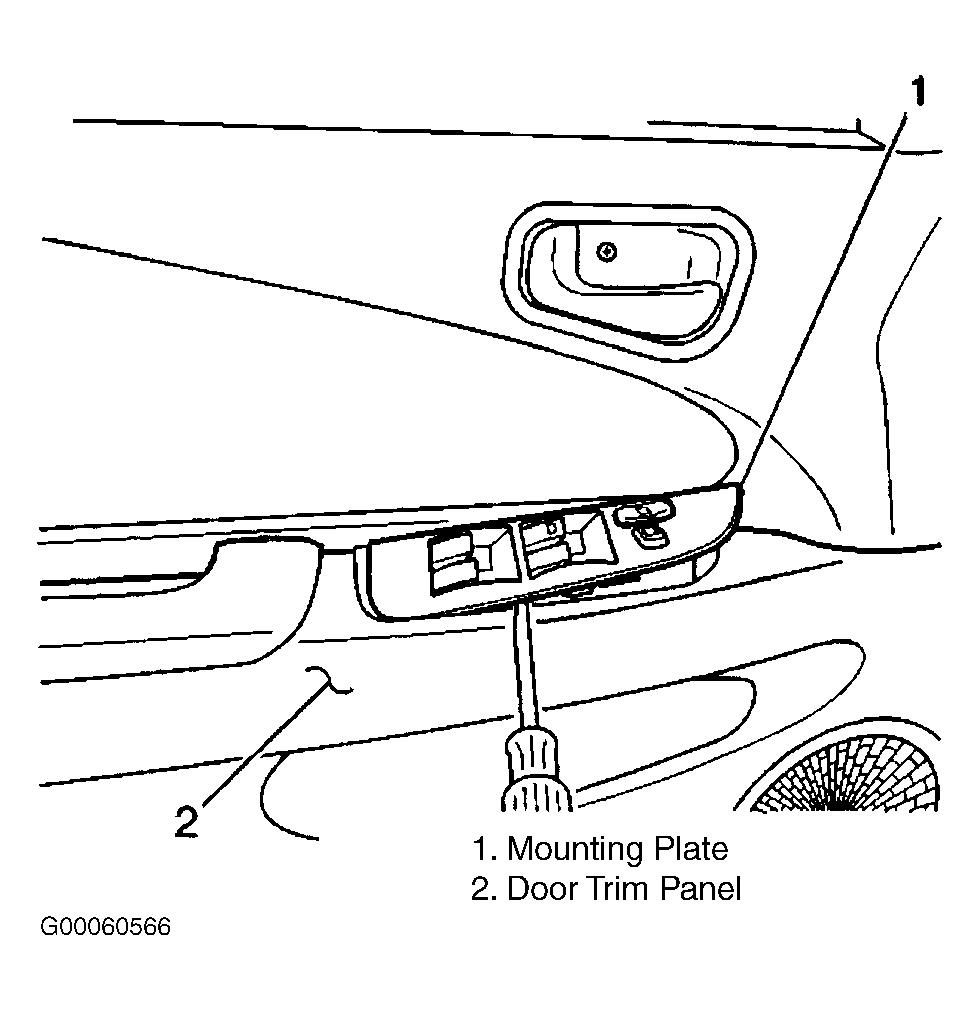

  3. Install front side door accessory switch mounting plate (1) to front side door trim. See Figure .
  4. Install 2 screws (2) that retain front side door trim panel (1). See Figure .
  5. Install handle rod clip. Slide handle rearward and install screw.
  6. Install trim cover to front side door armrest.
