Engine

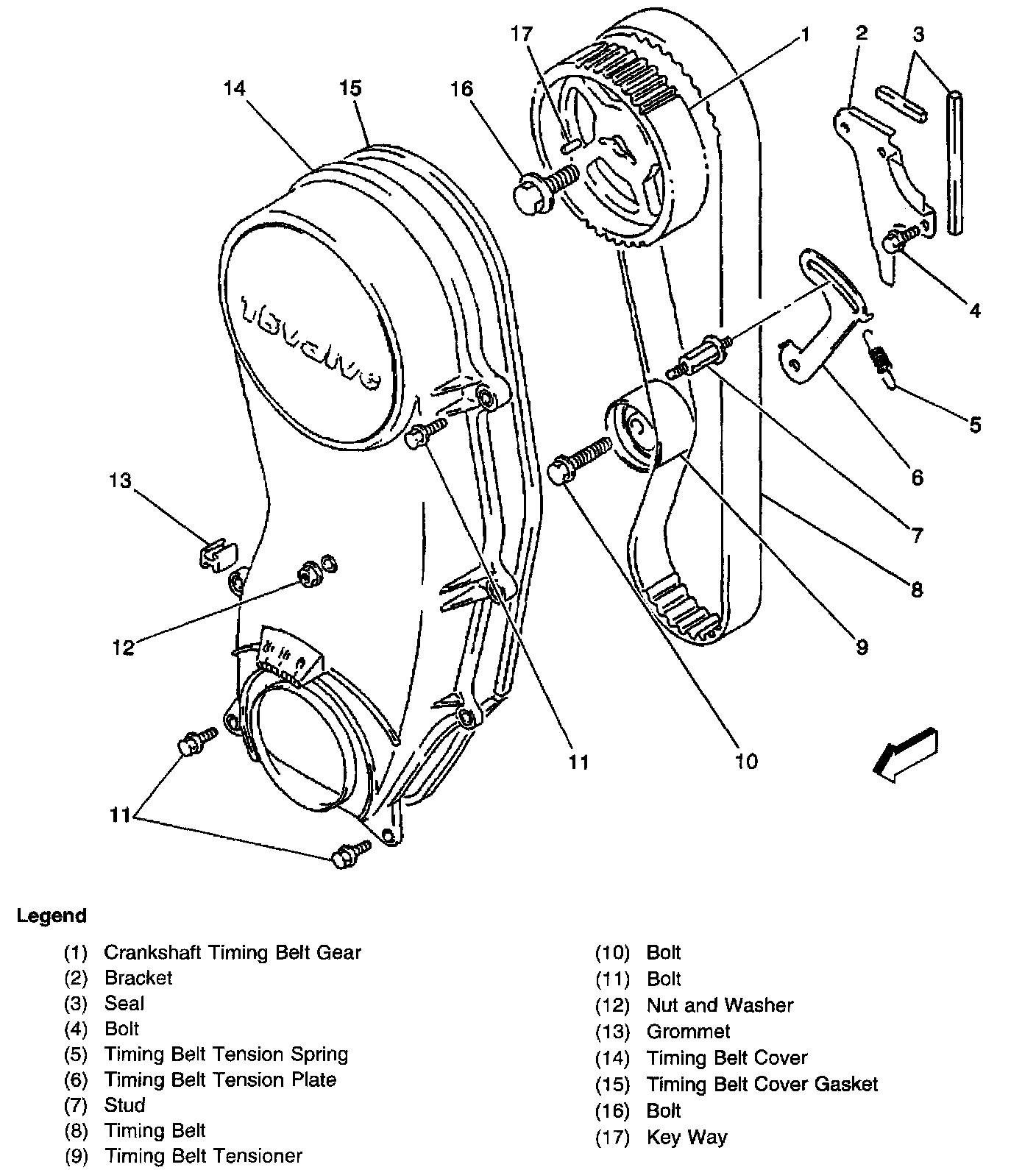

Timing Belt

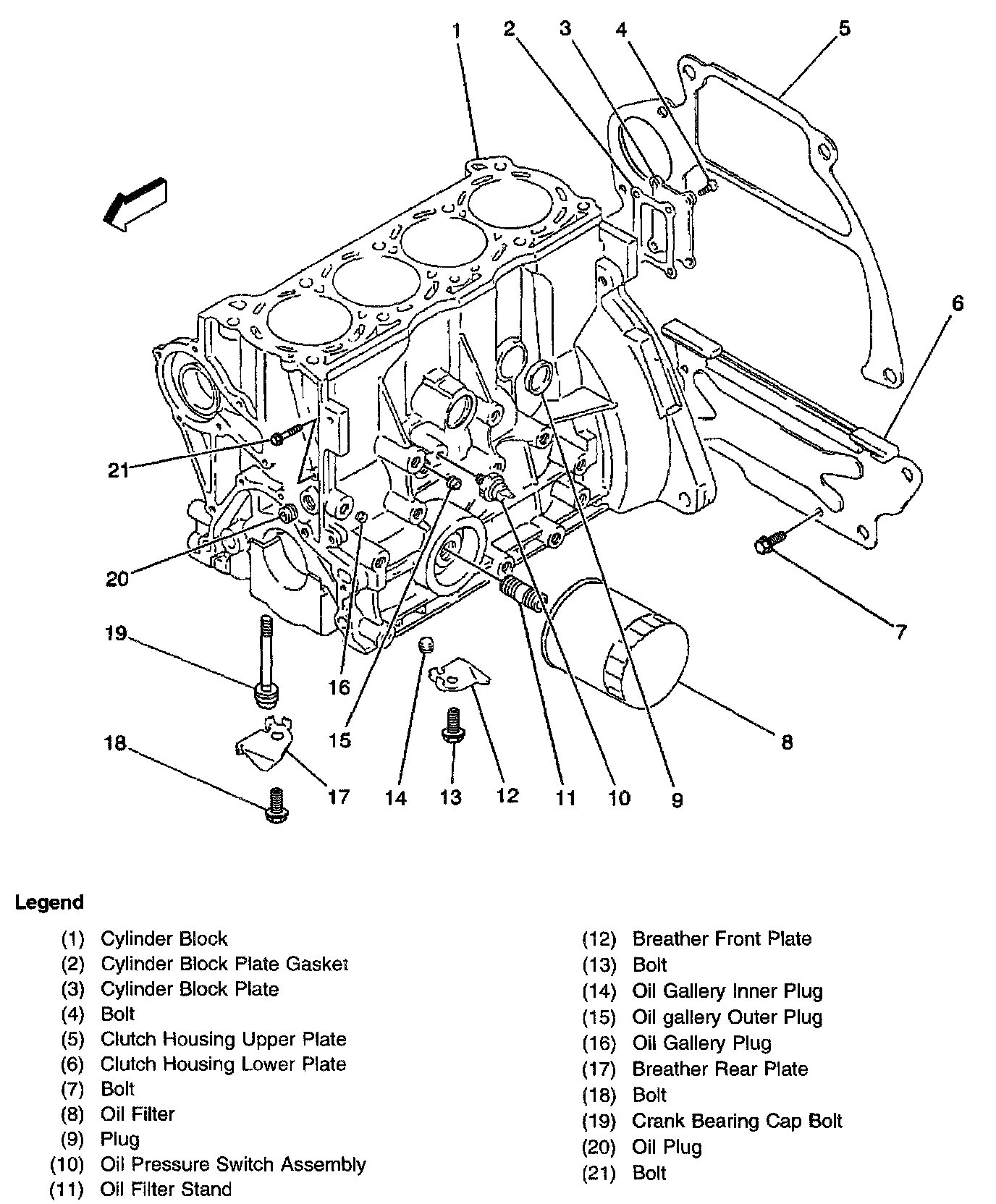

Cylinder Block and Oil Filter

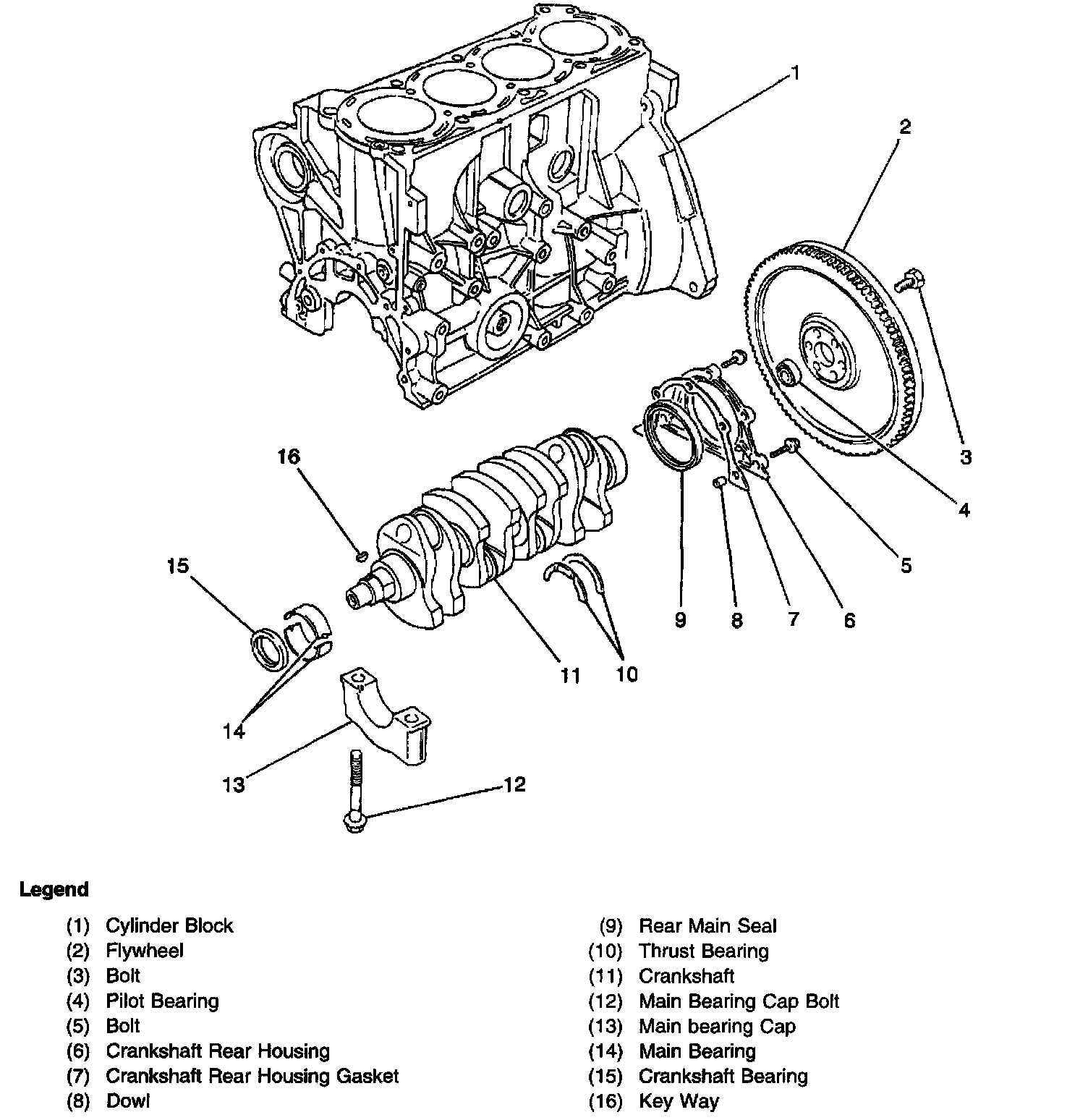

Cylinder Block and Crankshaft

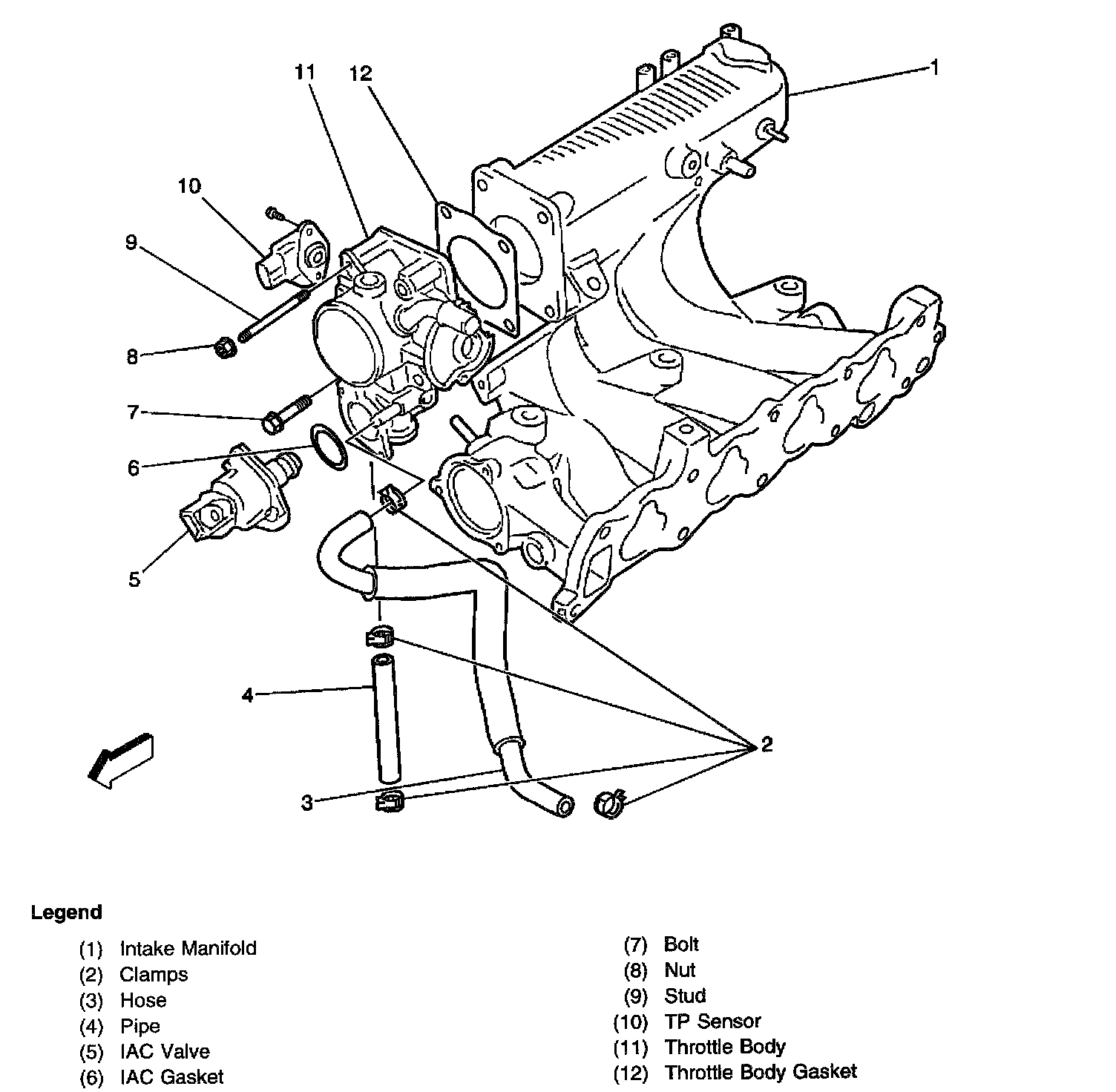

Throttle Body Intake Manifold

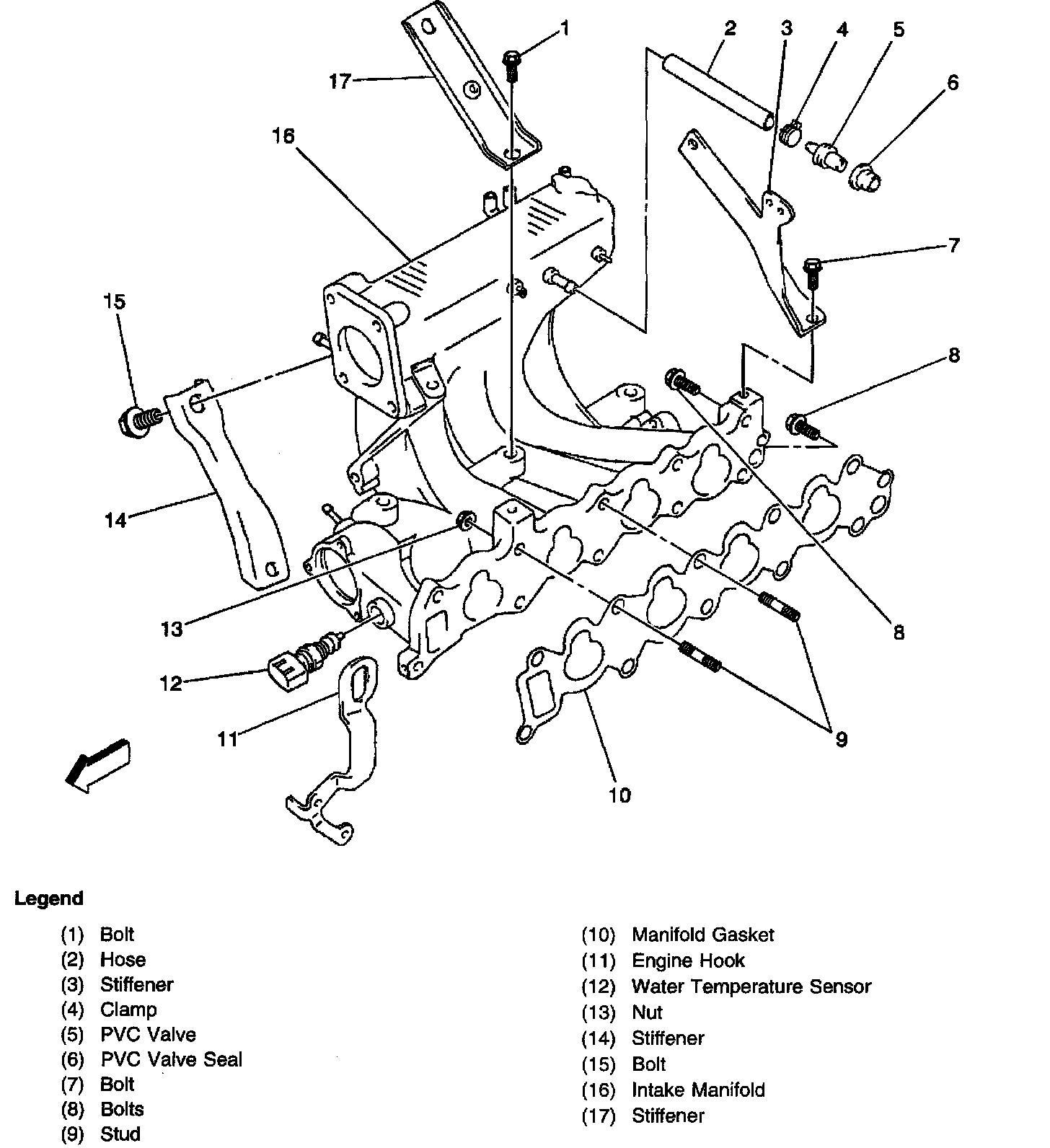

Intake Manifold and Gasket

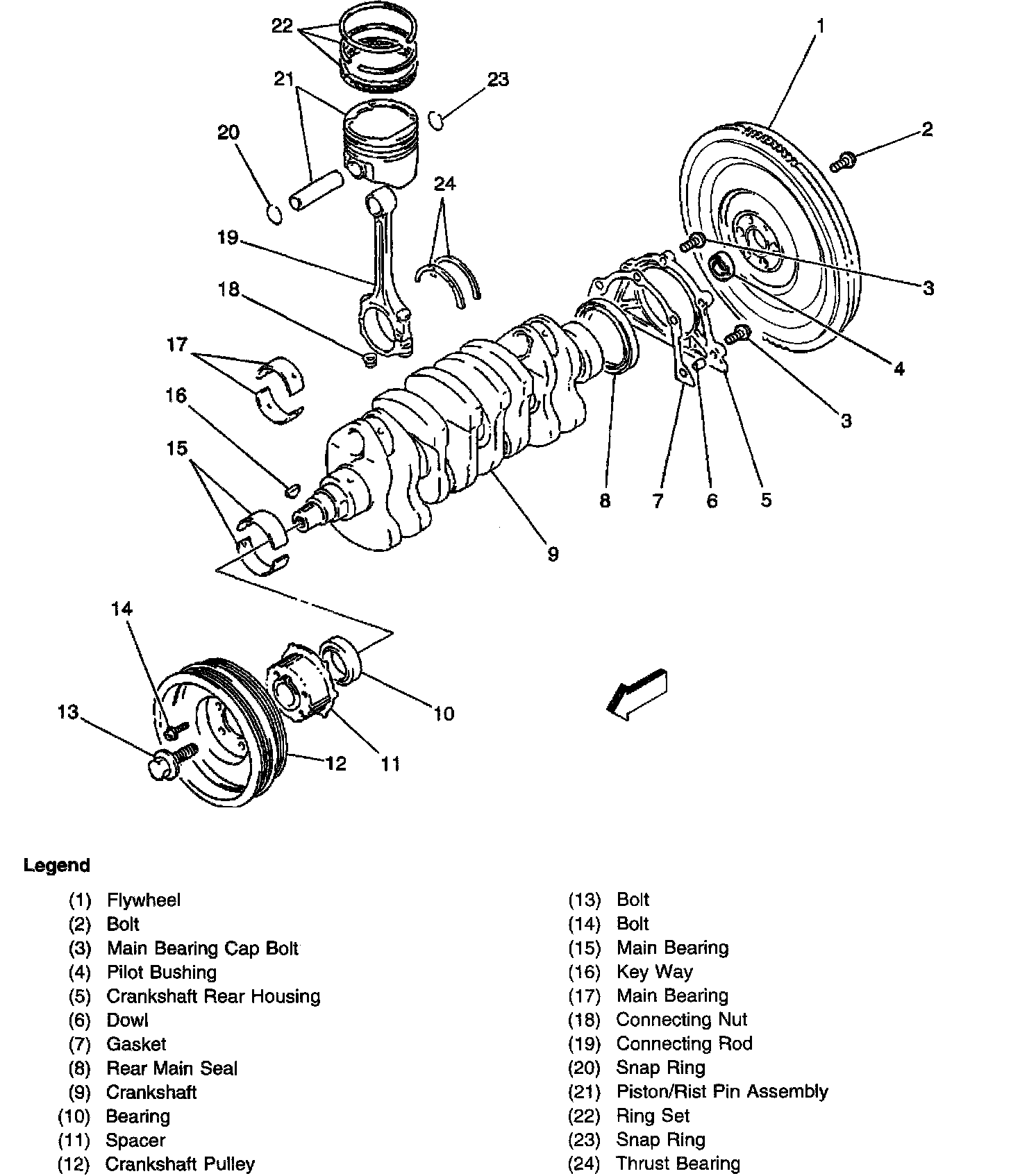

Flywheel and Crankshaft

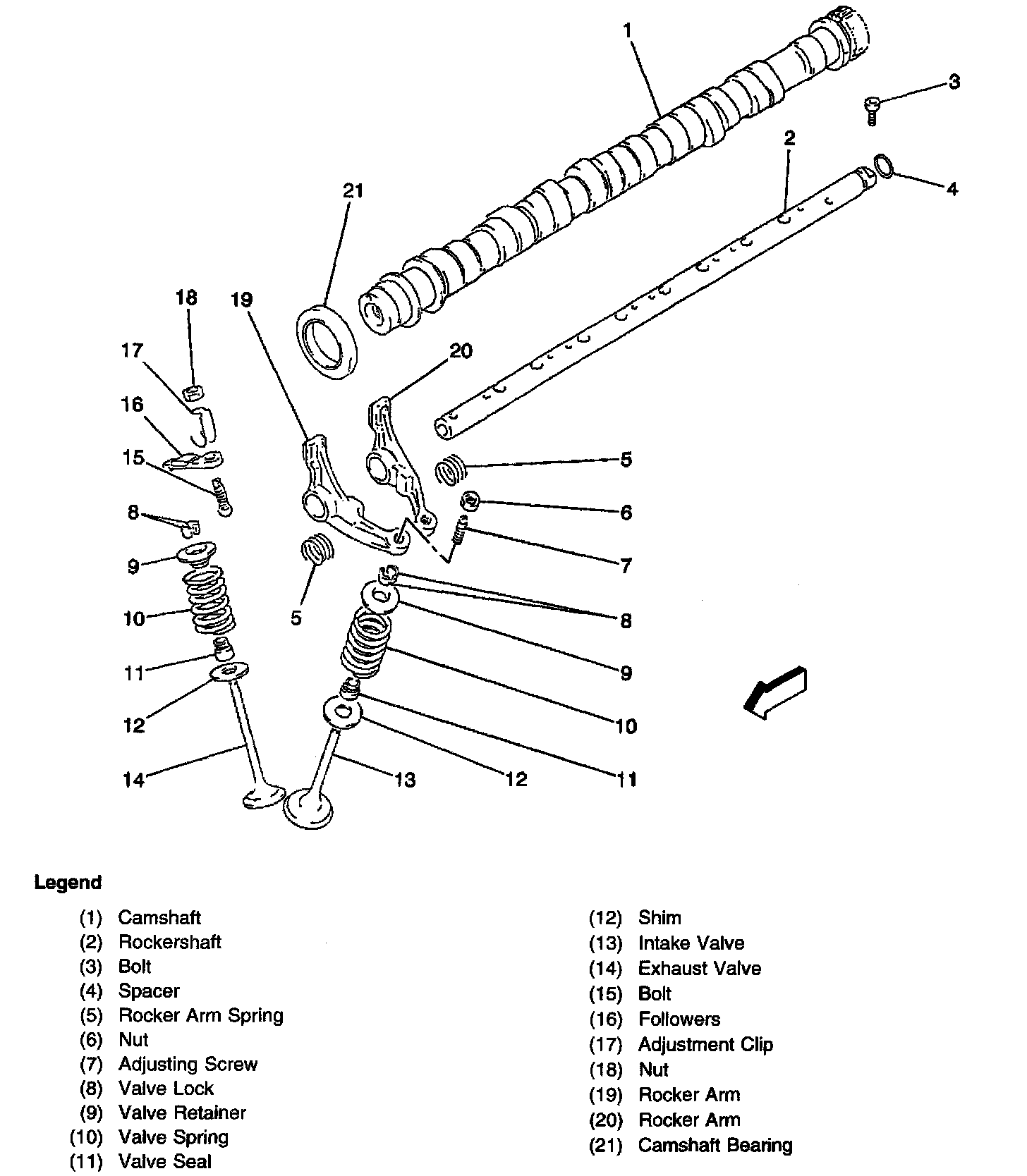

Camshaft and Valve Mechanism

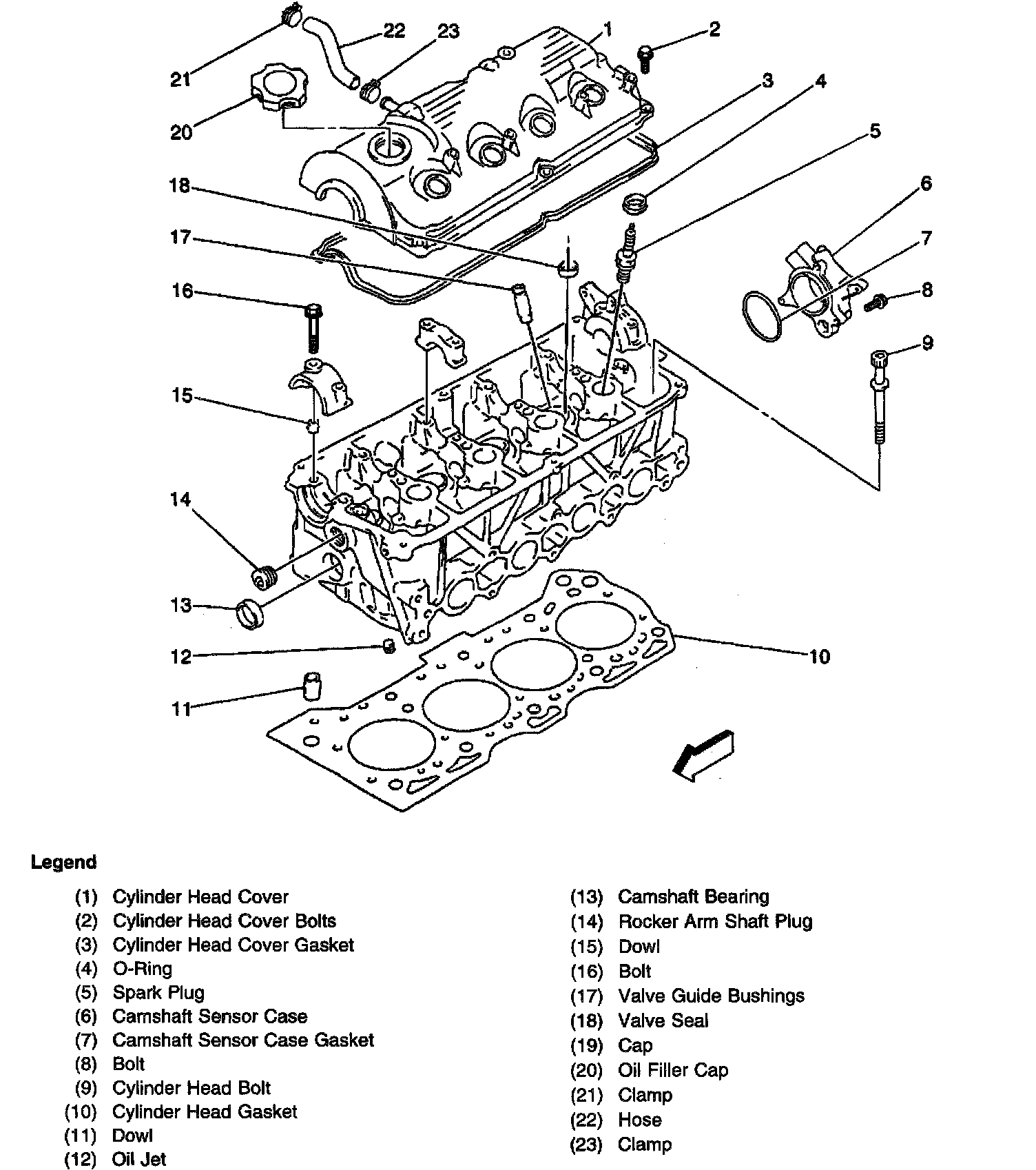

Cylinder Head
