Main Relay, Powertrain Control Module, (PCM) Power and Ground

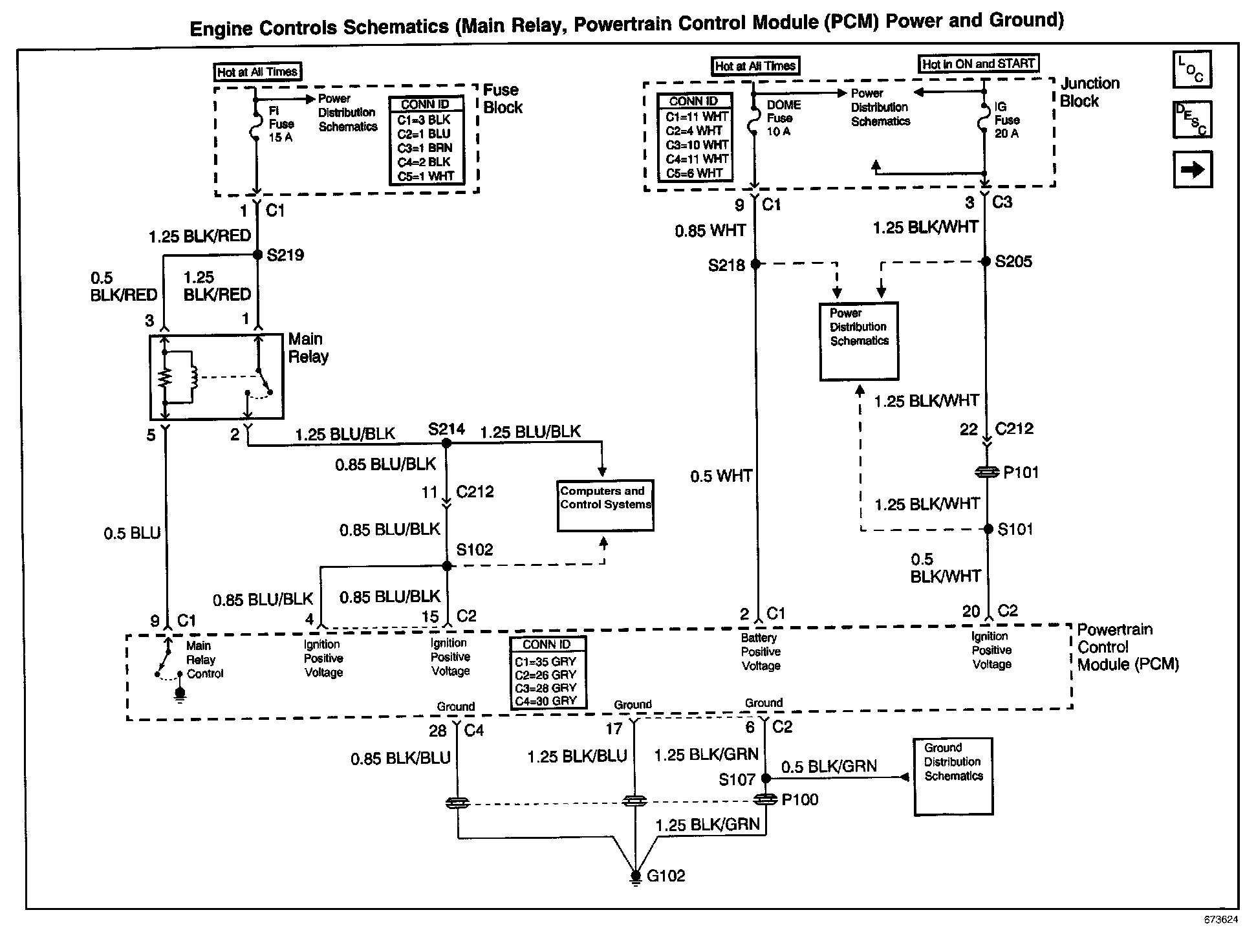

Engine Controls Schematics: Main Relay, Powertrain Control Module (PCM) Power and Ground:
