Removal & Installation

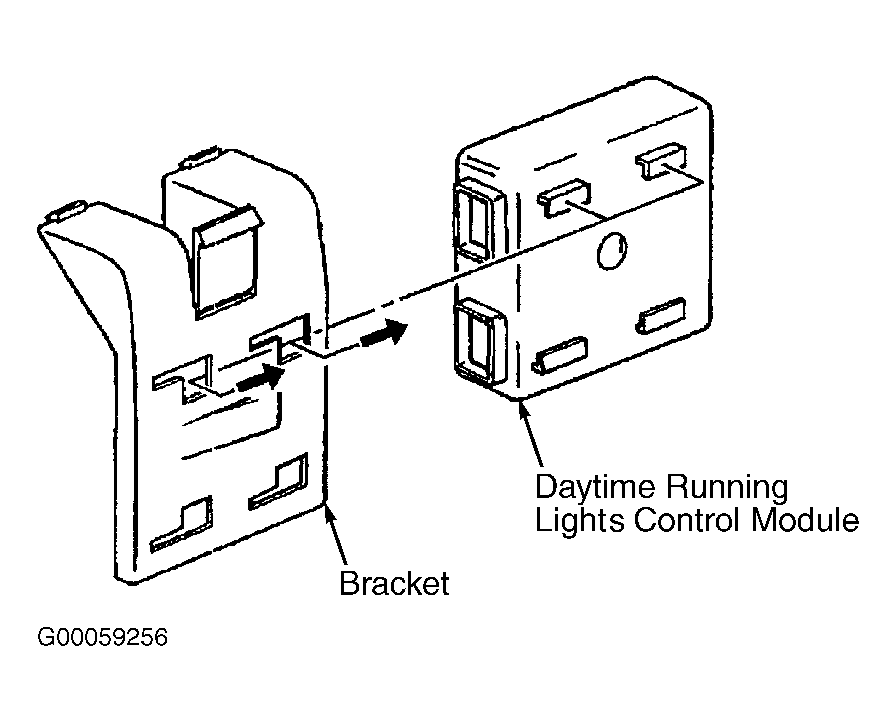

- Daytime Running Lights (DRL) control module is located on a bracket behind Instrument Panel (IP), to right of steering column. See Figure . Turn ignition switch to LOCK position. Disconnect negative battery cable. Remove right insulator-to-IP push-in retainers. Remove insulator-to-dash mat press-on retainers. Unsnap IP courtesy light from IP insulator. Remove IP insulator from instrument panel.
- Slide DRL control module toward front of vehicle from bracket. Disconnect DRL control module harness connectors. Remove DRL control module from vehicle. To install, reverse removal procedure.
