Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 - Fig 4 .

COMPONENT LOCATIONS

Application	Location
Brakelight Switch	Mounted To Brake Pedal Support Bracket
Cruise Control Functional Switches	Part Of Turn Signal Switch, On Turn Signal Lever
Cruise Control Module	In Engine Compartment, Near Left Strut Tower
Cruise Control Release Switch	Mounted To Brake Pedal Support Bracket
Ground G202	Left Side Of Instrument Panel, Under Cross Car Beam, Above Park Brake Assembly
Vehicle Speed Sensor	Lower Right Rear Of Engine Compartment, Mounted To Right Side Of Transaxle

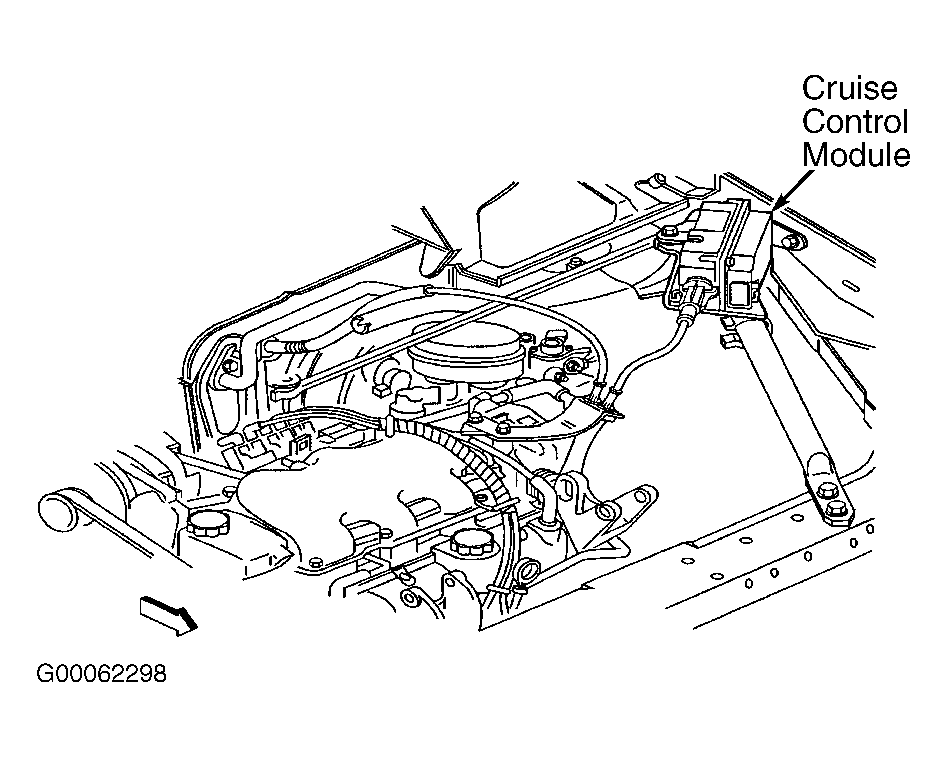

Fig 1: Locating Cruise Control Module

Courtesy of GENERAL MOTORS CORP.

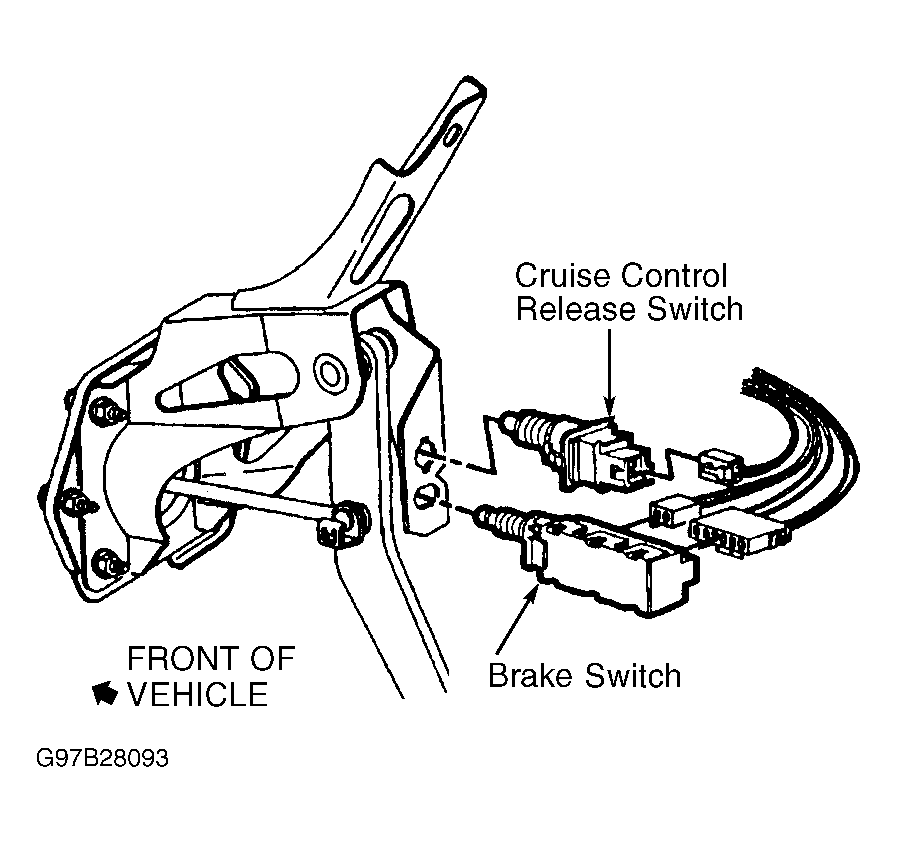

Fig 2: Locating Cruise Control Release Switch & Brakelight Switch

Courtesy of GENERAL MOTORS CORP.

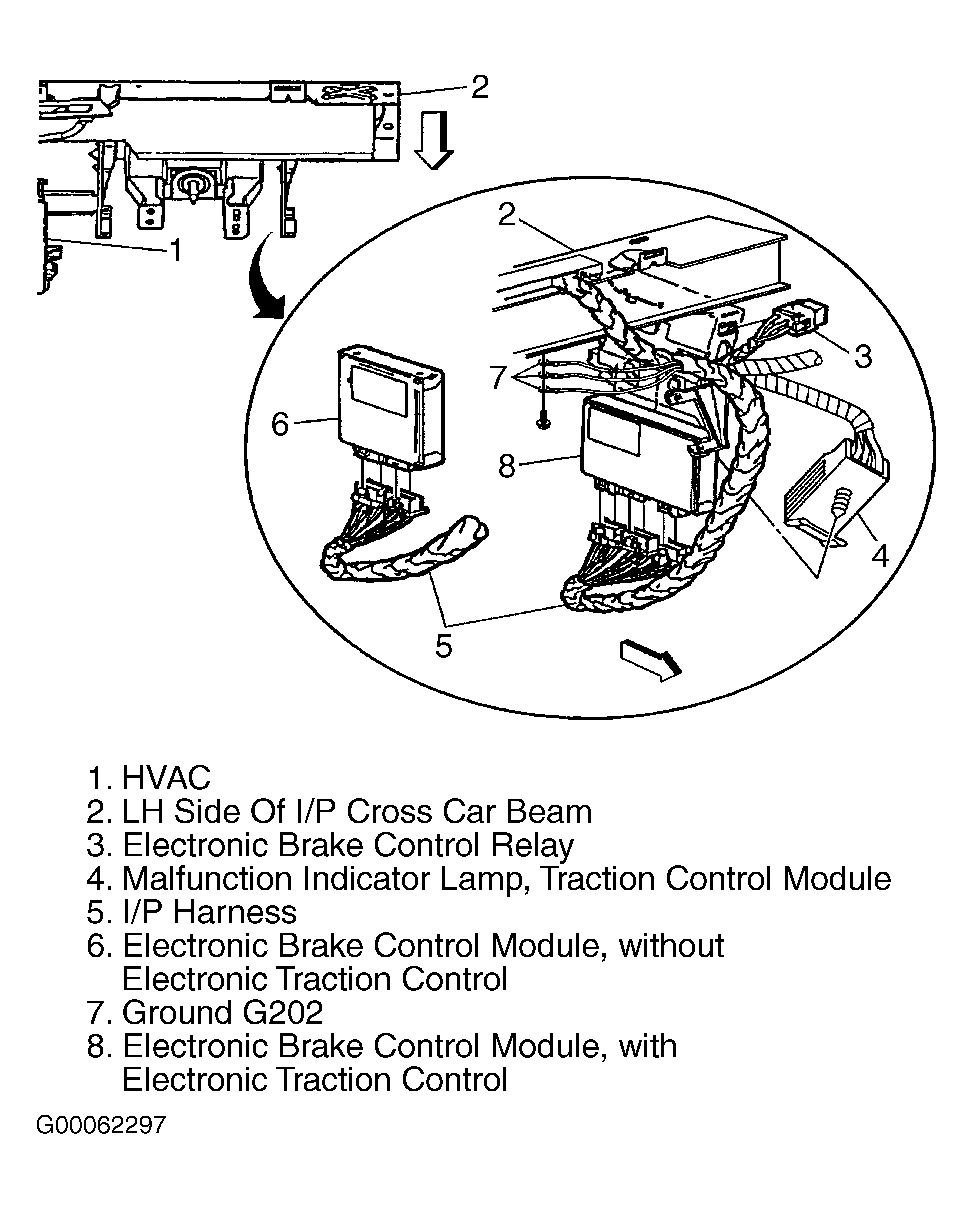

Fig 3: Locating Ground Point G202

Courtesy of GENERAL MOTORS CORP.

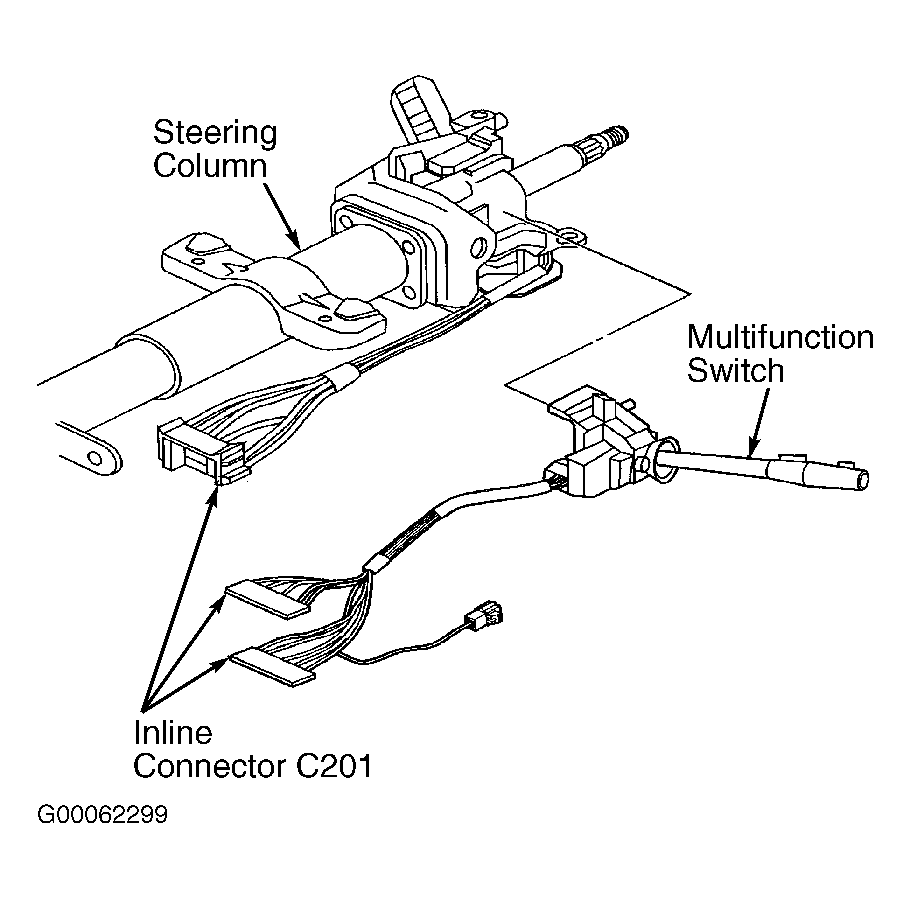

Fig 4: Locating In-Line Harness Connector C201

Courtesy of GENERAL MOTORS CORP.
