Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cruise control cable from the module. Refer to Cruise Control Cable Replacement .
Disconnect the electrical connector.

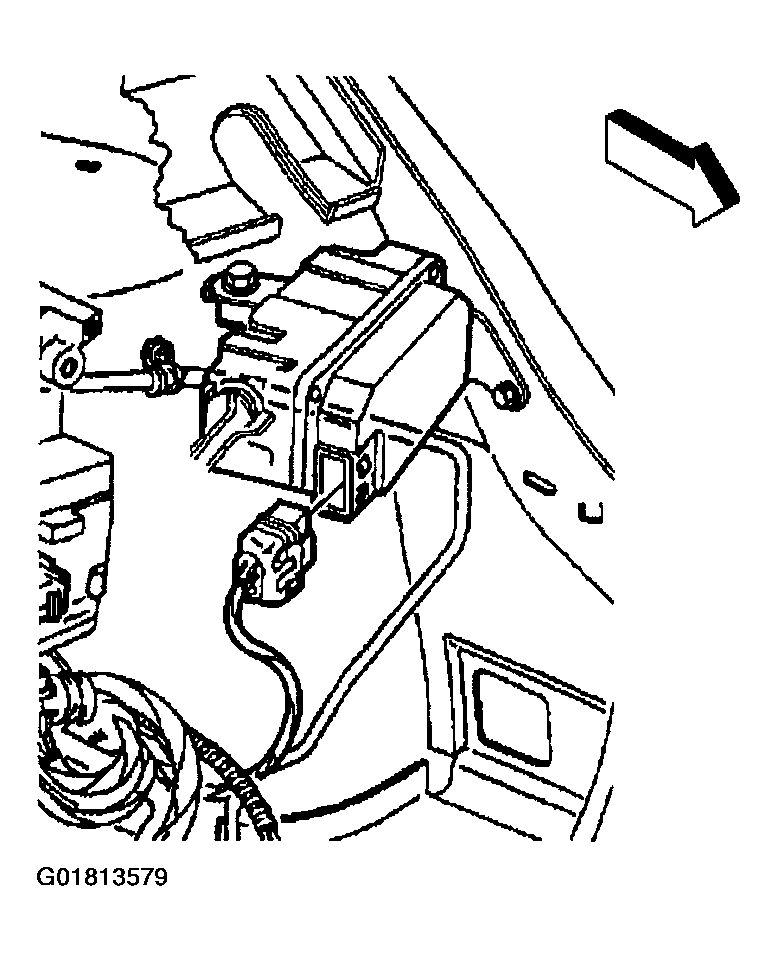

Fig 1: Disconnecting Electrical Connector (Cruise Control Module)
Courtesy of GENERAL MOTORS CORP.
Remove the mounting bracket bolt from the cruise control module.

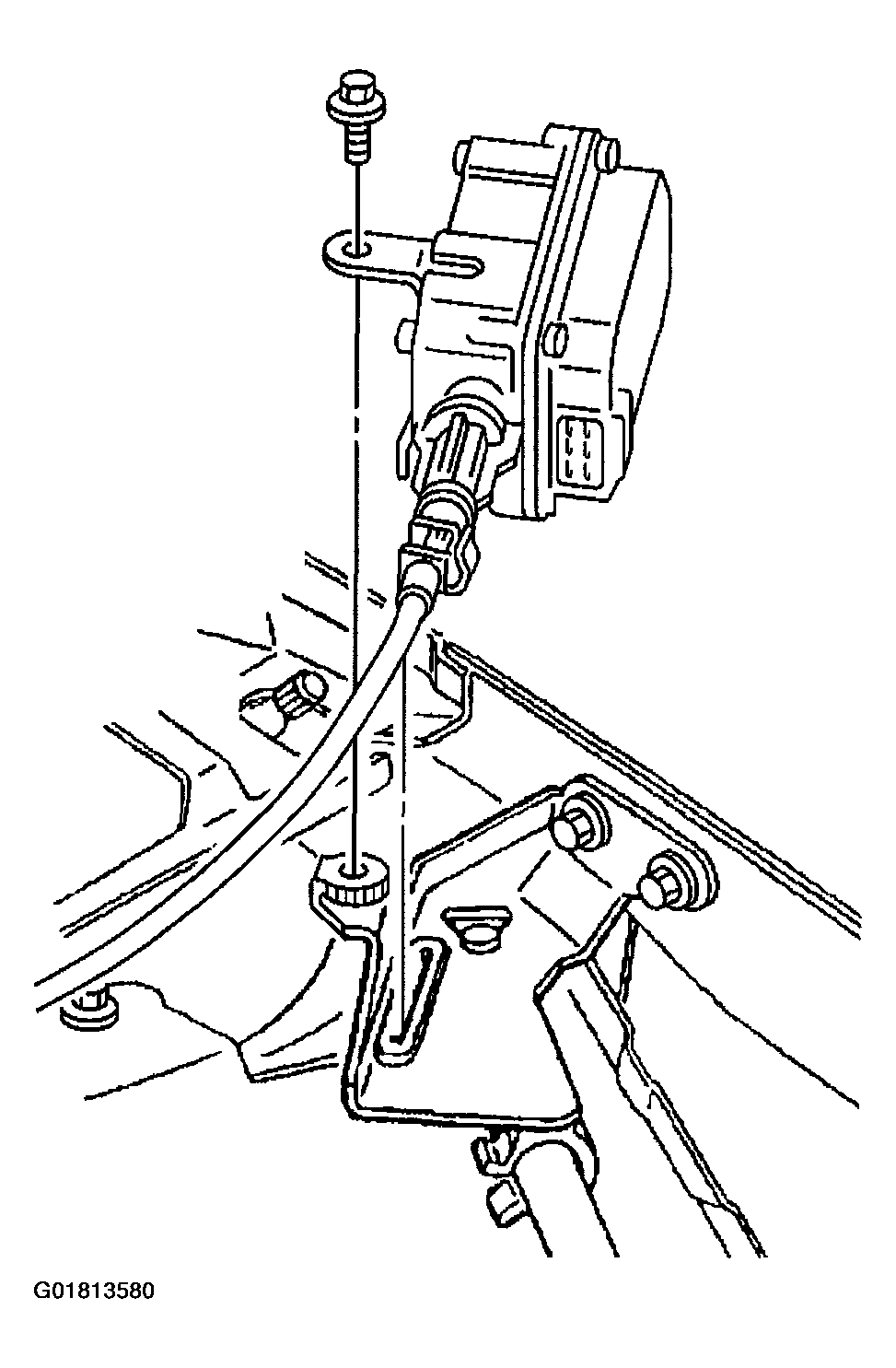

Fig 2: Removing Cruise Control Module From Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control module from the mounting bracket.
