Transmission Position Sensor/Switch: Diagrams
Automatic Transmission Related Connector End Views

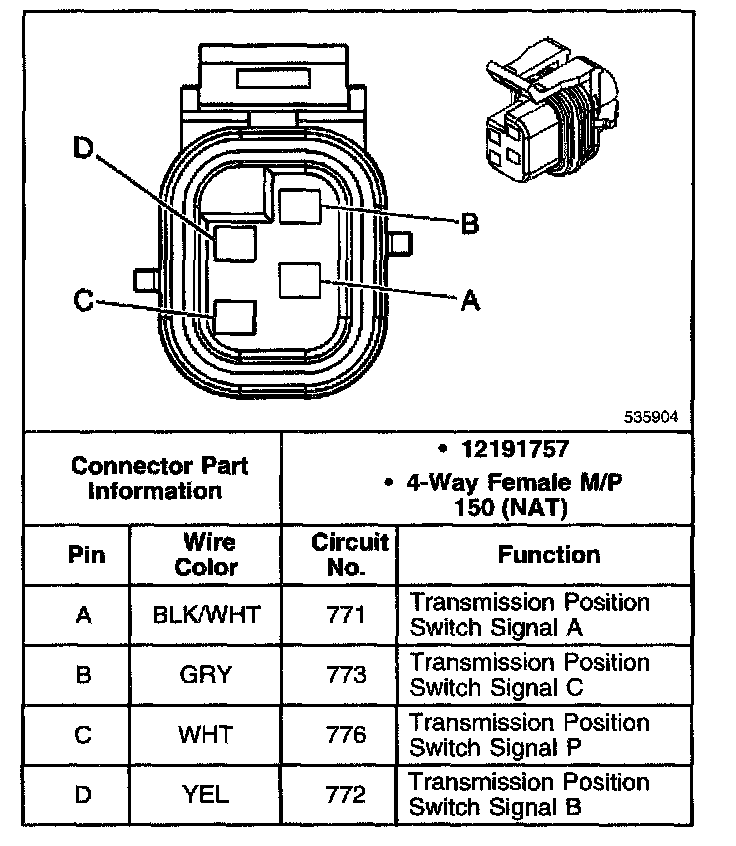

Transmission Range Switch Connector, Wiring Harness Side
Tow/Haul Switch Connector, Column Wiring Harness Side

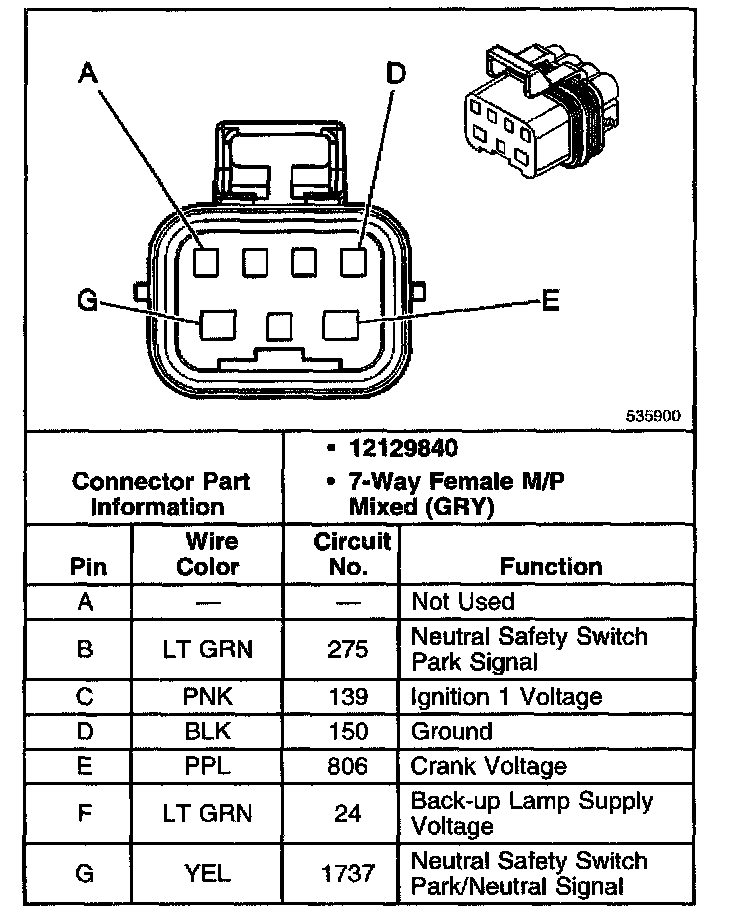

Park/Neutral Position Switch (C1)
Park/Neutral Position Switch (C2)
