Power Door Systems Component Views

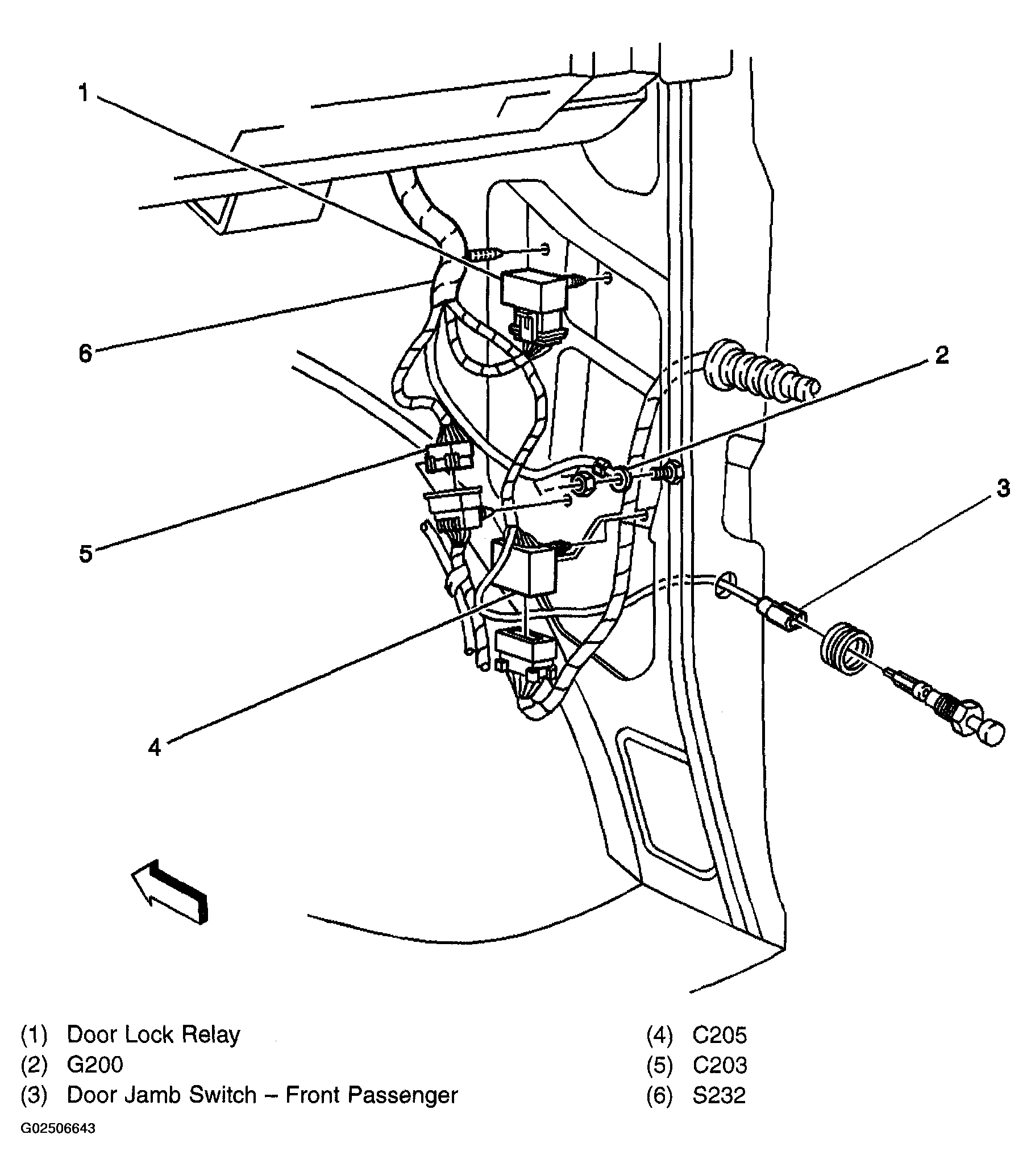

Fig 1: I/P Wiring To Front Passenger Door

Courtesy of GENERAL MOTORS CORP.

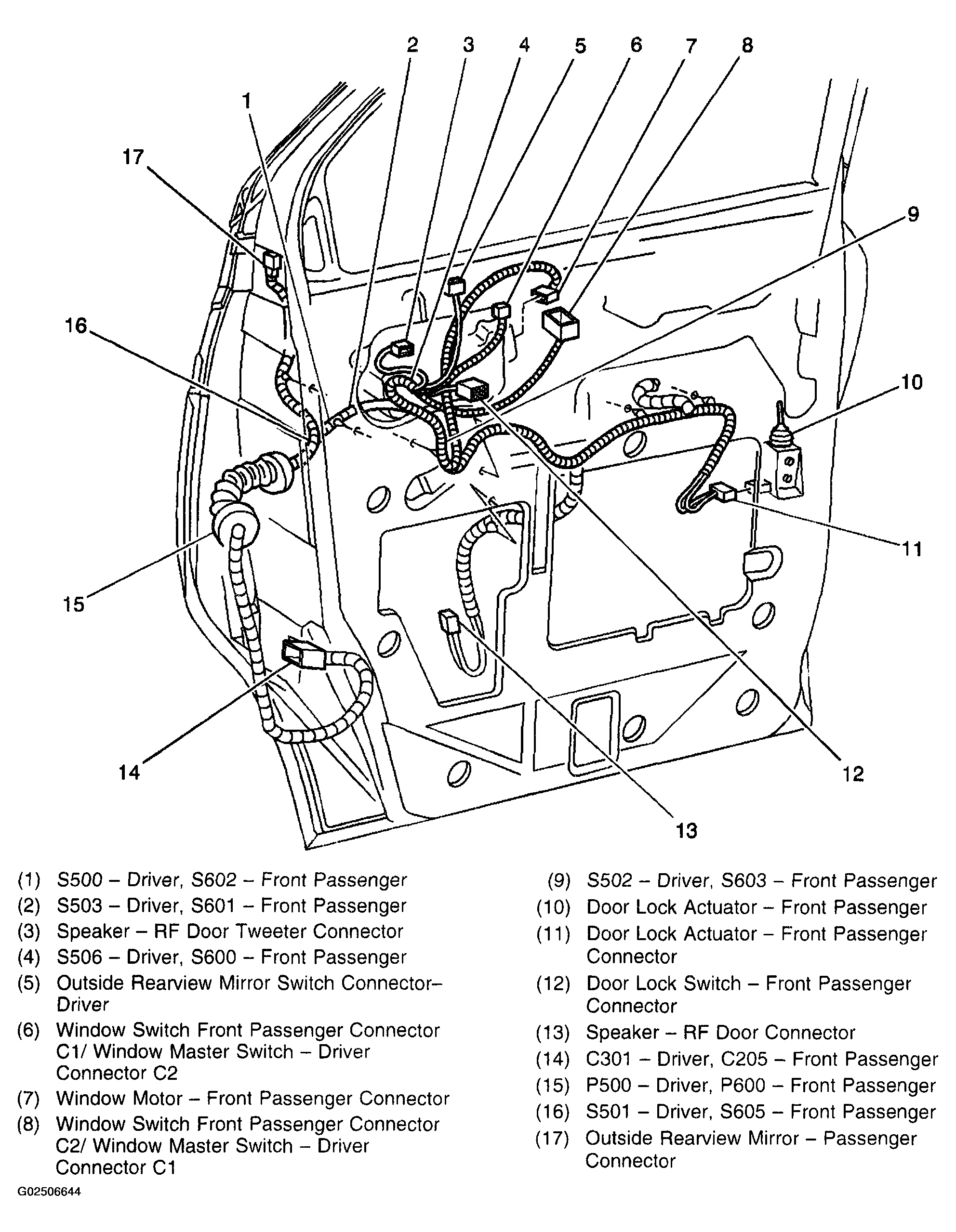

Fig 2: Front Door Wiring (Front Passenger Shown, Driver Opposite)

Courtesy of GENERAL MOTORS CORP.

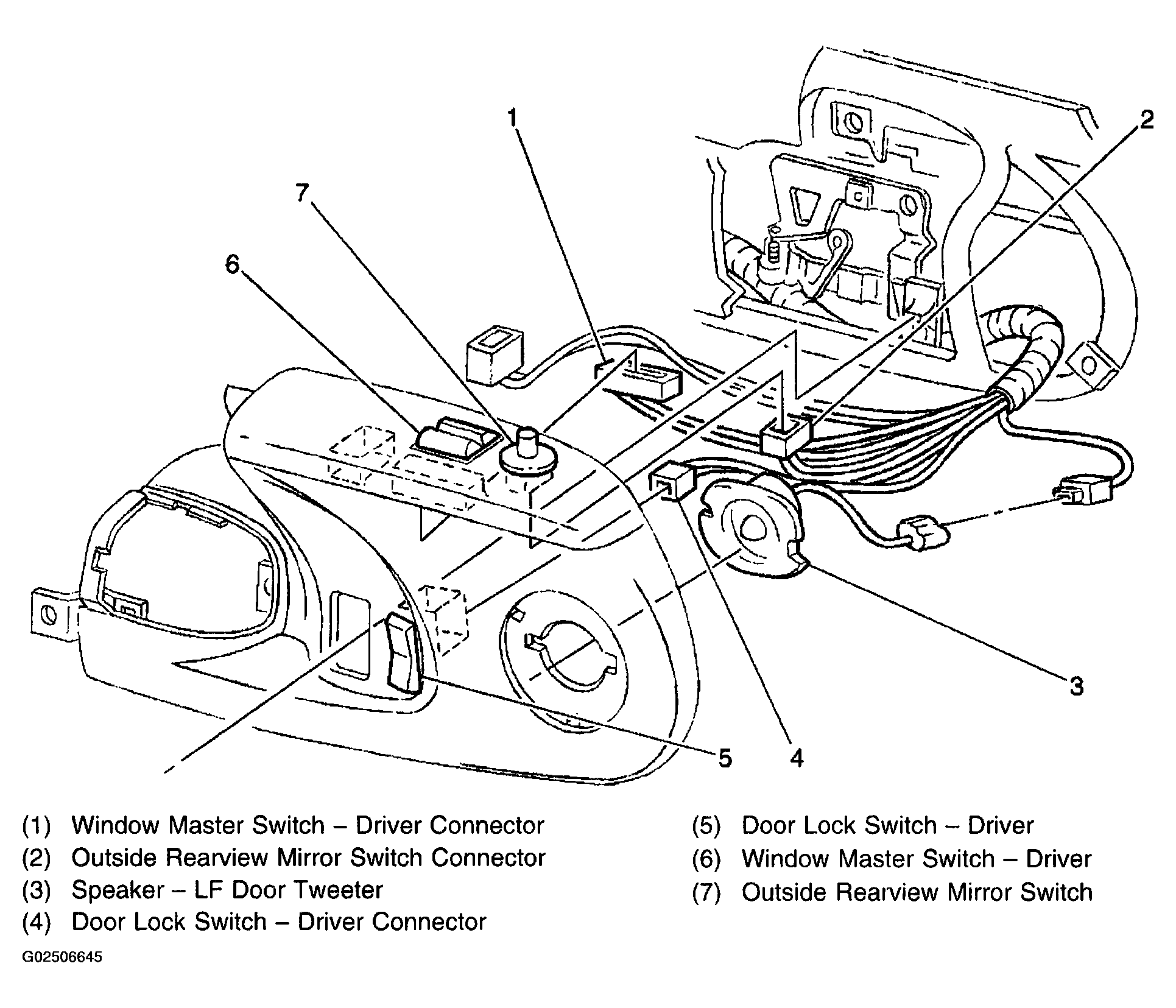

Fig 3: Door Control Switches - Driver

Courtesy of GENERAL MOTORS CORP.

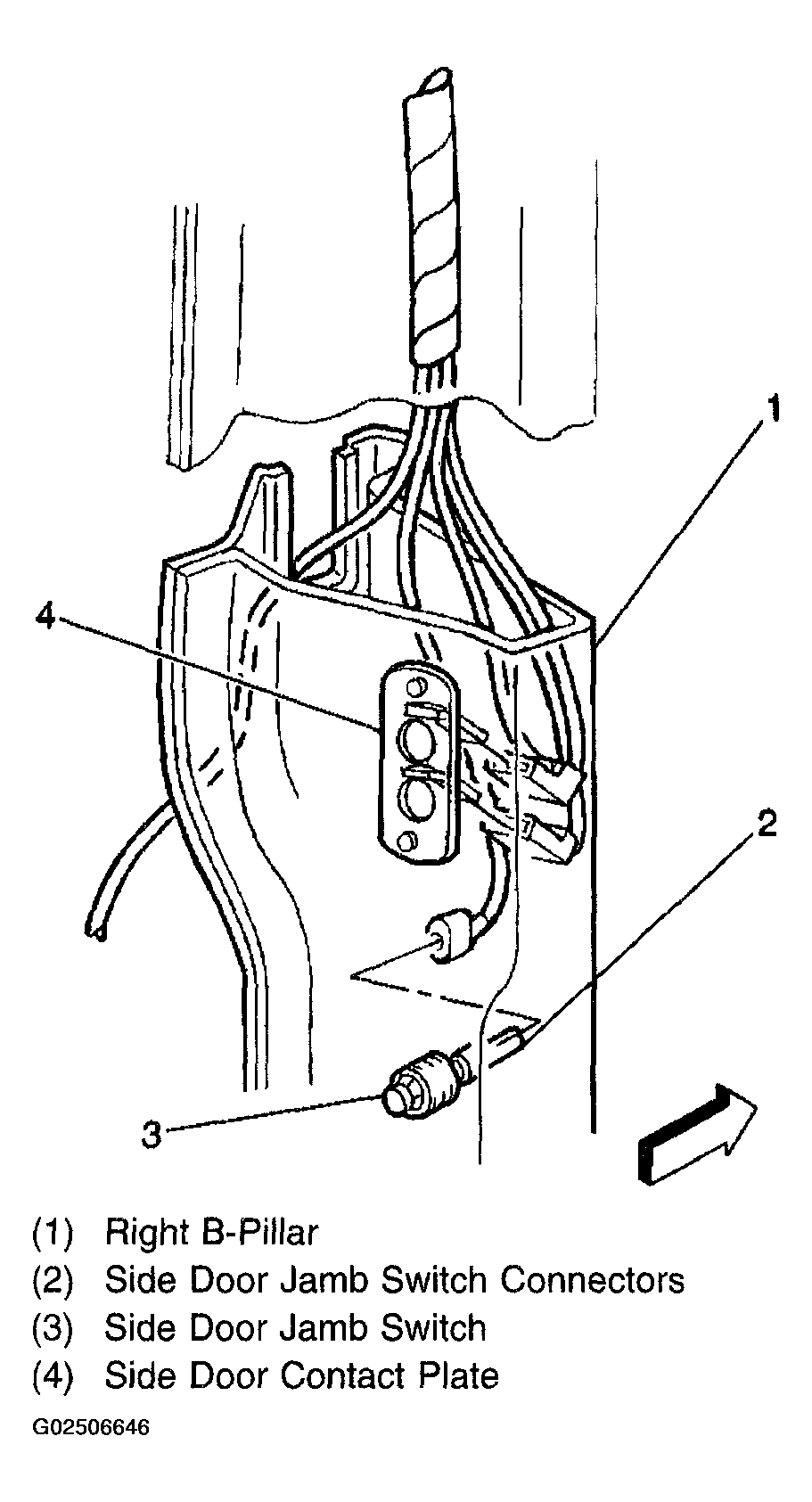

Fig 4: Side Door Contact Plate & Side Door Jamb Switch Wiring

Courtesy of GENERAL MOTORS CORP.

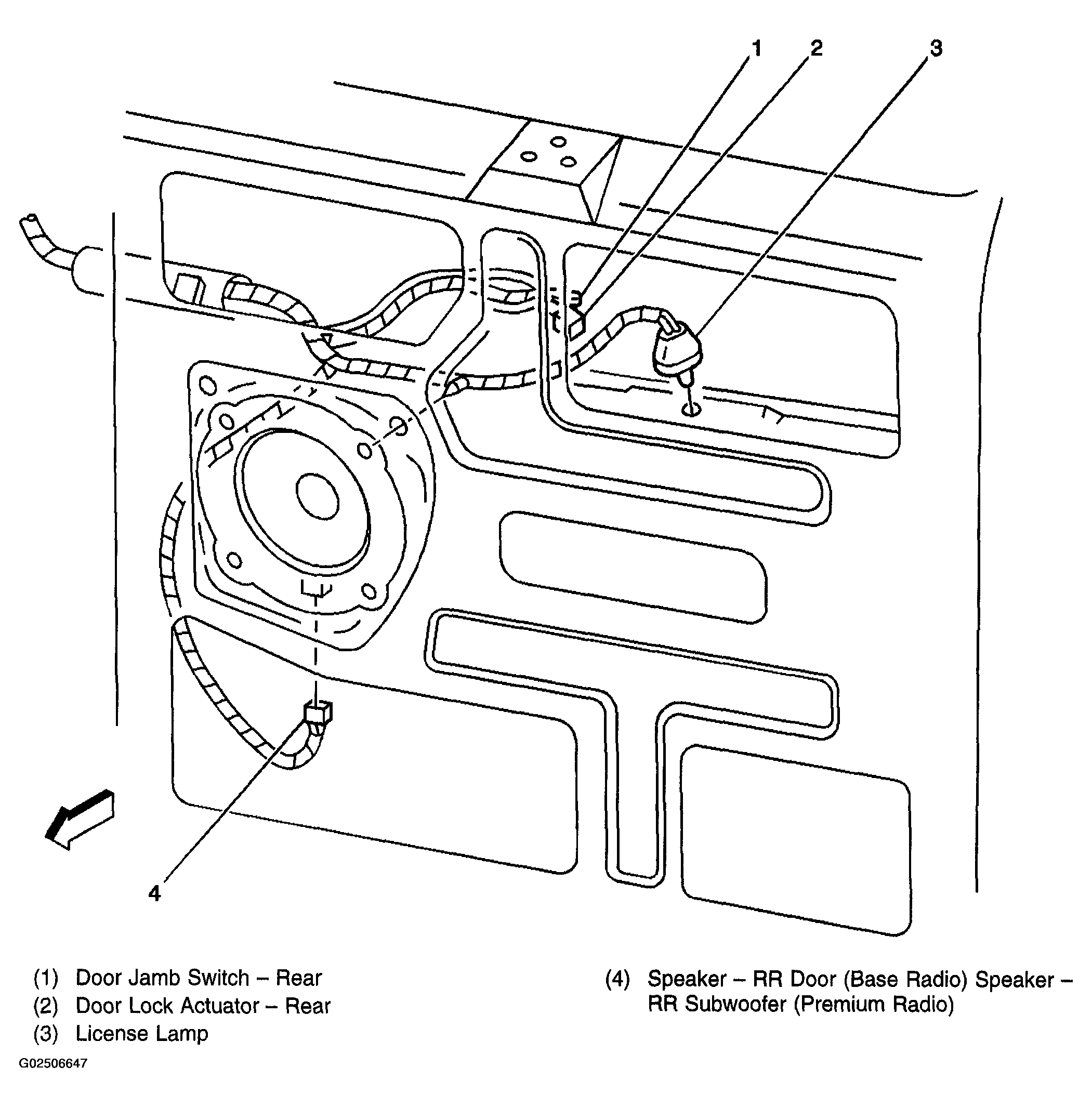

Fig 5: Door Location View - RR

Courtesy of GENERAL MOTORS CORP.
