Power Door Systems Connector End Views

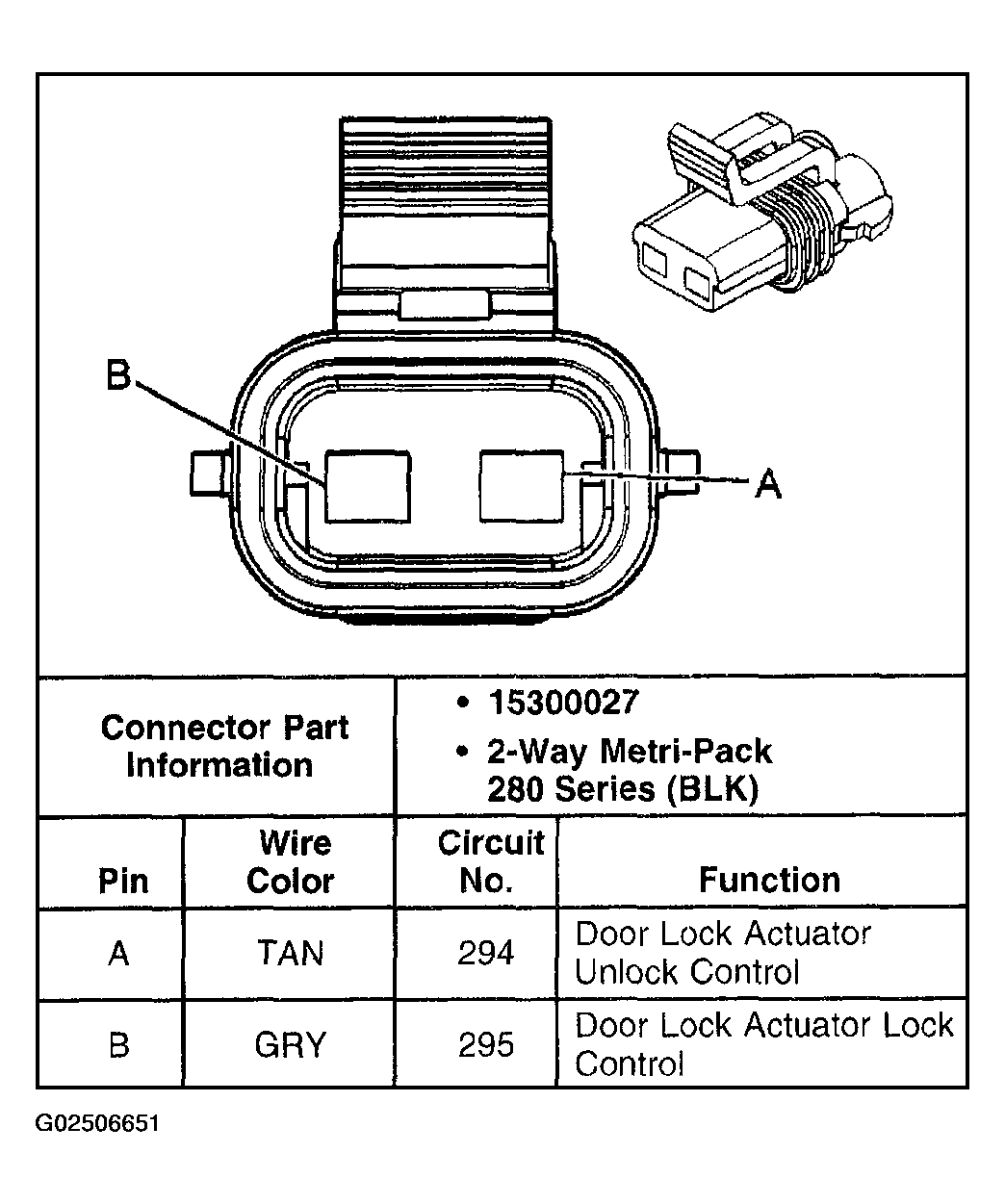

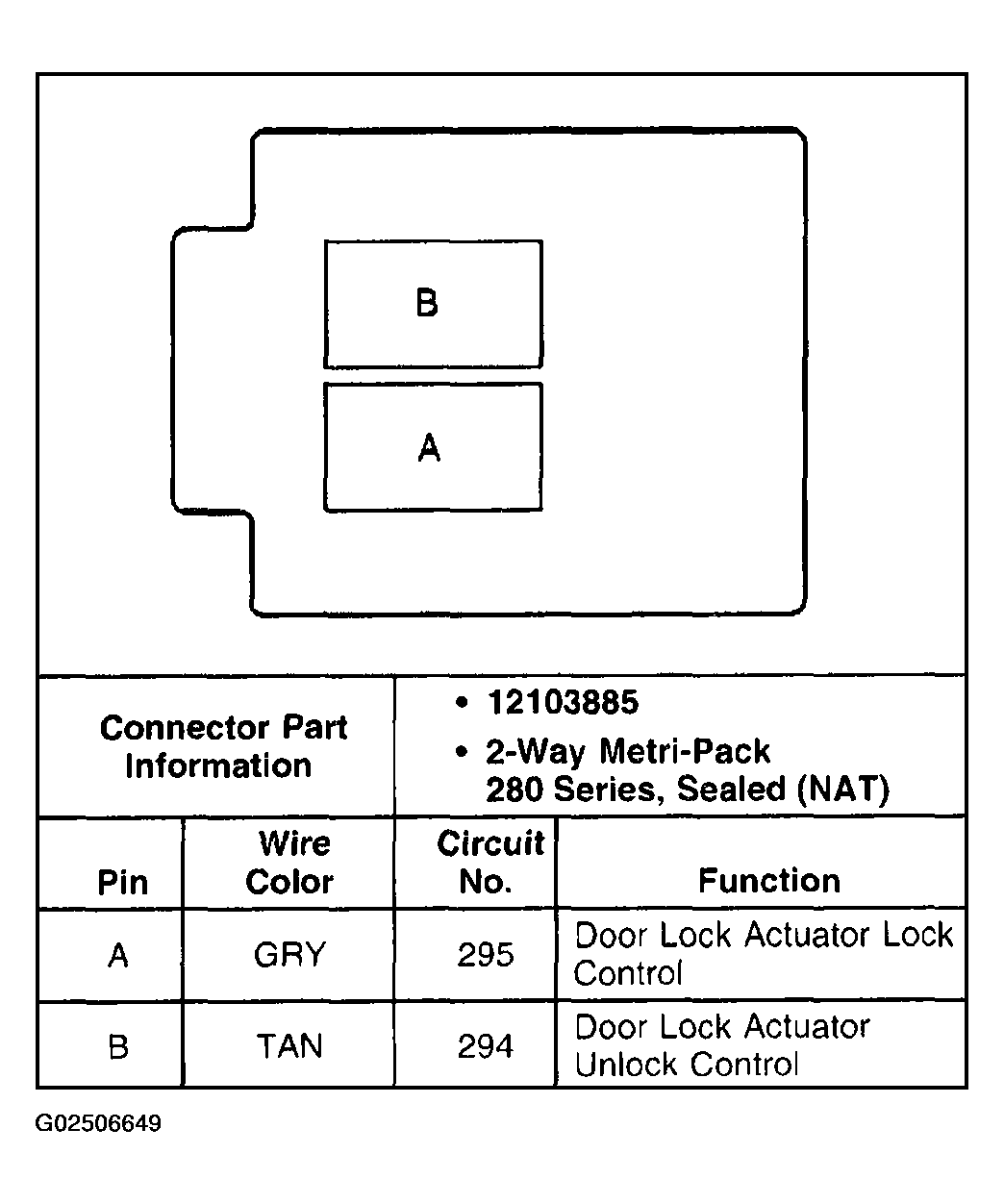

Fig 1: Door Lock Actuator Connector End View - Driver

Courtesy of GENERAL MOTORS CORP.

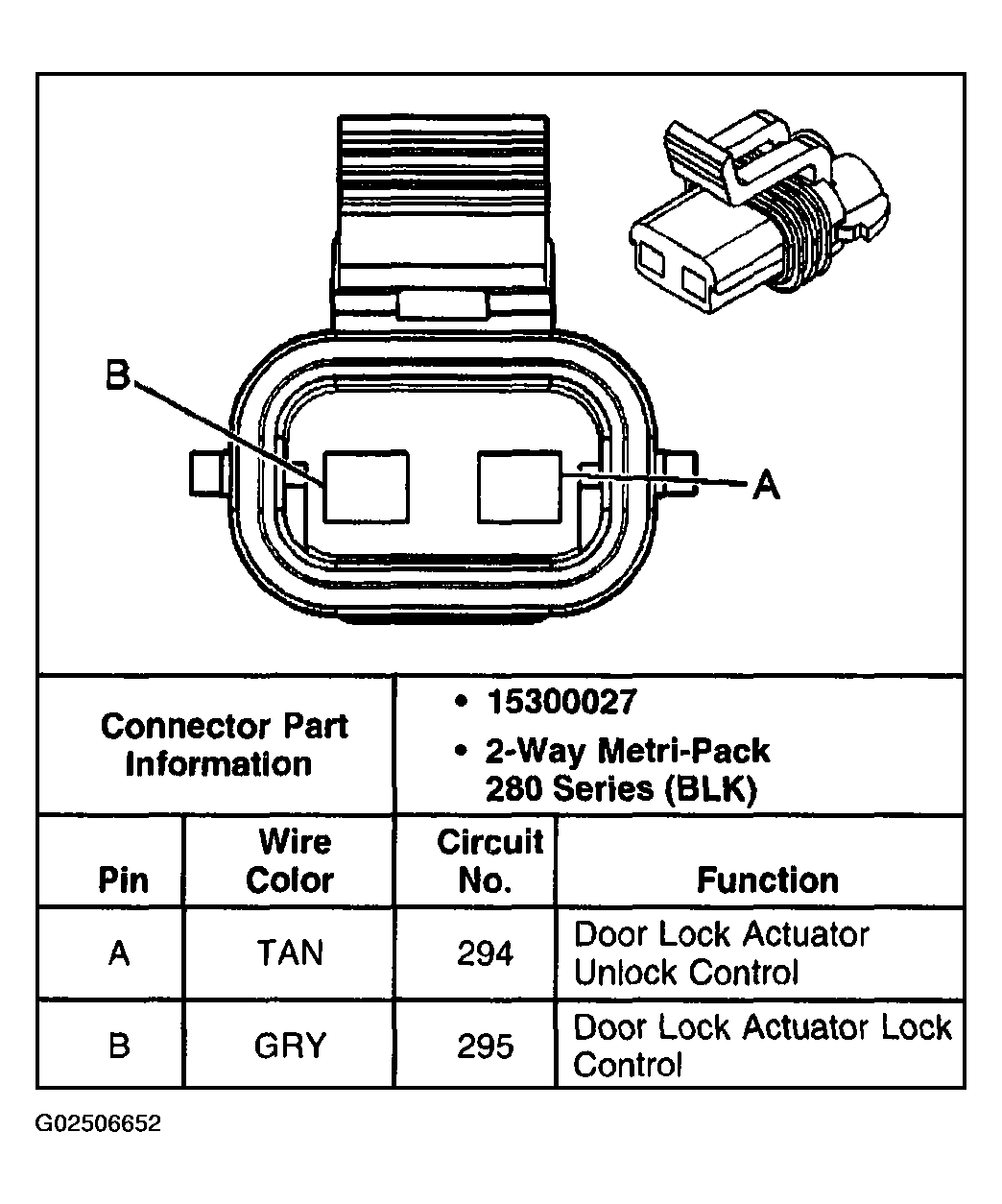

Fig 2: Door Lock Actuator Connector End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

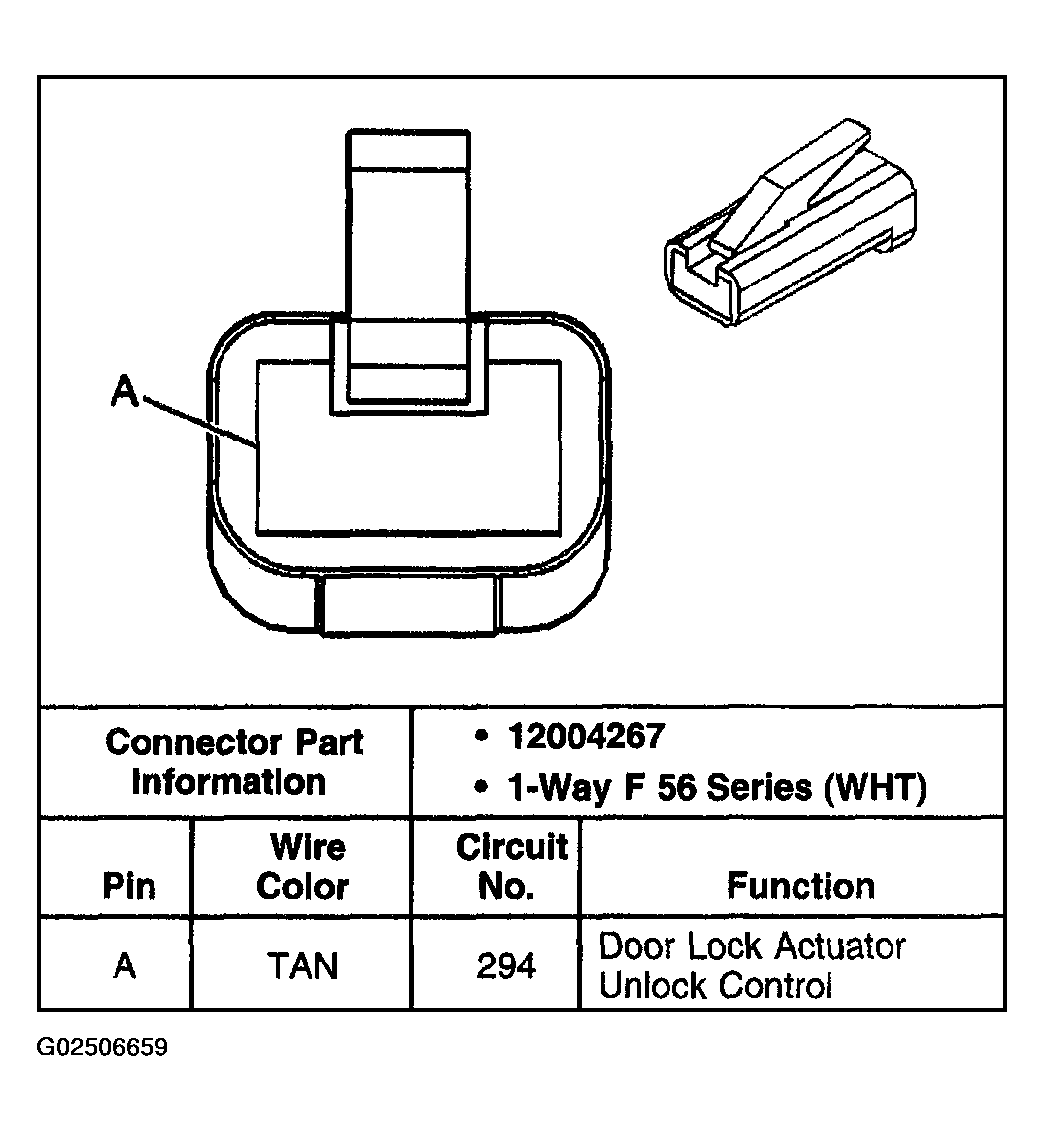

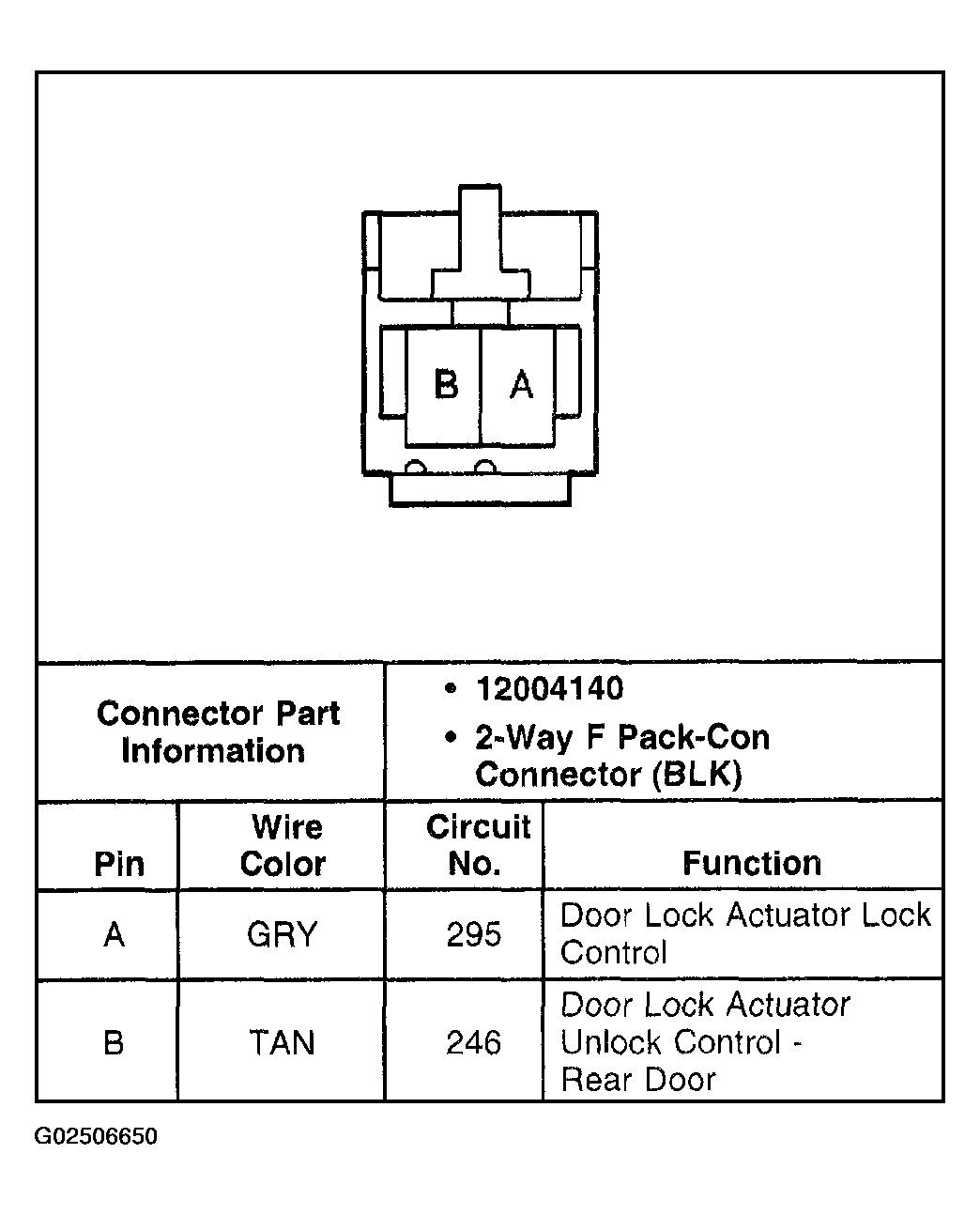

Fig 3: Door Lock Actuator Connector End View - Rear (W/O E54)

Courtesy of GENERAL MOTORS CORP.

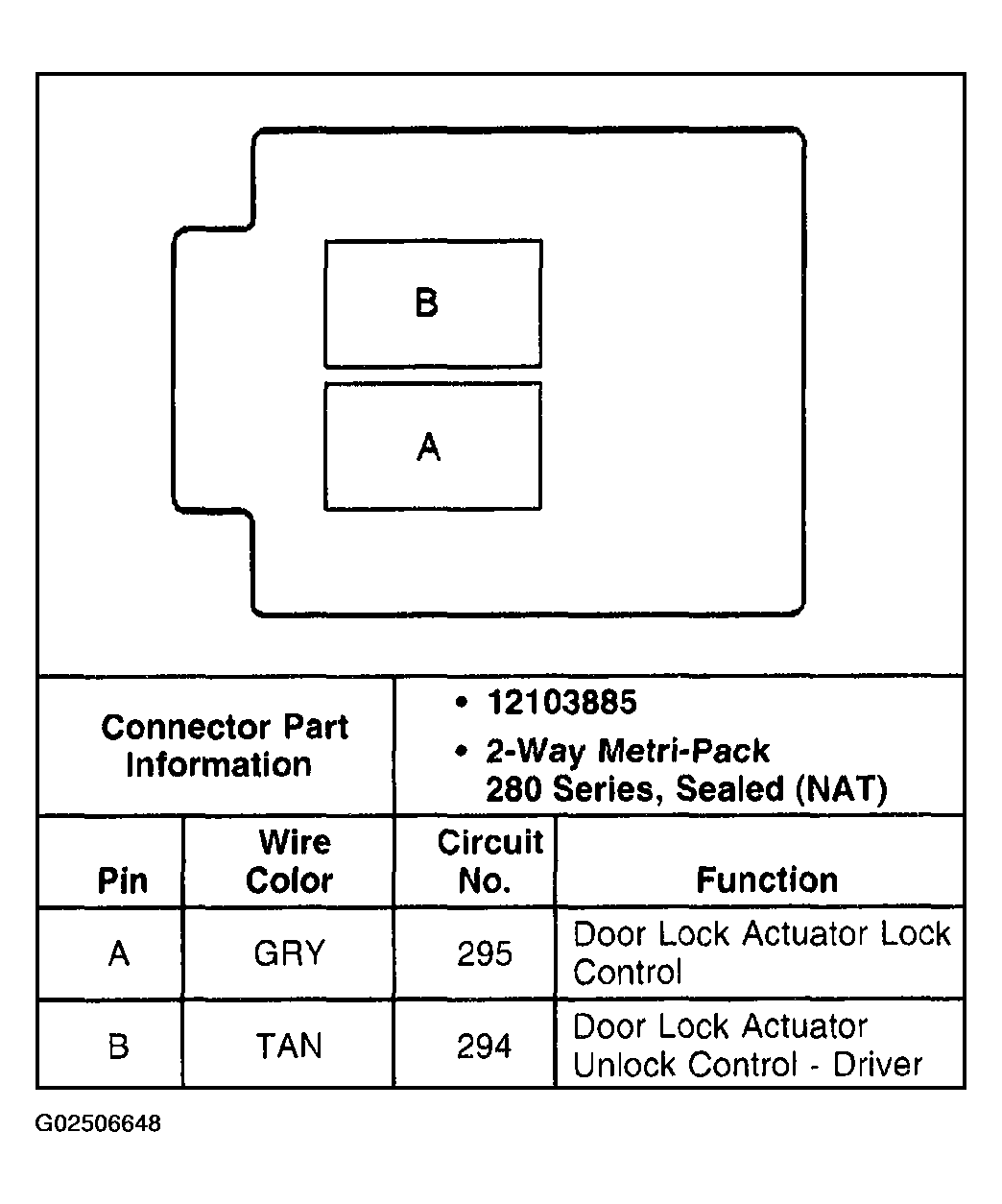

Fig 4: Door Lock Actuator Connector End View - Rear (W/E54)

Courtesy of GENERAL MOTORS CORP.

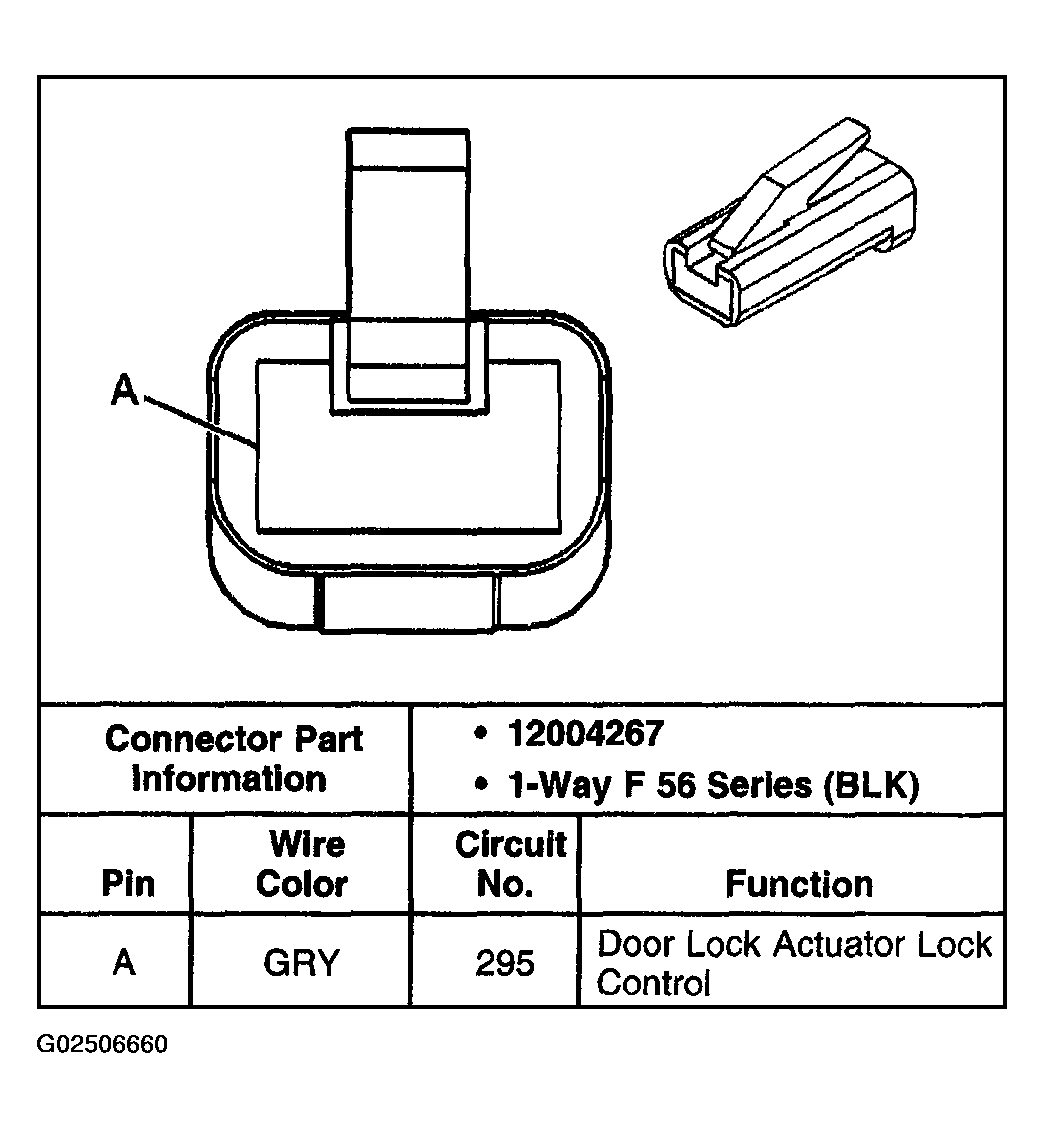

Fig 5: Door Lock Actuator Connector End View - Side

Courtesy of GENERAL MOTORS CORP.

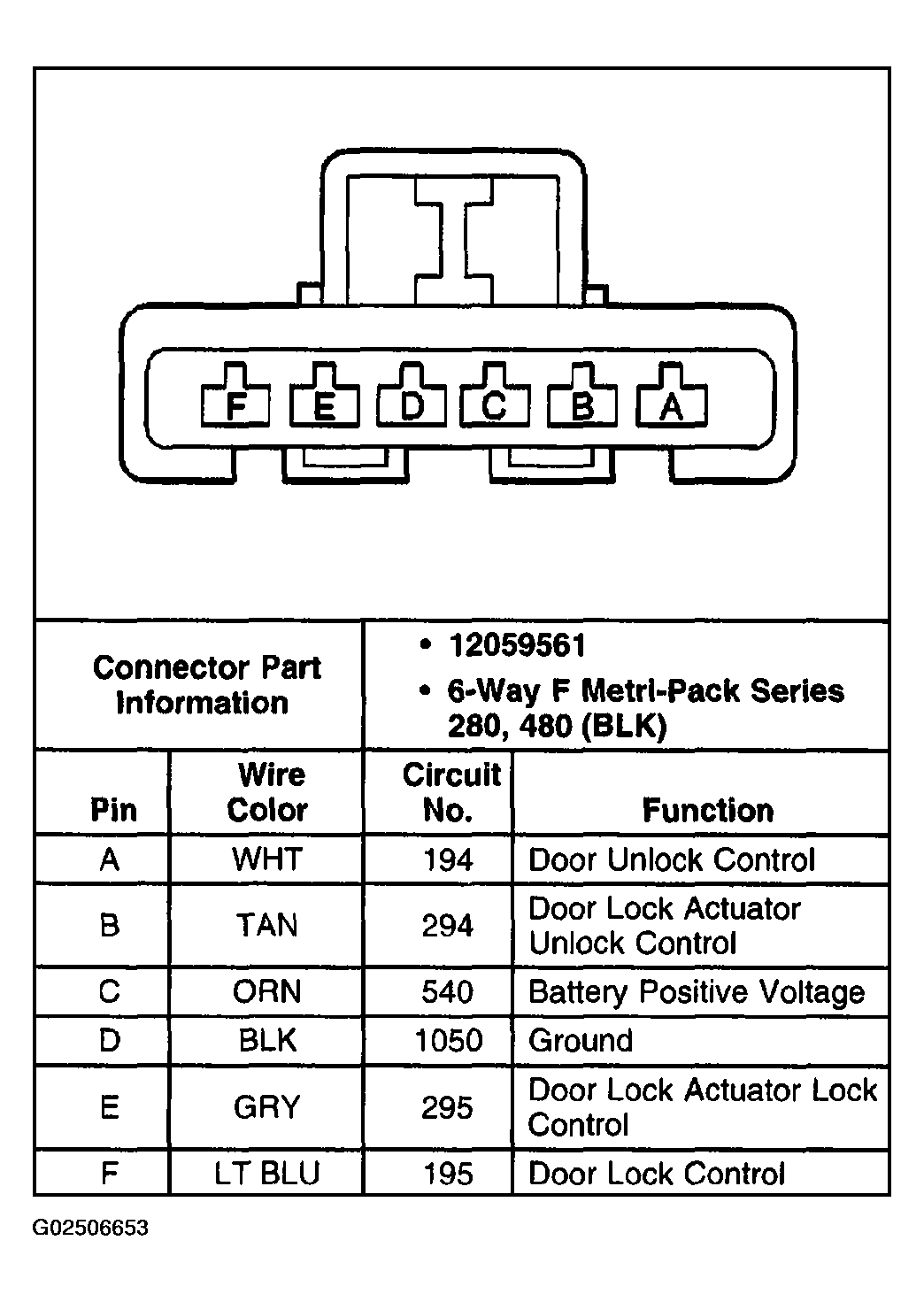

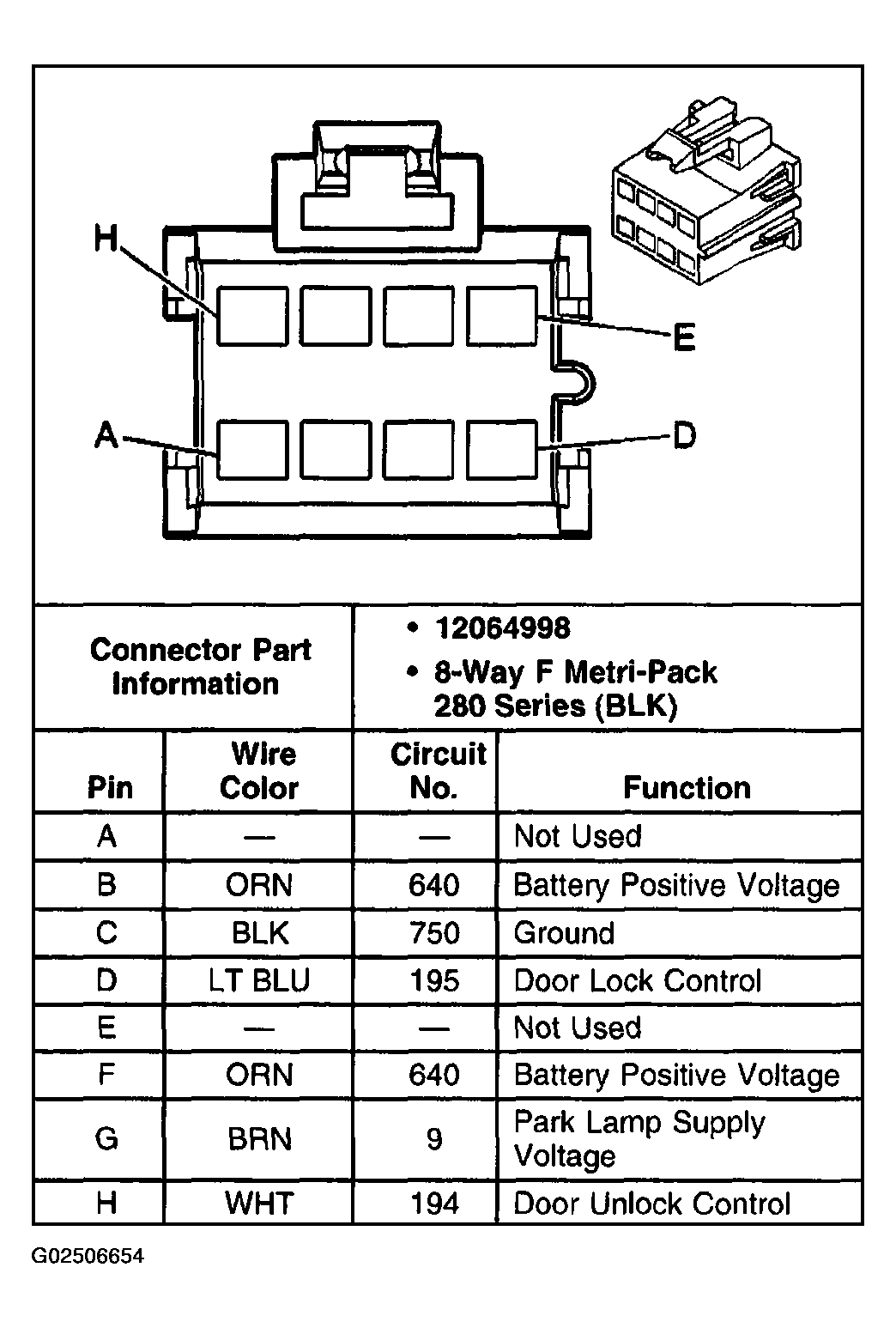

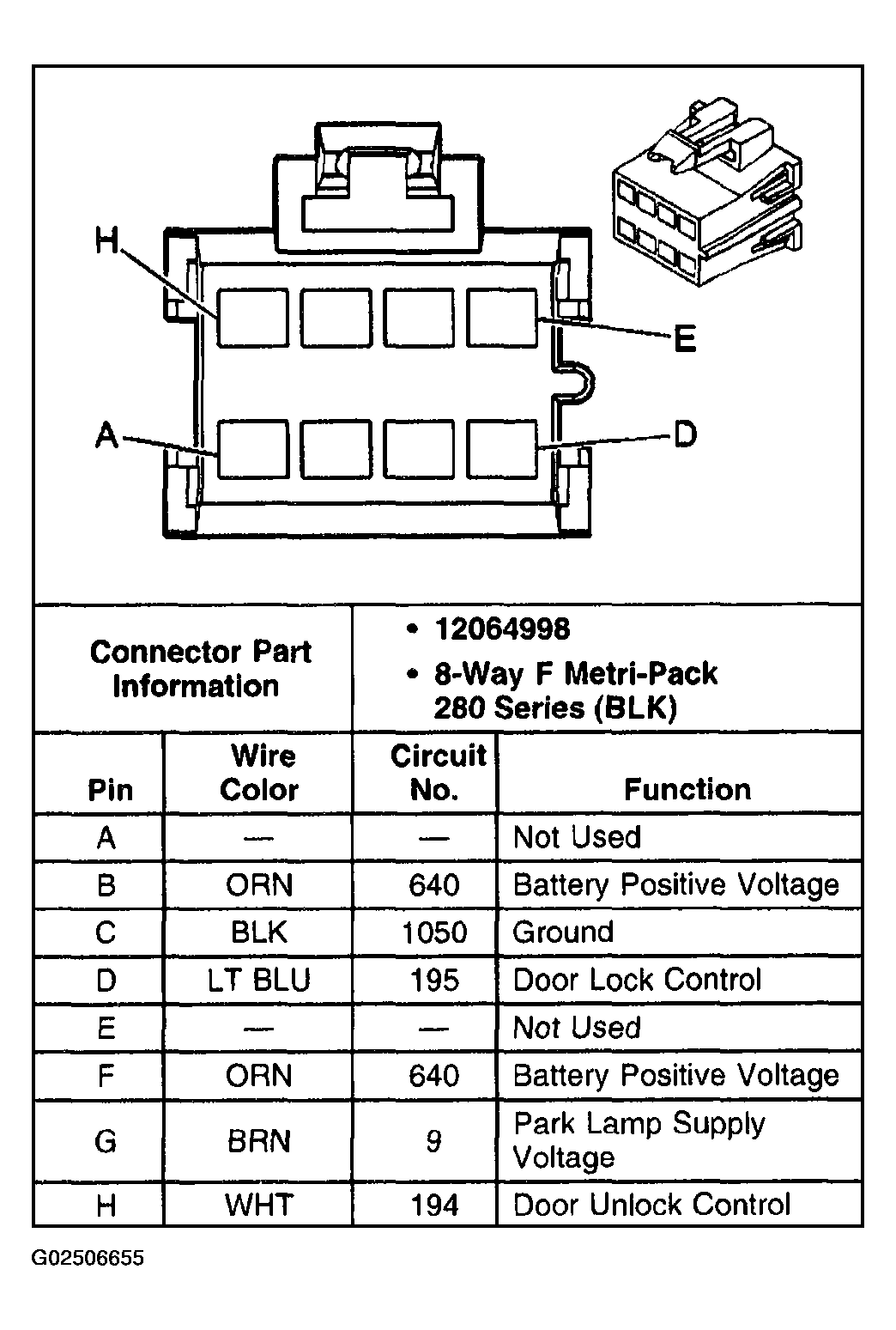

Fig 6: Door Lock Relay Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 7: Door Lock Switch Connector End View - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 8: Door Lock Switch Connector End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.

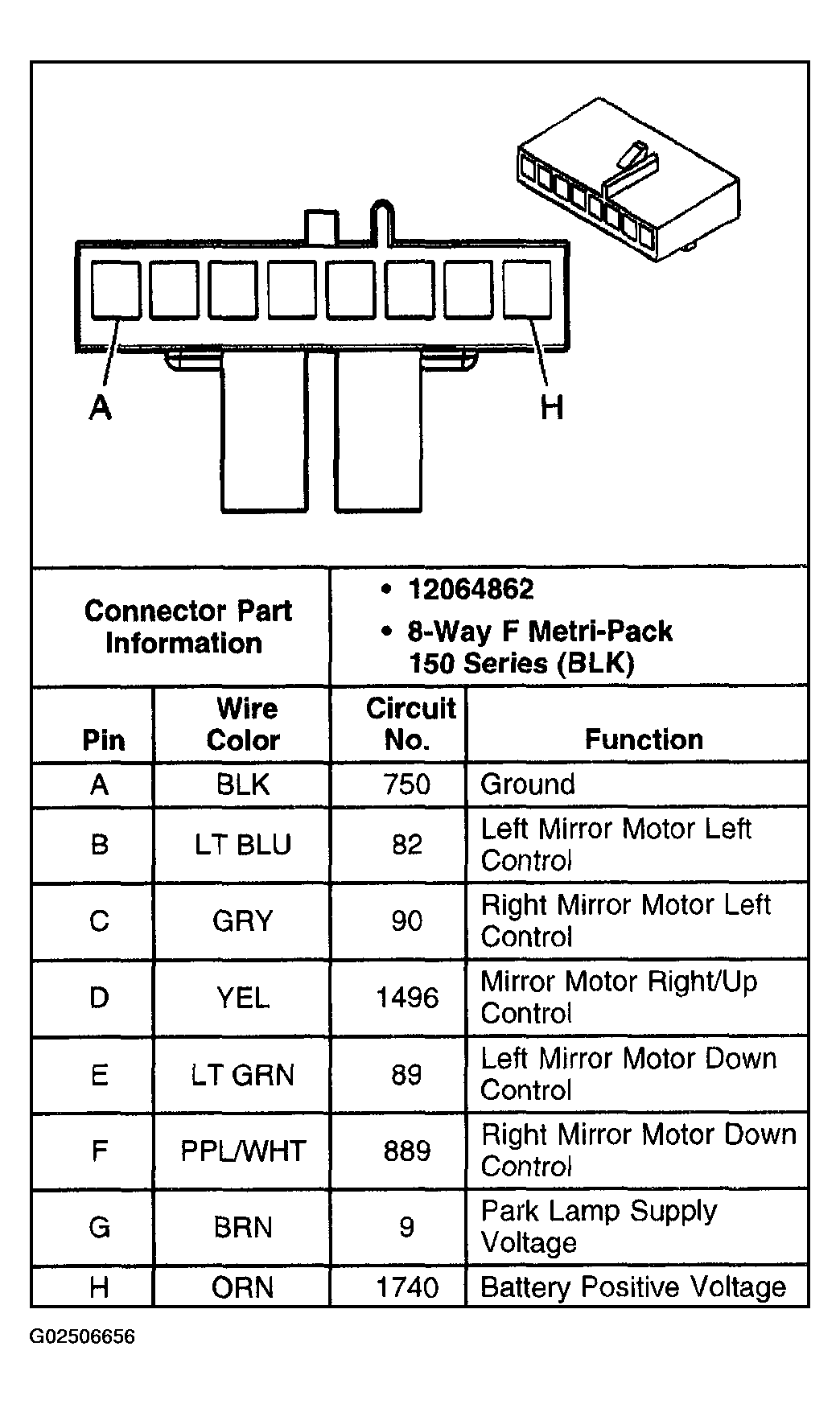

Fig 9: Outside Rearview Mirror Switch Connector End View

Courtesy of GENERAL MOTORS CORP.

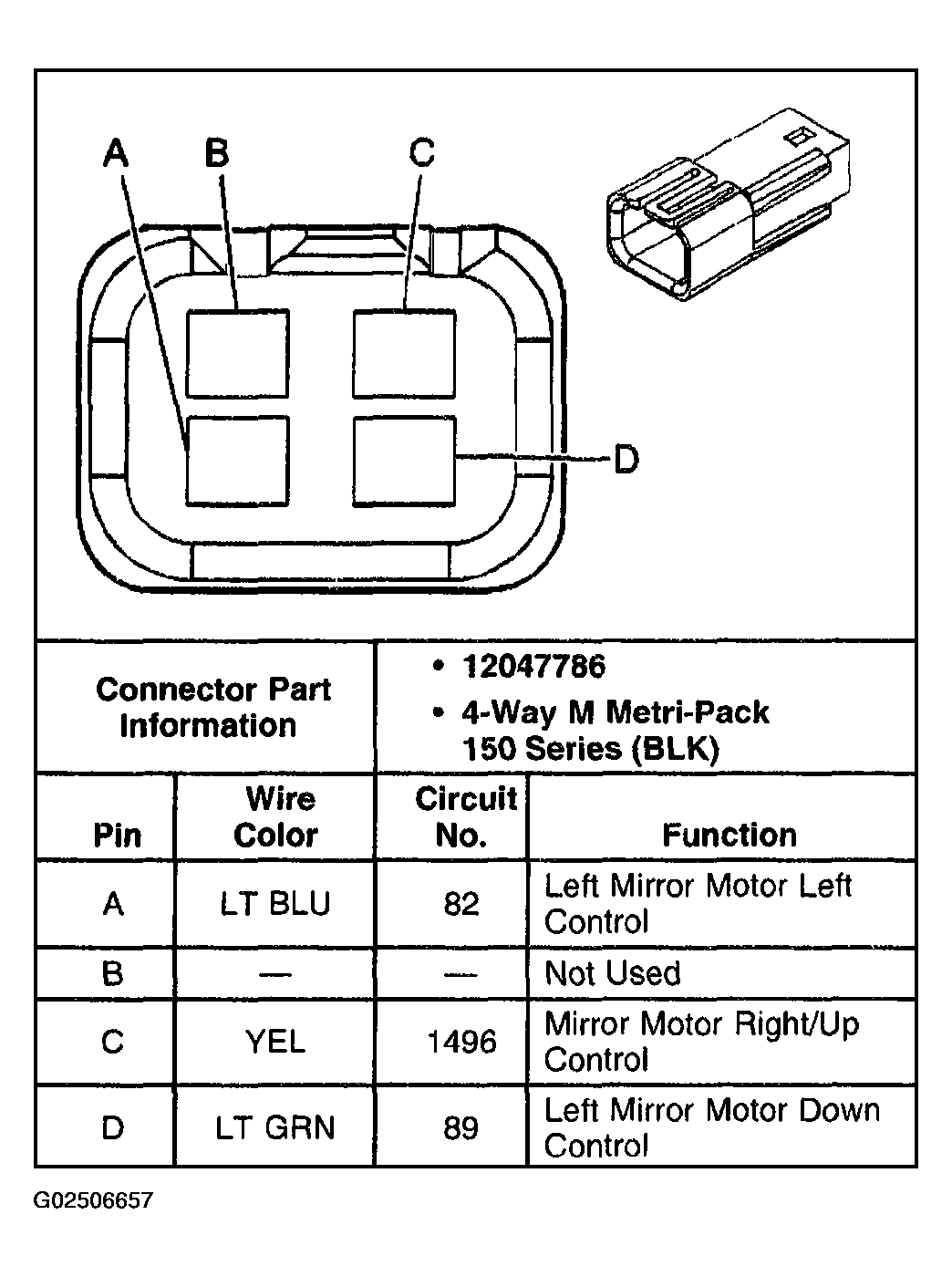

Fig 10: Outside Rearview Mirror Connector End View - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 11: Outside Rearview Mirror Connector End View - Passenger

Courtesy of GENERAL MOTORS CORP.

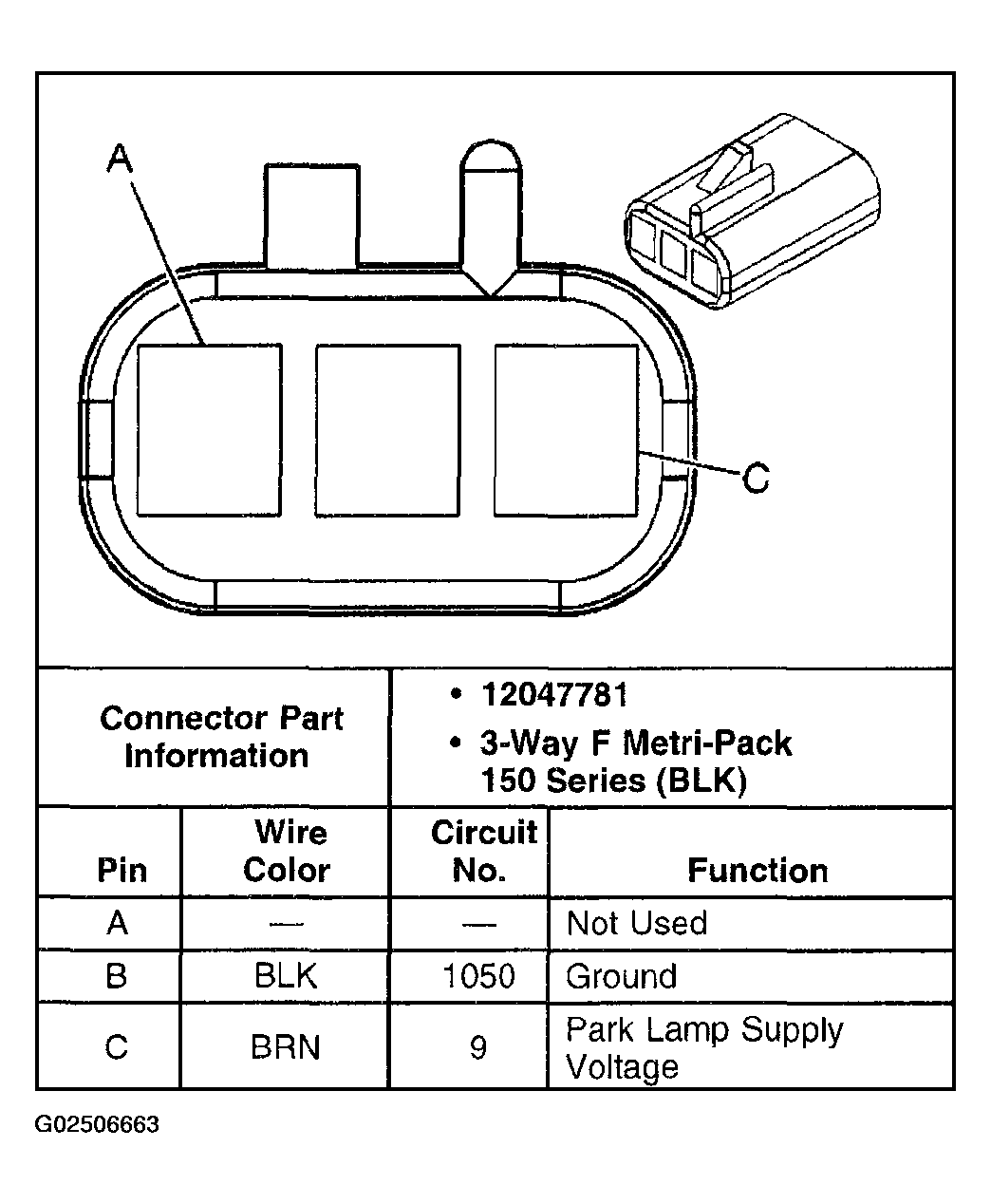

Fig 12: Side Door Contact Plate C1 Connector End View

Courtesy of GENERAL MOTORS CORP.

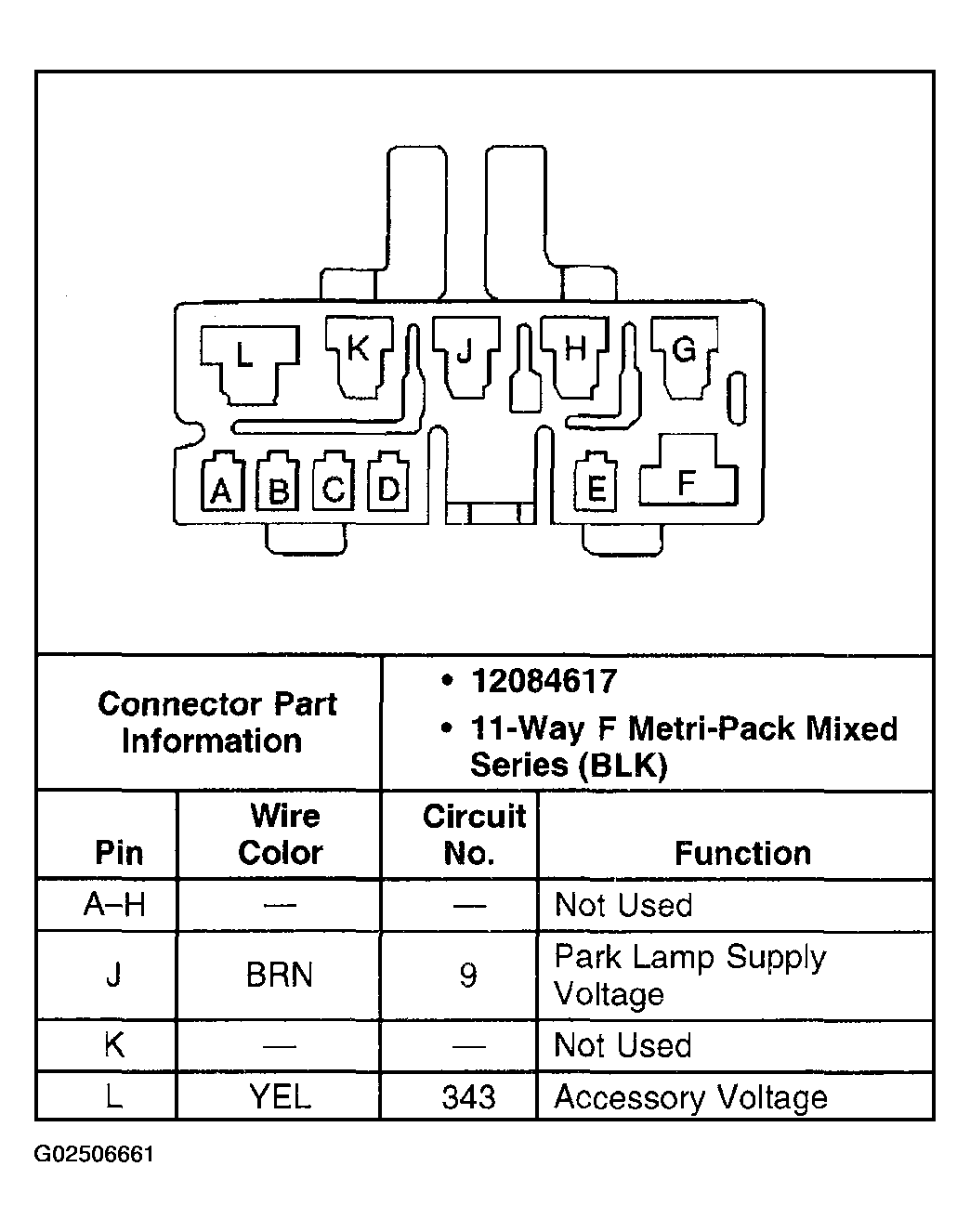

Fig 13: Side Door Contact Plate C2 Connector End View

Courtesy of GENERAL MOTORS CORP.

Fig 14: Window Master Switch Connector End View - Driver C1

Courtesy of GENERAL MOTORS CORP.

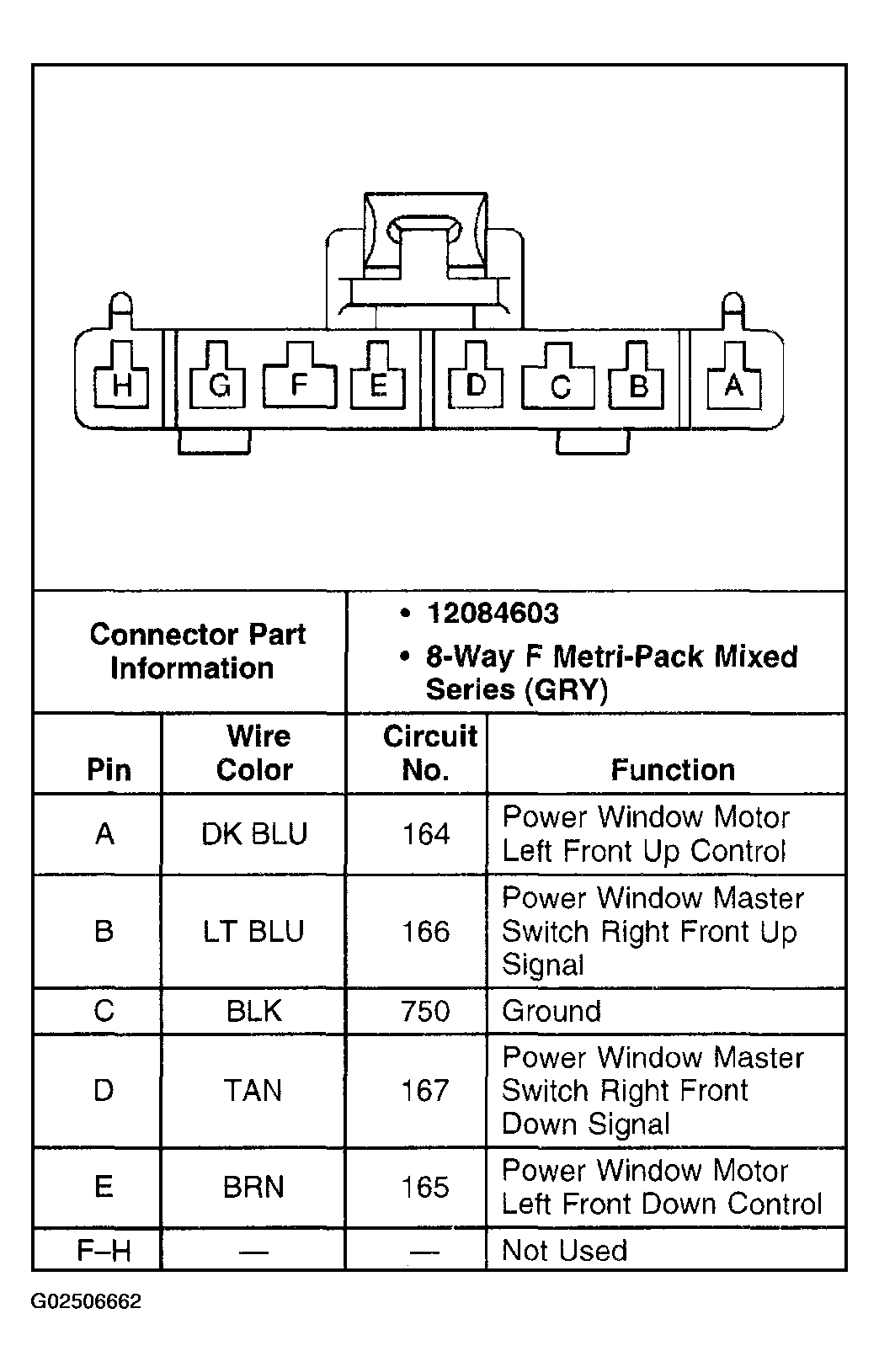

Fig 15: Window Master Switch Connector End View - Driver C2

Courtesy of GENERAL MOTORS CORP.

Fig 16: Window Switch Connector End View - Front Passenger C1

Courtesy of GENERAL MOTORS CORP.

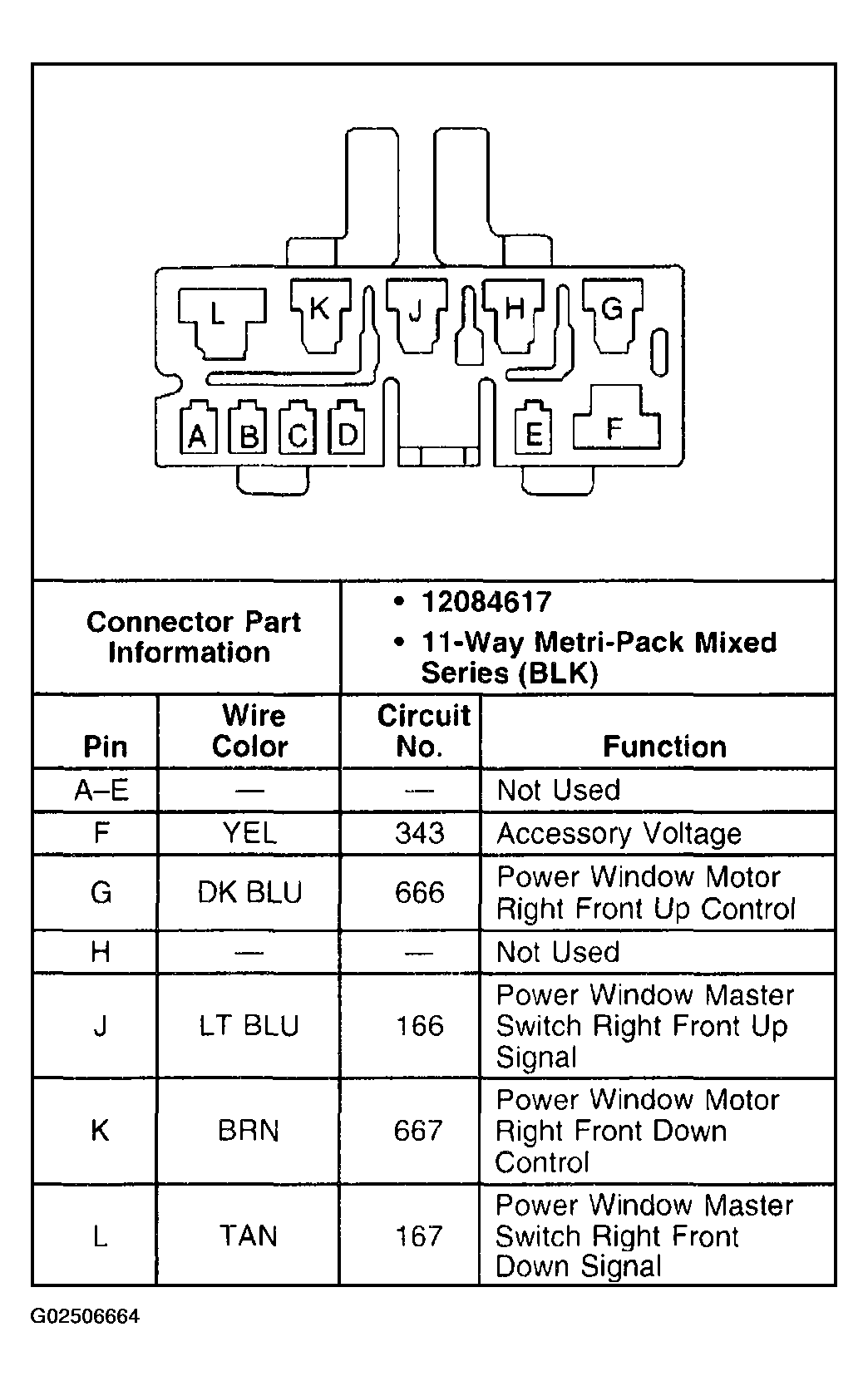

Fig 17: Window Switch Connector End View - Front Passenger C2

Courtesy of GENERAL MOTORS CORP.

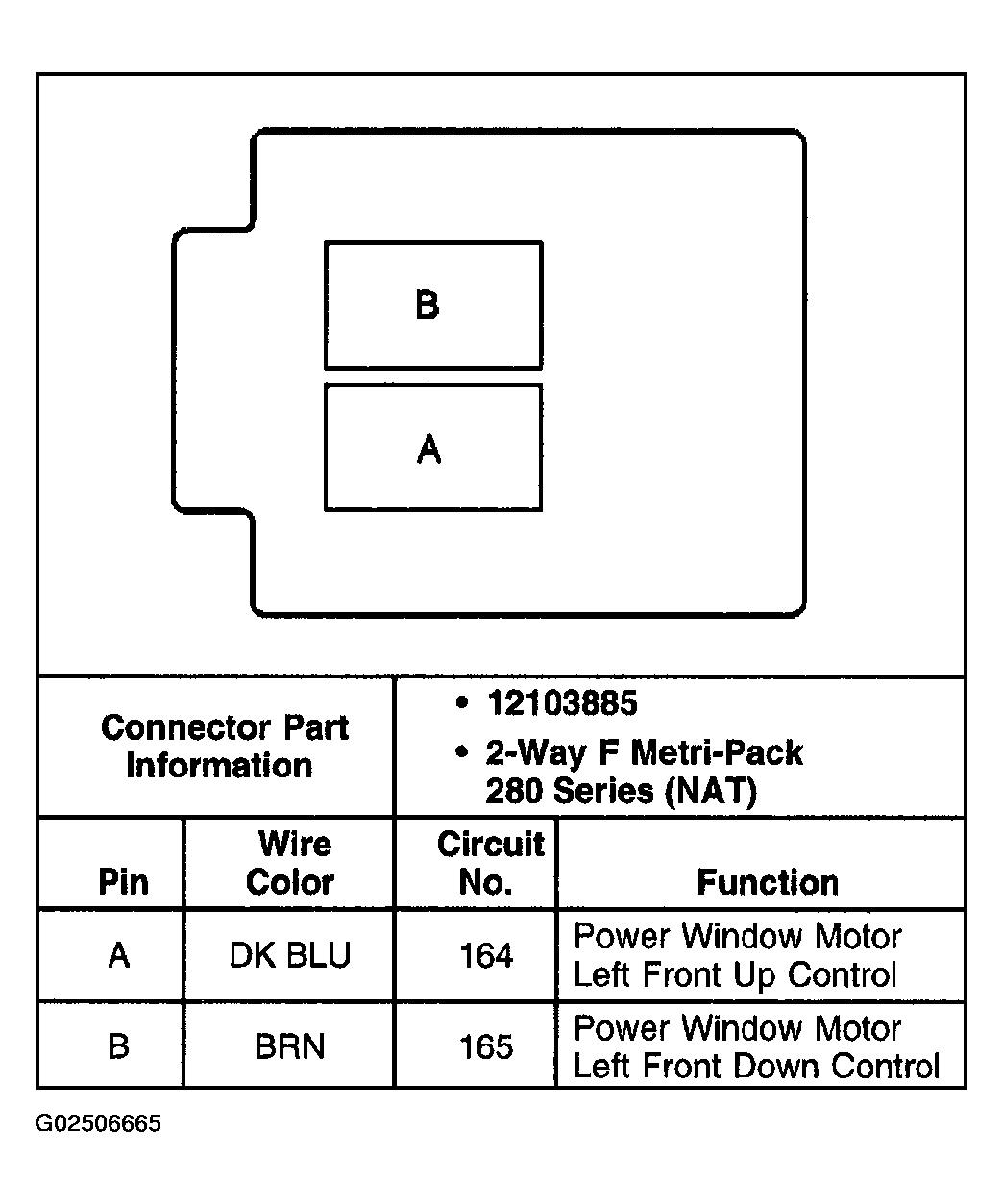

Fig 18: Window Motor Connector End View - Driver

Courtesy of GENERAL MOTORS CORP.

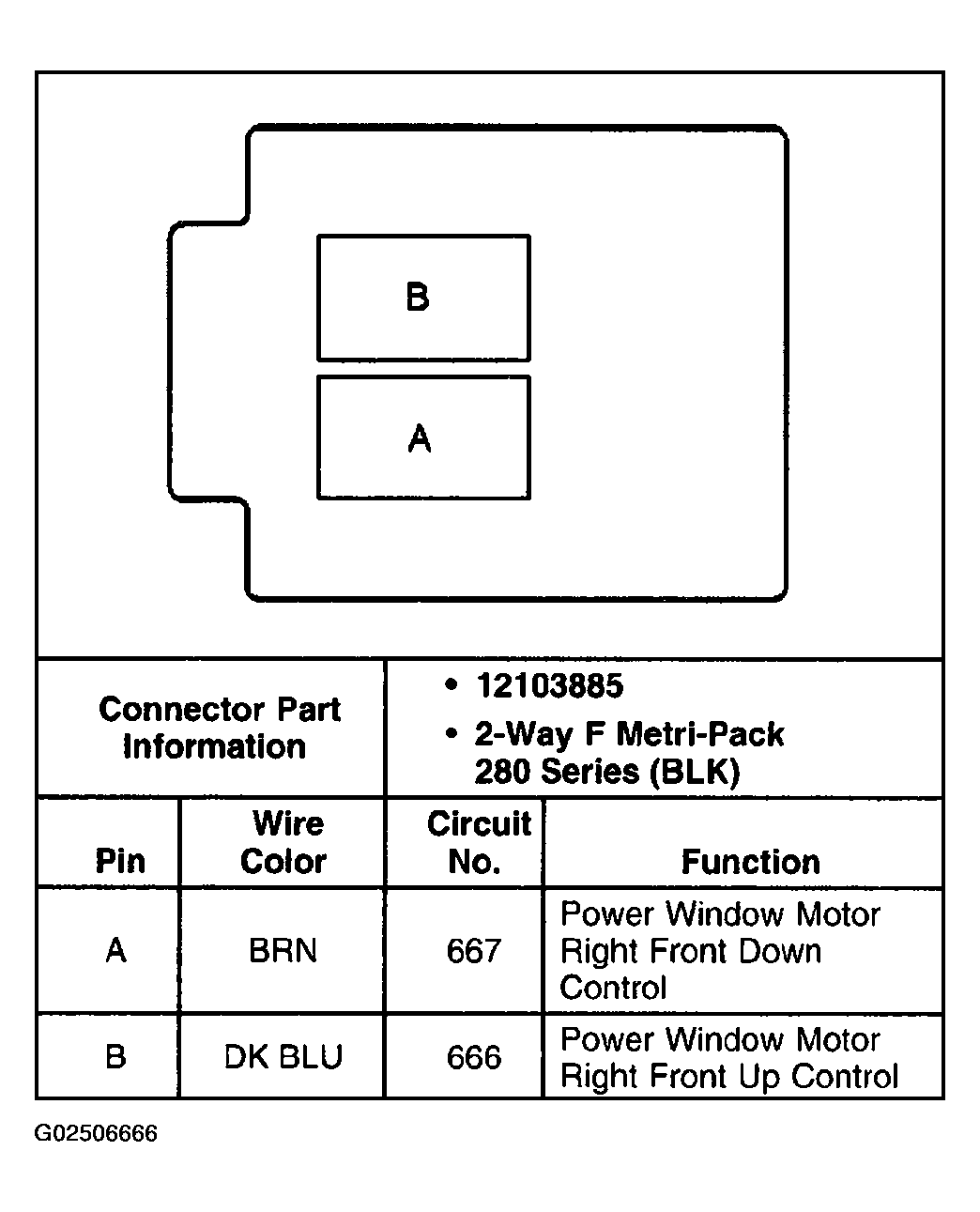

Fig 19: Window Motor Connector End View - Front Passenger

Courtesy of GENERAL MOTORS CORP.
