Stationary Windows Component Views

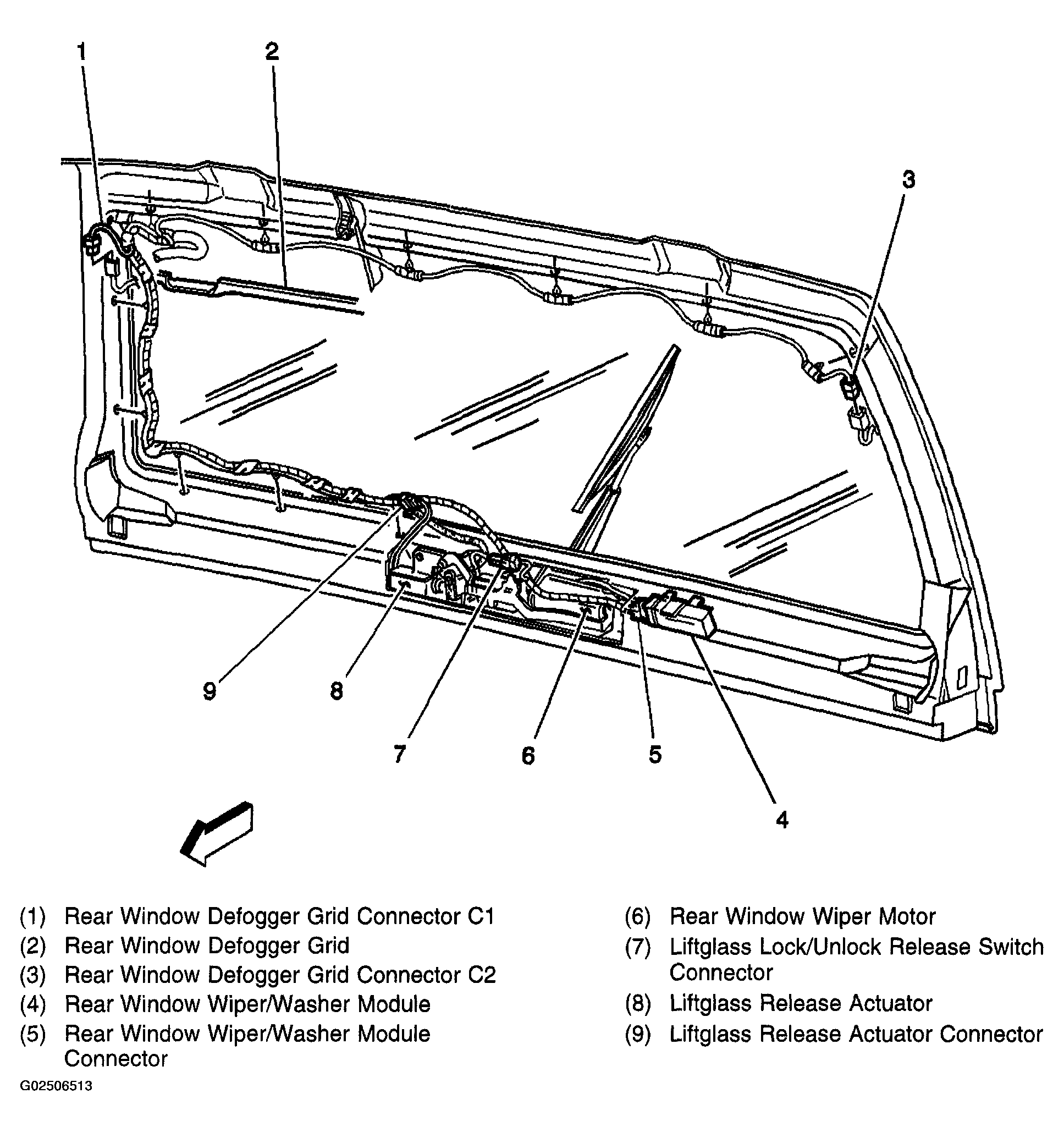

Fig 1: Identifying Liftgate Harness Location
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
