Electronic Brake Control Module (EBCM) C2 Connector End View

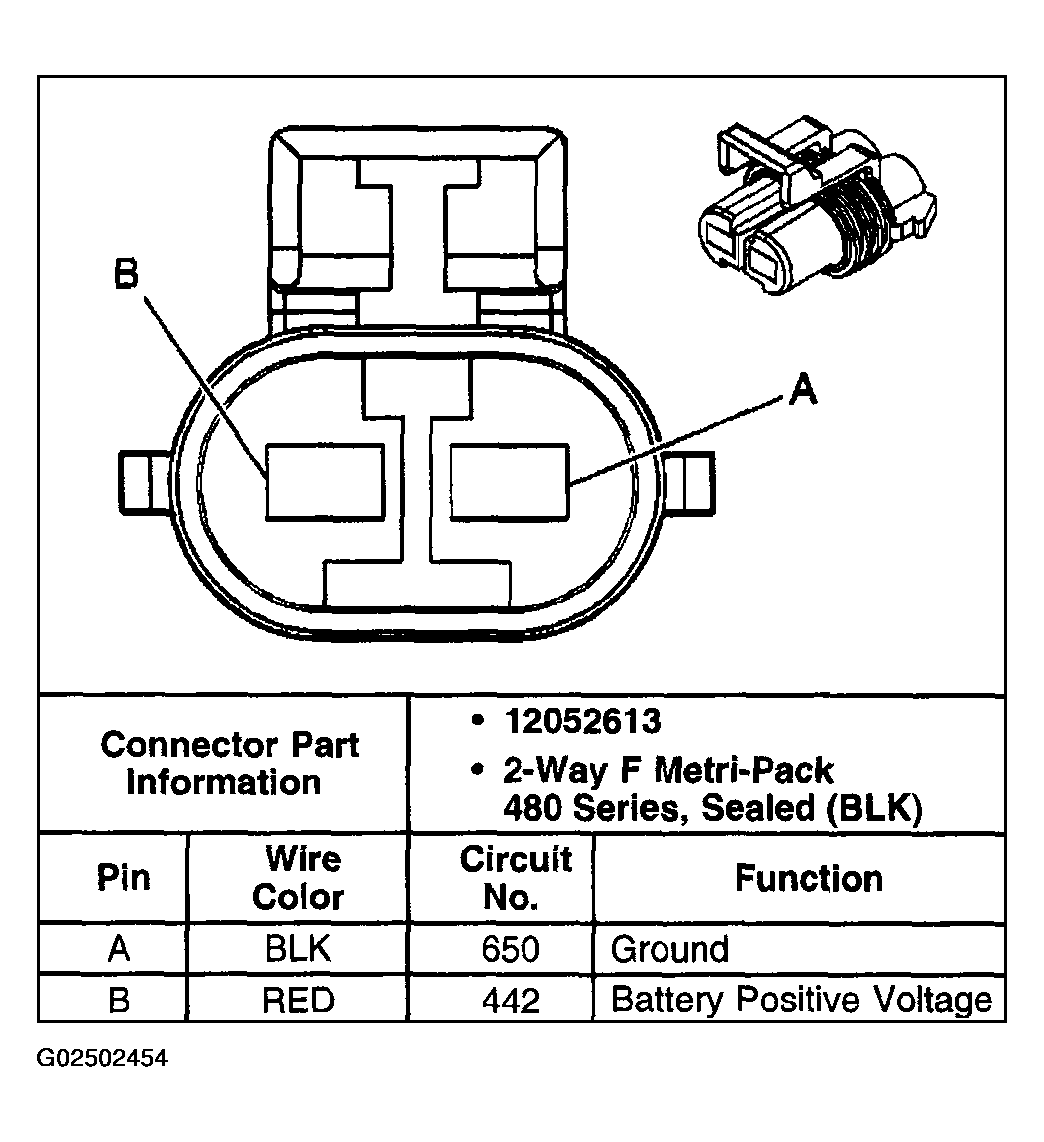

Fig 1: Electronic Brake Control Module (EBCM) C2 Connector End View
G02502454Courtesy of GENERAL MOTORS CORP.
