Rear Window Wiper/Washer Module Connector End View

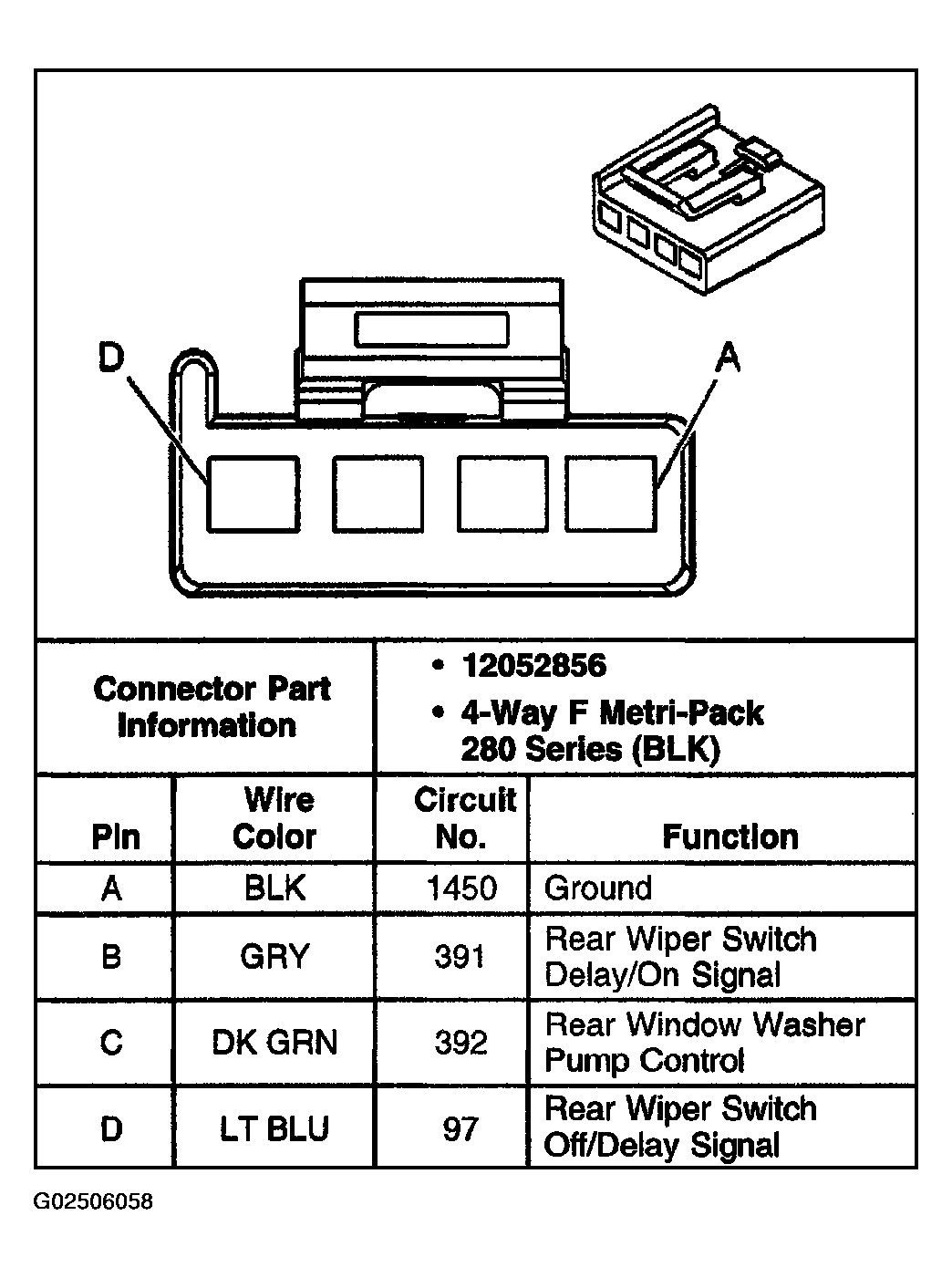

Fig 1: Rear Window Wiper/Washer Module Connector End View
G02506058Courtesy of GENERAL MOTORS CORP.
