Lighting Systems Connector End Views
WARNING:
This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

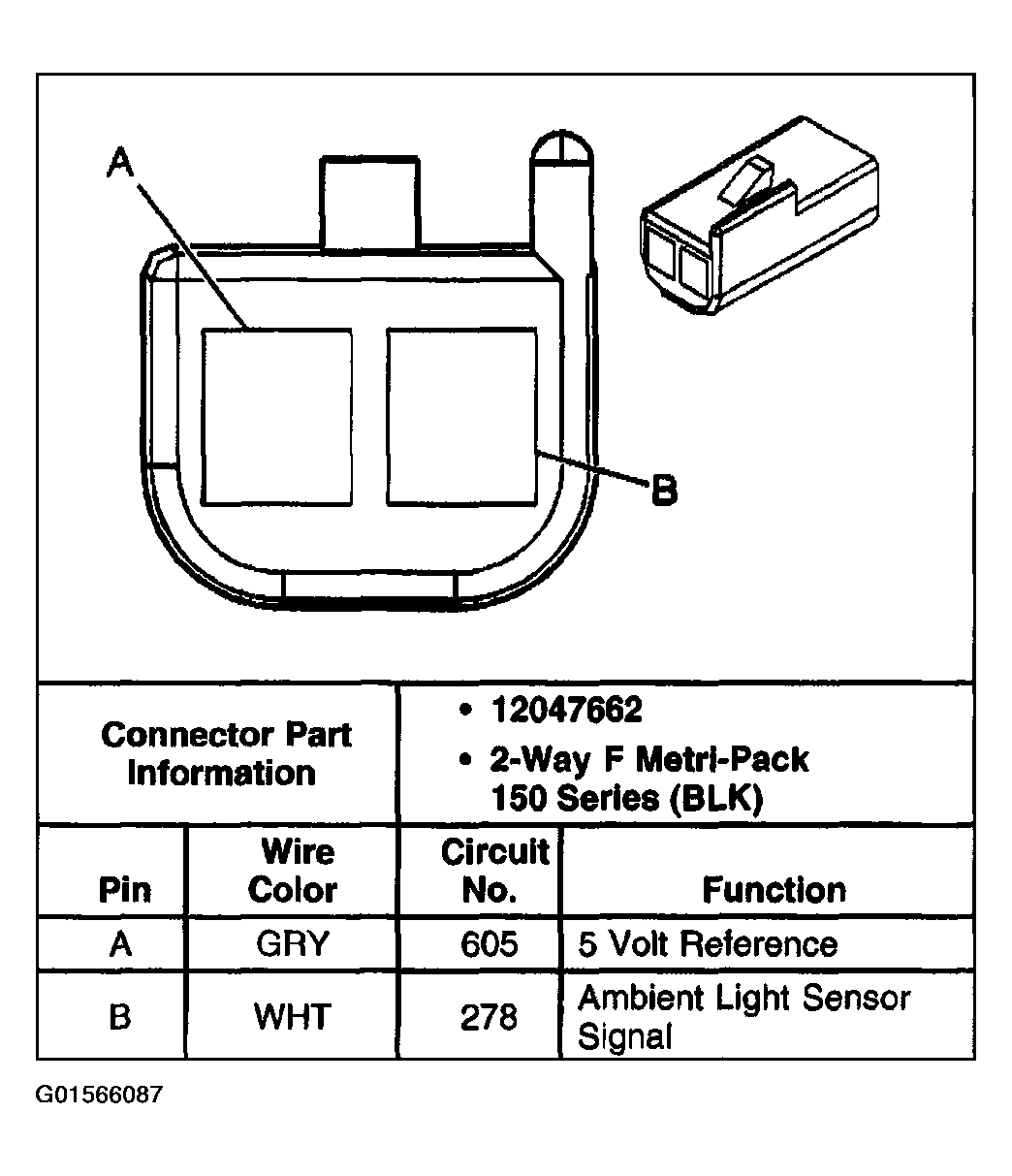

Fig 1: Ambient Light Sensor Connector
Courtesy of GENERAL MOTORS CORP.

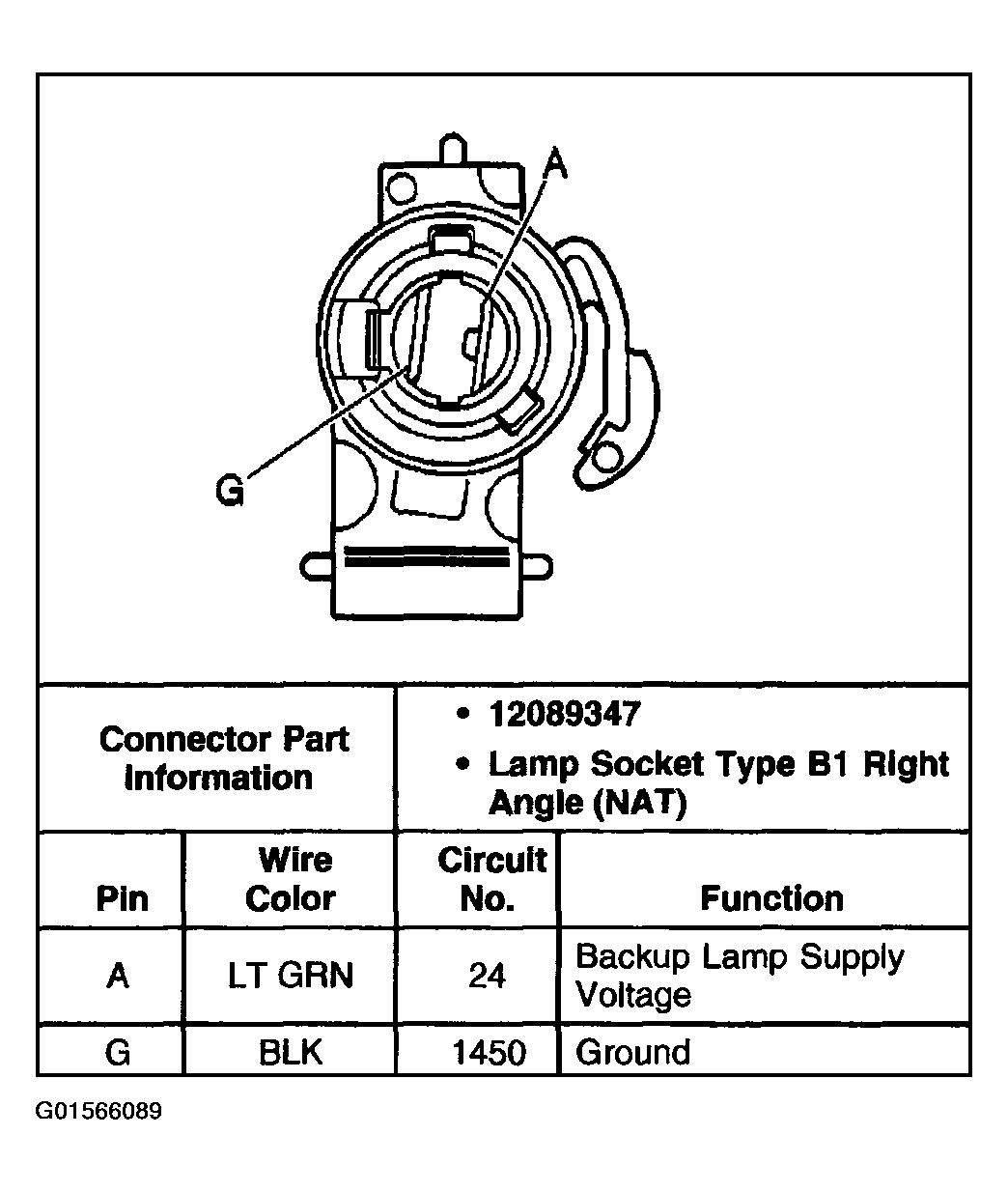

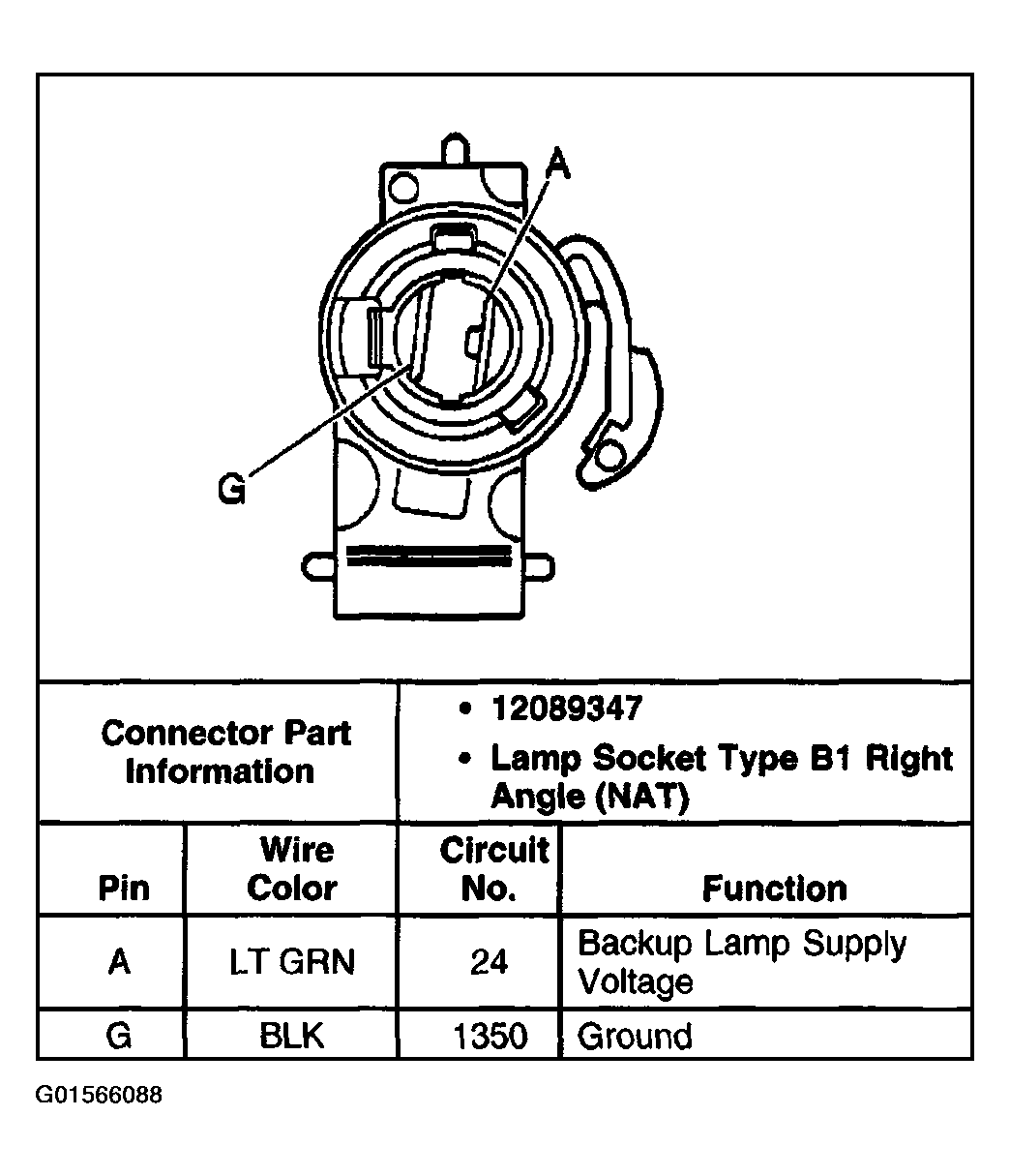

Fig 2: Backup Lamp - Left Connector
Courtesy of GENERAL MOTORS CORP.
Fig 3: Backup Lamp - Right Connector
Courtesy of GENERAL MOTORS CORP.
Fig 4: Center High Mounted Stop Lamp Connector
Courtesy of GENERAL MOTORS CORP.

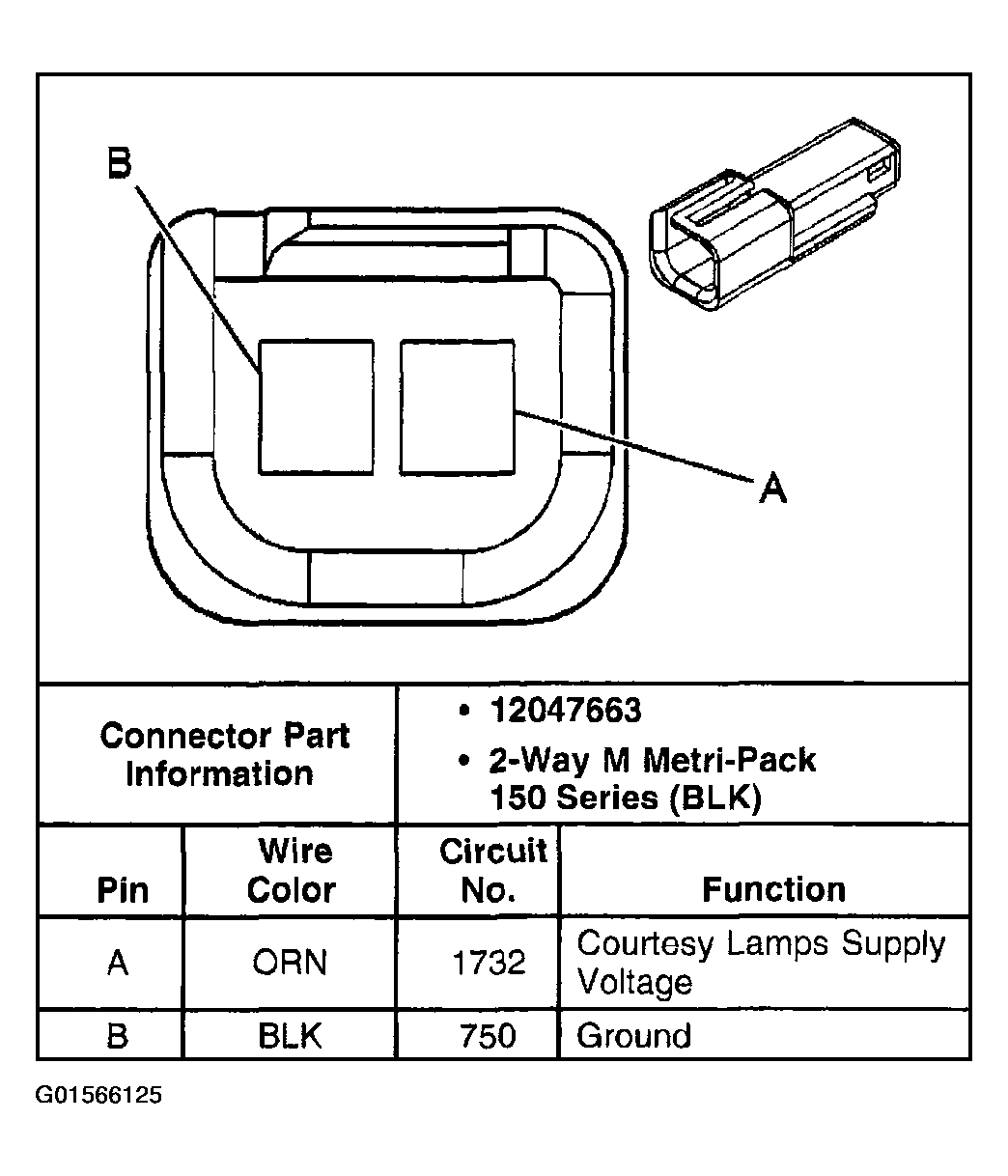

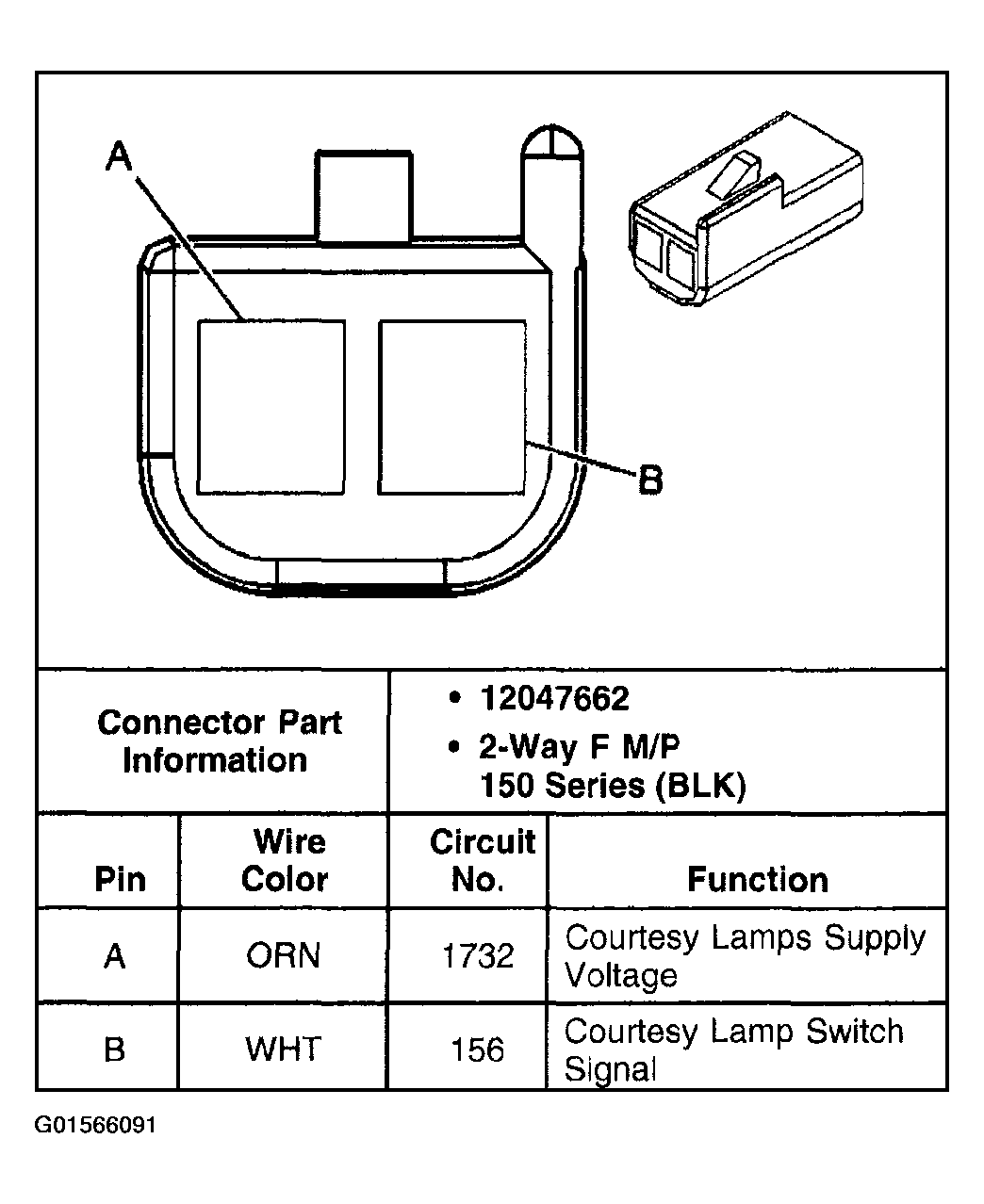

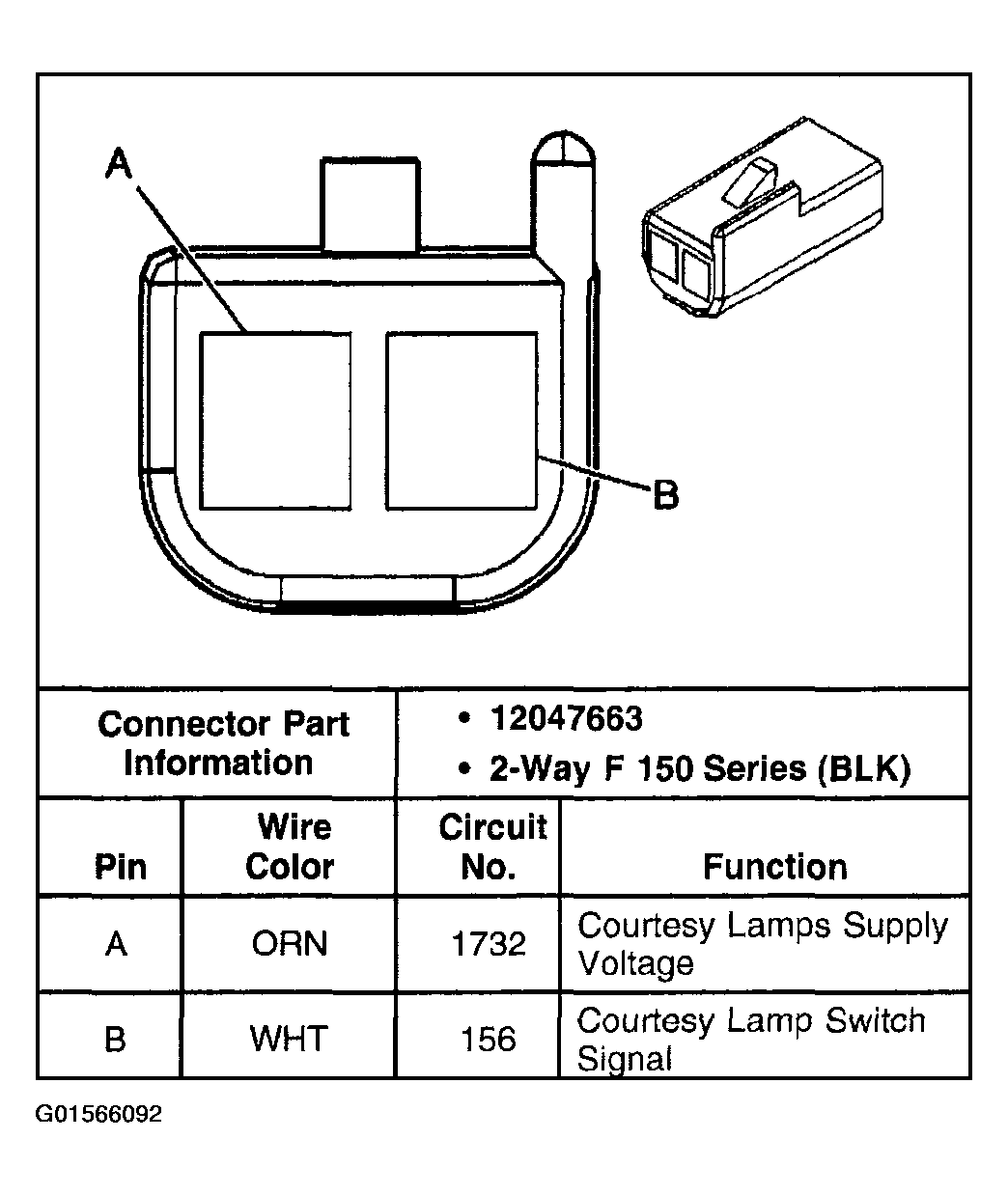

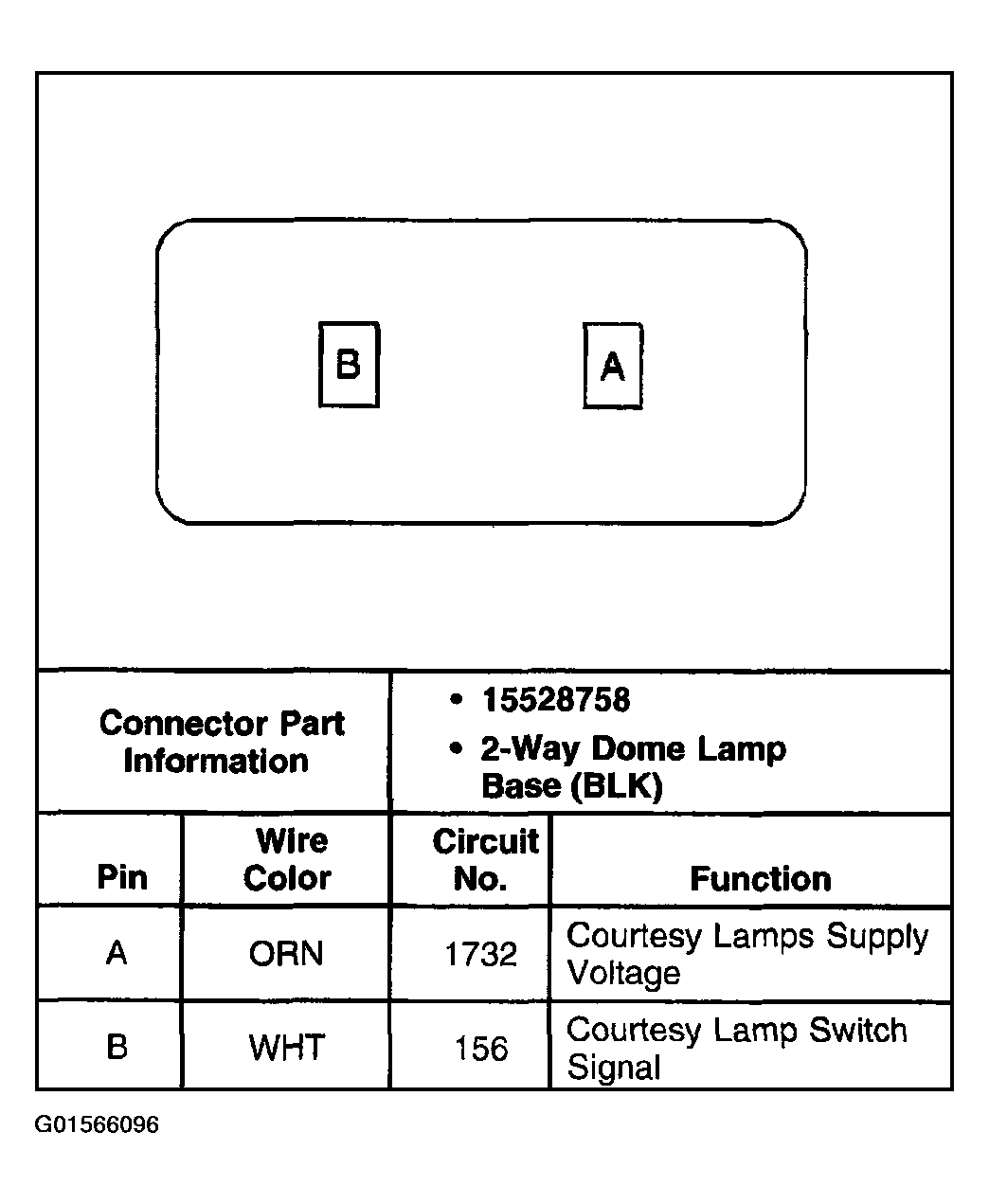

Fig 5: Courtesy Lamp - Left Connector
Courtesy of GENERAL MOTORS CORP.

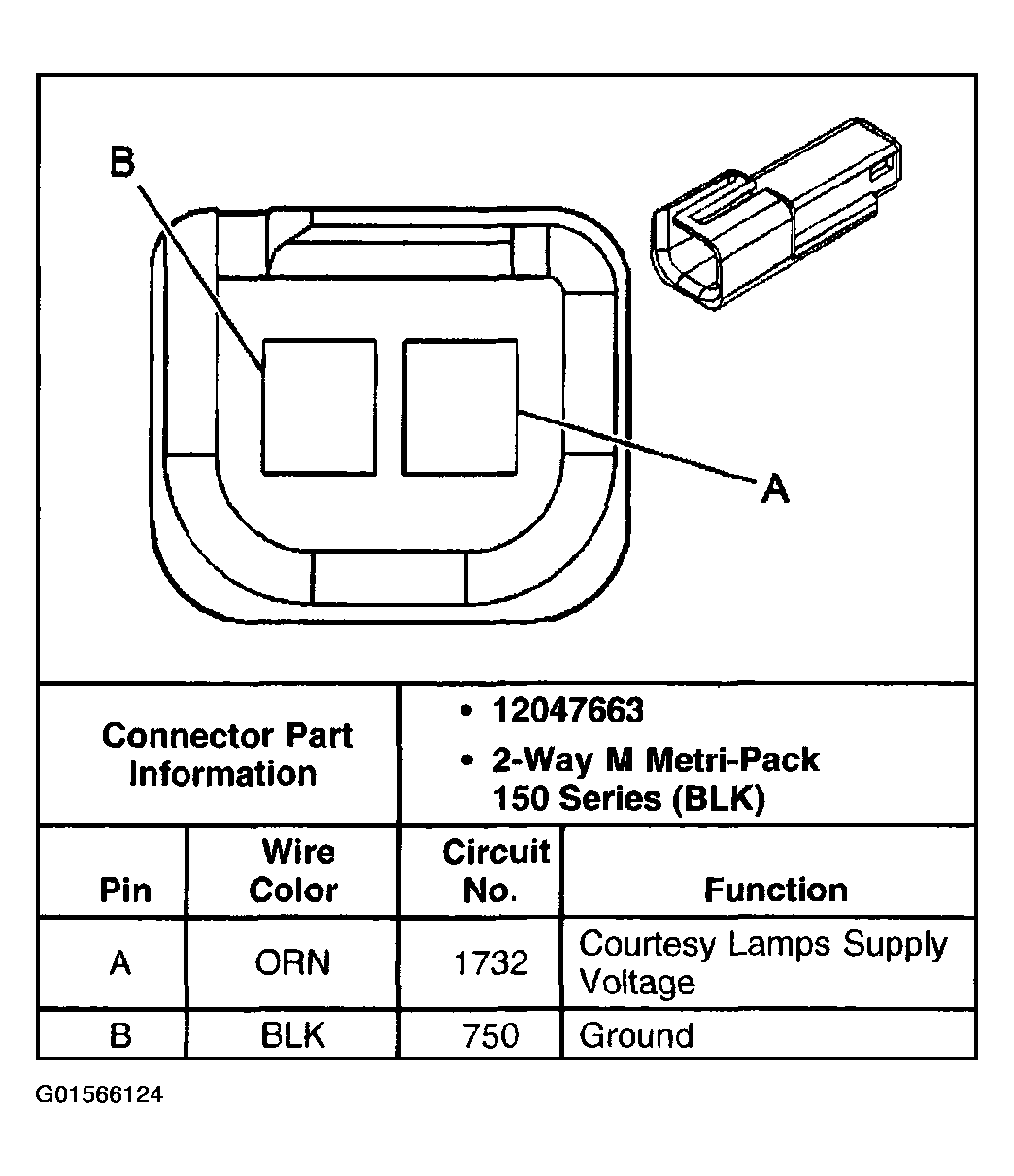

Fig 6: Courtesy Lamp - Right Connector
Courtesy of GENERAL MOTORS CORP.

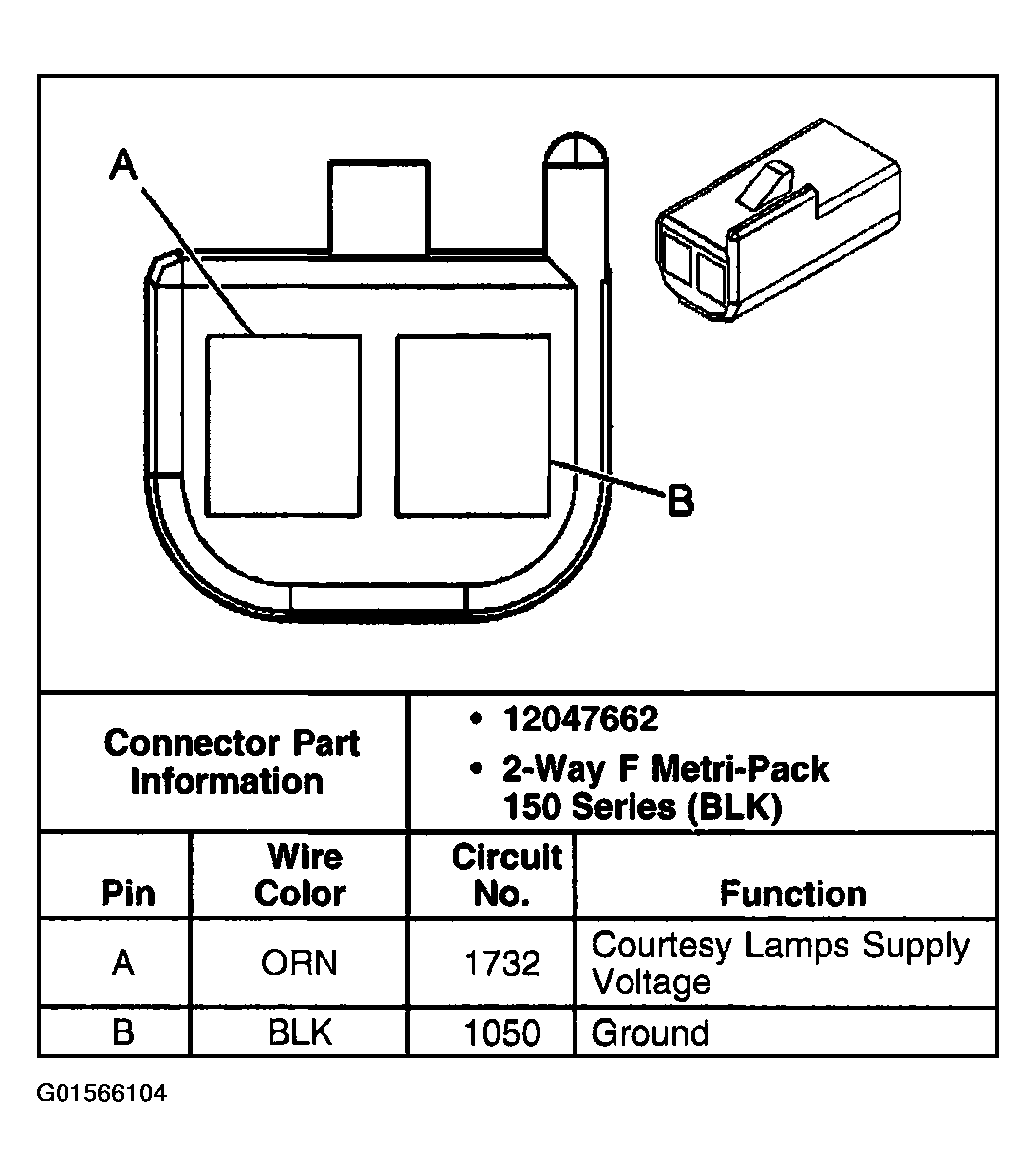

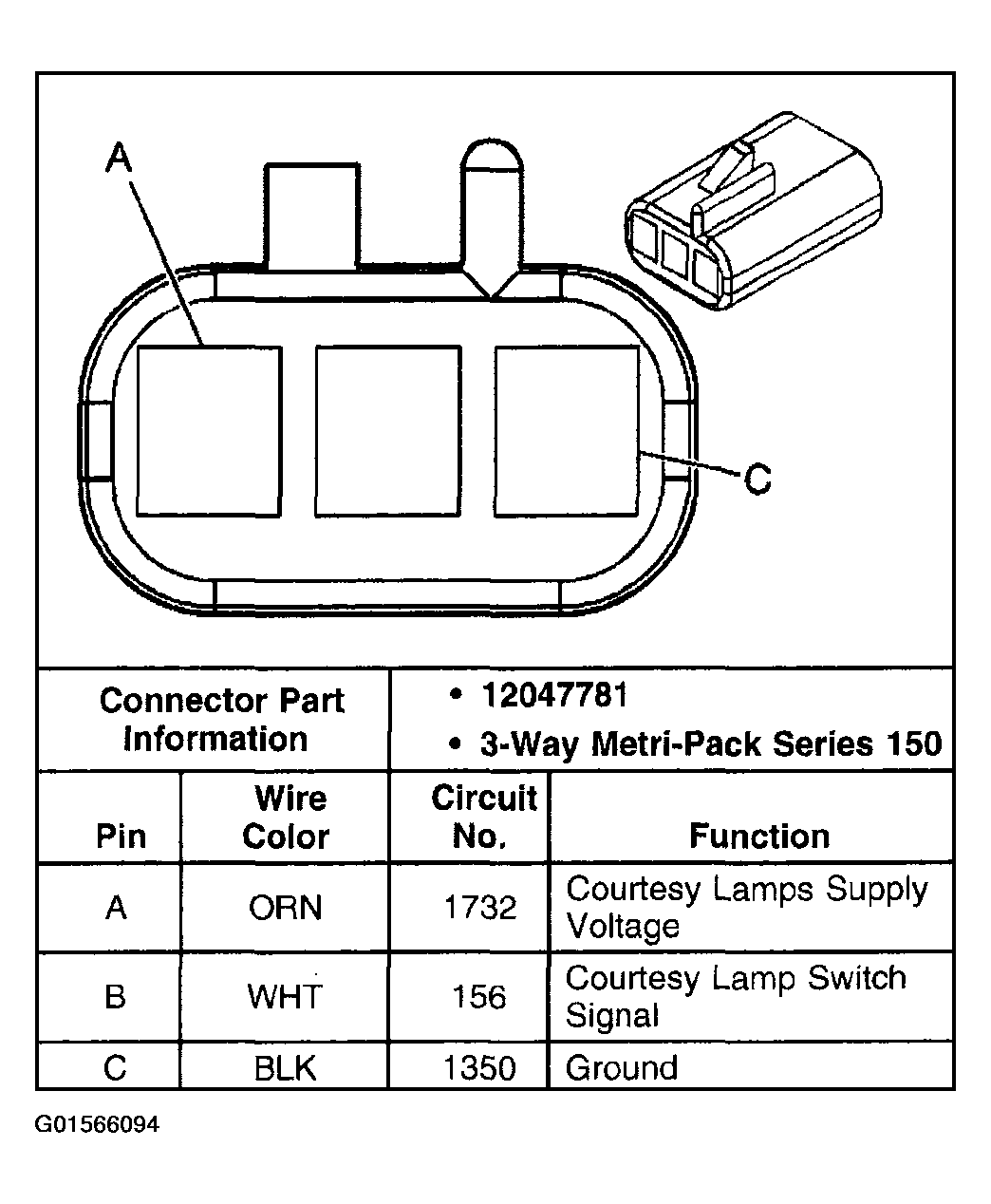

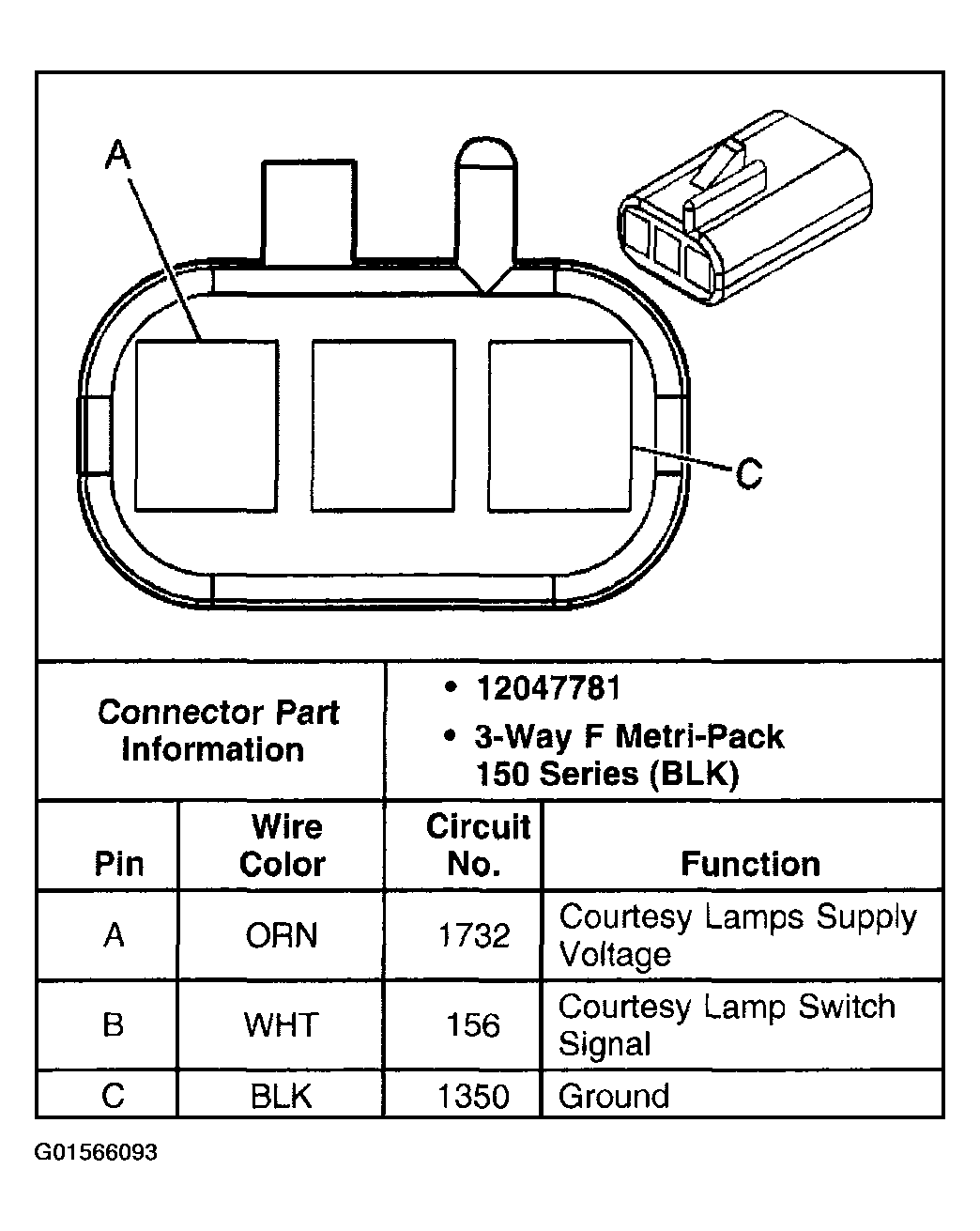

Fig 7: Courtesy/Reading Lamp - Center Connector
Courtesy of GENERAL MOTORS CORP.

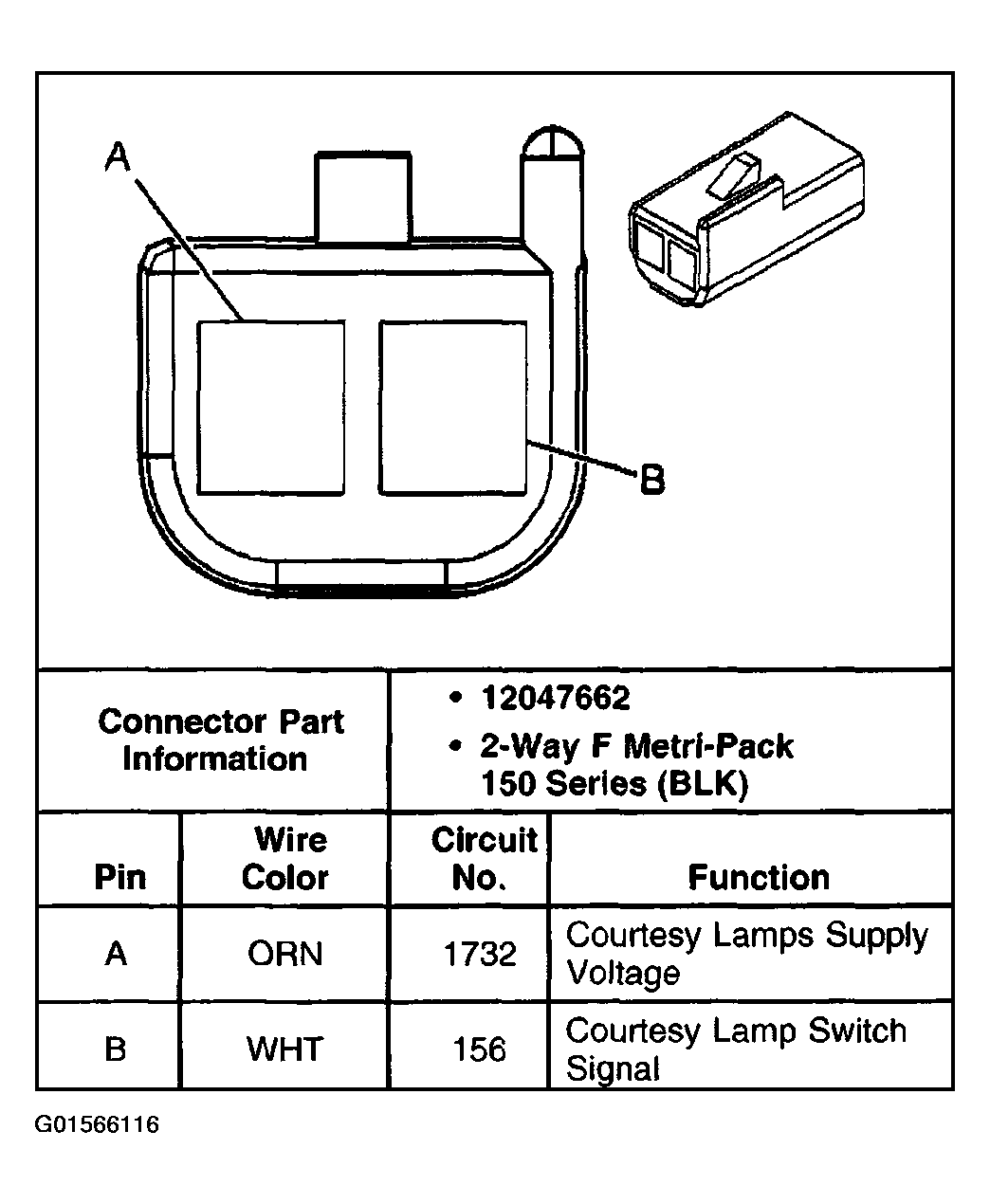

Fig 8: Courtesy/Reading Lamp - Front Connector
Courtesy of GENERAL MOTORS CORP.

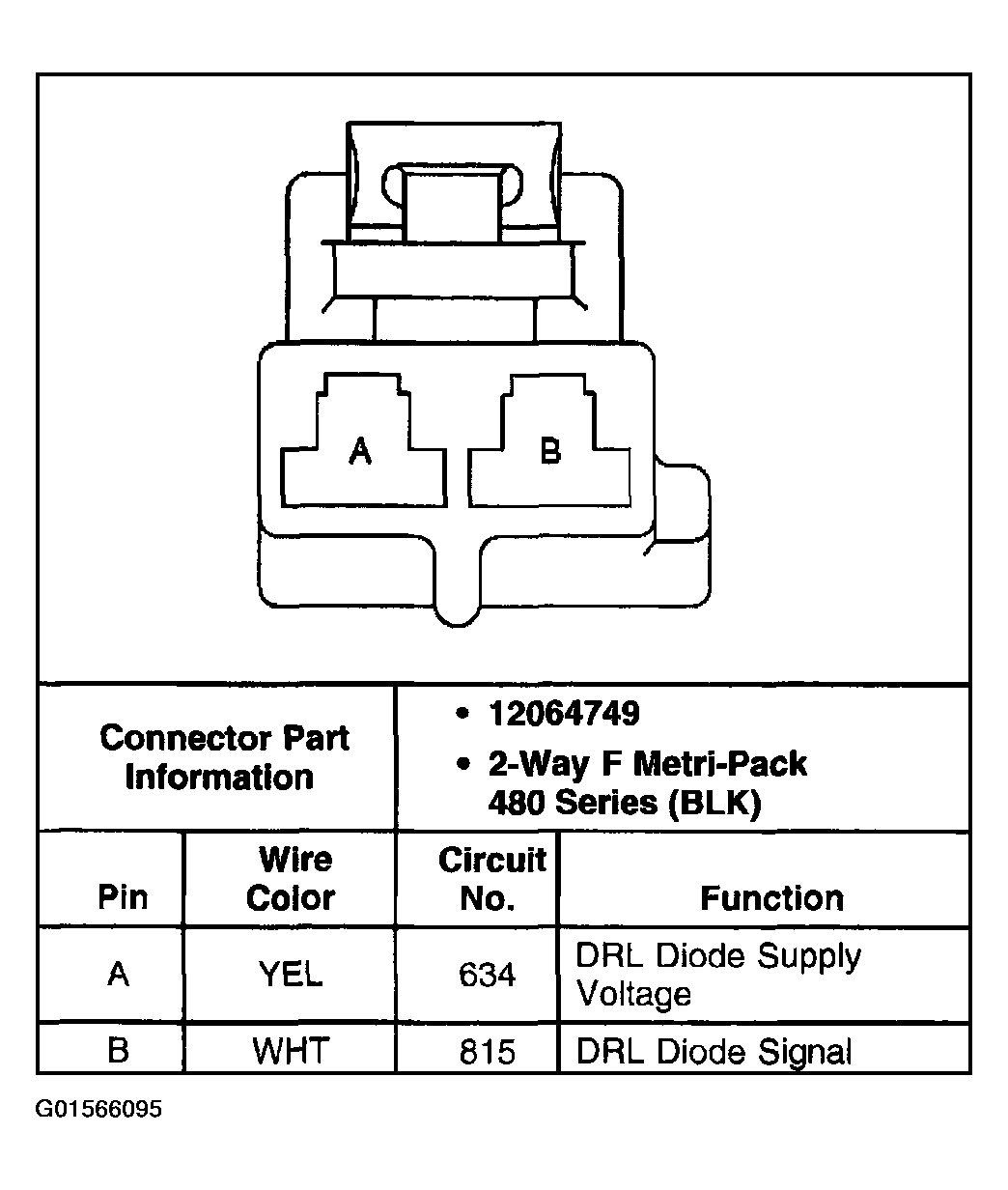

Fig 9: Daytime Running Lamps (DRL) Diode Connector
Courtesy of GENERAL MOTORS CORP.
Fig 10: Locating Dome Lamp - Rear
Courtesy of GENERAL MOTORS CORP.

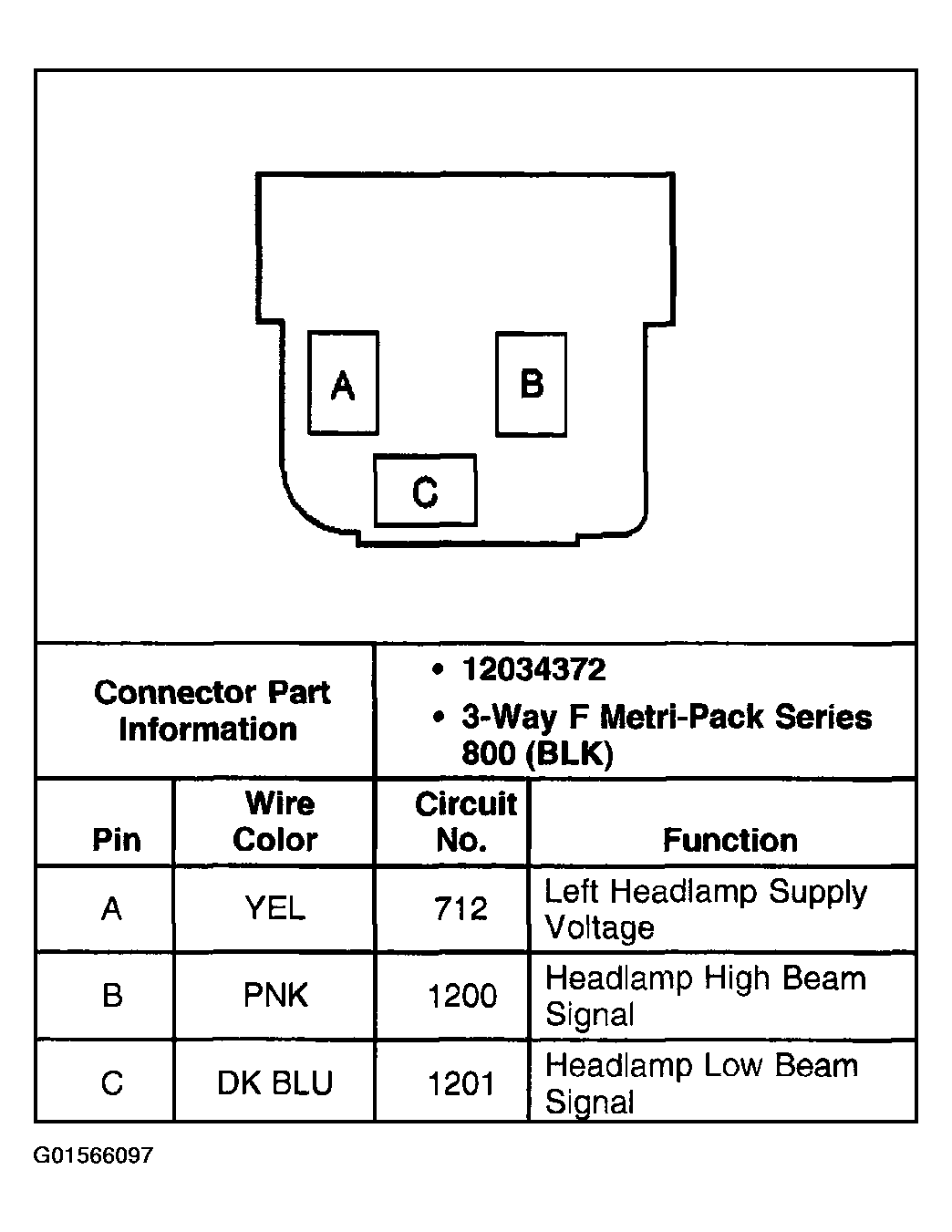

Fig 11: Headlamp Connector - LH (Base W/ Sealed Beam)
Courtesy of GENERAL MOTORS CORP.

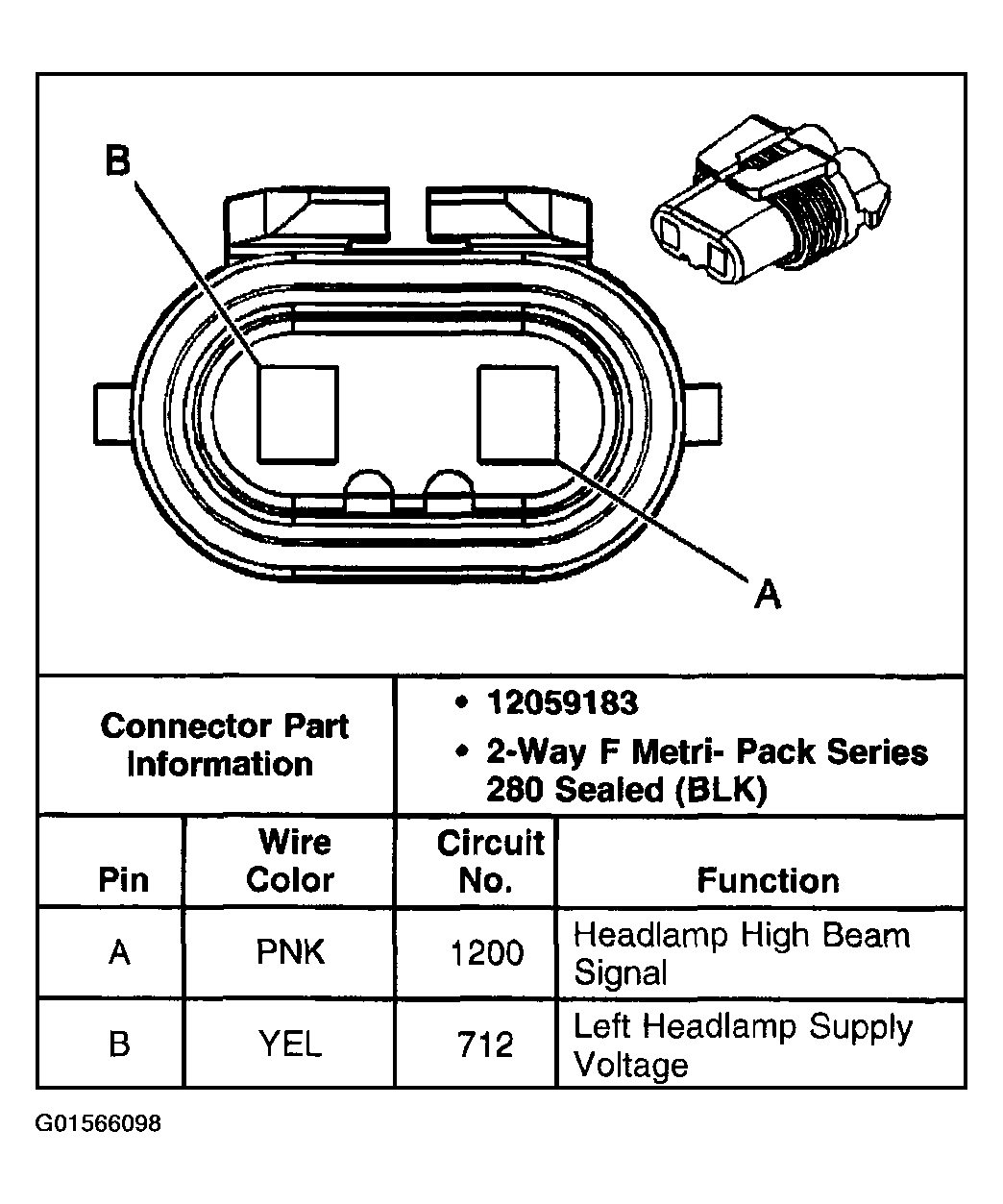

Fig 12: Headlamp Connector - High Beam -Left Connector
Courtesy of GENERAL MOTORS CORP.

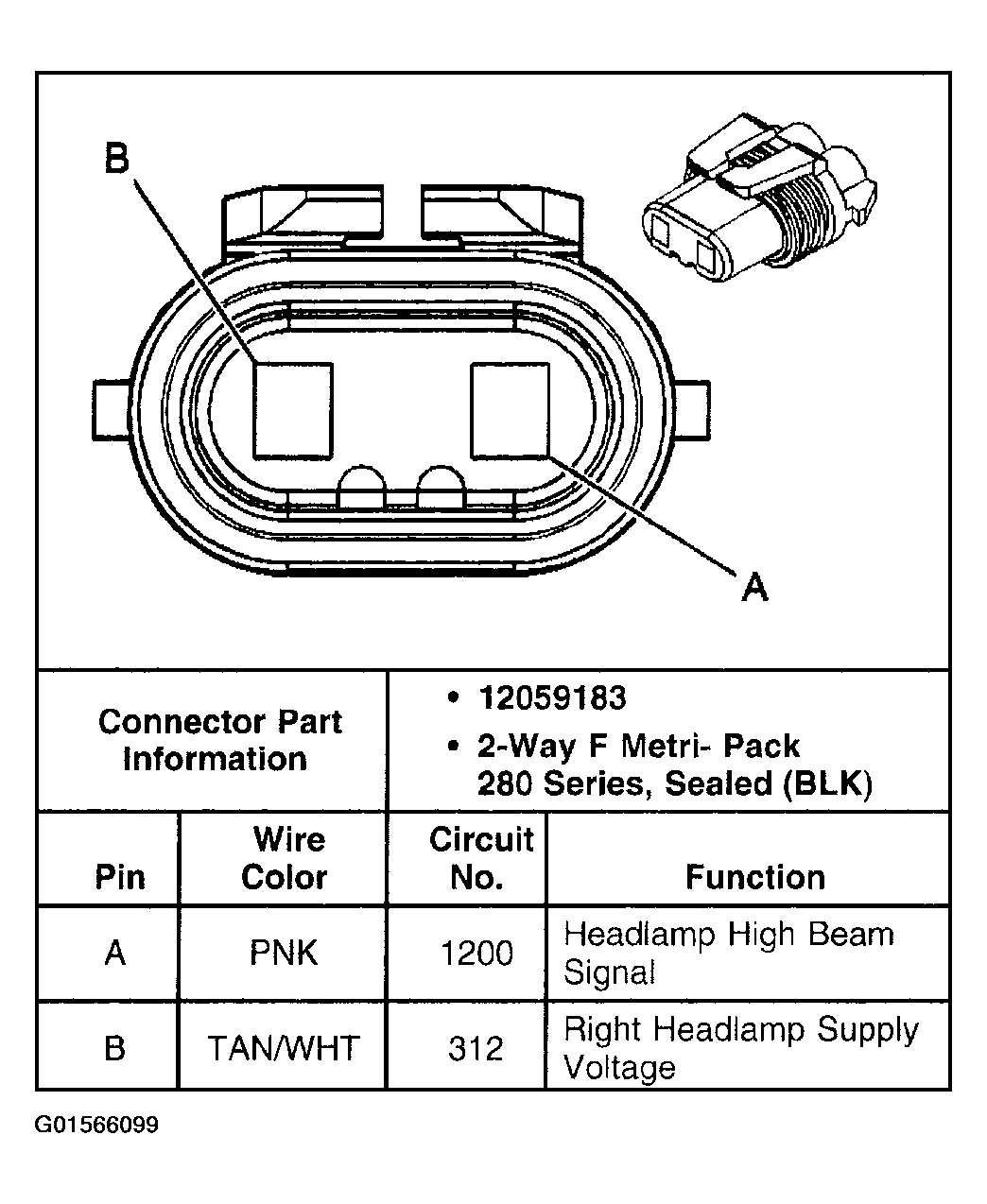

Fig 13: Headlamp Connector - High Beam - Right Connector
Courtesy of GENERAL MOTORS CORP.

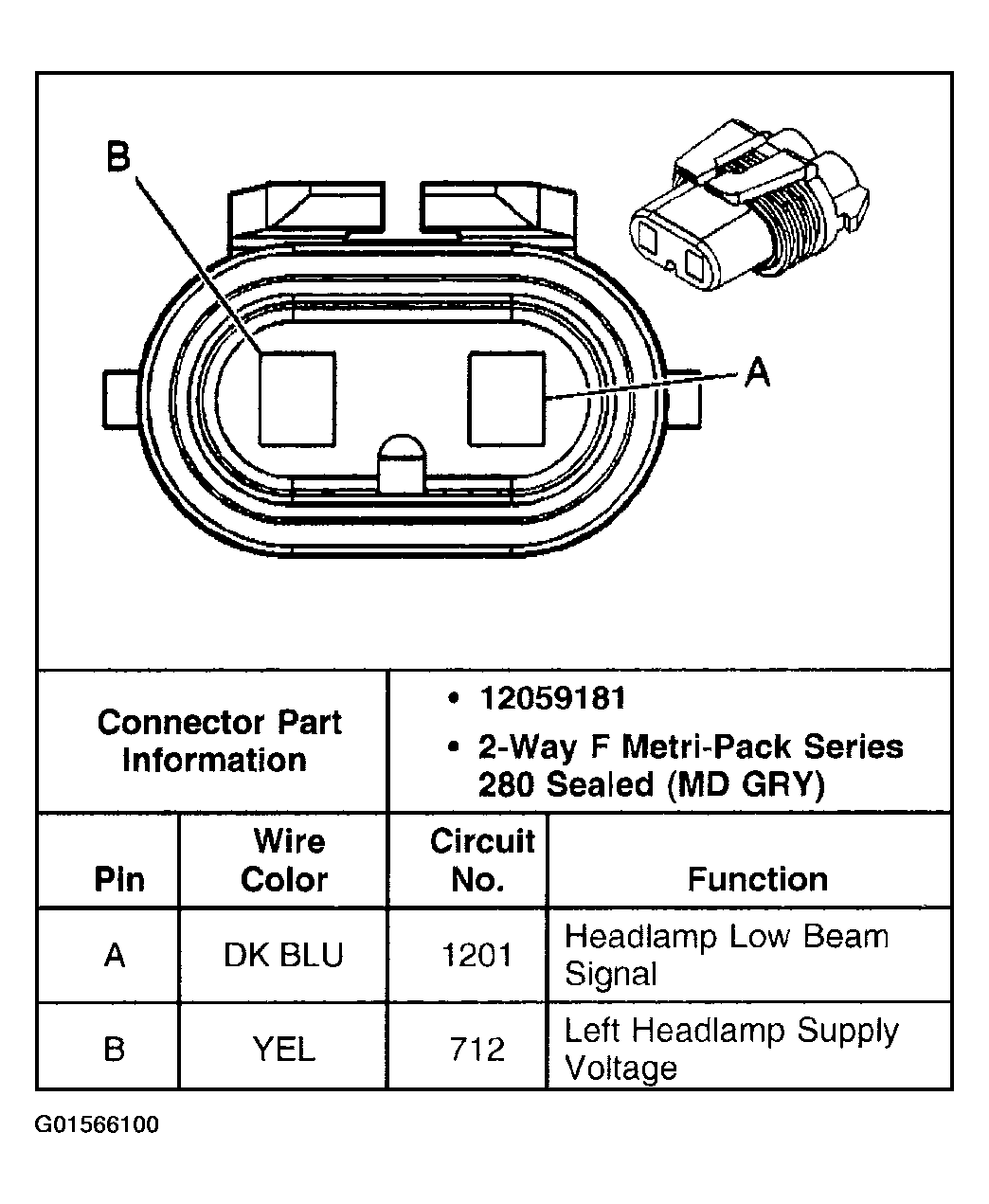

Fig 14: Headlamp Connector - Low Beam - Left Connector
Courtesy of GENERAL MOTORS CORP.

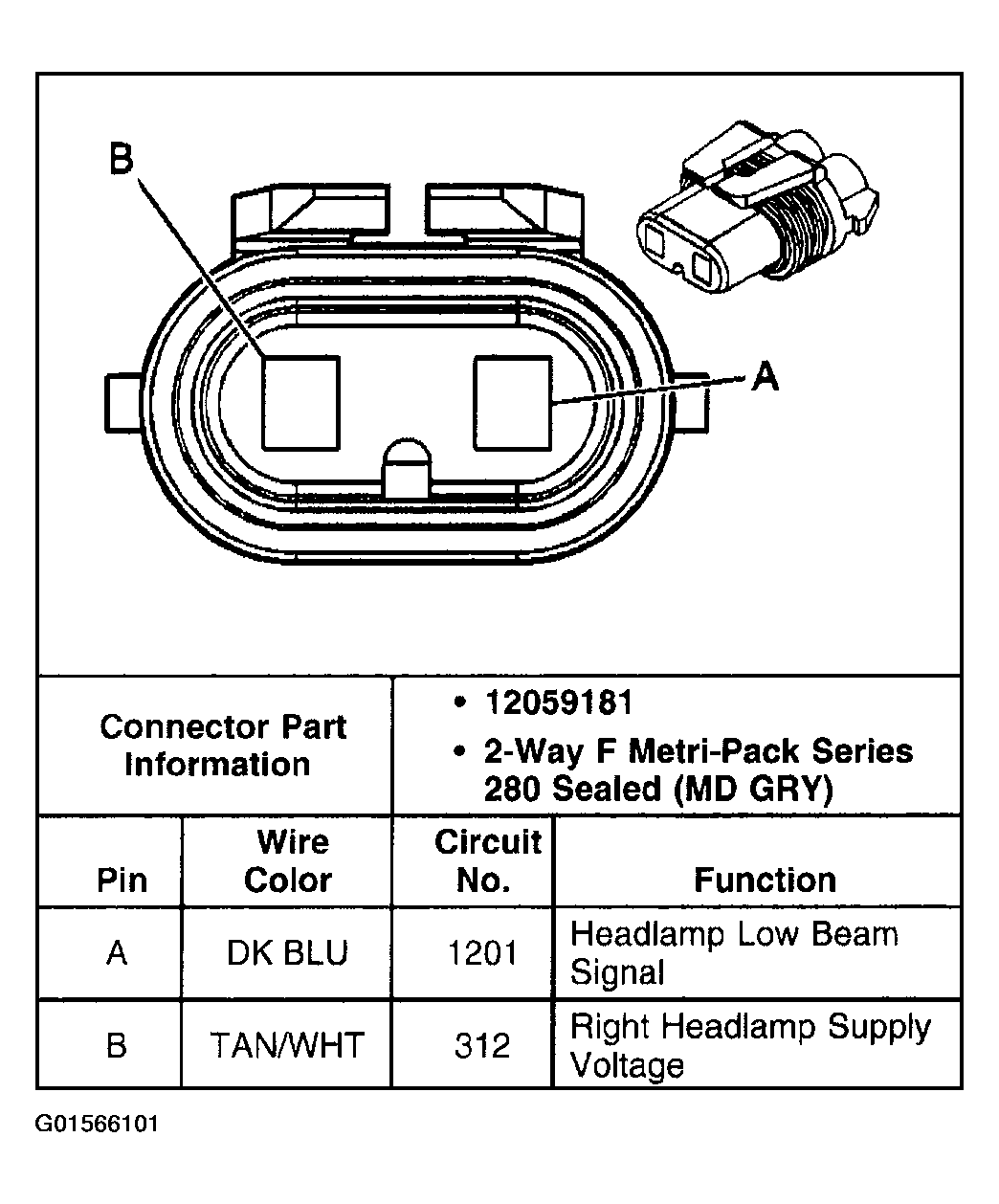

Fig 15: Headlamp Connector - Low Beam - Right
Courtesy of GENERAL MOTORS CORP.

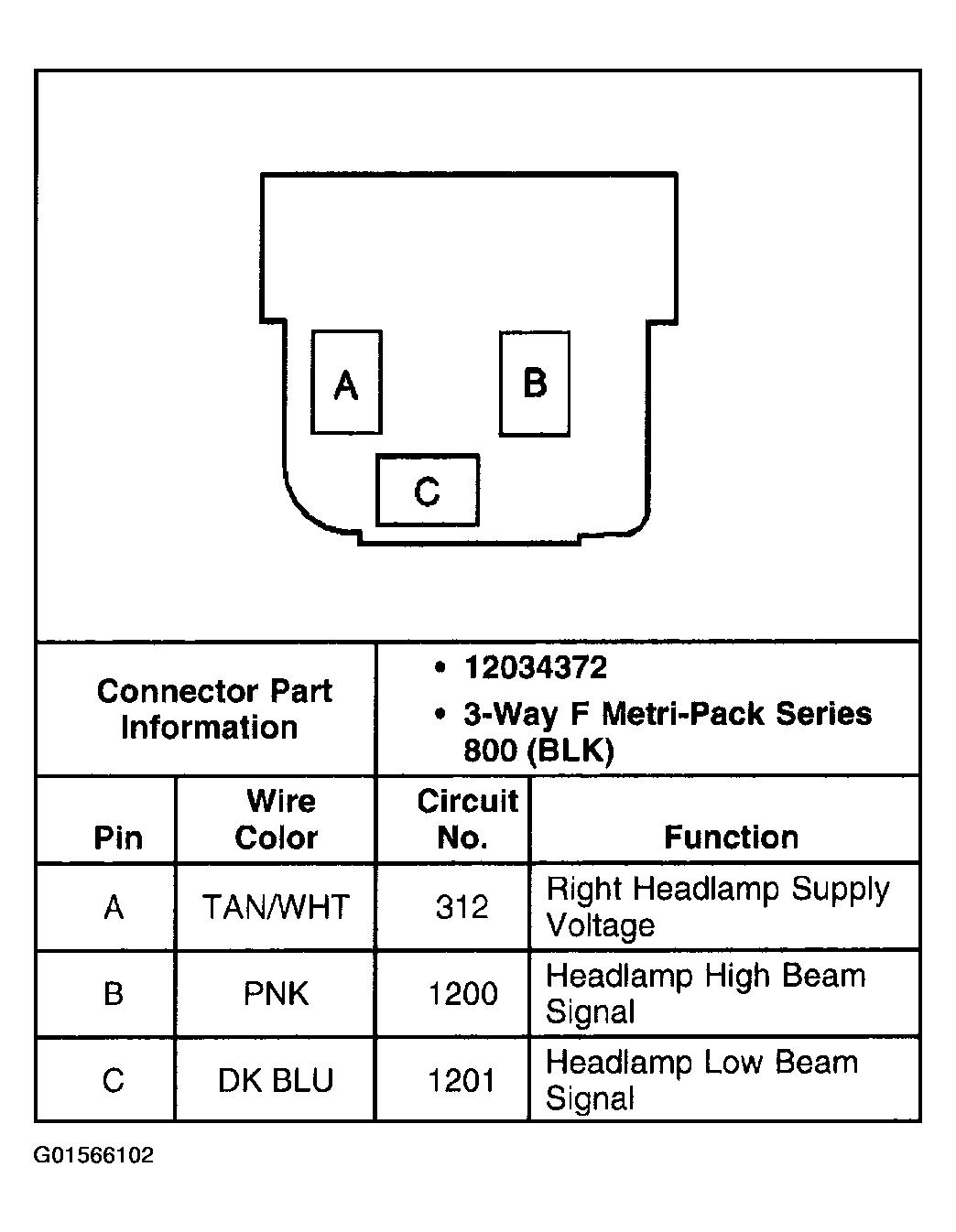

Fig 16: Headlamp Connector - RH (Base W/ Sealed Beam)
Courtesy of GENERAL MOTORS CORP.

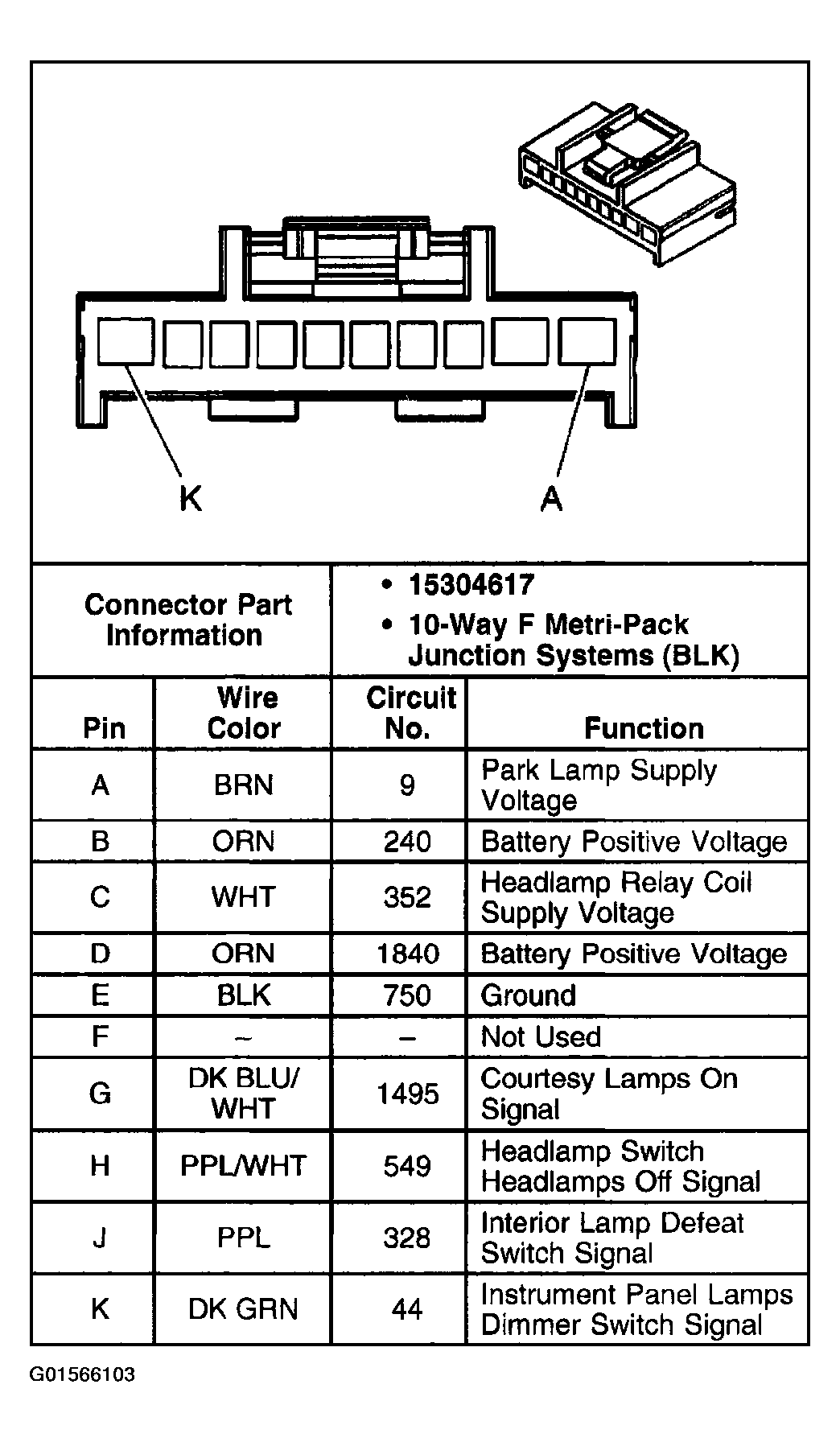

Fig 17: Headlamp And Panel Dimmer Switch Connector
Courtesy of GENERAL MOTORS CORP.
Fig 18: I/P Compartment Lamp Connector
Courtesy of GENERAL MOTORS CORP.
Fig 19: License Lamp Connector
Courtesy of GENERAL MOTORS CORP.

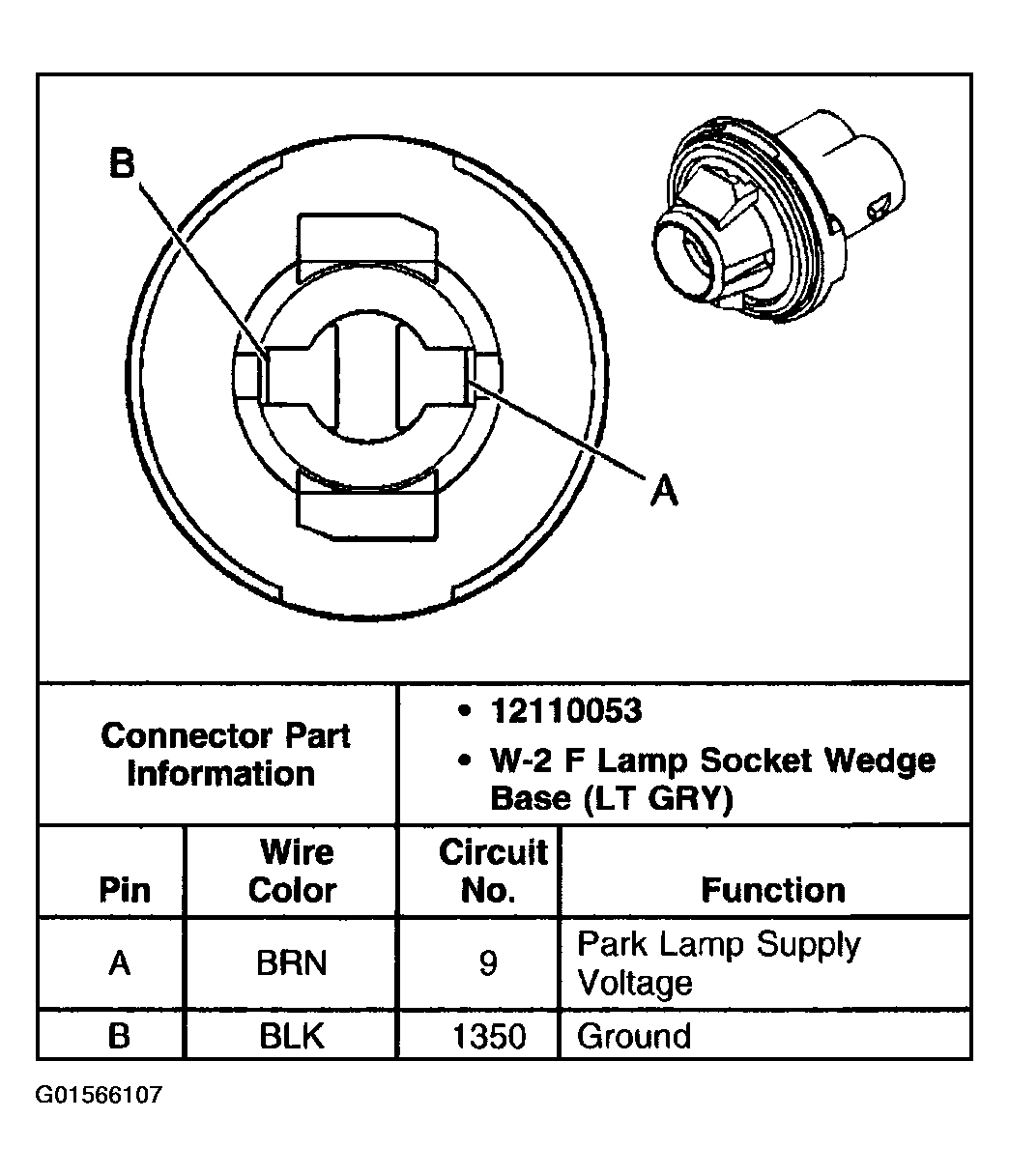

Fig 20: Identifying Marker Lamp - LF Connector
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying Marker Lamp - LR Connector
Courtesy of GENERAL MOTORS CORP.
Fig 22: Identifying Marker Lamp - RF Connector
Courtesy of GENERAL MOTORS CORP.
Fig 23: Identifying Marker Lamp - RR Connector
Courtesy of GENERAL MOTORS CORP.

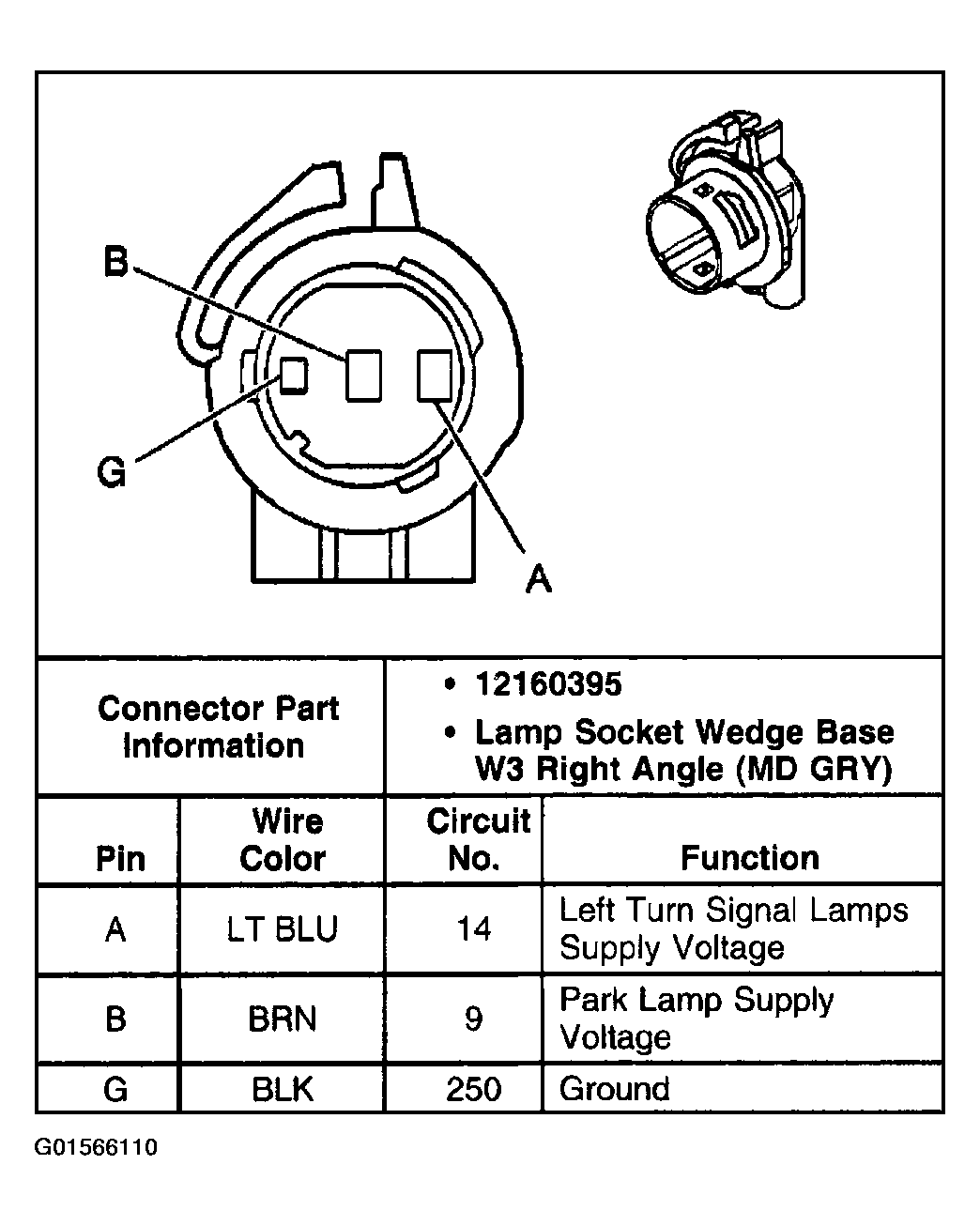

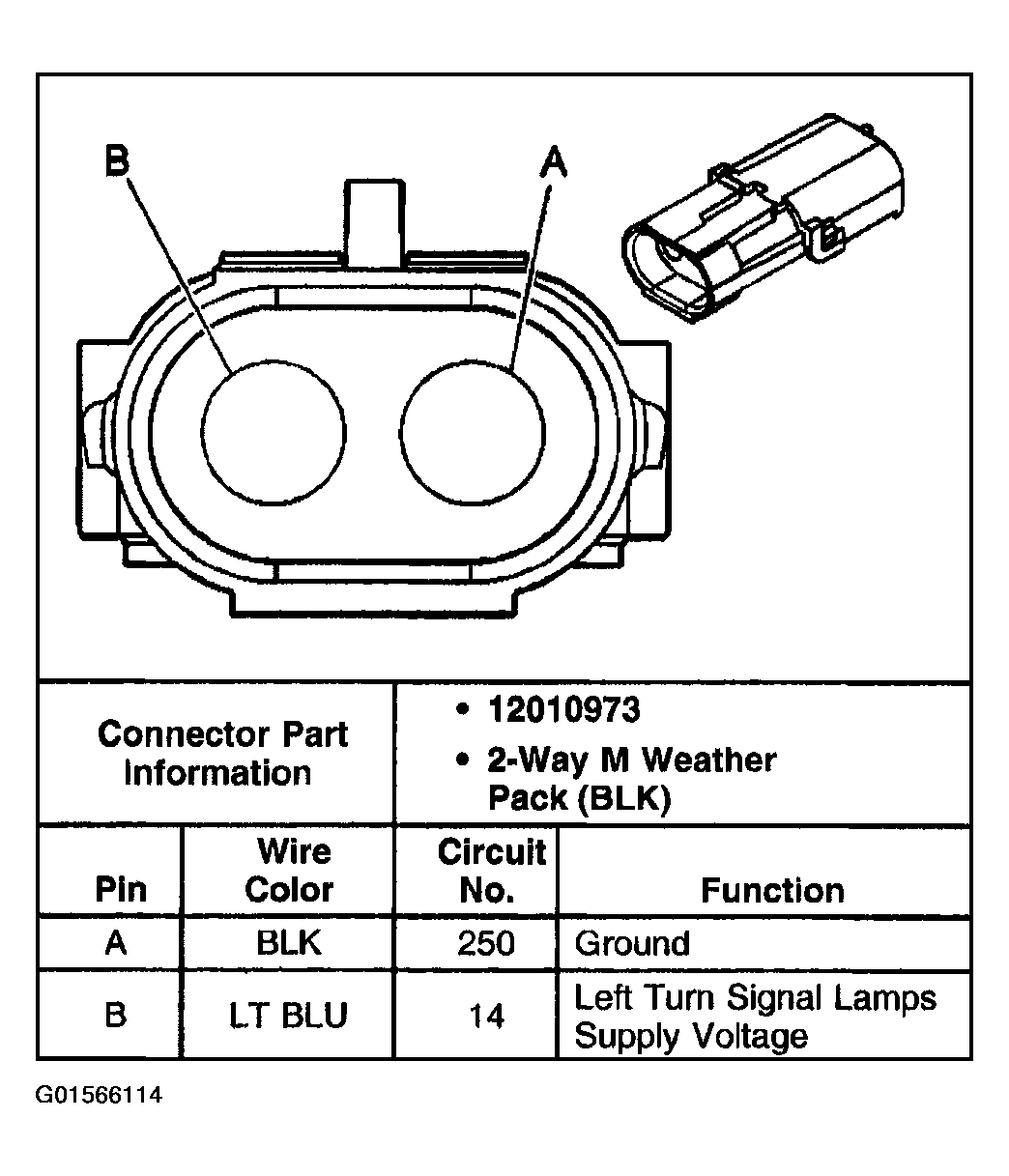

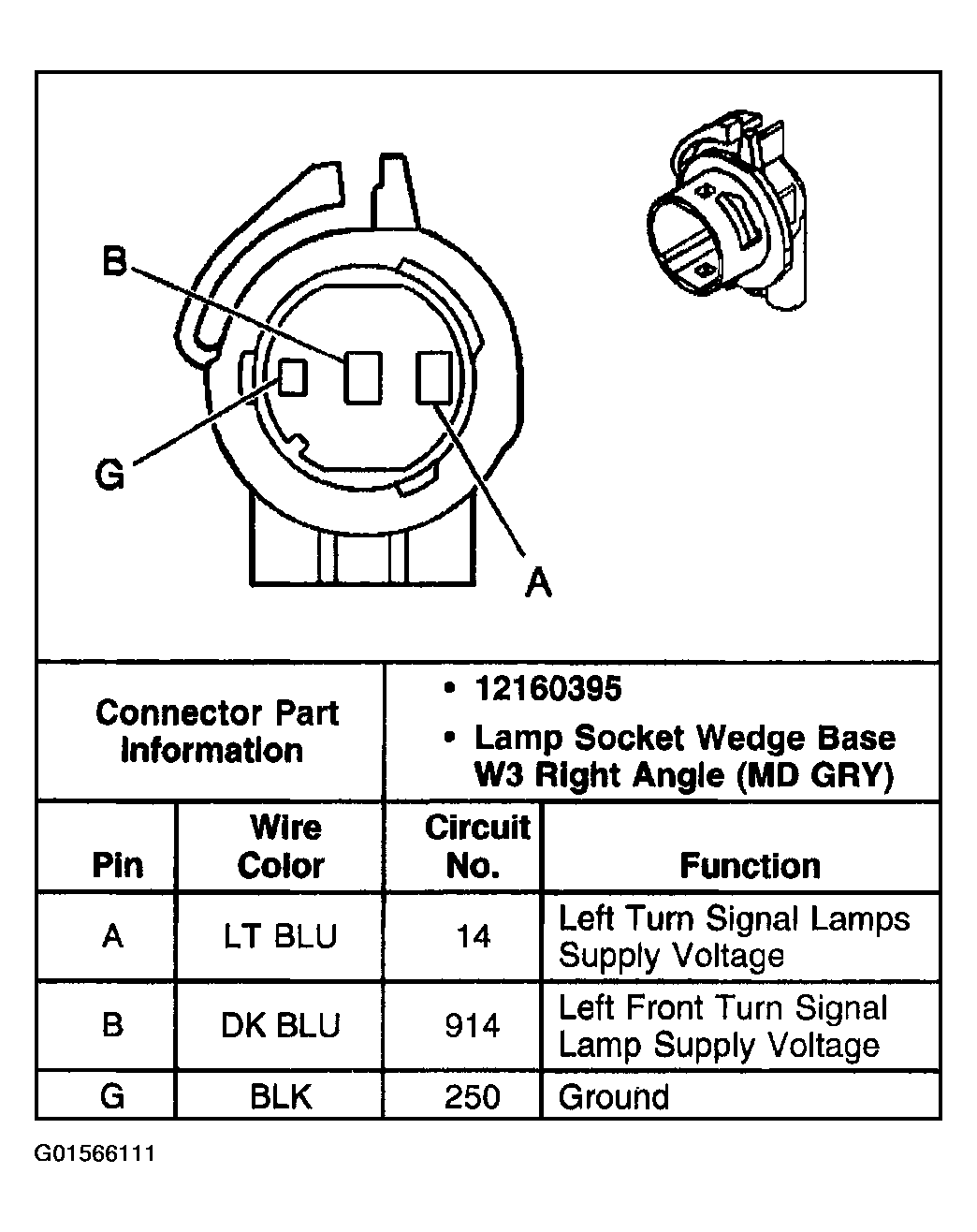

Fig 24: Identifying Park/Turn Signal Lamp - LF Connector
Courtesy of GENERAL MOTORS CORP.

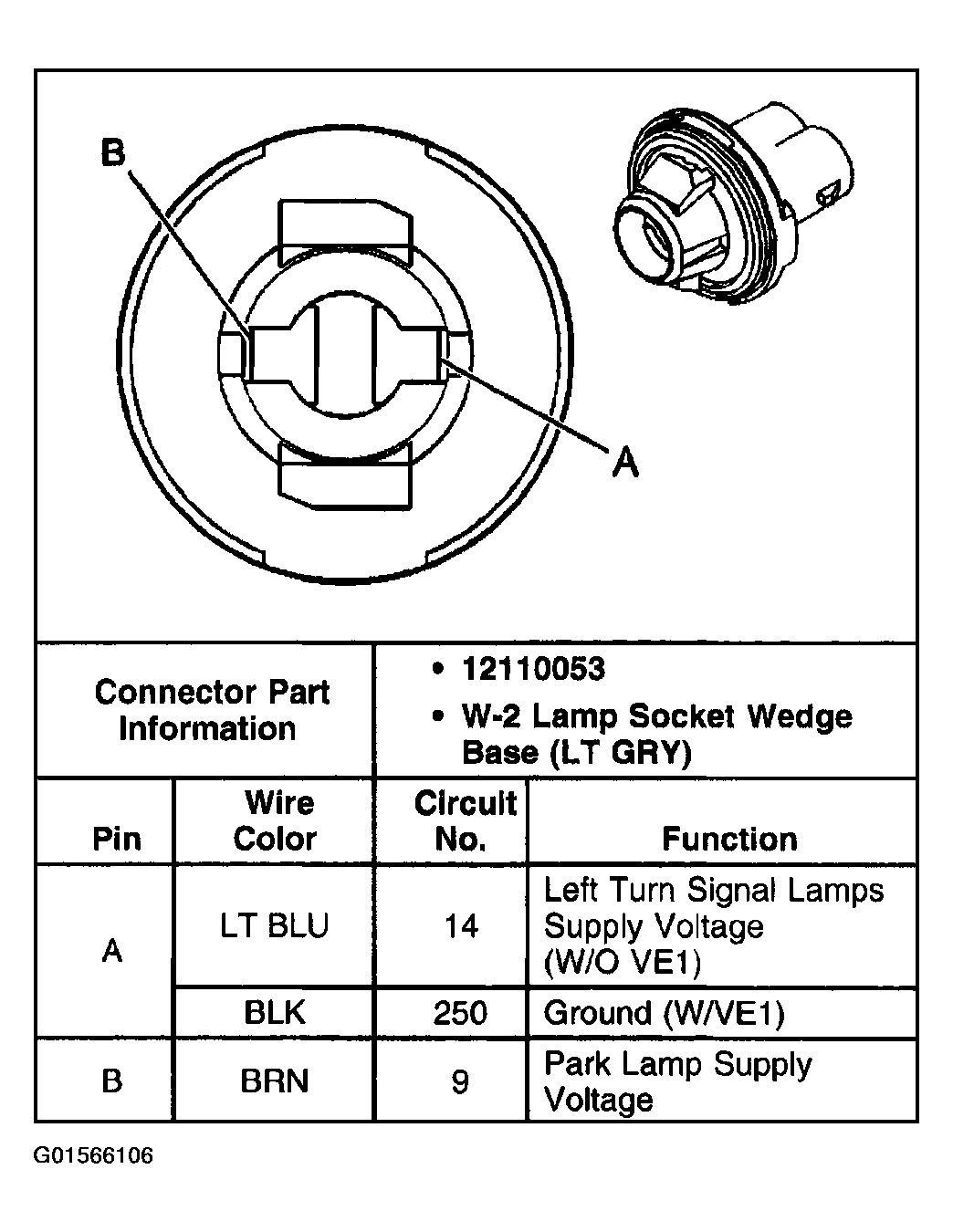

Fig 25: Locating Park/Turn Signal Lamp - LF Connector
Courtesy of GENERAL MOTORS CORP.

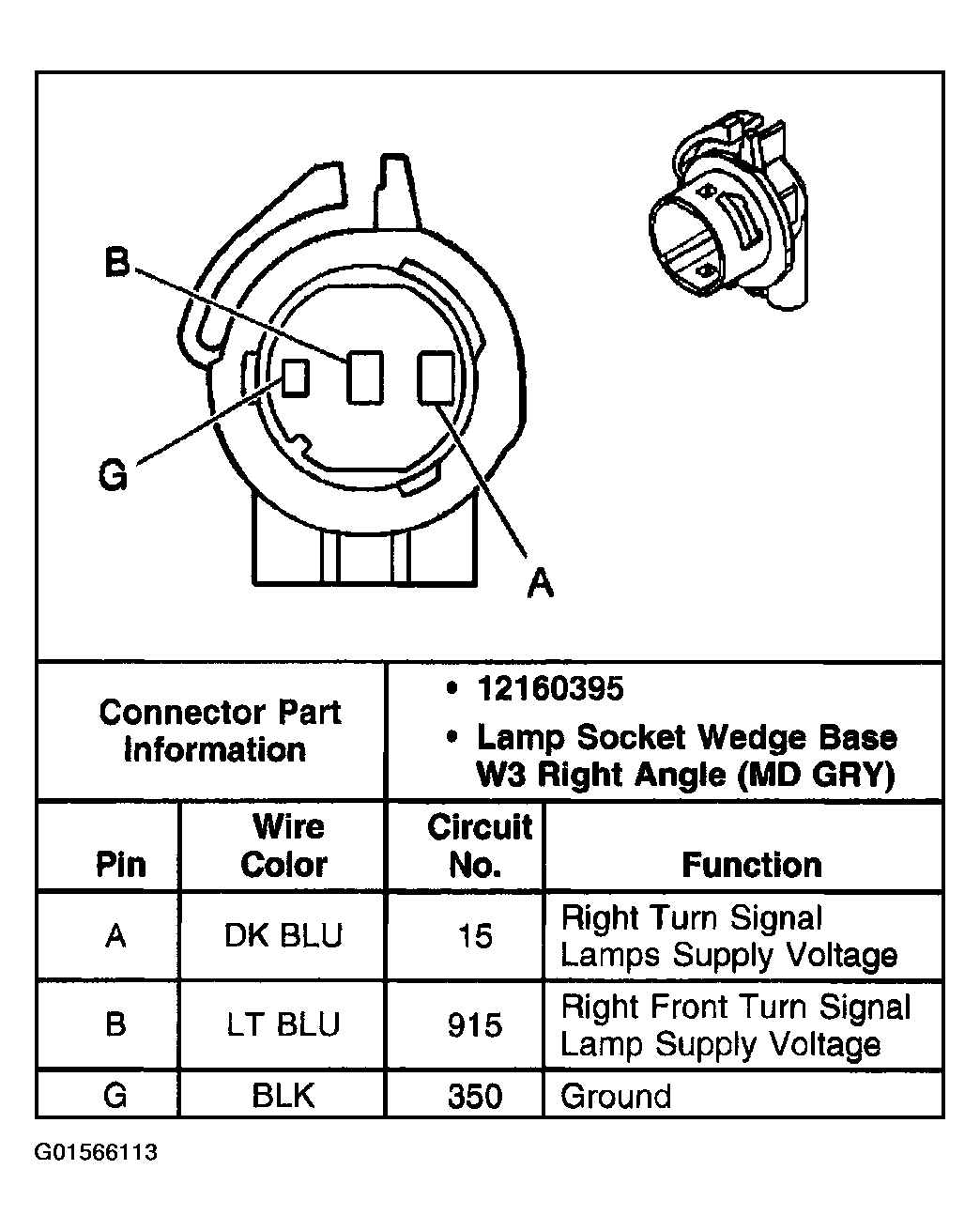

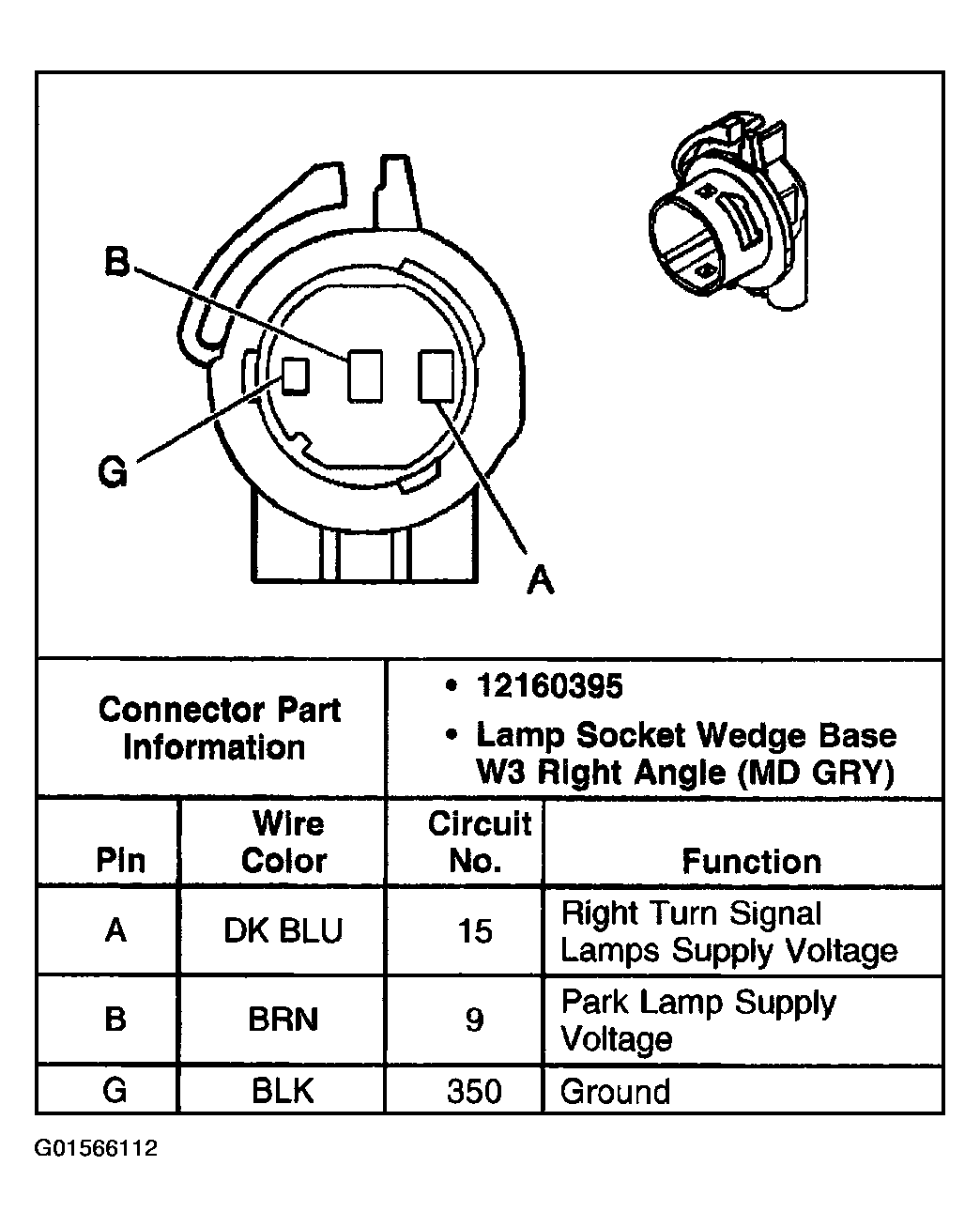

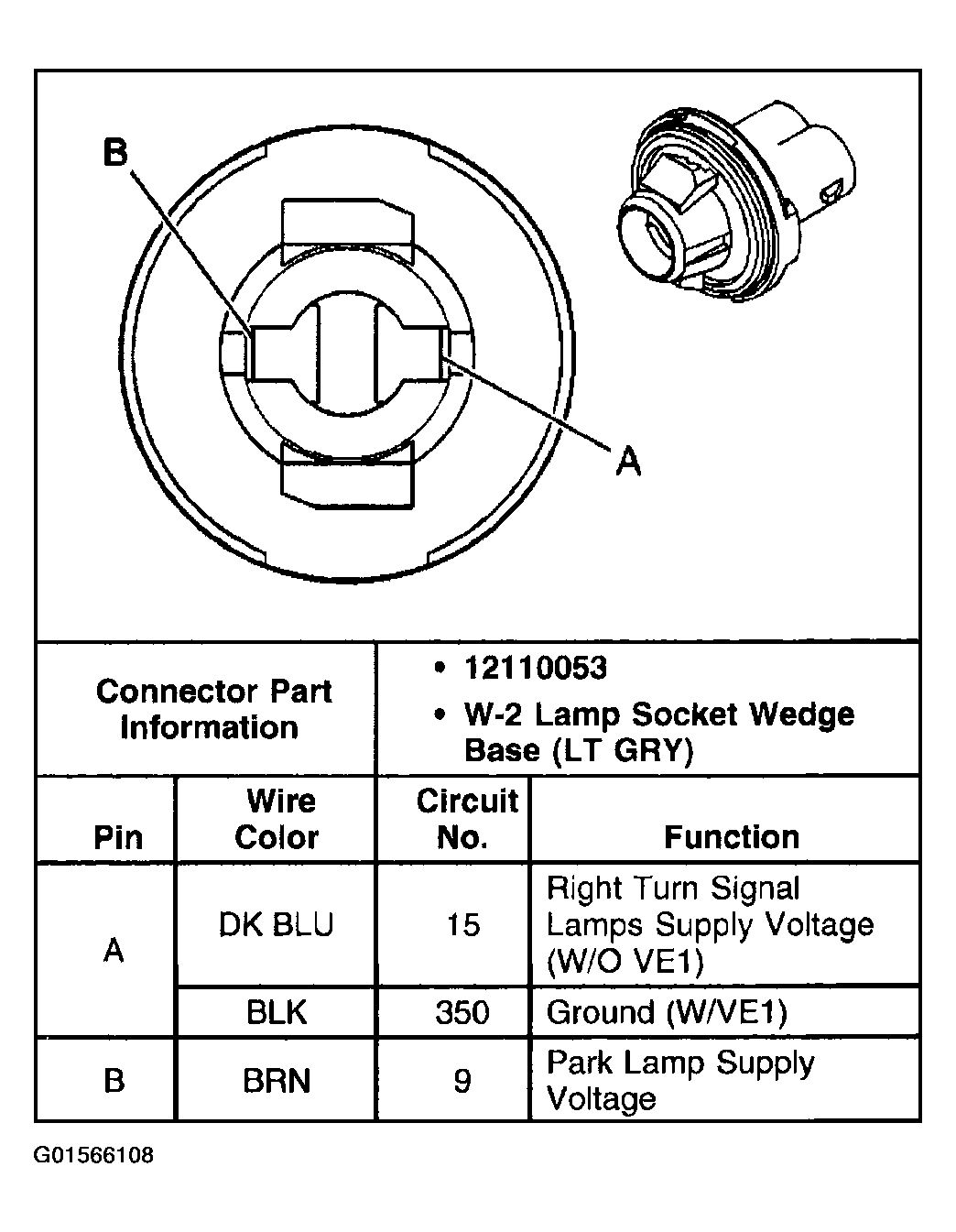

Fig 26: Locating Park/Turn Signal Lamp - RF Connector
Courtesy of GENERAL MOTORS CORP.
Fig 27: Locating Park/Turn Signal Lamp - RF Connector
Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying Repeater Lamp - Left Connector (Export)
Courtesy of GENERAL MOTORS CORP.

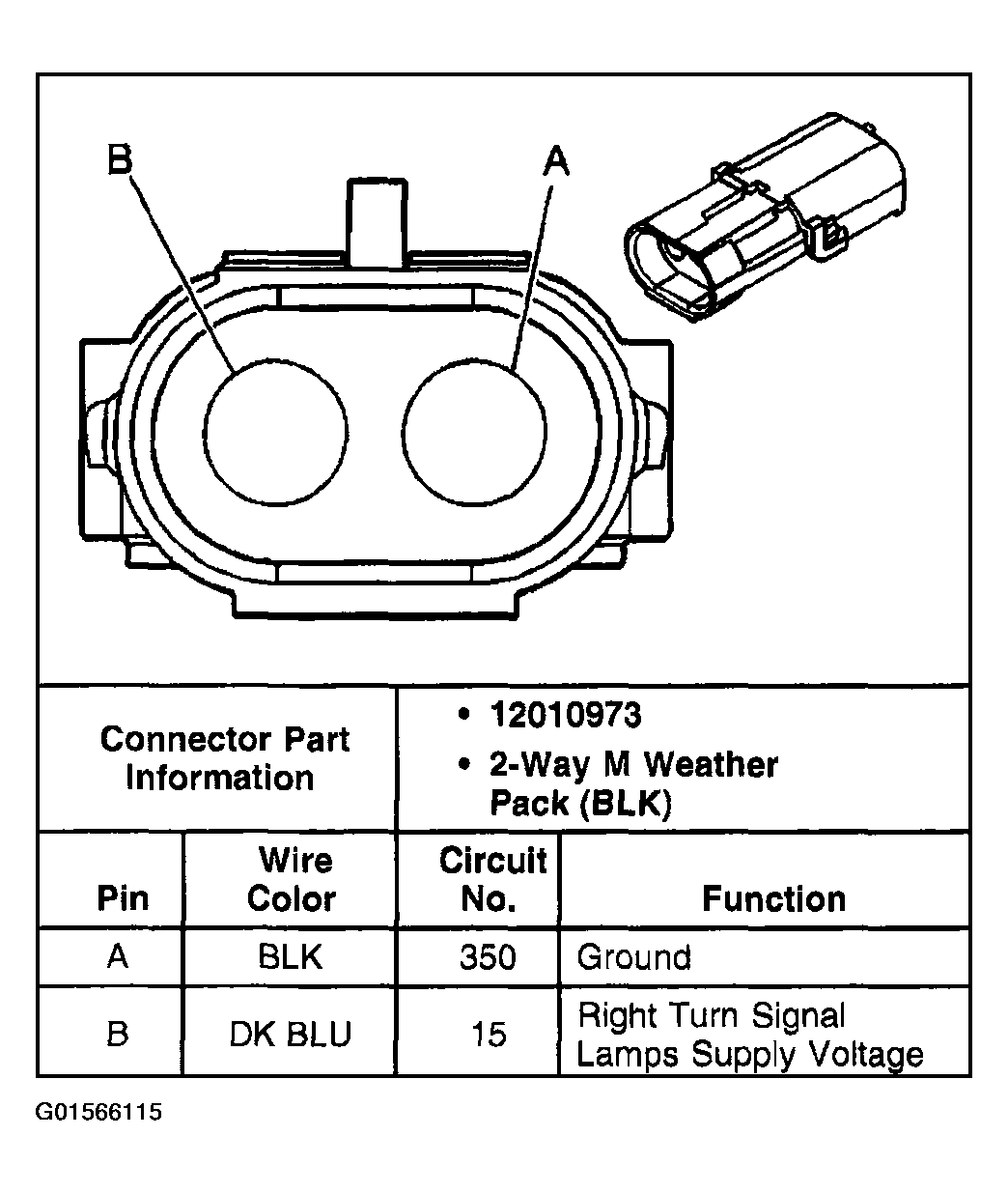

Fig 29: Identifying Repeater Lamp - Right Connector (Export)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Stepwell Lamp Right
Courtesy of GENERAL MOTORS CORP.

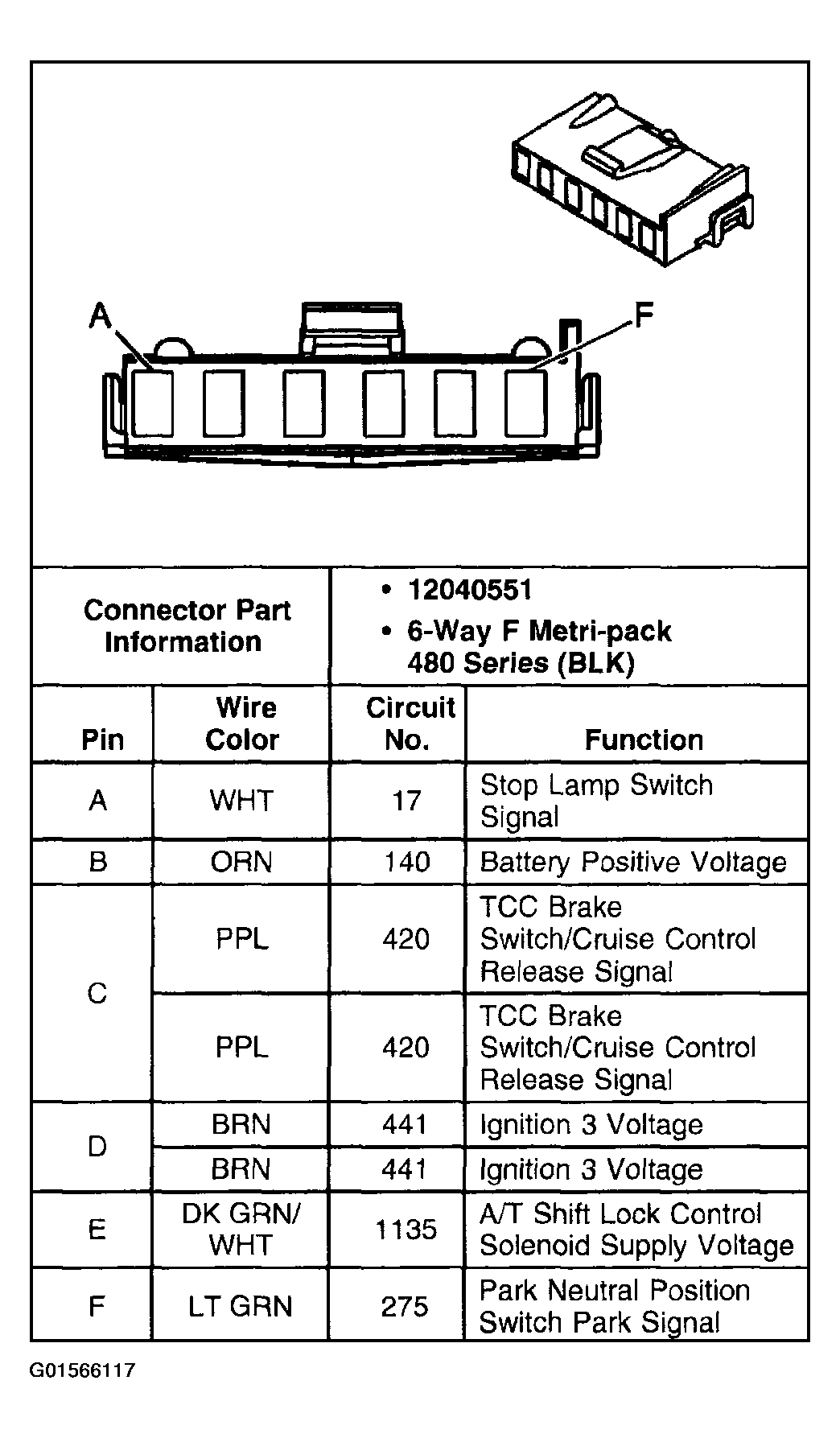

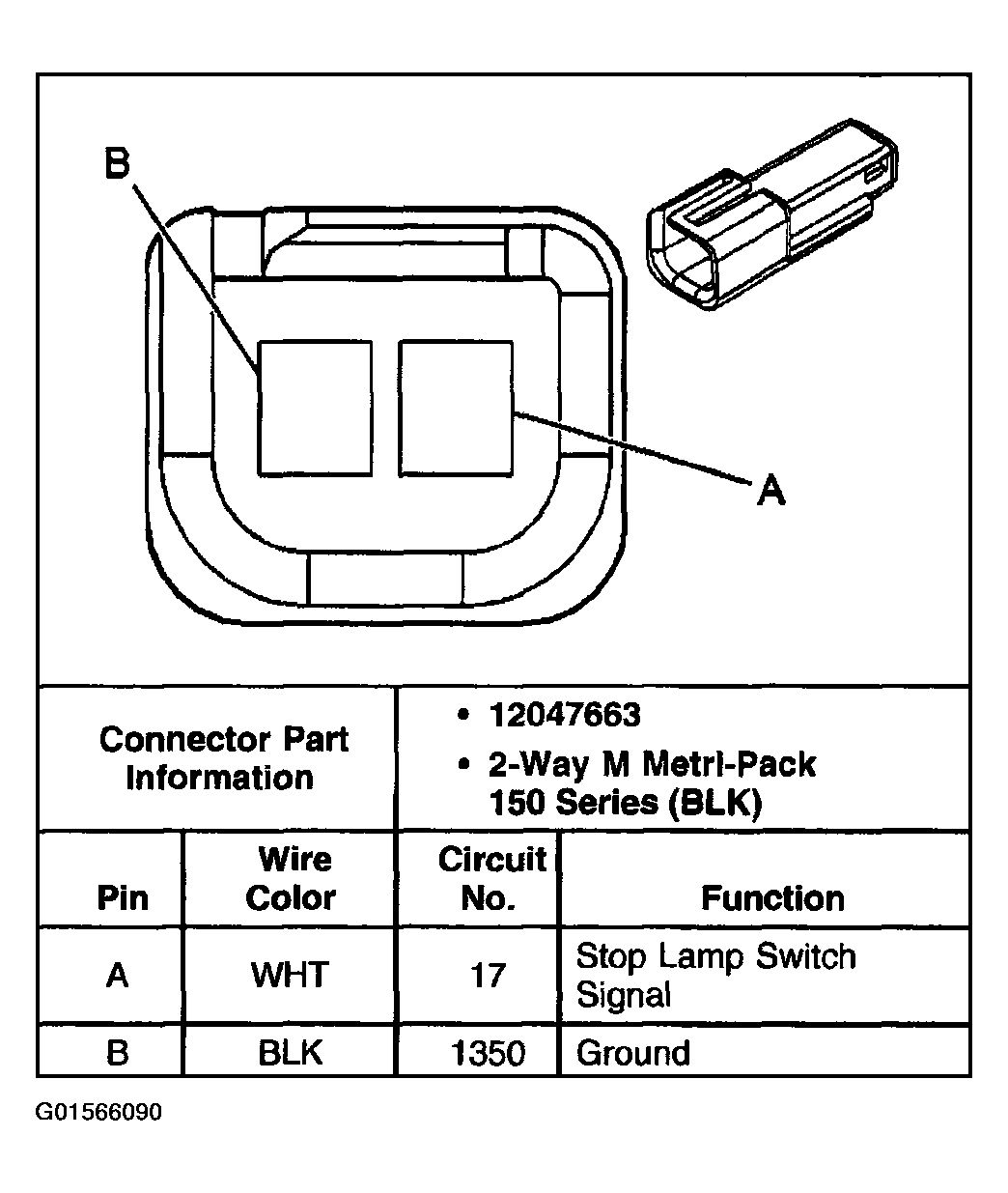

Fig 31: Identifying Stop Lamp Switch Connector
Courtesy of GENERAL MOTORS CORP.

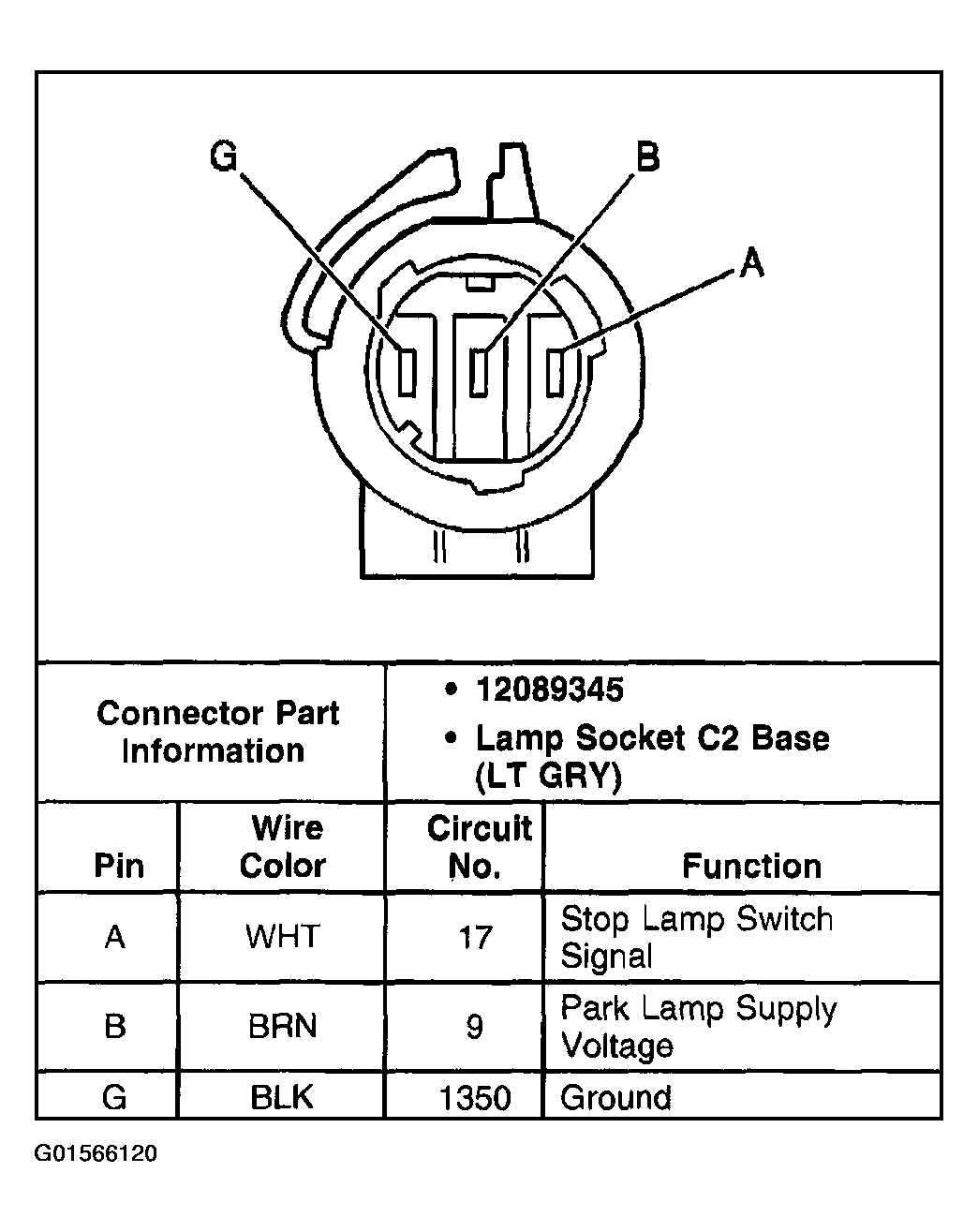

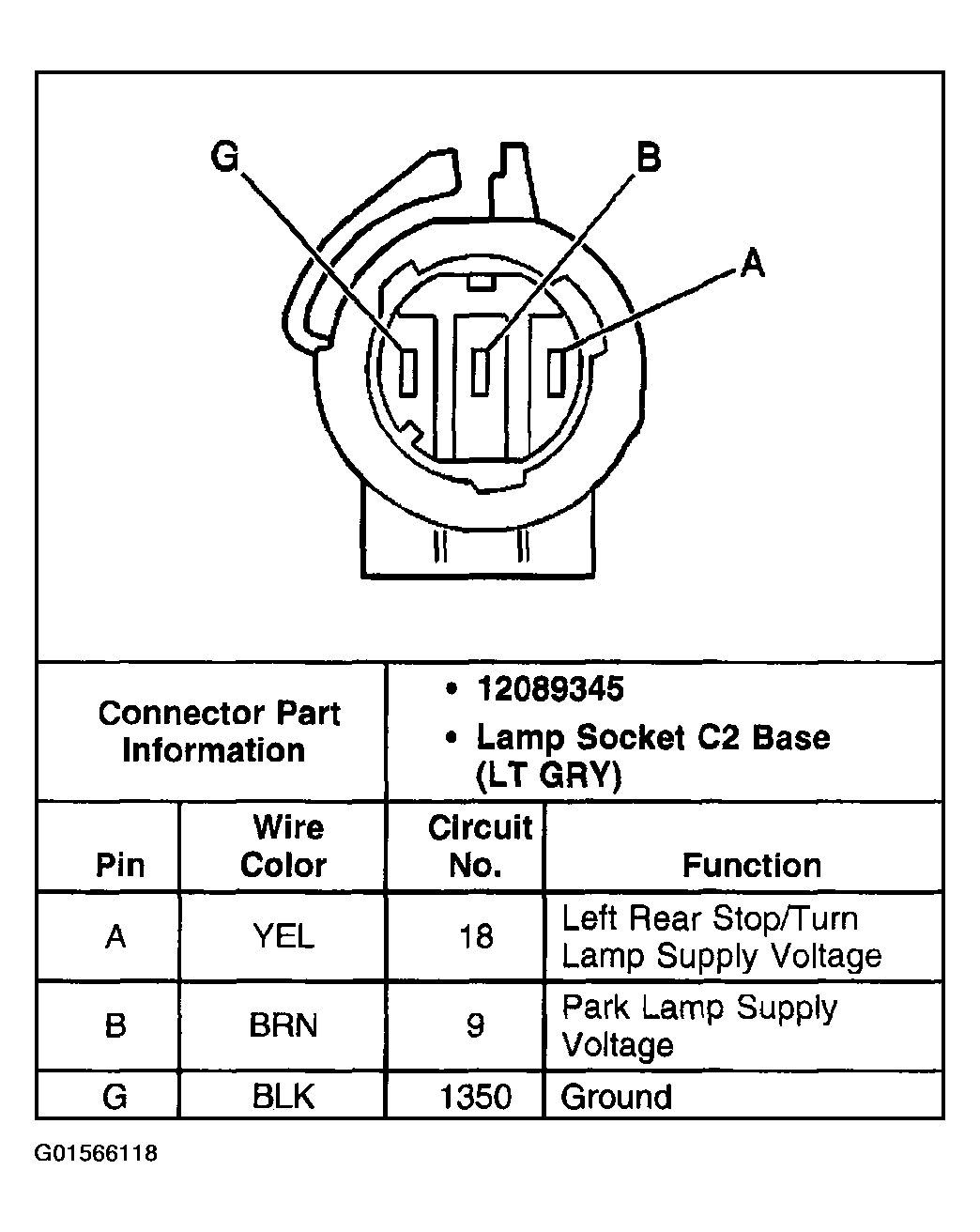

Fig 32: Locating Tail/Stop And Turn Signal Lamp Connector
Courtesy of GENERAL MOTORS CORP.

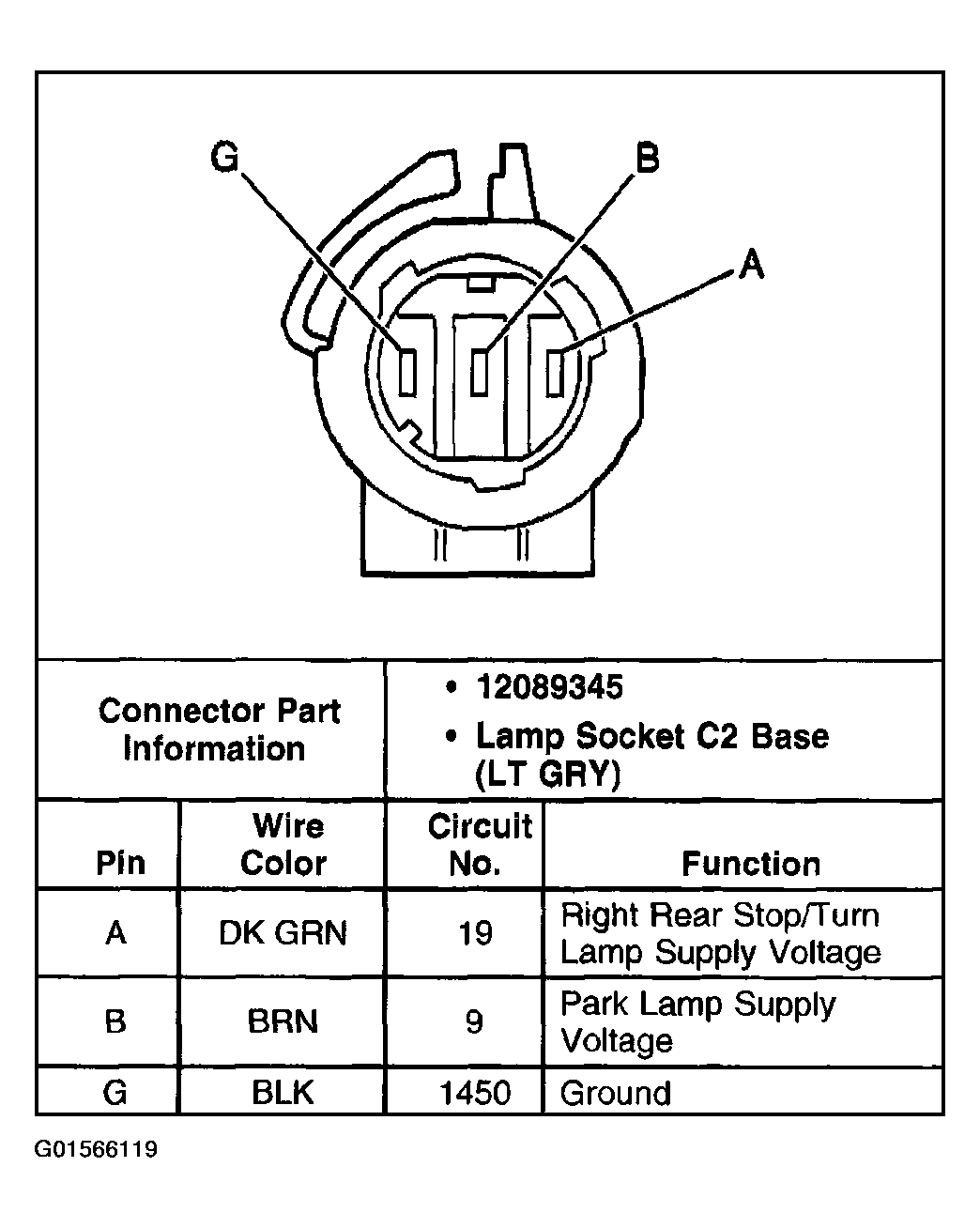

Fig 33: Locating Tail/Stop And Turn Signal Lamp - Right Connector
Courtesy of GENERAL MOTORS CORP.
Fig 34: Locating Tail/Stop Lamp - Left Connector (Export)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Locating Tail/Stop Lamp - Right Connector (Export)
Courtesy of GENERAL MOTORS CORP.

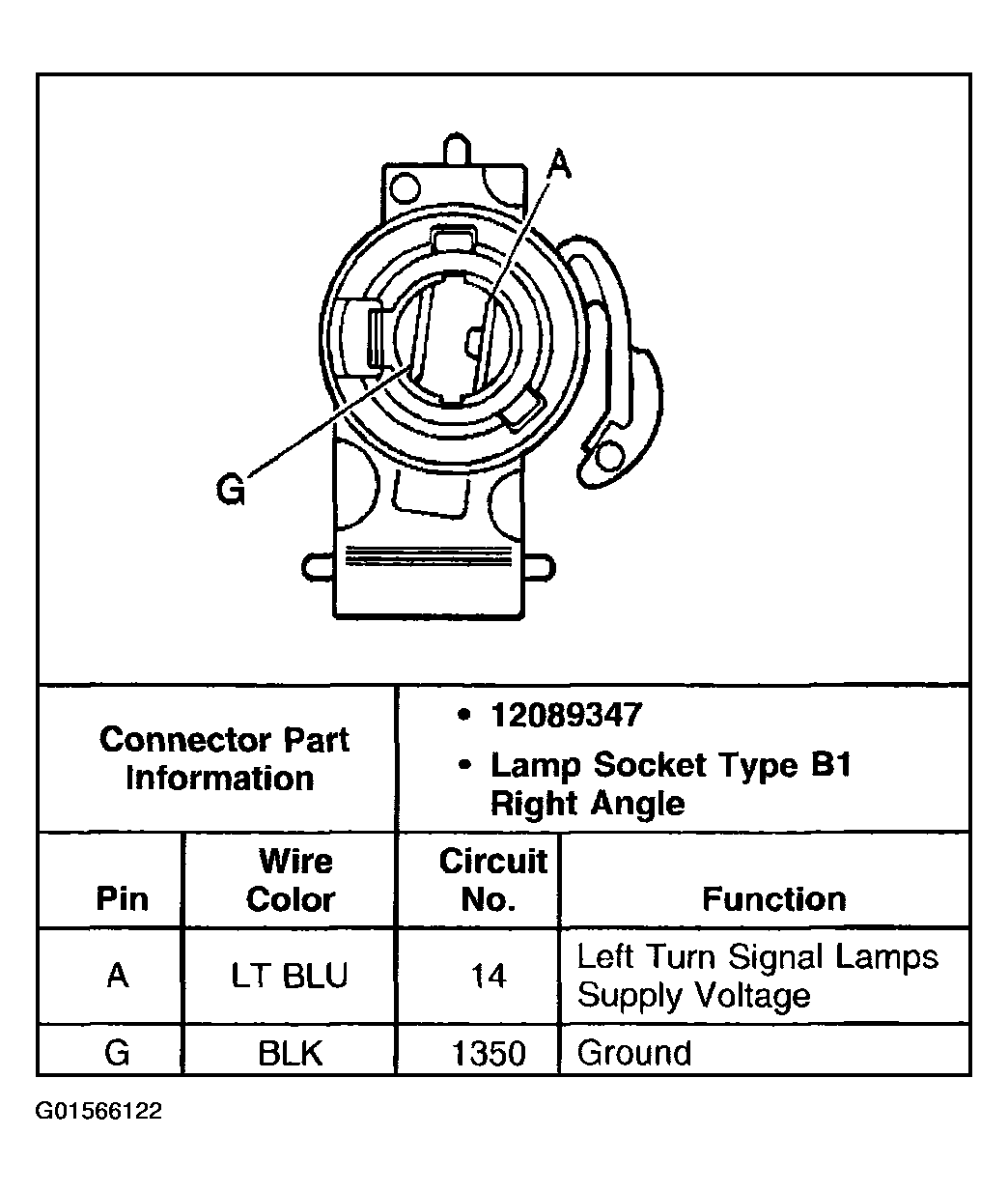

Fig 36: Locating Turn Signal Lamp - LR Connector (Export)
Courtesy of GENERAL MOTORS CORP.

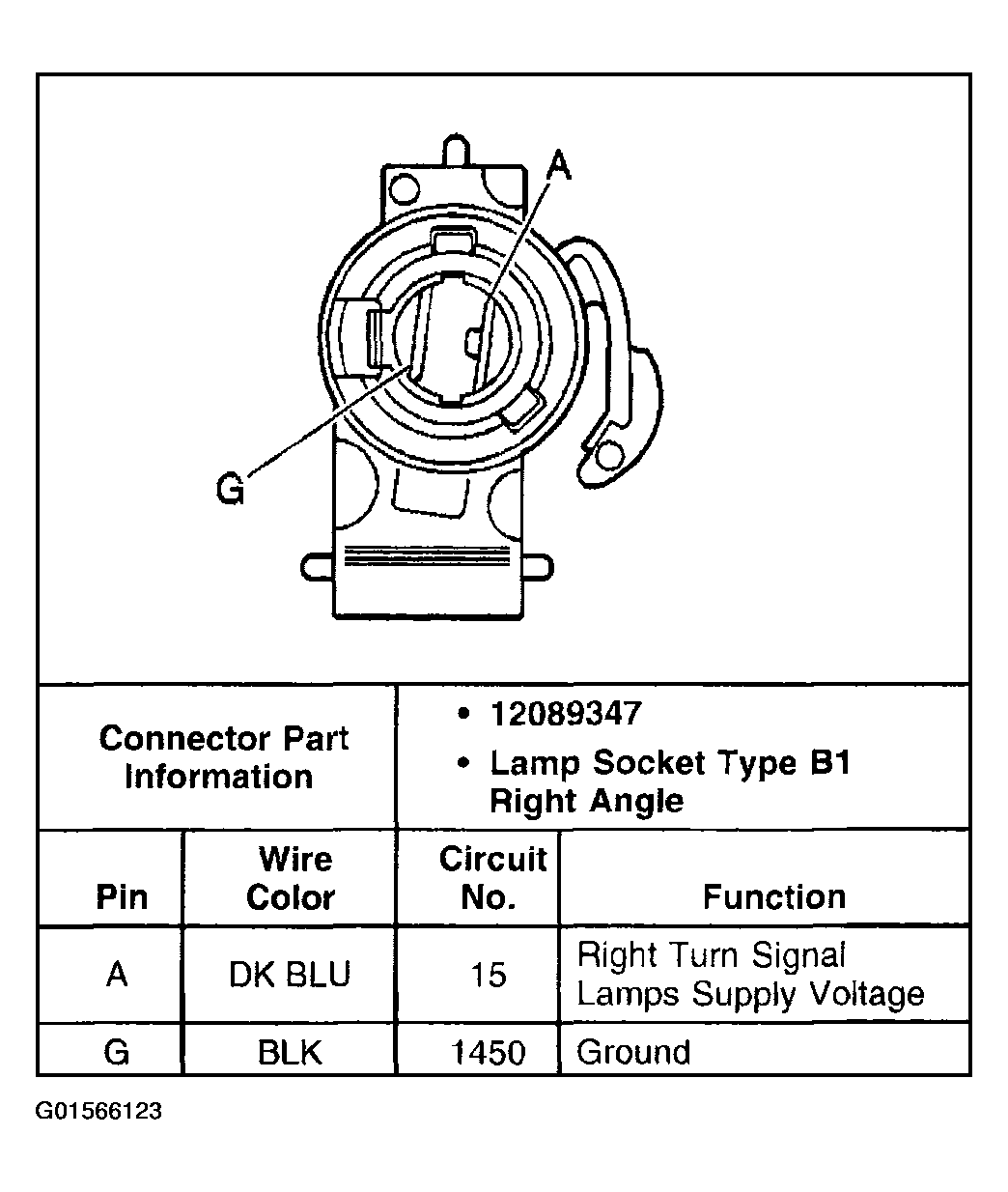

Fig 37: Locating Turn Signal Lamp - RR - Connector (Export)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Locating Vanity Mirror Lamp - Left Connector
Courtesy of GENERAL MOTORS CORP.
Fig 39: Locating Vanity Mirror Lamp - Right Connector
Courtesy of GENERAL MOTORS CORP.
