Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cruise control module bolts.

    Tighten

    Tighten the cruise control module bolts to 12 N.m (106 lb in).

    Fig 1: Cruise Control Module Bolts
    G01566660Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to cruise module.
  4. Install cruise control cable bead (2) to ribbon (1).

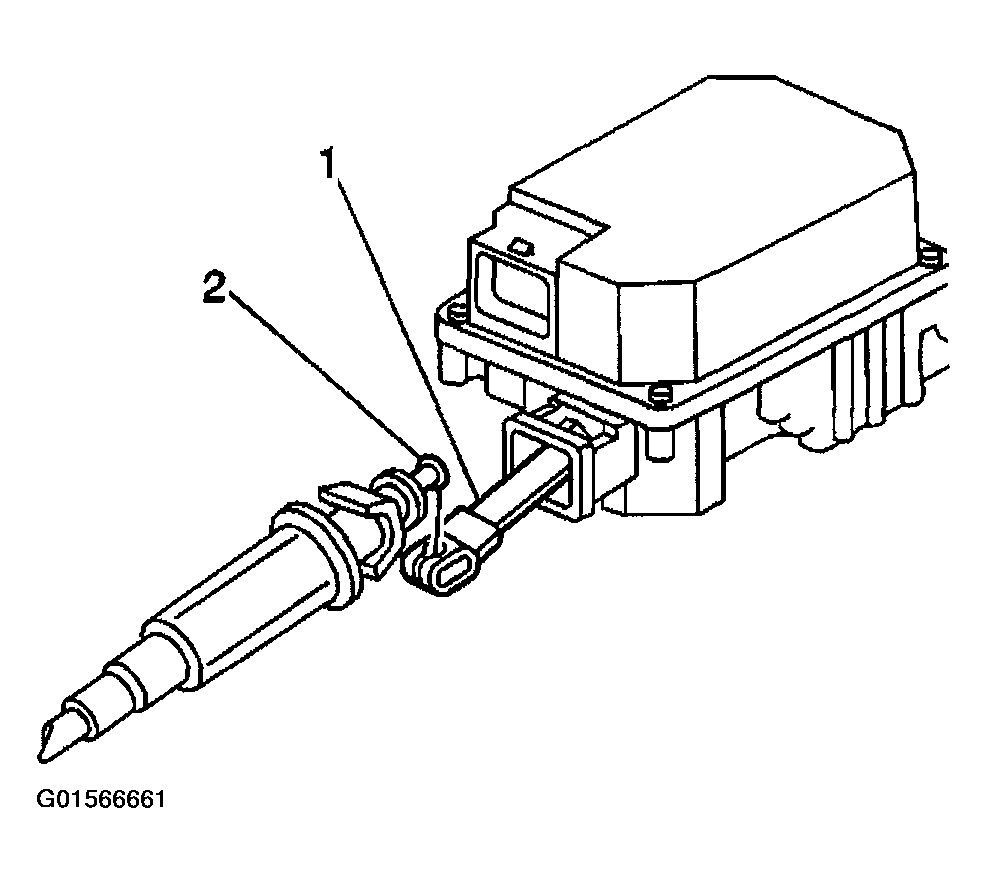

    Fig 2: Installing Cruise Control Cable Bead To Ribbon
    G01566661Courtesy of GENERAL MOTORS CORP.
  5. Install cruise control cable to throttle body lever.

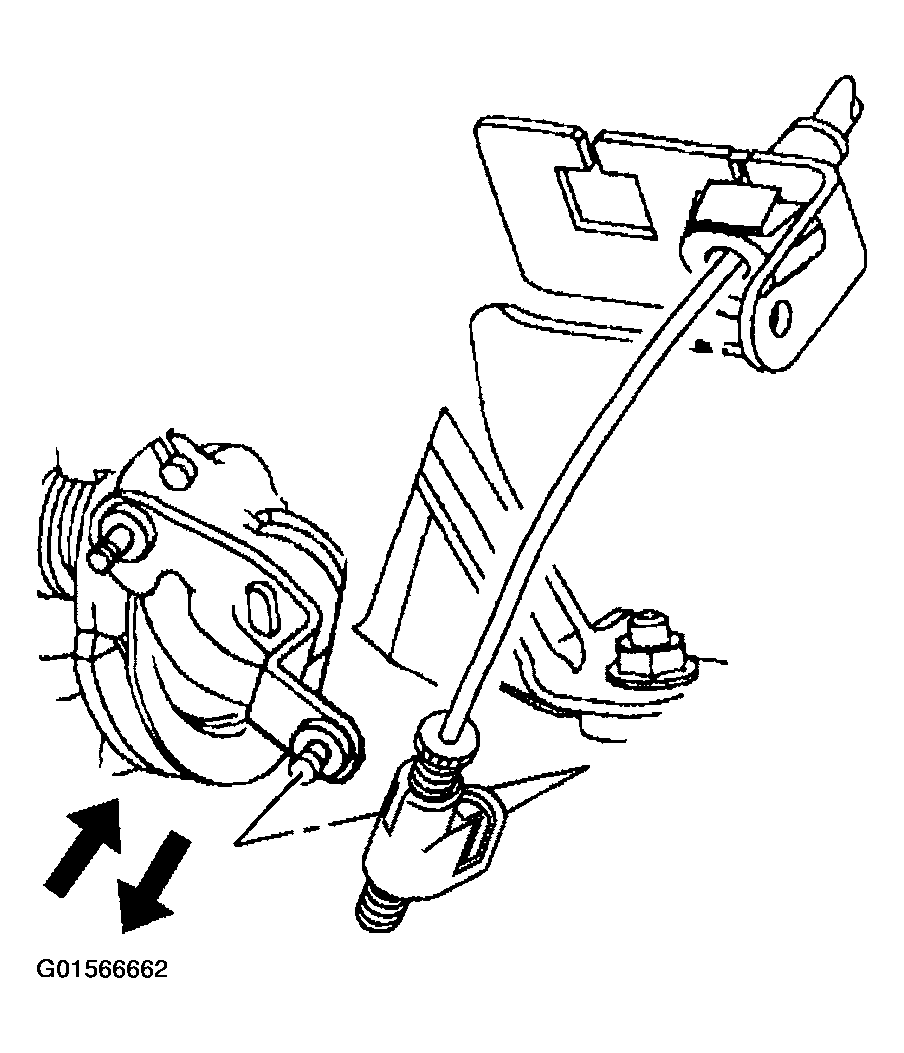

    Fig 3: Installing Cruise Control Cable To Throttle Body Lever
    G01566662Courtesy of GENERAL MOTORS CORP.
  6. Perform the functional check.
