Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Remove cruise control cable from throttle body lever.

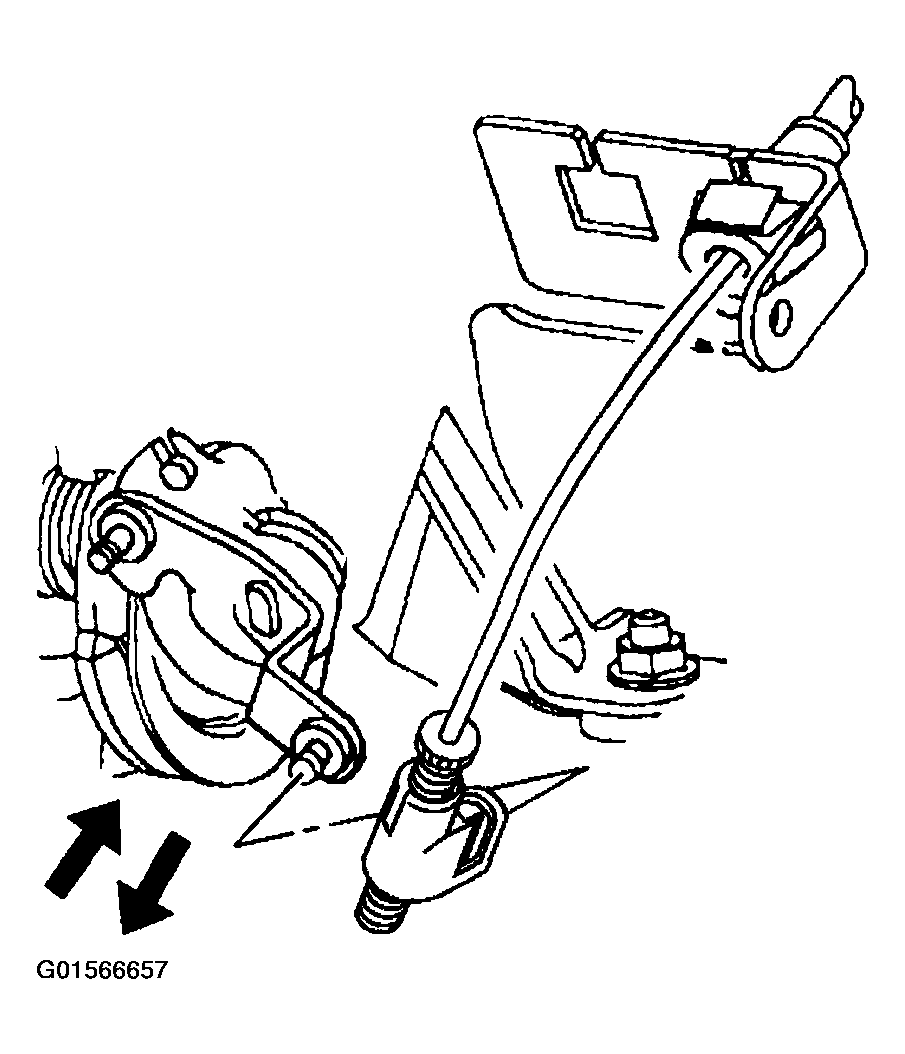

Fig 1: Removing Cruise Control Cable From Throttle Body Lever
Courtesy of GENERAL MOTORS CORP.

Important: Do not allow the cruise control ribbon to retract into the module assembly
Remove the cruise control cable bead (2) from the end of the ribbon (1).

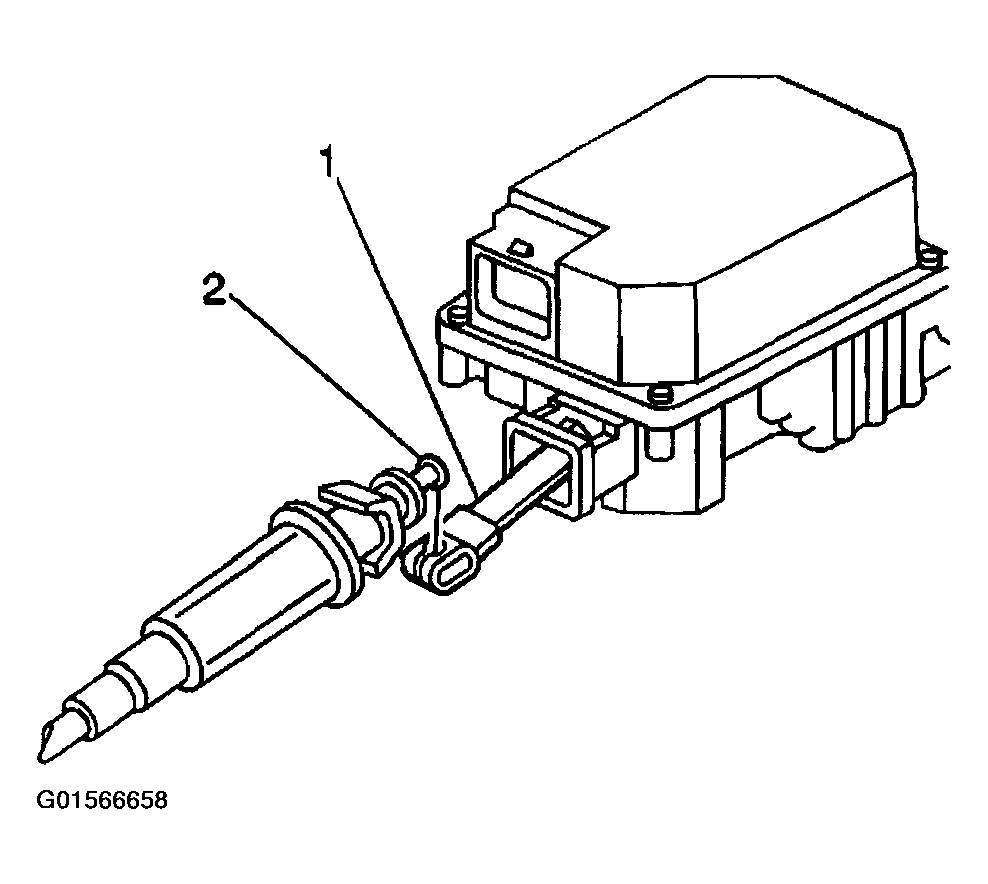

Fig 2: Removing Cruise Control Cable Bead From End Of Ribbon
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector from cruise module.
Remove the cruise control module bolts.

Fig 3: Cruise Control Module Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the cruise control module.
