Windshield Wiper Motor and Module Connector End View

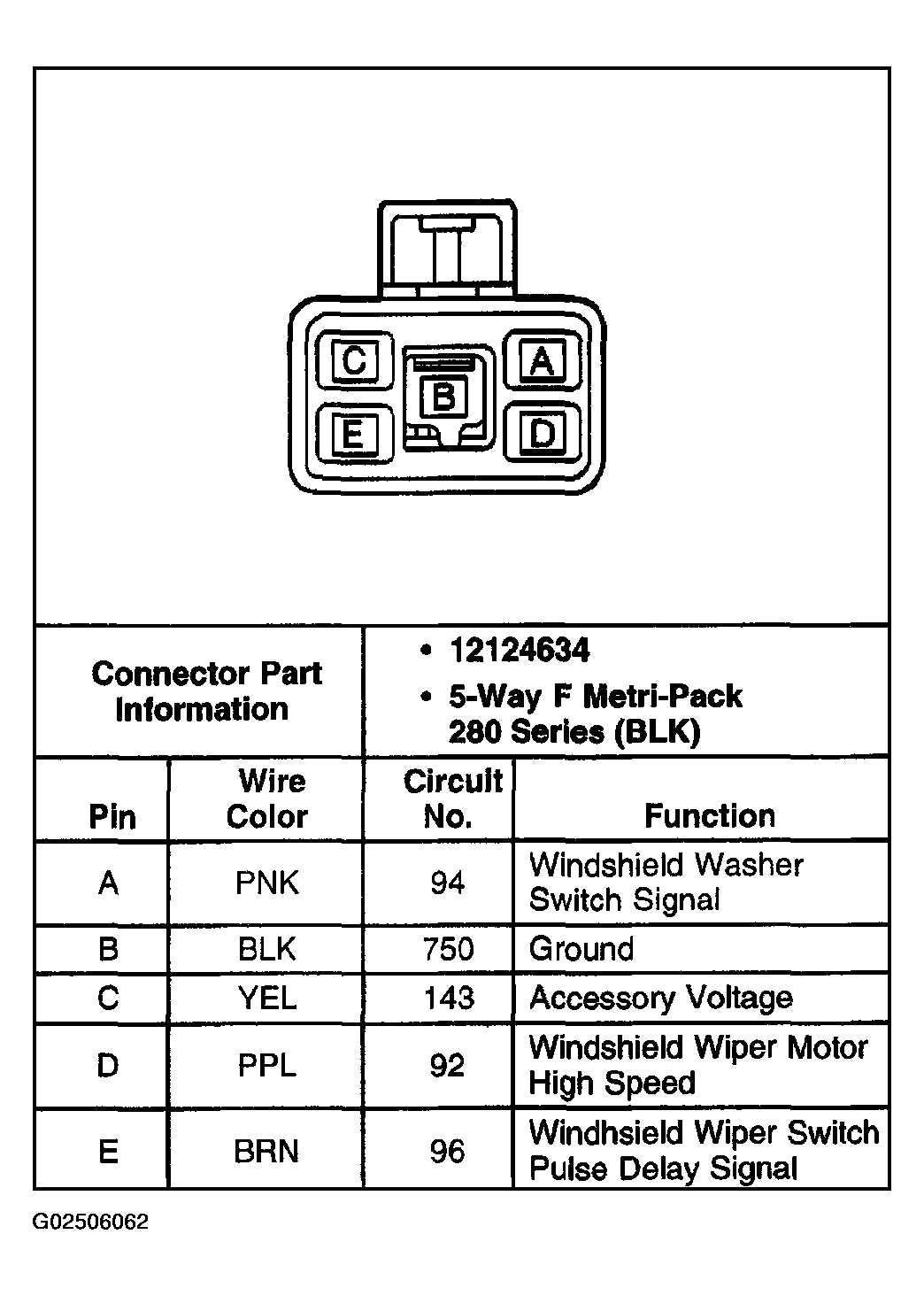

Fig 1: Windshield Wiper Motor and Module Connector End View
G02506062Courtesy of GENERAL MOTORS CORP.
