Wheel Alignment Specifications

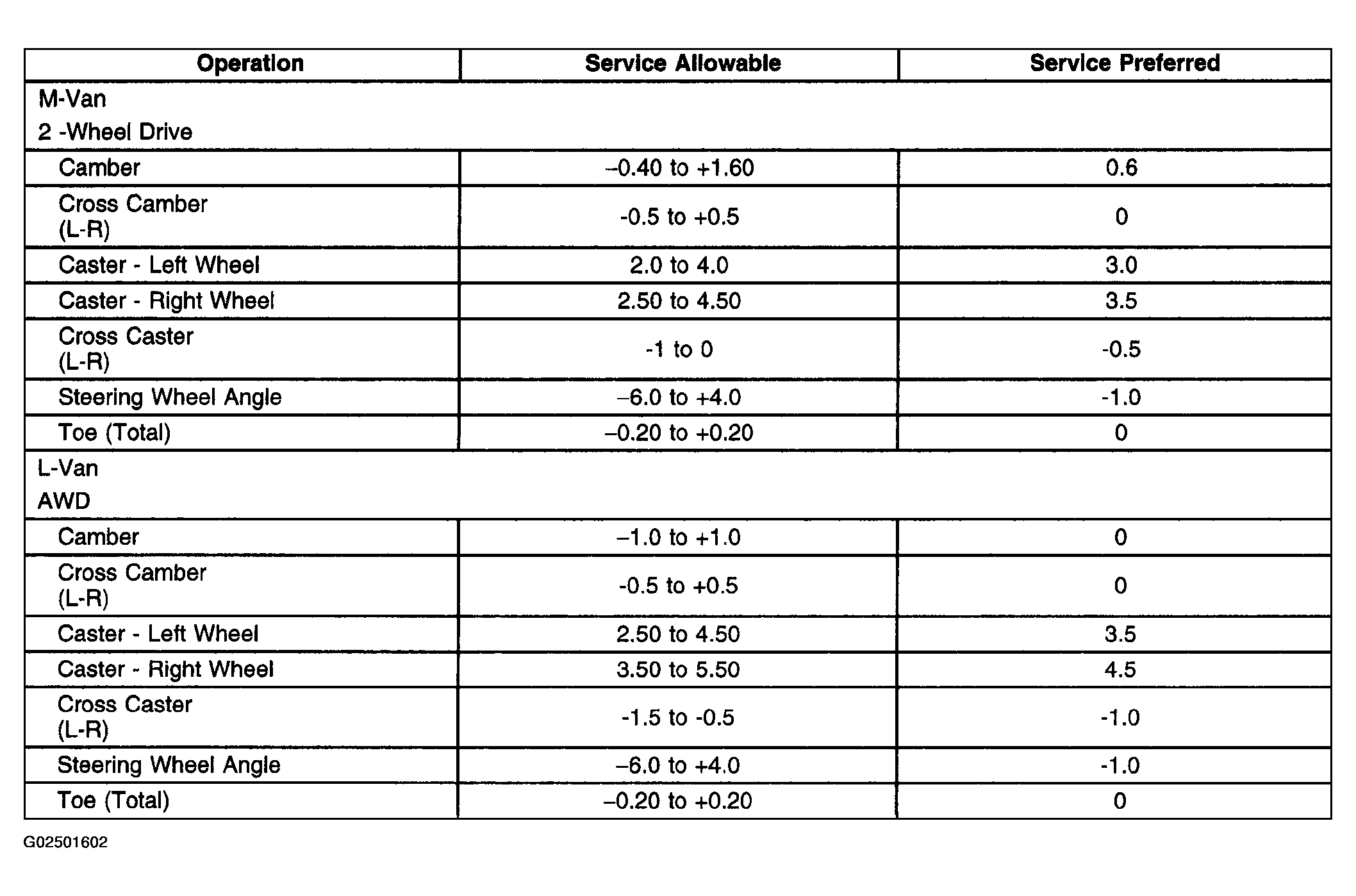

Fig 1: Wheel Alignment Specifications
Courtesy of GENERAL MOTORS CORP.
