ABS Connector End Views

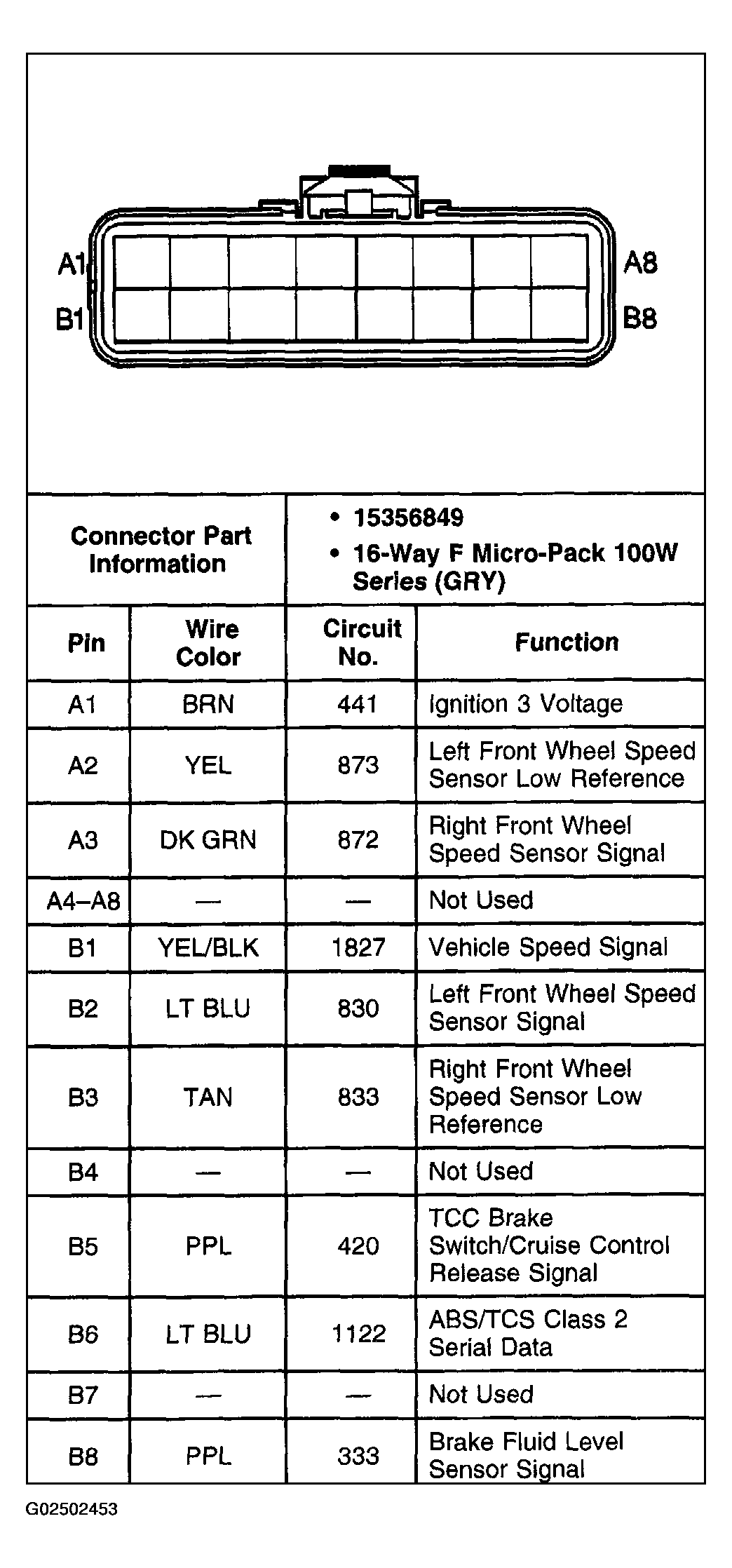

Fig 1: Identifying Electronic Brake Control Module (EBCM) C1 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Electronic Brake Control Module (EBCM) C2 Connector Terminals

Courtesy of GENERAL MOTORS CORP.

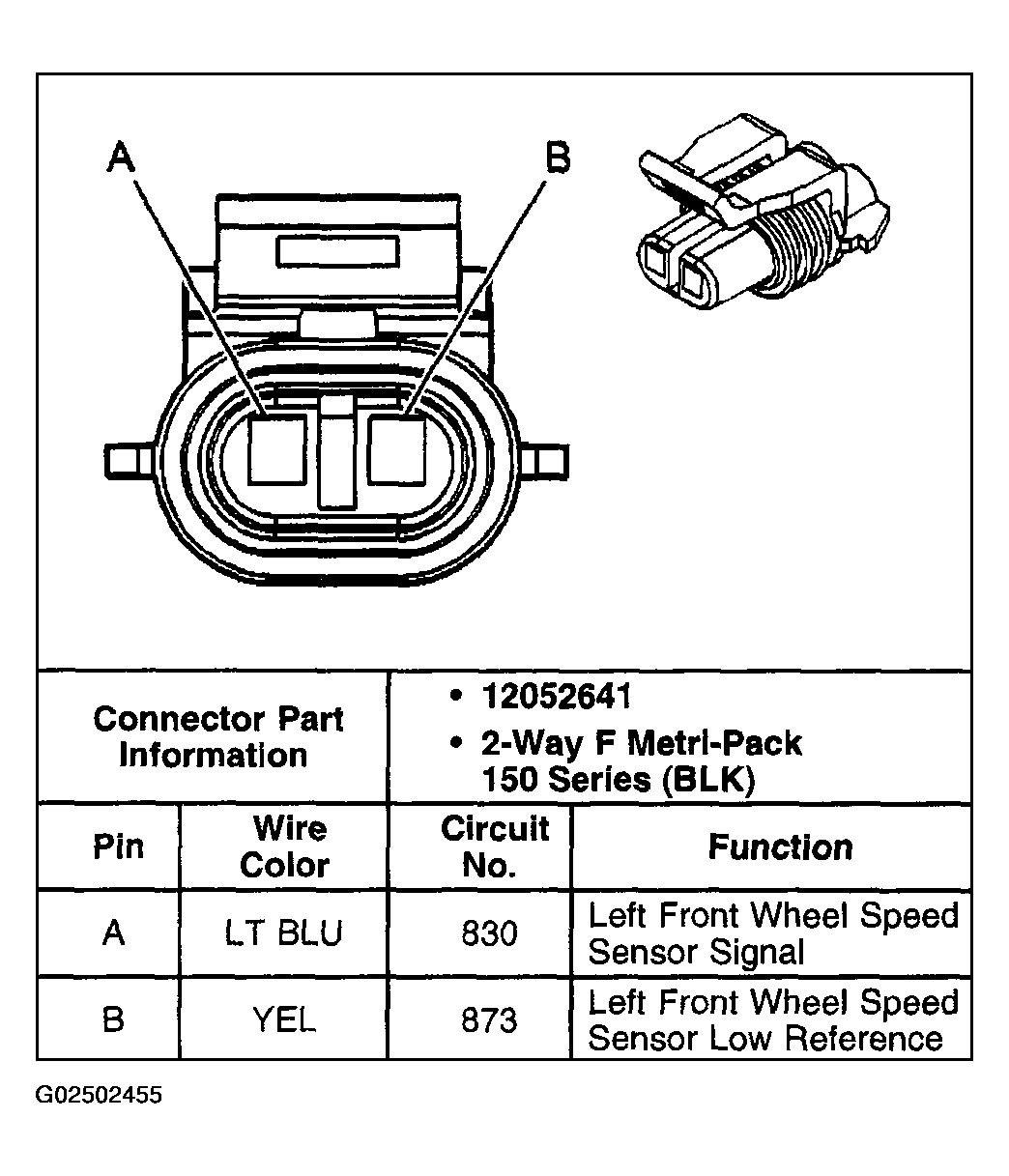

Fig 3: Identifying Left Front Wheel Speed Sensor (WSS) Connector Terminals

Courtesy of GENERAL MOTORS CORP.

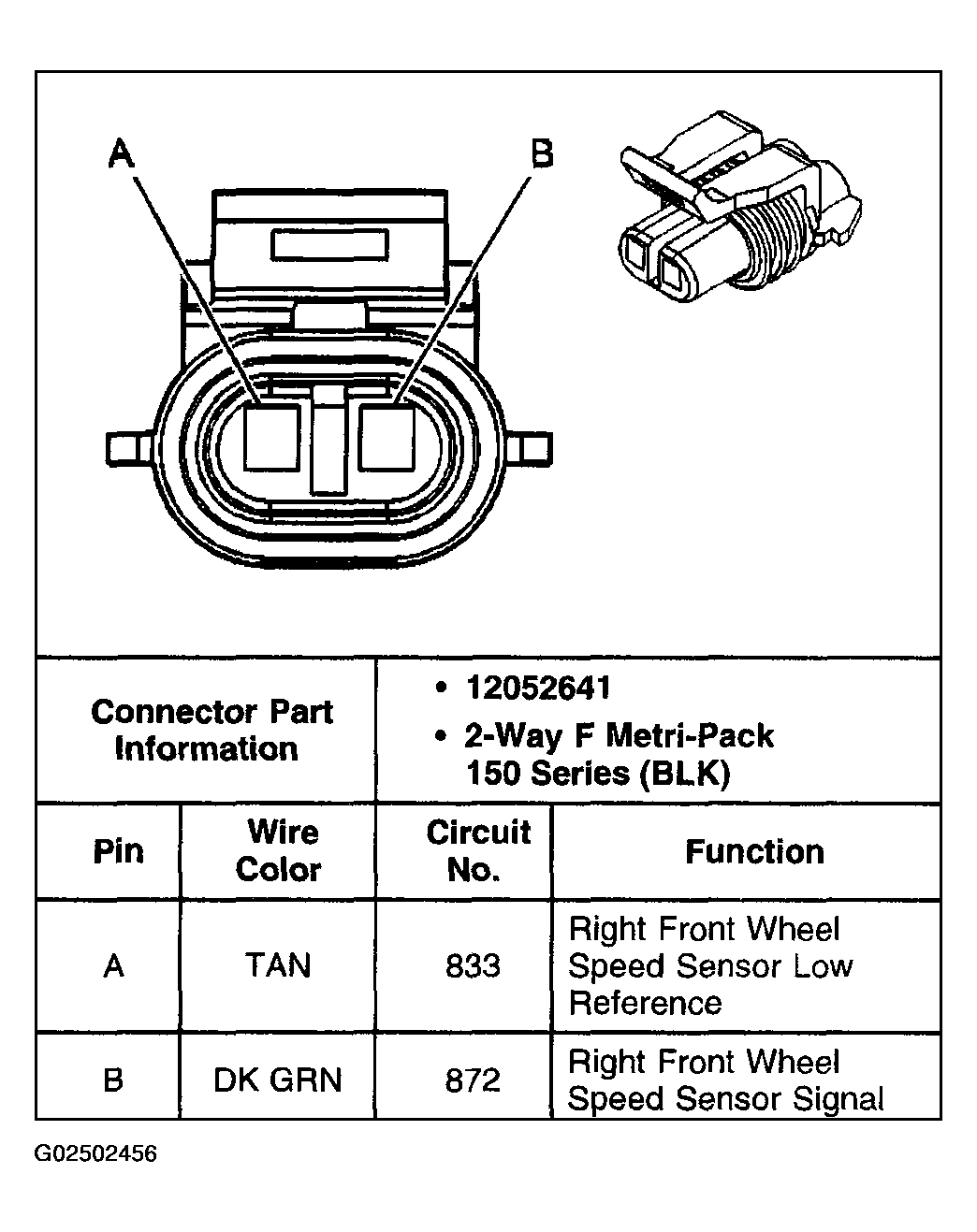

Fig 4: Identifying Right Front Wheel Speed Sensor (WSS) Connector Terminals

Courtesy of GENERAL MOTORS CORP.
