Power Door Systems Connector End Views

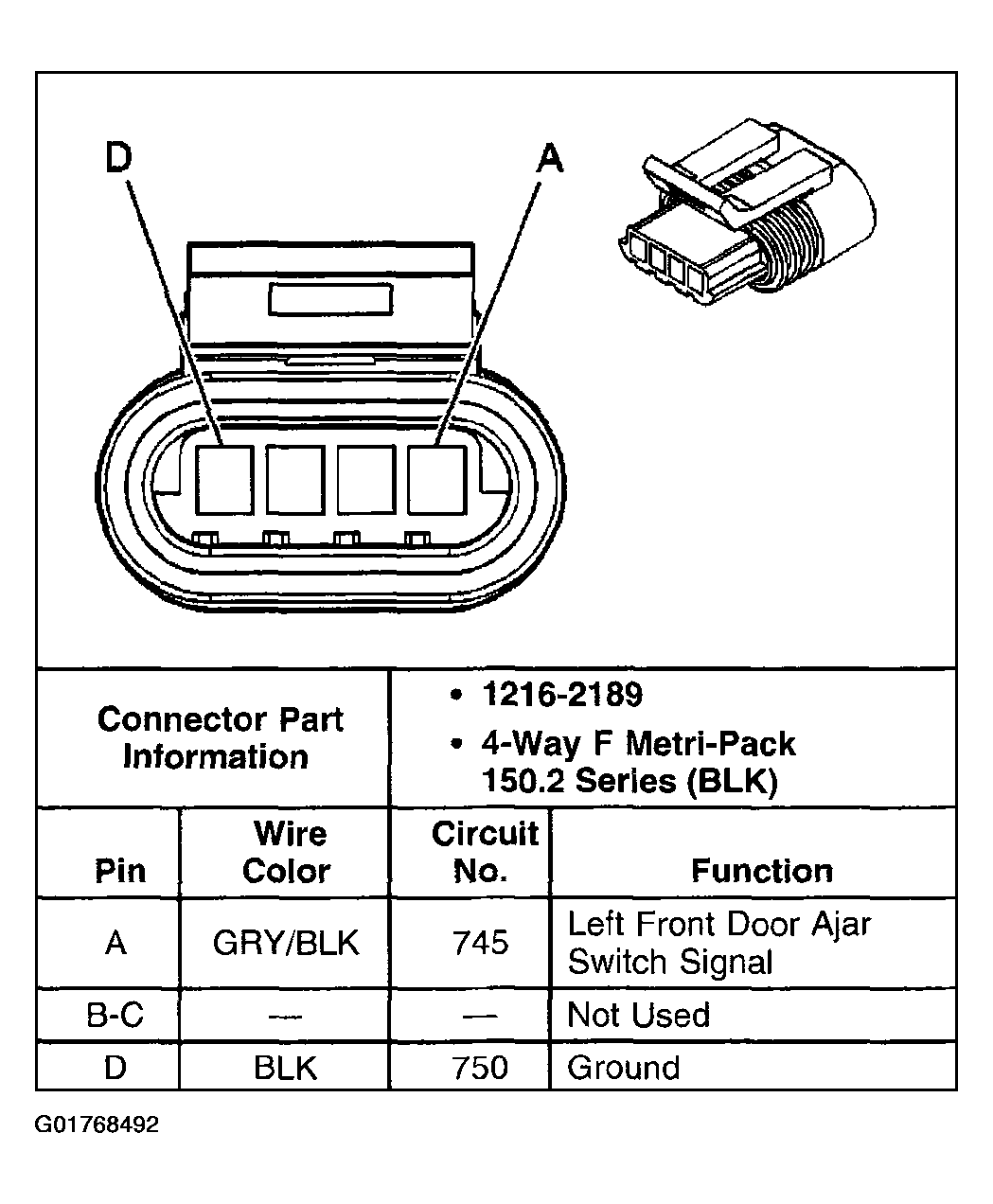

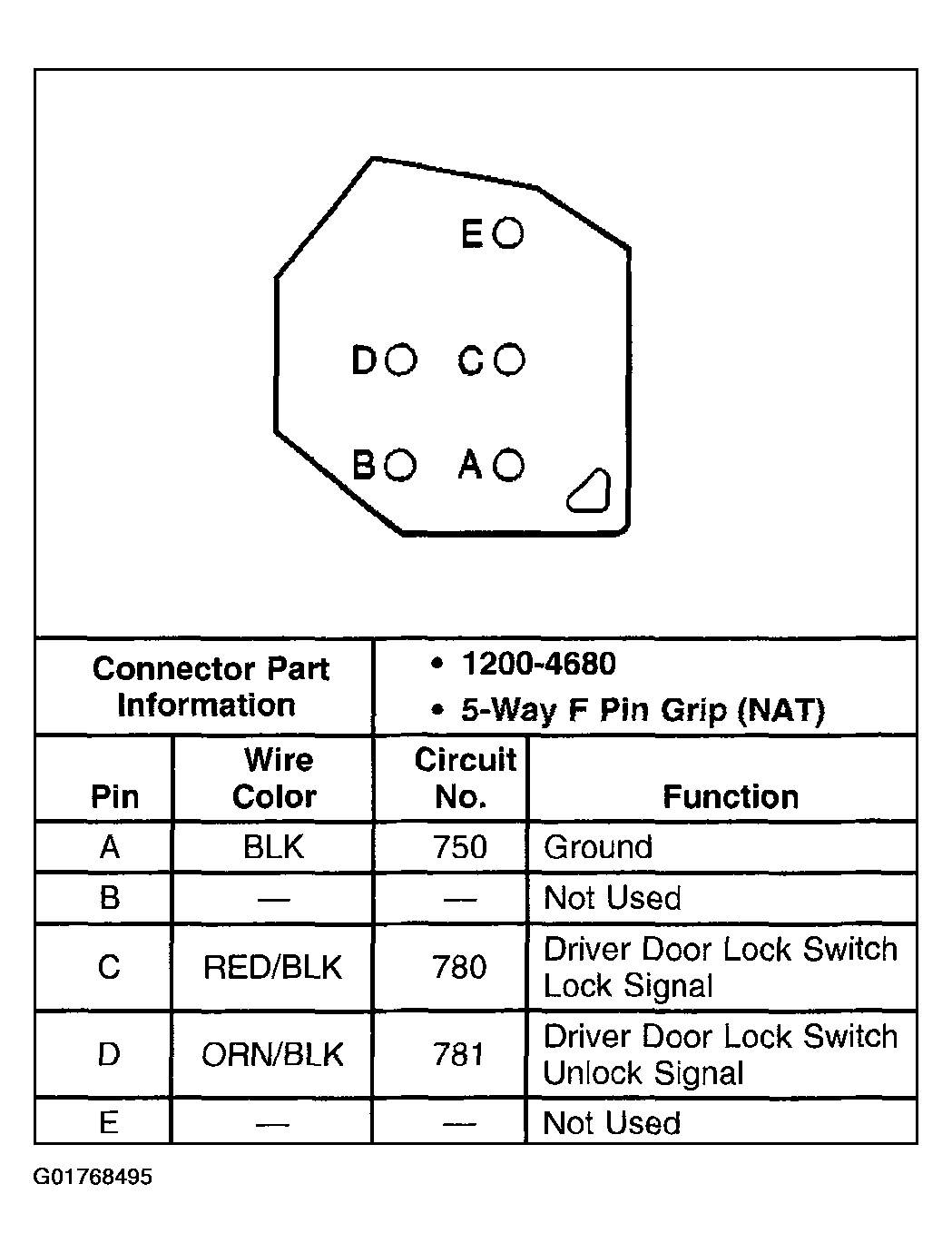

Fig 1: Door Lock - Driver

Courtesy of GENERAL MOTORS CORP.

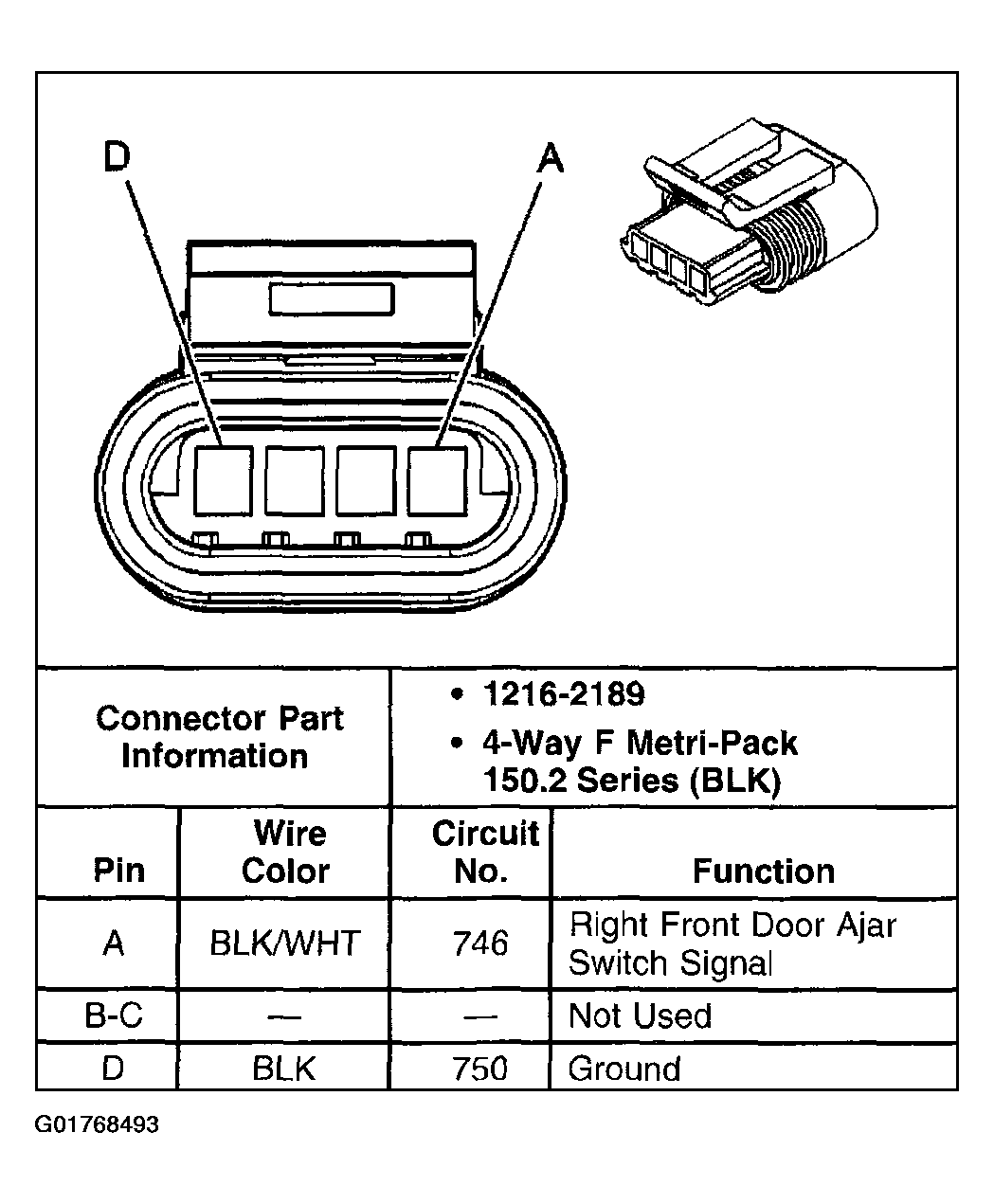

Fig 2: Door Lock - Front Passenger

Courtesy of GENERAL MOTORS CORP.

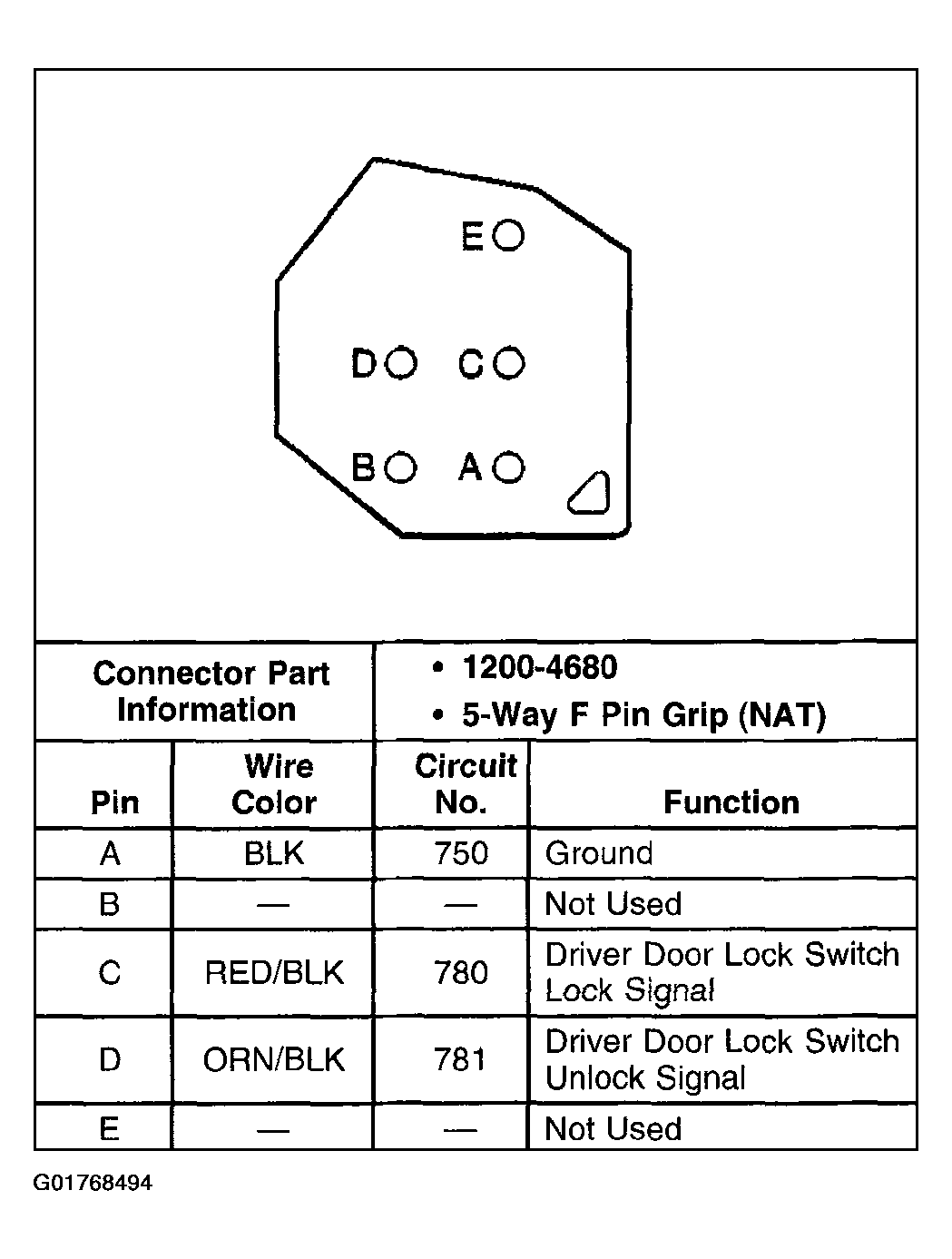

Fig 3: Door Lock Switch - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 4: Door Lock Switch - Front Passenger

Courtesy of GENERAL MOTORS CORP.

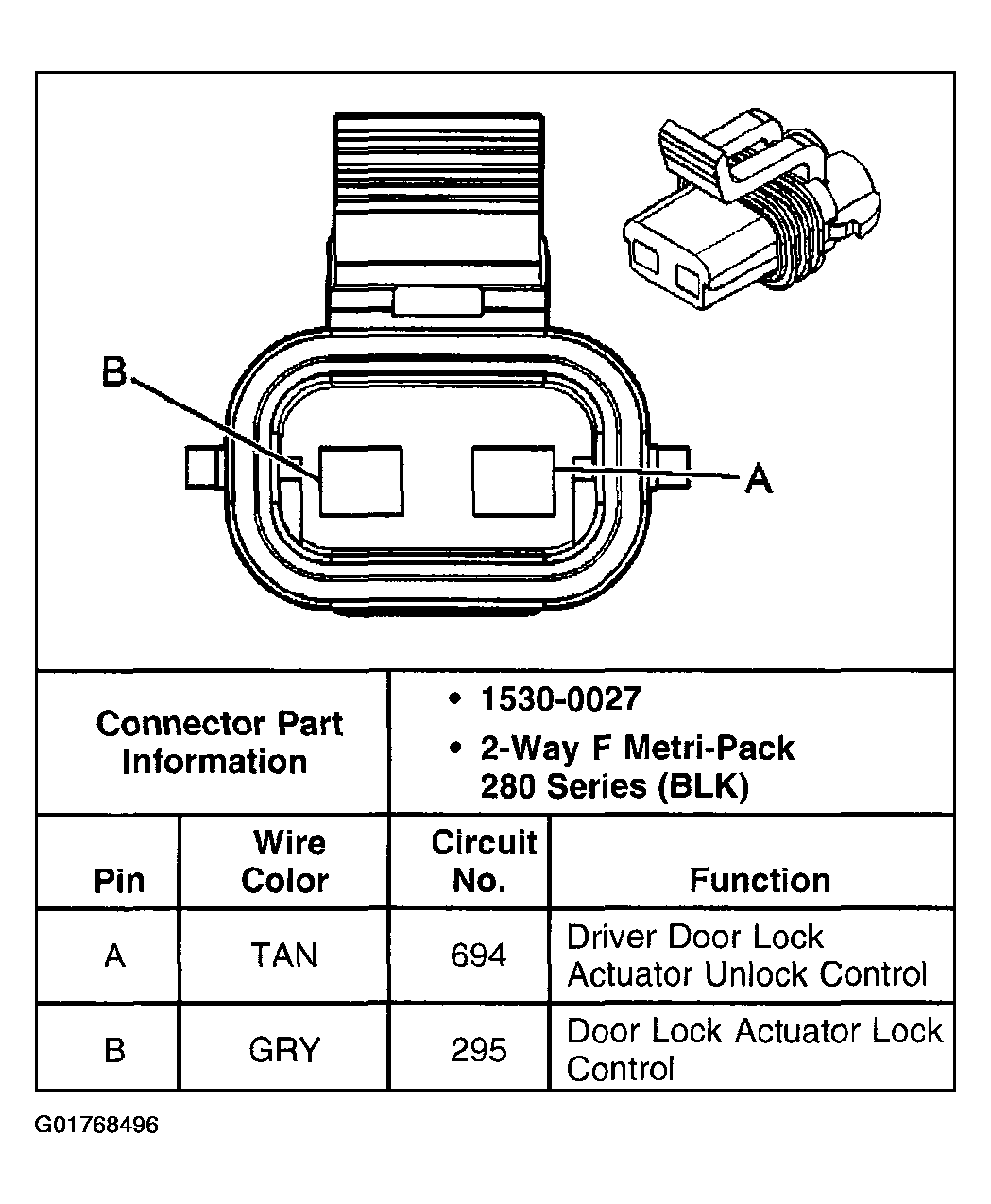

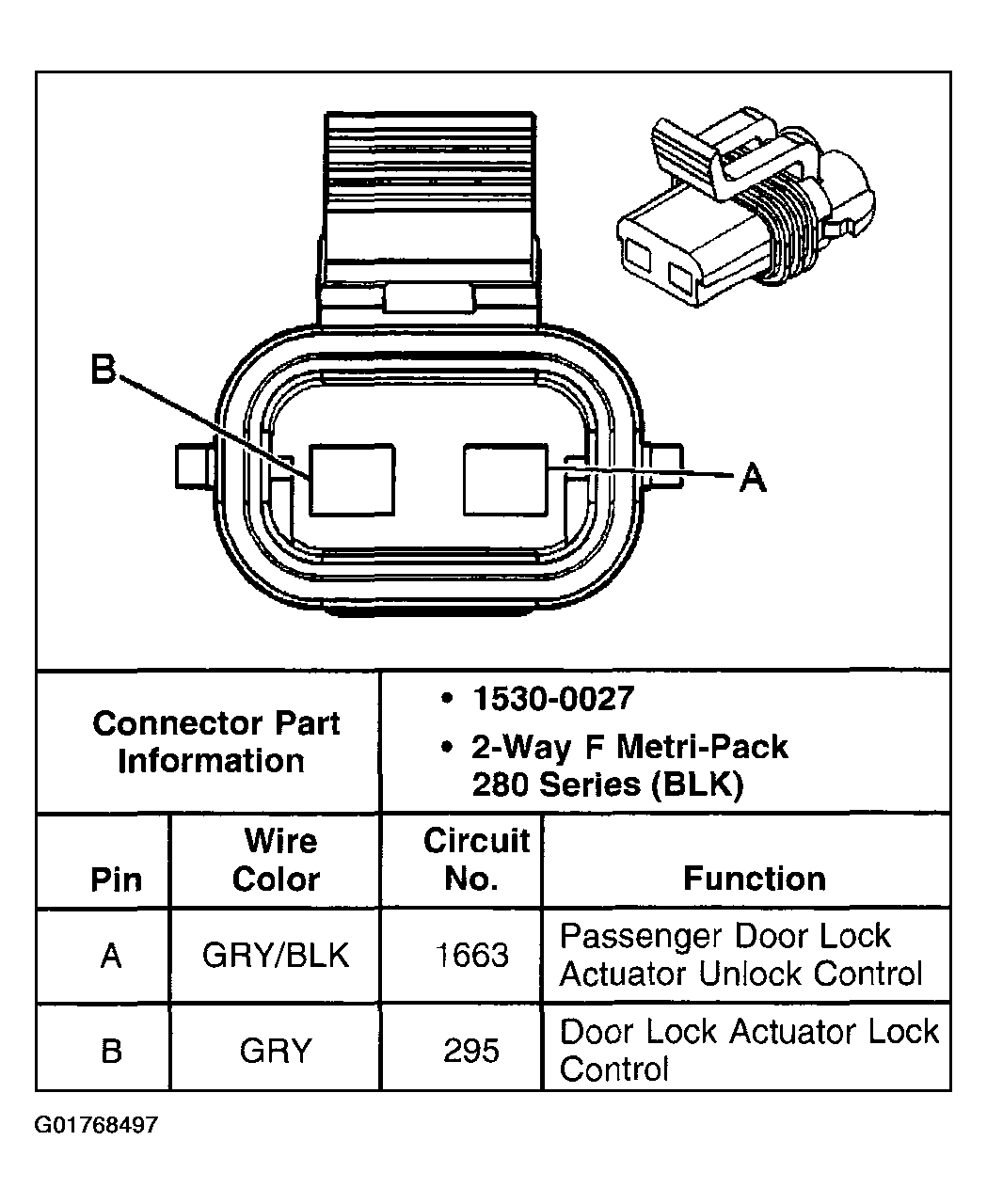

Fig 5: Door Lock Actuator - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 6: Door Lock Actuator - Front Passenger

Courtesy of GENERAL MOTORS CORP.

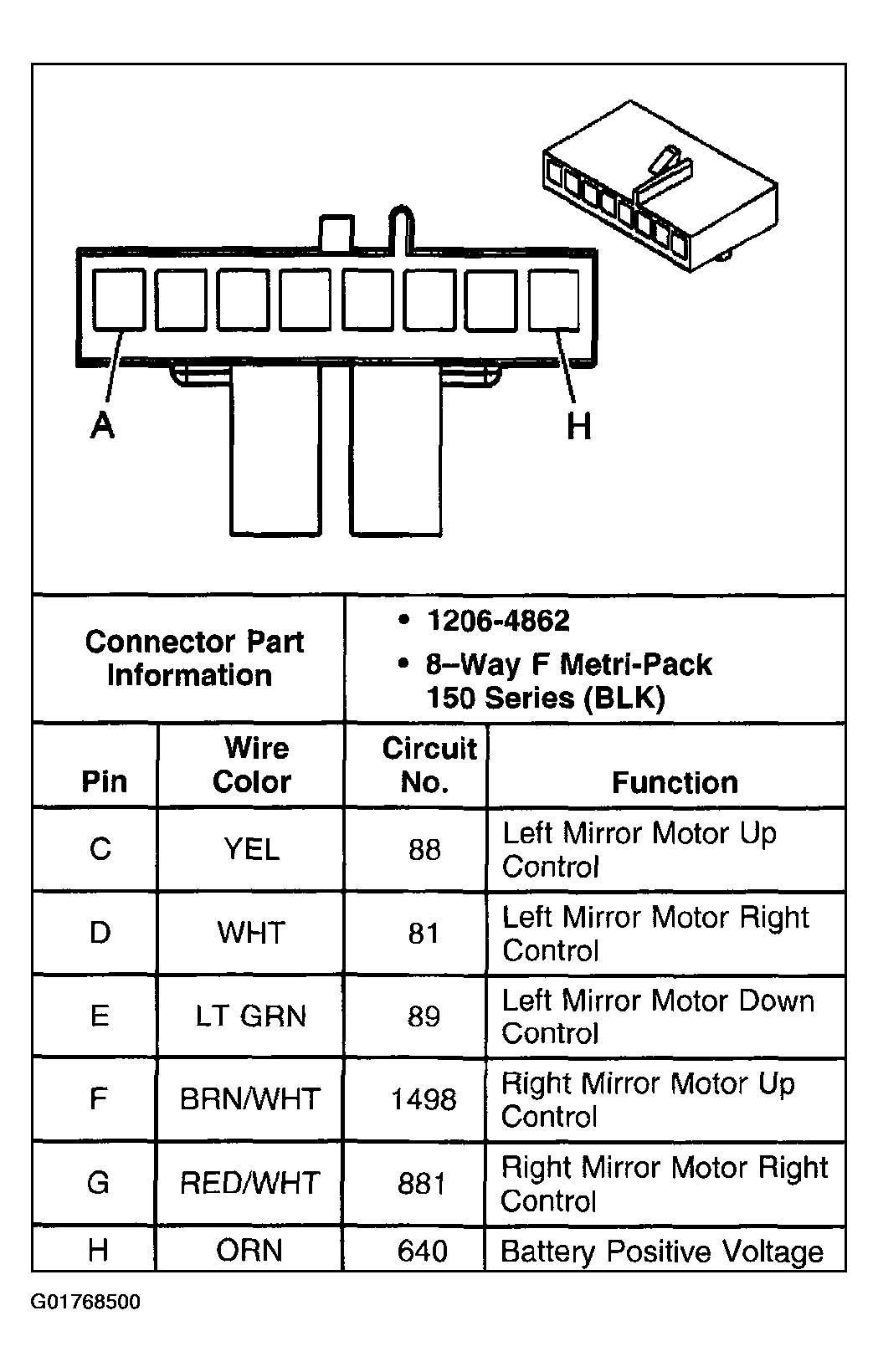

Fig 7: Outside Rearview Mirror Switch - Chevrolet

Courtesy of GENERAL MOTORS CORP.

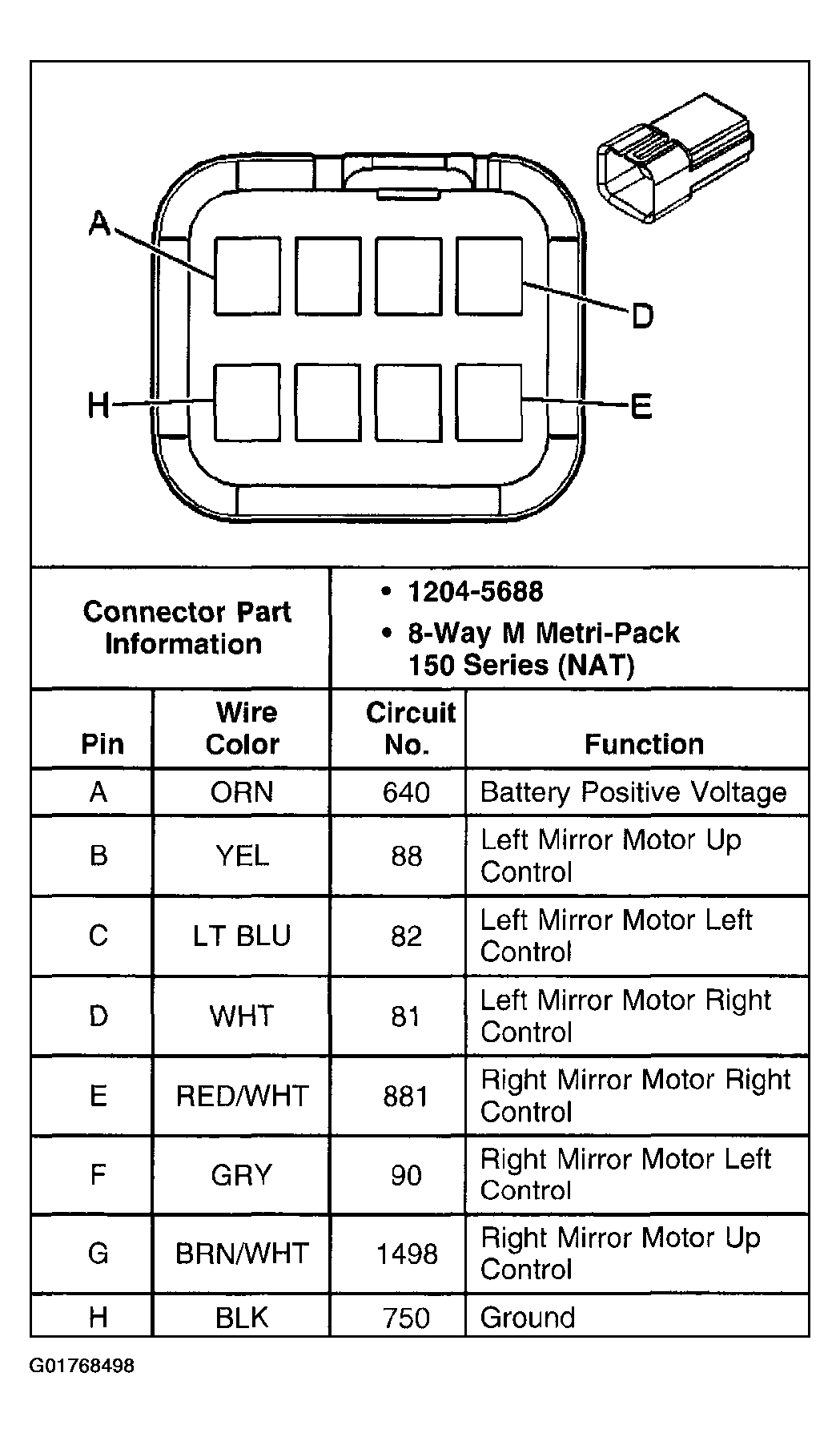

Fig 8: Outside Rearview Mirror Switch - Pontiac (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Outside Rearview Mirror Switch - Pontiac (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

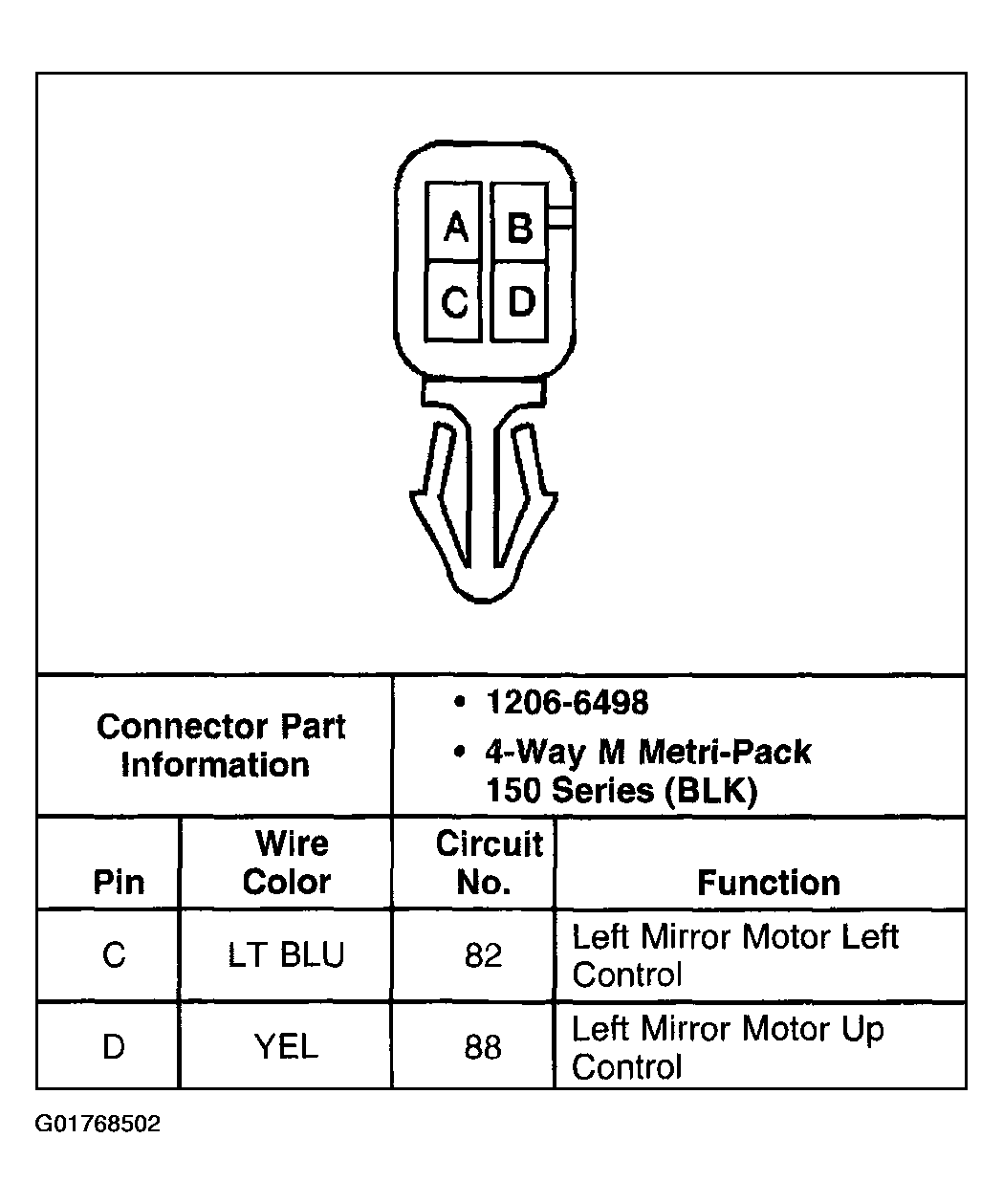

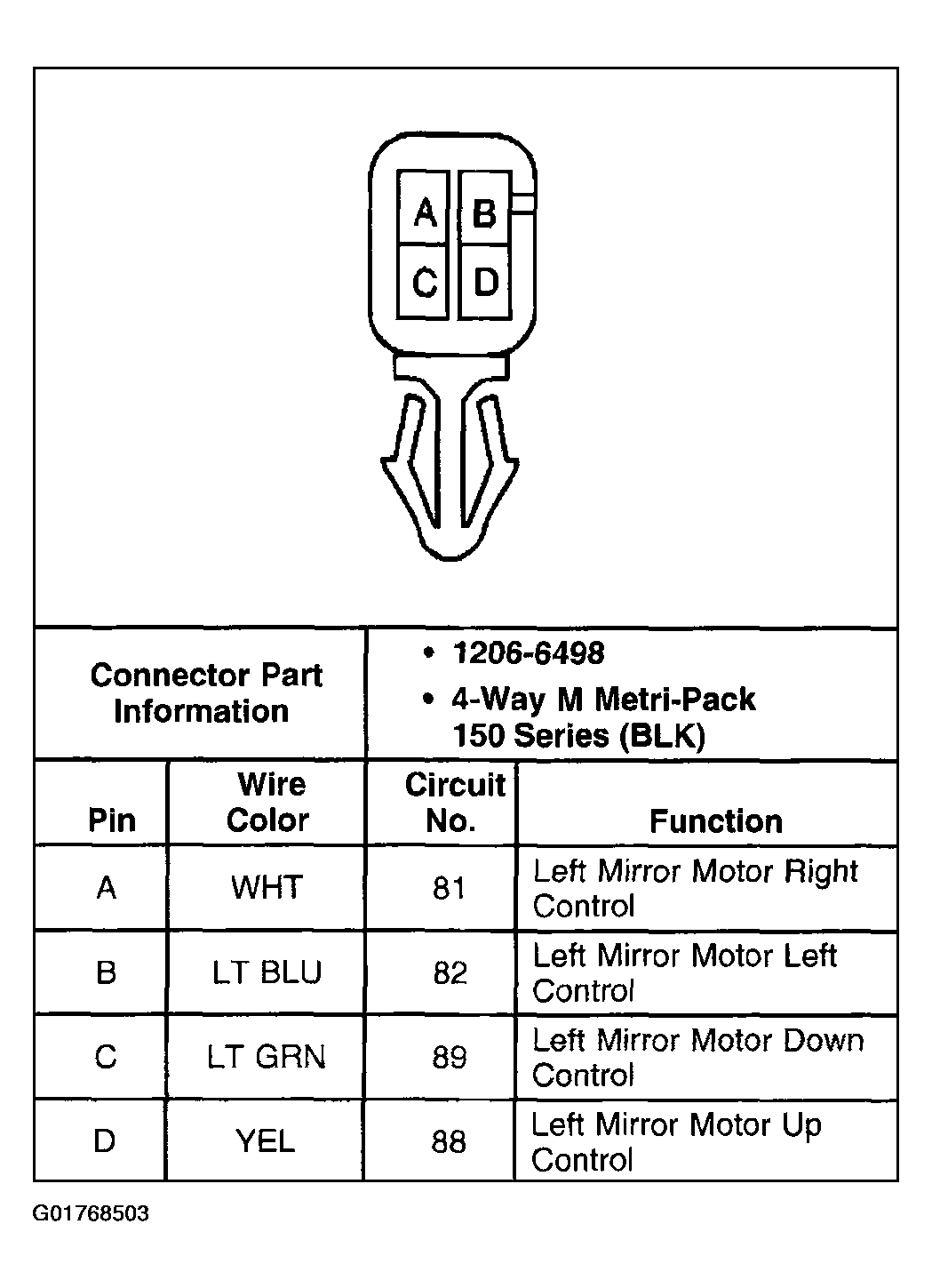

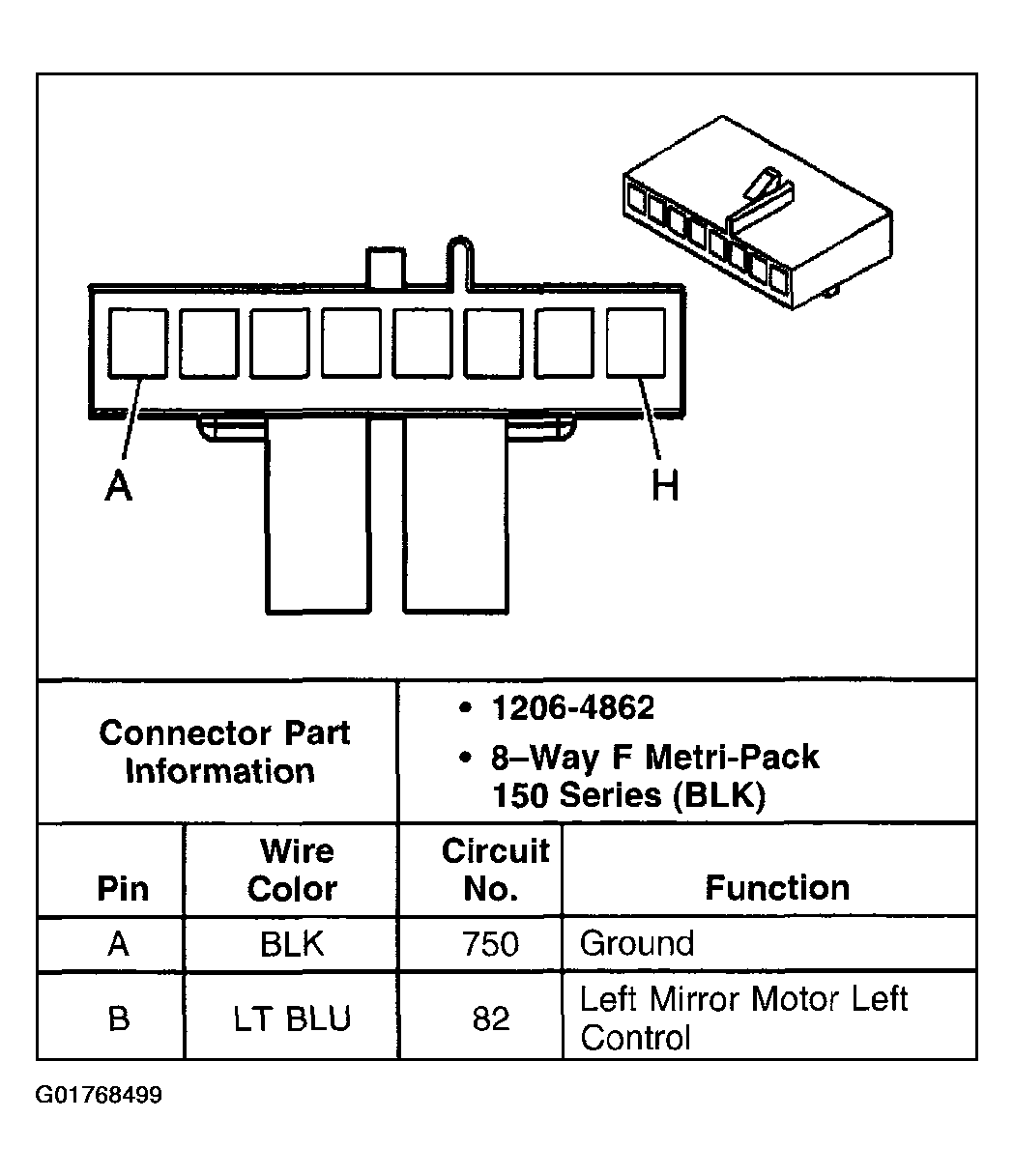

Fig 10: Outside Rearview Mirror - Driver - Chevrolet (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

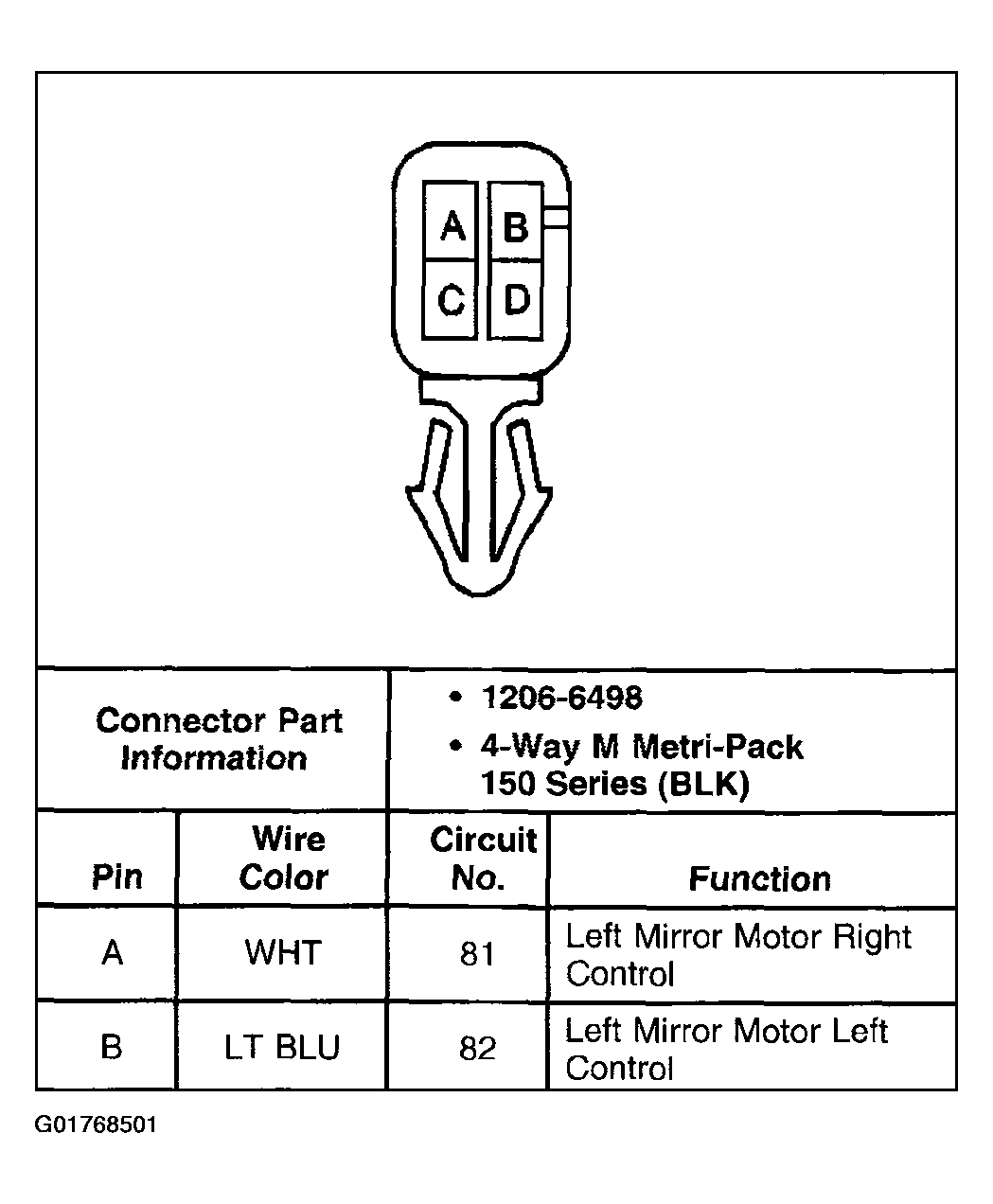

Fig 11: Outside Rearview Mirror - Driver - Chevrolet (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Outside Rearview Mirror - Driver - Pontiac

Courtesy of GENERAL MOTORS CORP.

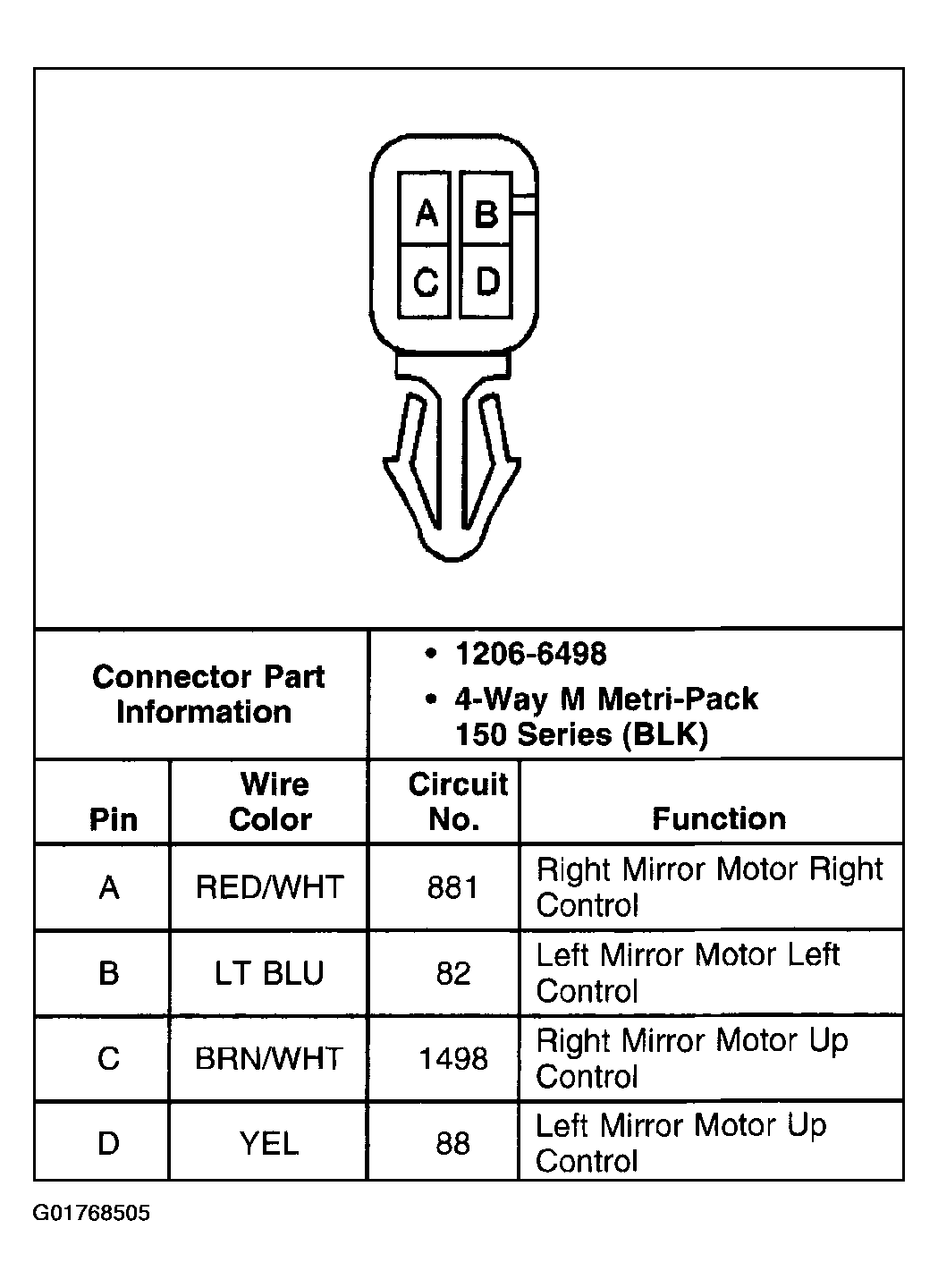

Fig 13: Outside Rearview Mirror - Front Passenger - Chevrolet

Courtesy of GENERAL MOTORS CORP.

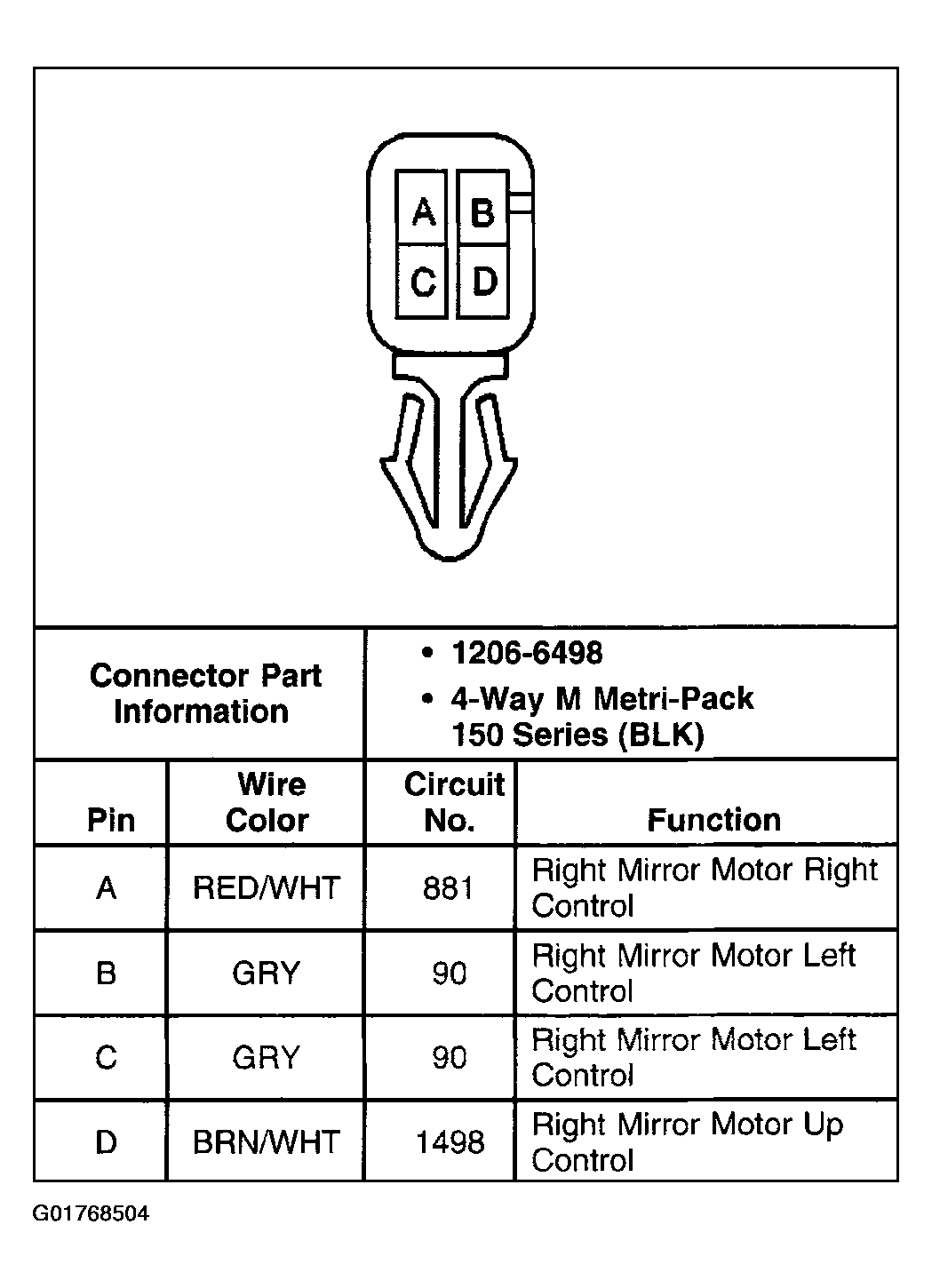

Fig 14: Outside Rearview Mirror - Front Passenger - Pontiac

Courtesy of GENERAL MOTORS CORP.

Fig 15: Window Control Module

Courtesy of GENERAL MOTORS CORP.

Fig 16: Window Motor - Driver

Courtesy of GENERAL MOTORS CORP.

Fig 17: Window Motor - Front Passenger

Courtesy of GENERAL MOTORS CORP.

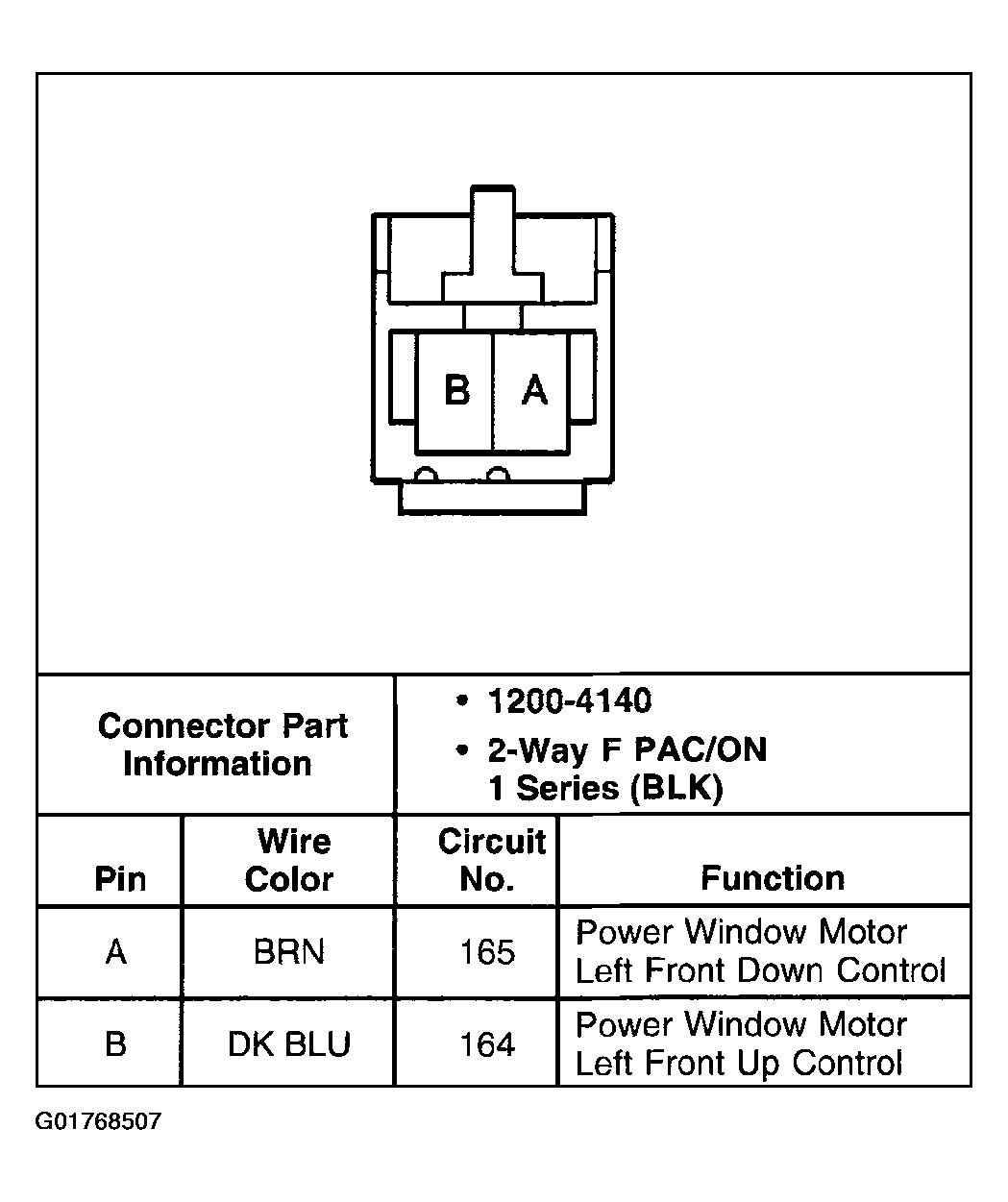

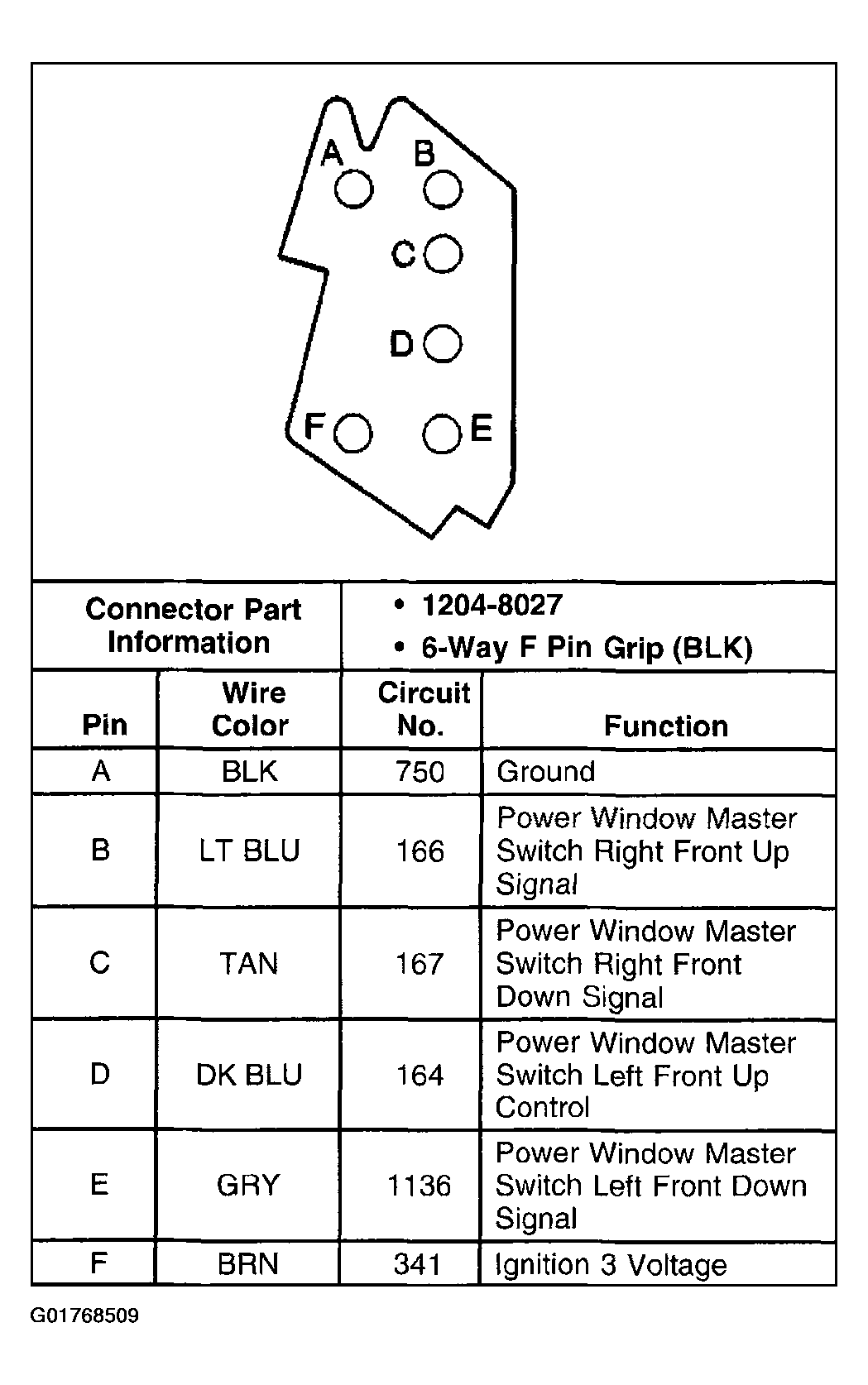

Fig 18: Window Switch - Driver

Courtesy of GENERAL MOTORS CORP.

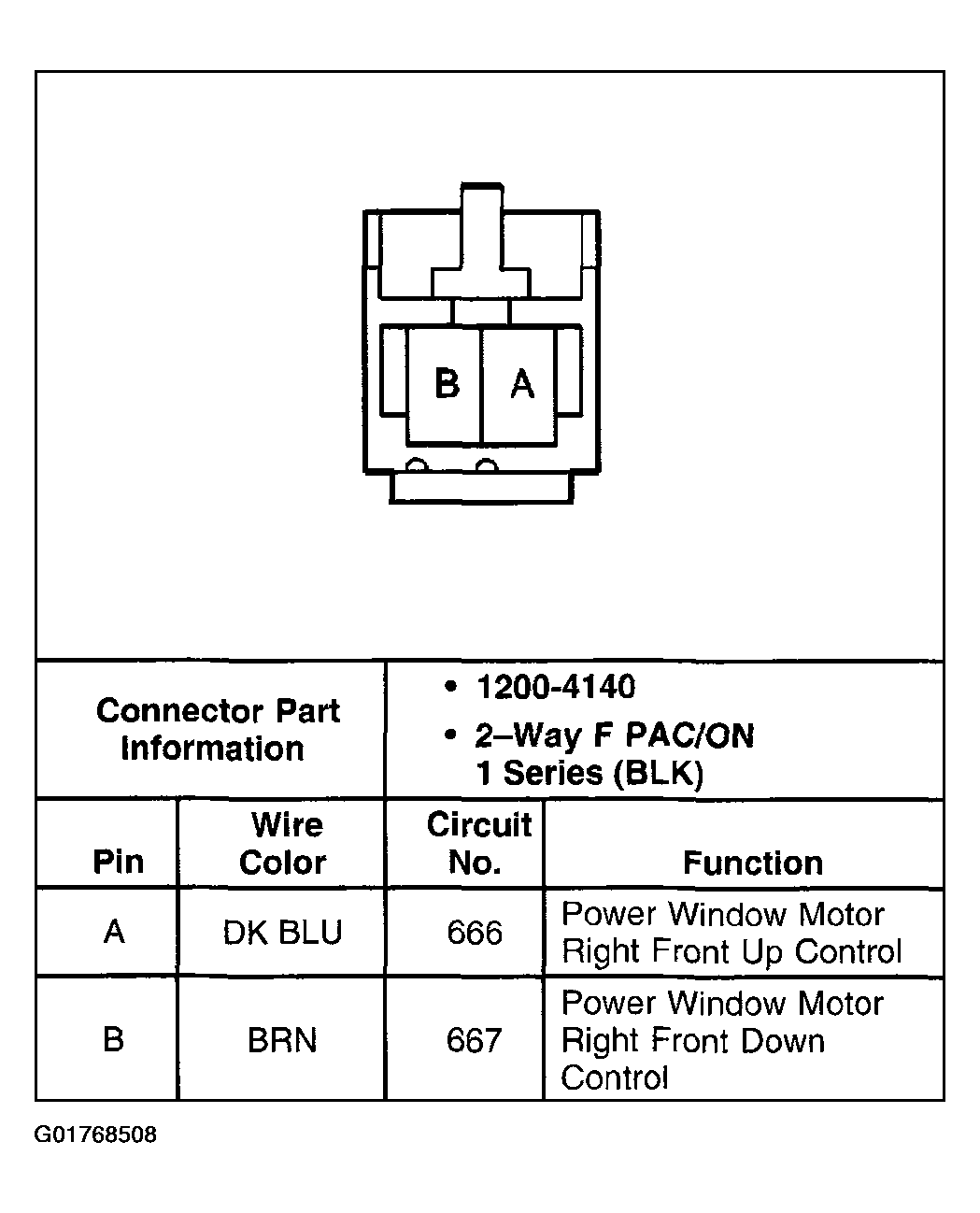

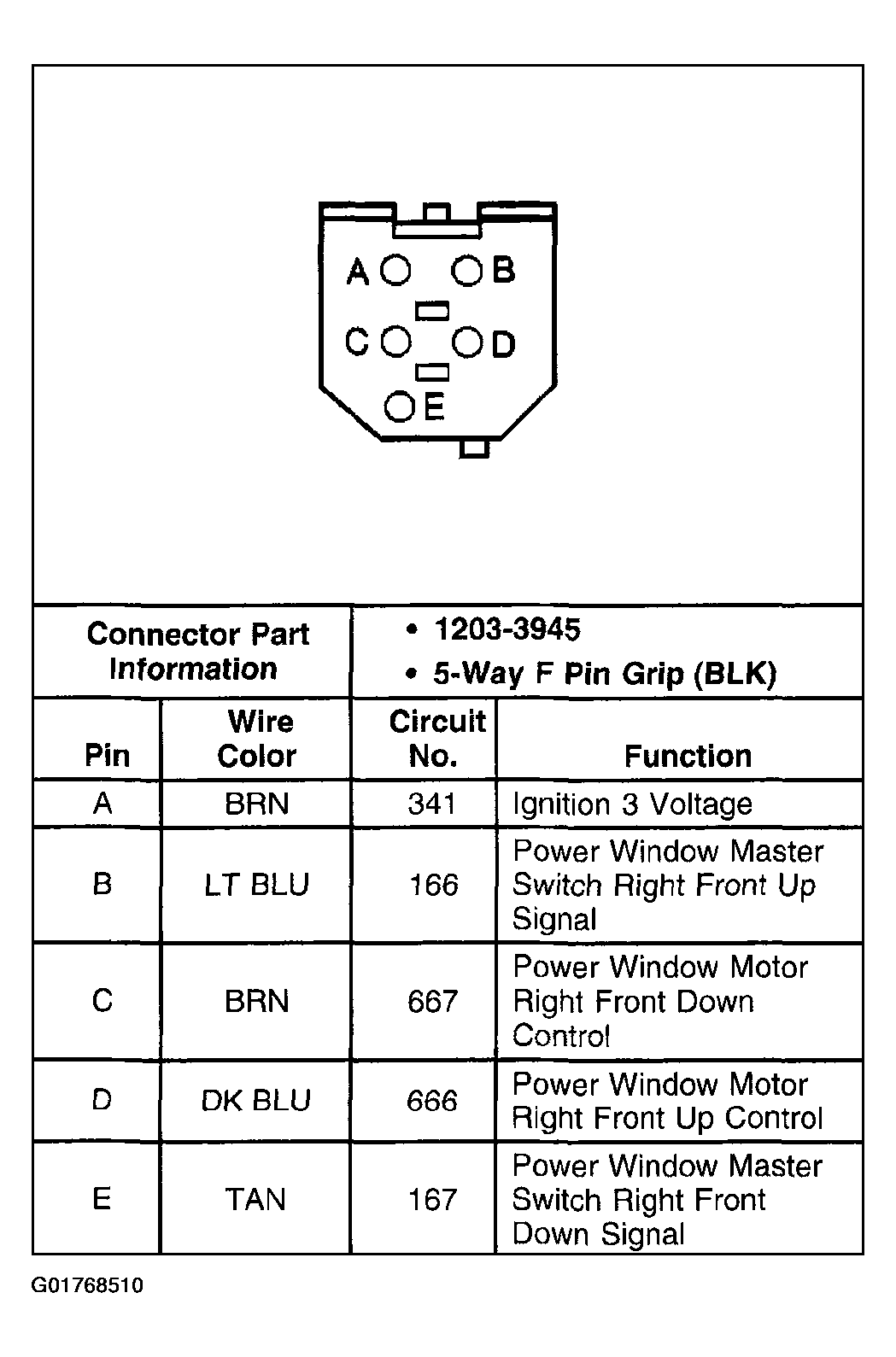

Fig 19: Window Switch - Front Passenger

Courtesy of GENERAL MOTORS CORP.
