Entertainment Component Views

WARNING: This page is about a different car, the 2002 Chevrolet Prizm. However, it is still accessible from the selected car via links, so may be relevant.

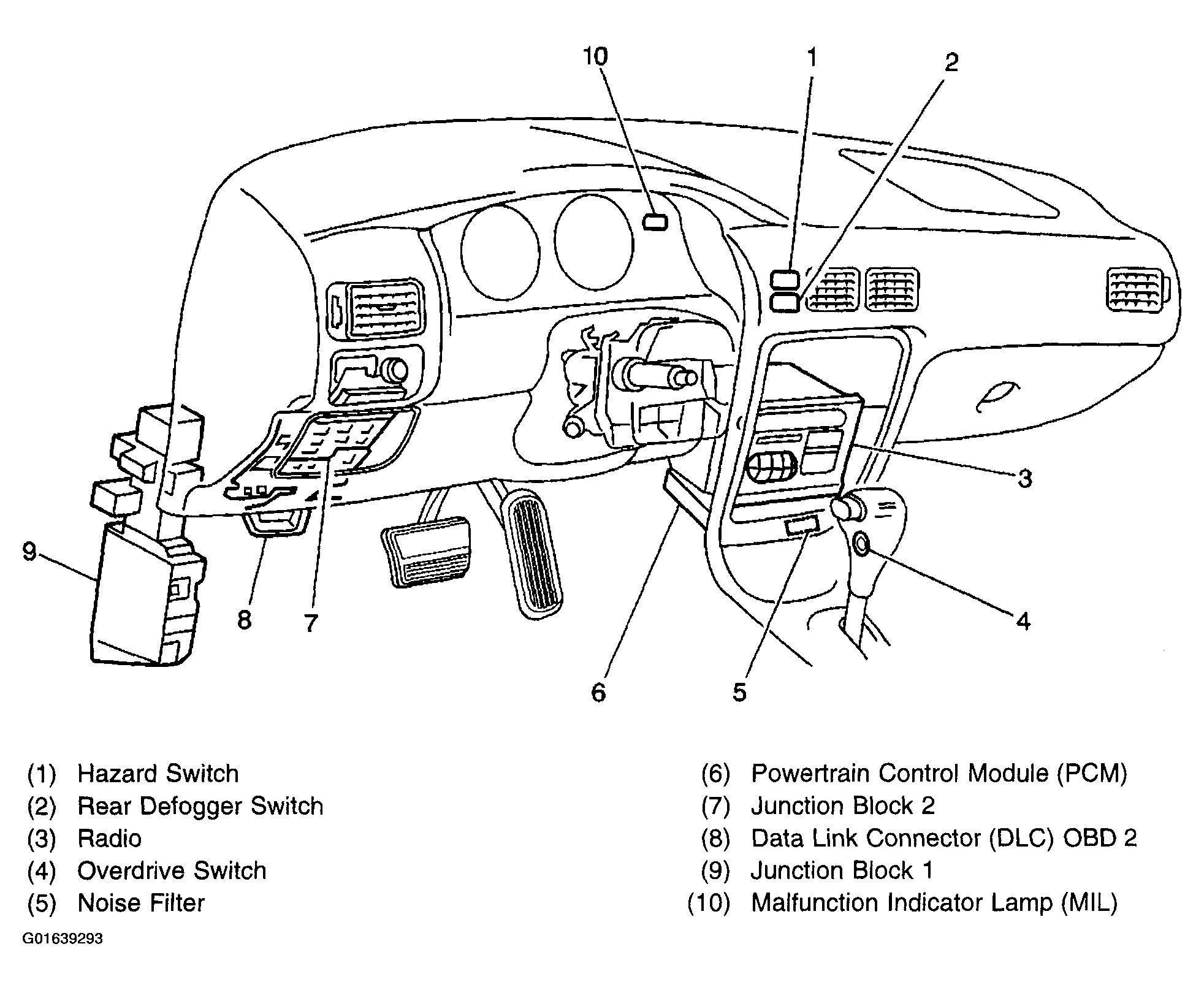

Fig 1: I/P Assembly Components

Courtesy of GENERAL MOTORS CORP.

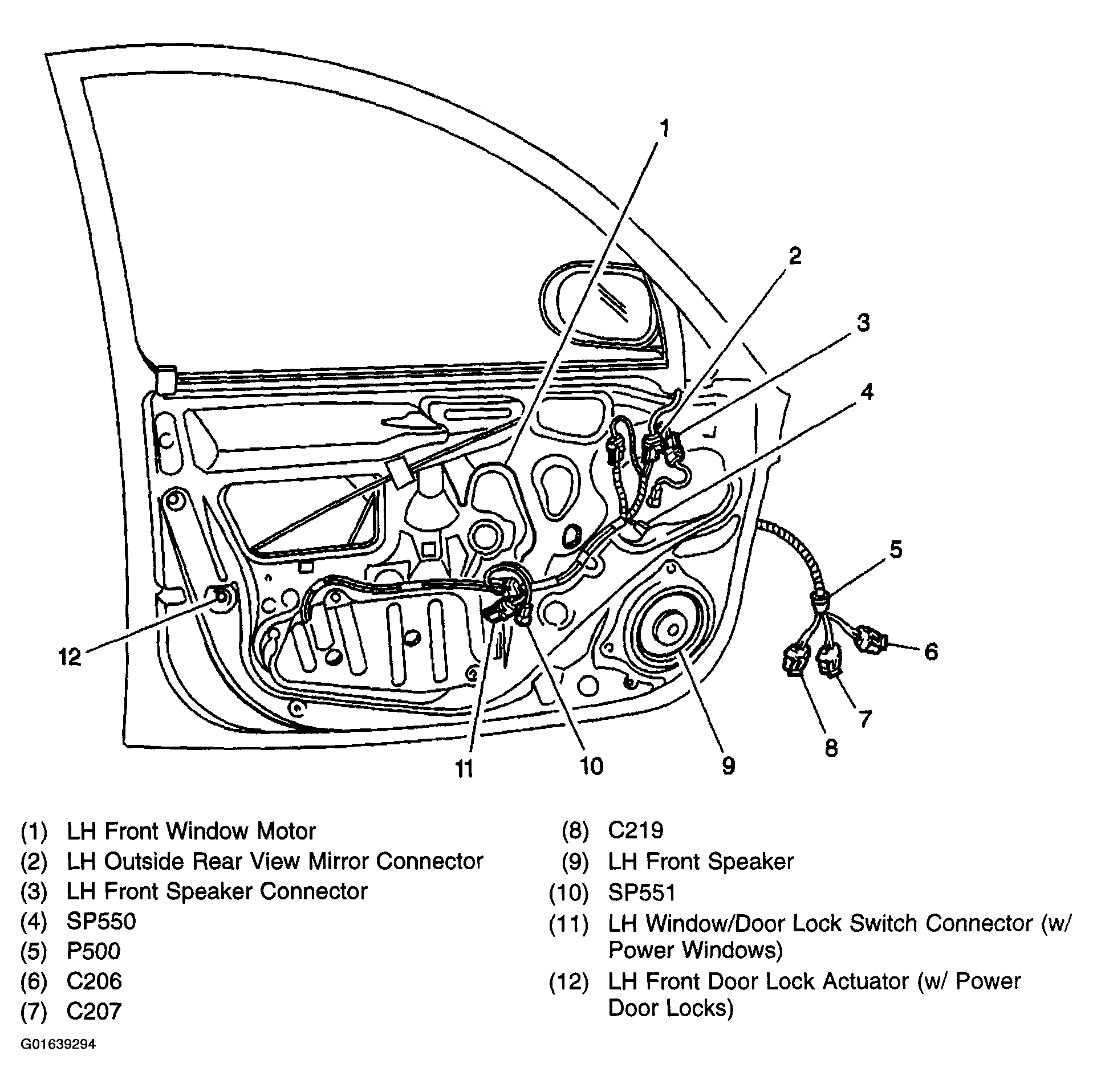

Fig 2: LH Front Door View

Courtesy of GENERAL MOTORS CORP.

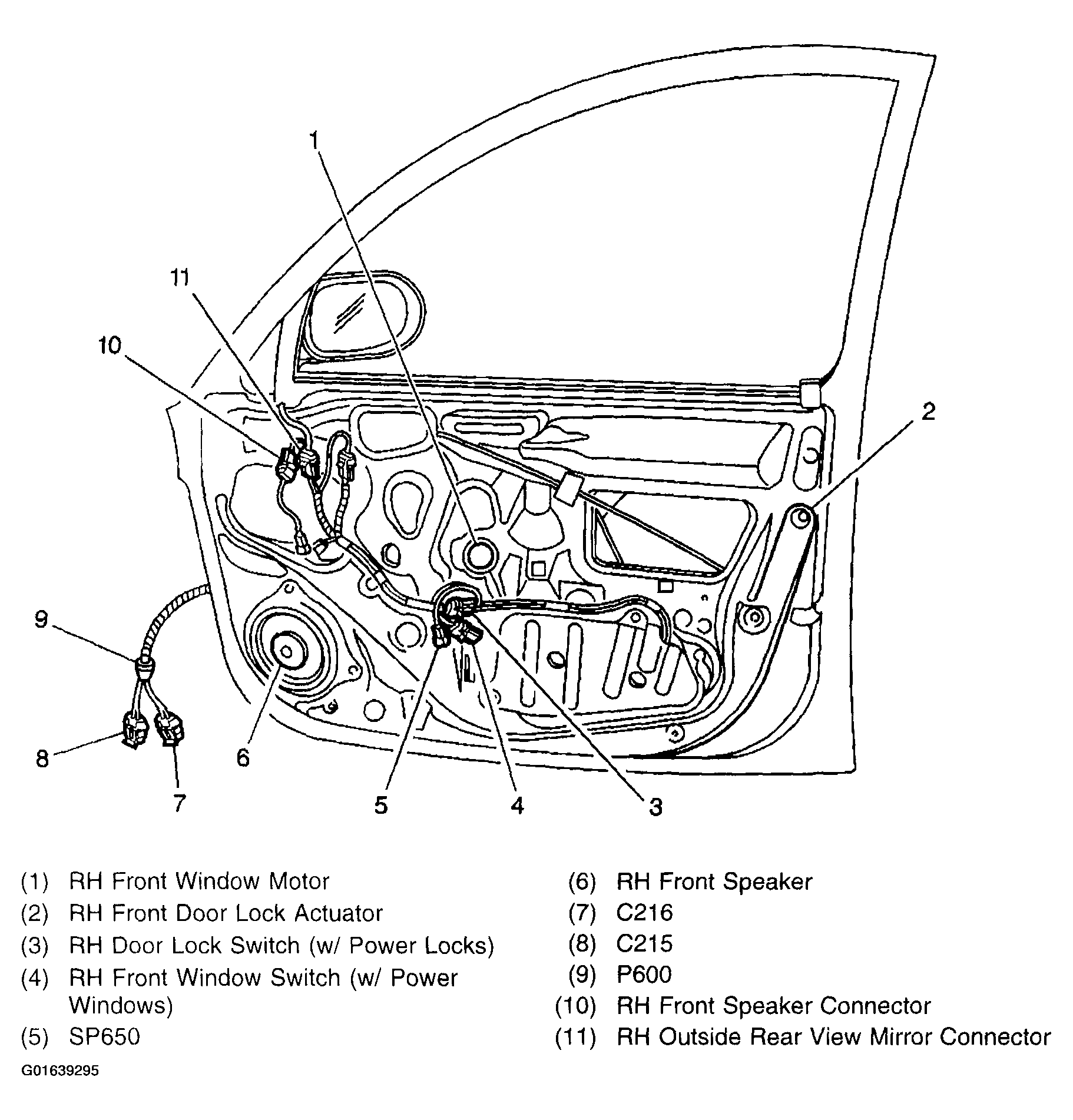

Fig 3: RH Front Door View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Noise Filter

Courtesy of GENERAL MOTORS CORP.
