Fuse Block I/P Application Table

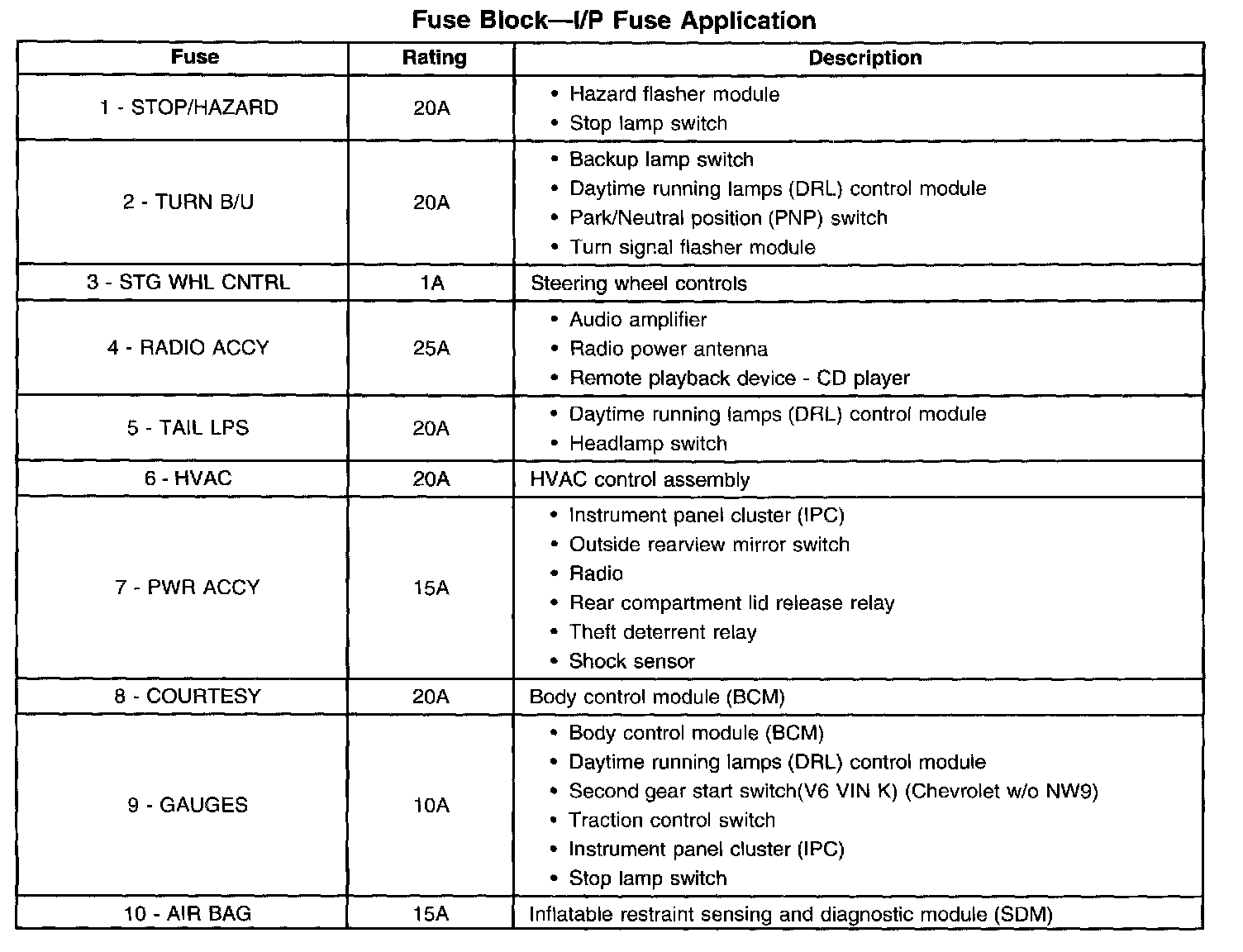

Fuse Block - I/P Fuse Application Part 1:

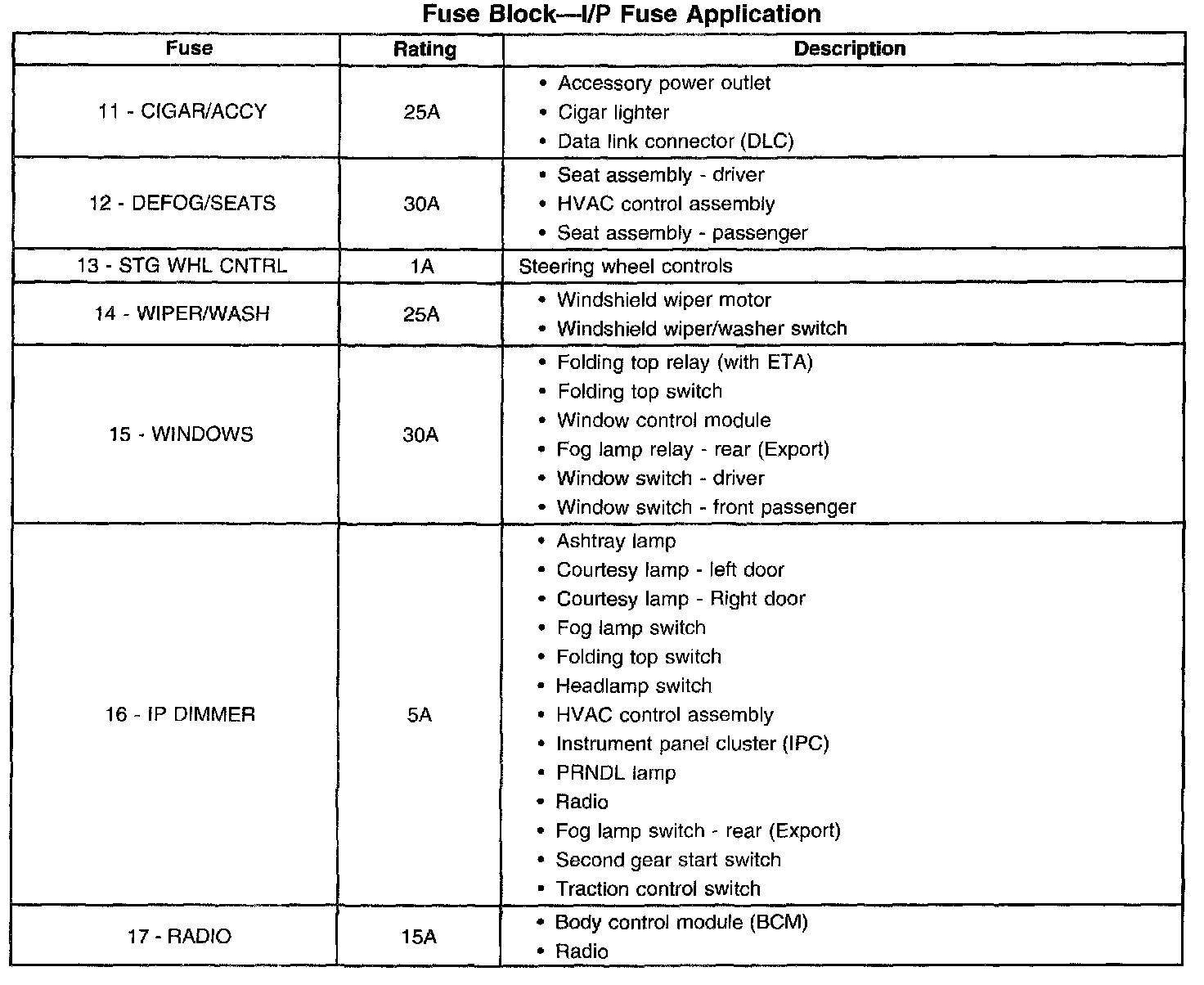

Fuse Block - I/P Fuse Application Part 2:
