Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM)

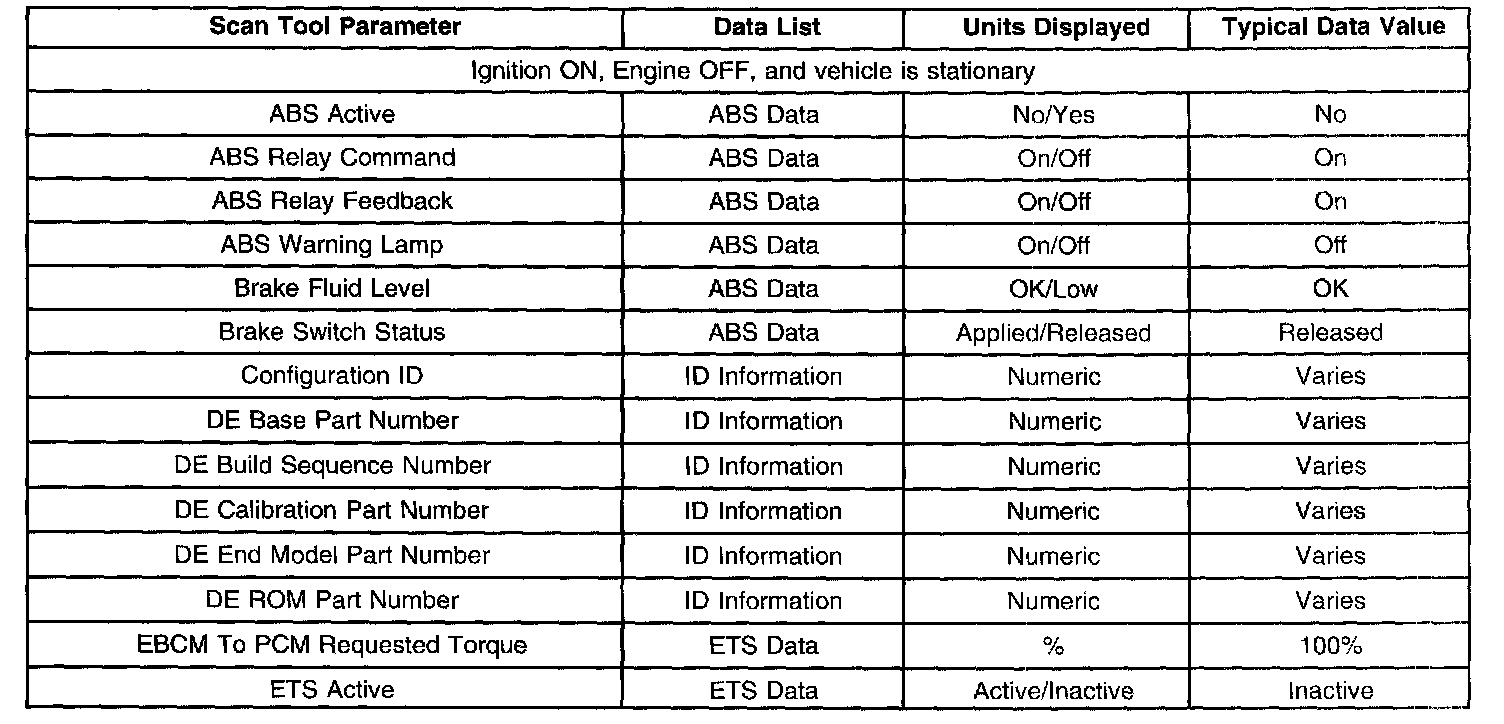

Part 1 of 2

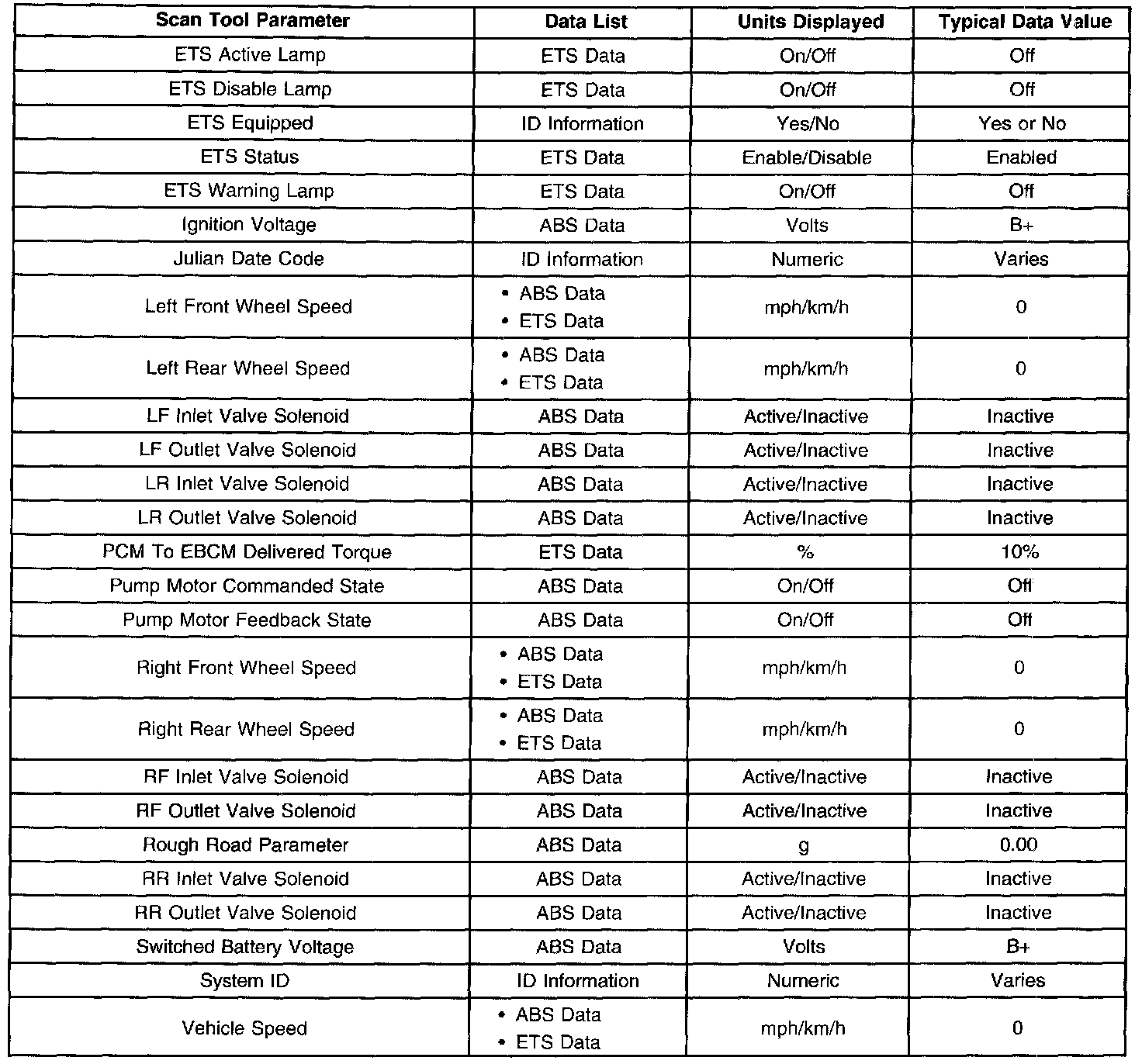

Part 2 of 2
