Removal Procedure

  1. Remove the folding top. Refer to FOLDING TOP REPLACEMENT . in Roof.

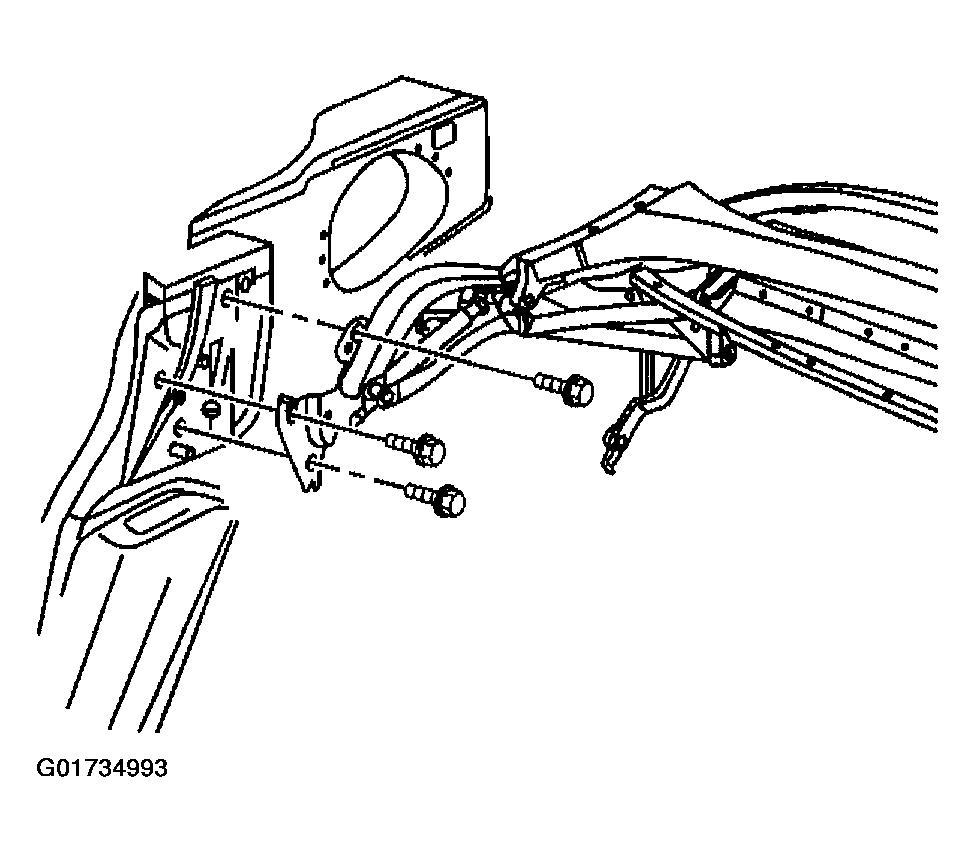

    Fig 1: Removing Folding Top
    G01734993Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts attaching the shoulder harness guide bracket.
  3. Remove the bracket.

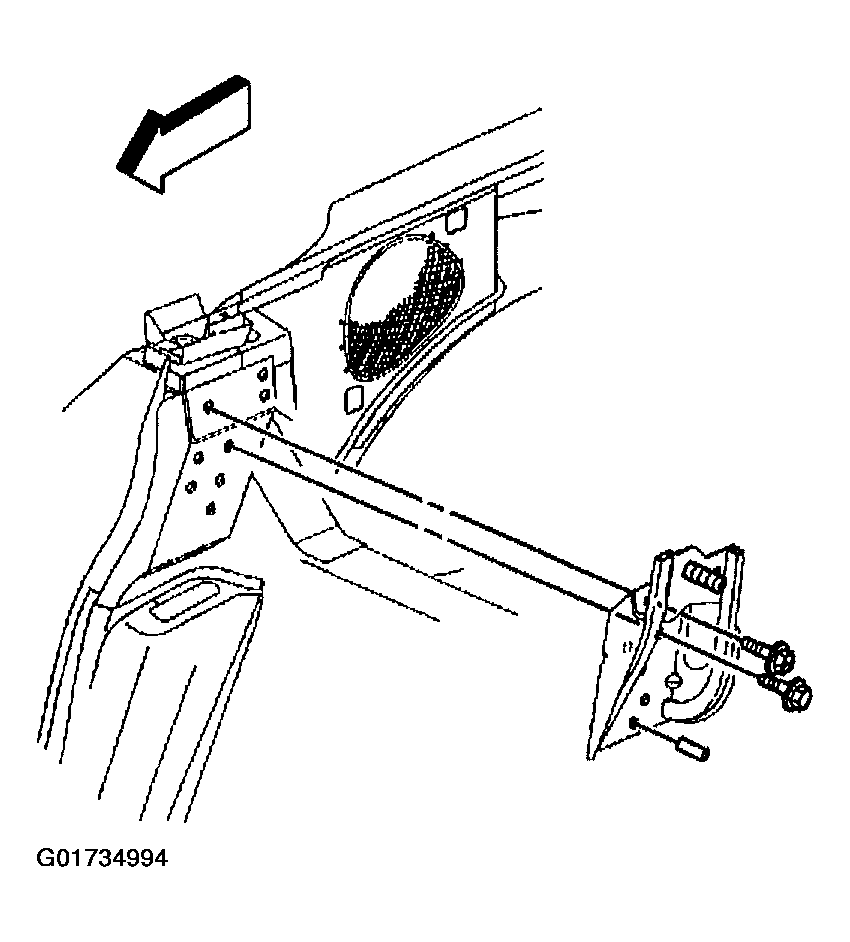

    Fig 2: Removing Shoulder Harness Guide Bracket Bolts
    G01734994Courtesy of GENERAL MOTORS CORP.
