Cruise Control Component Views

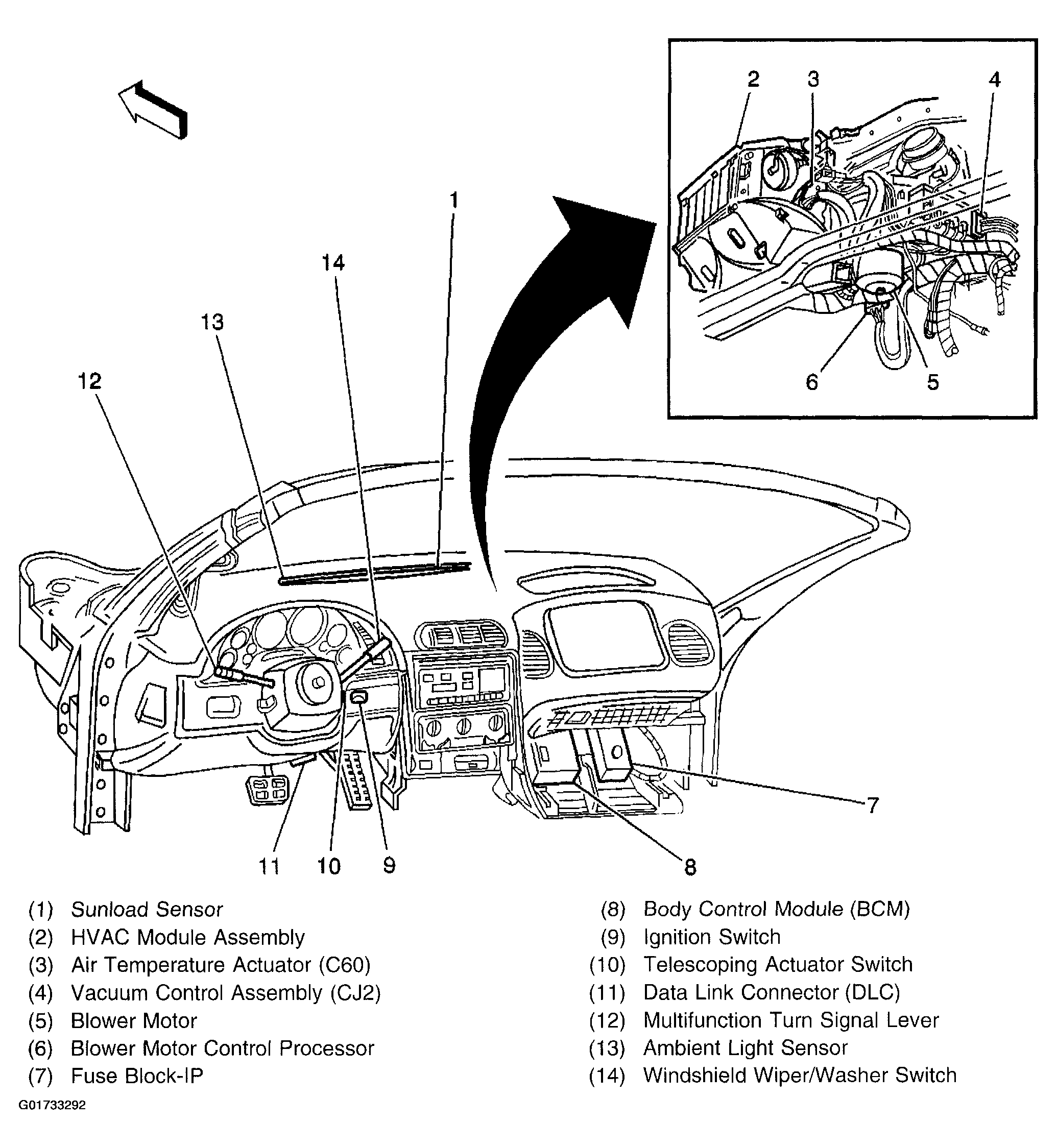

Fig 1: Instrument Panel
G01733292Courtesy of GENERAL MOTORS CORP.

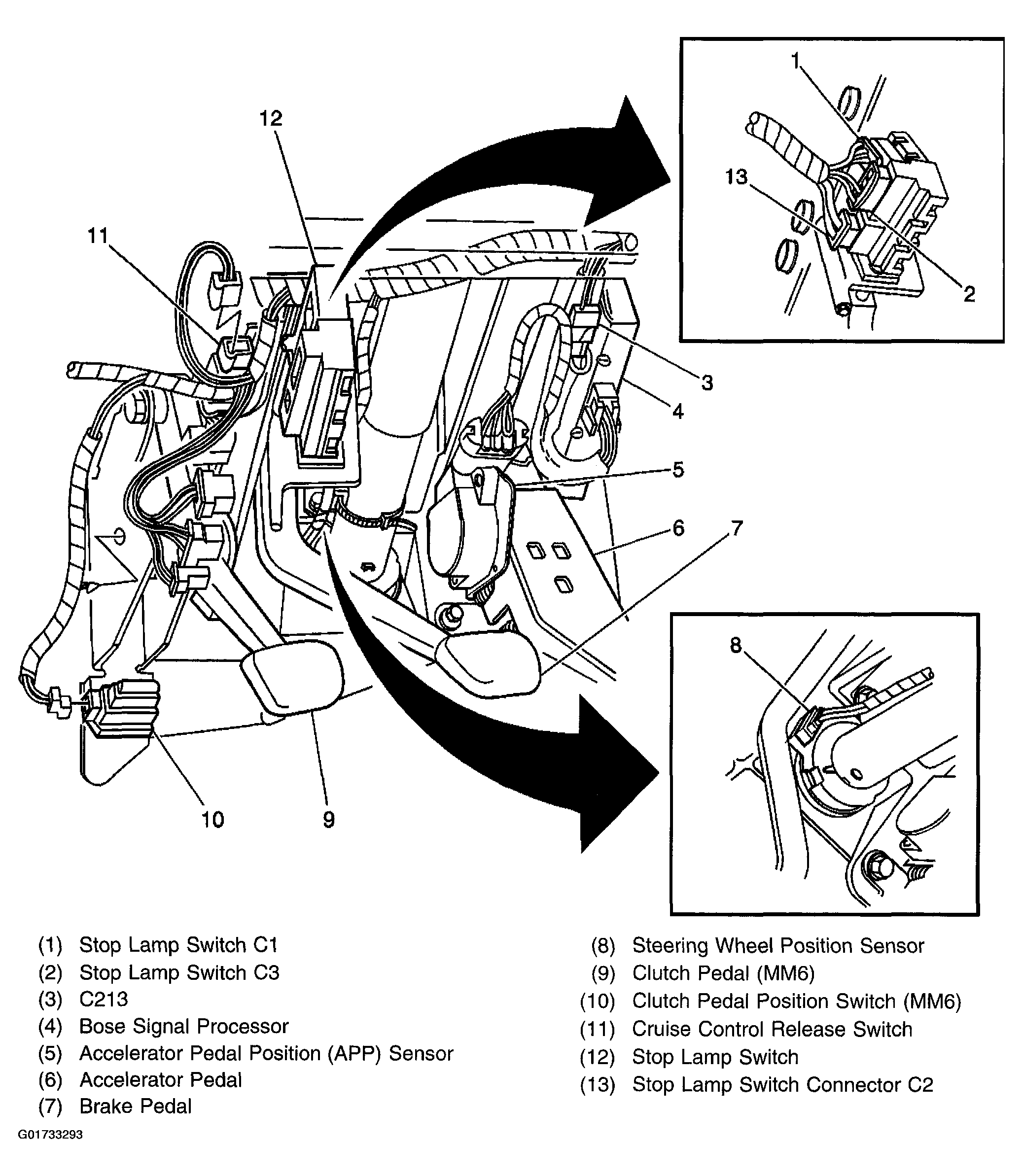

Fig 2: Under Side of the Dash - Left
G01733293Courtesy of GENERAL MOTORS CORP.

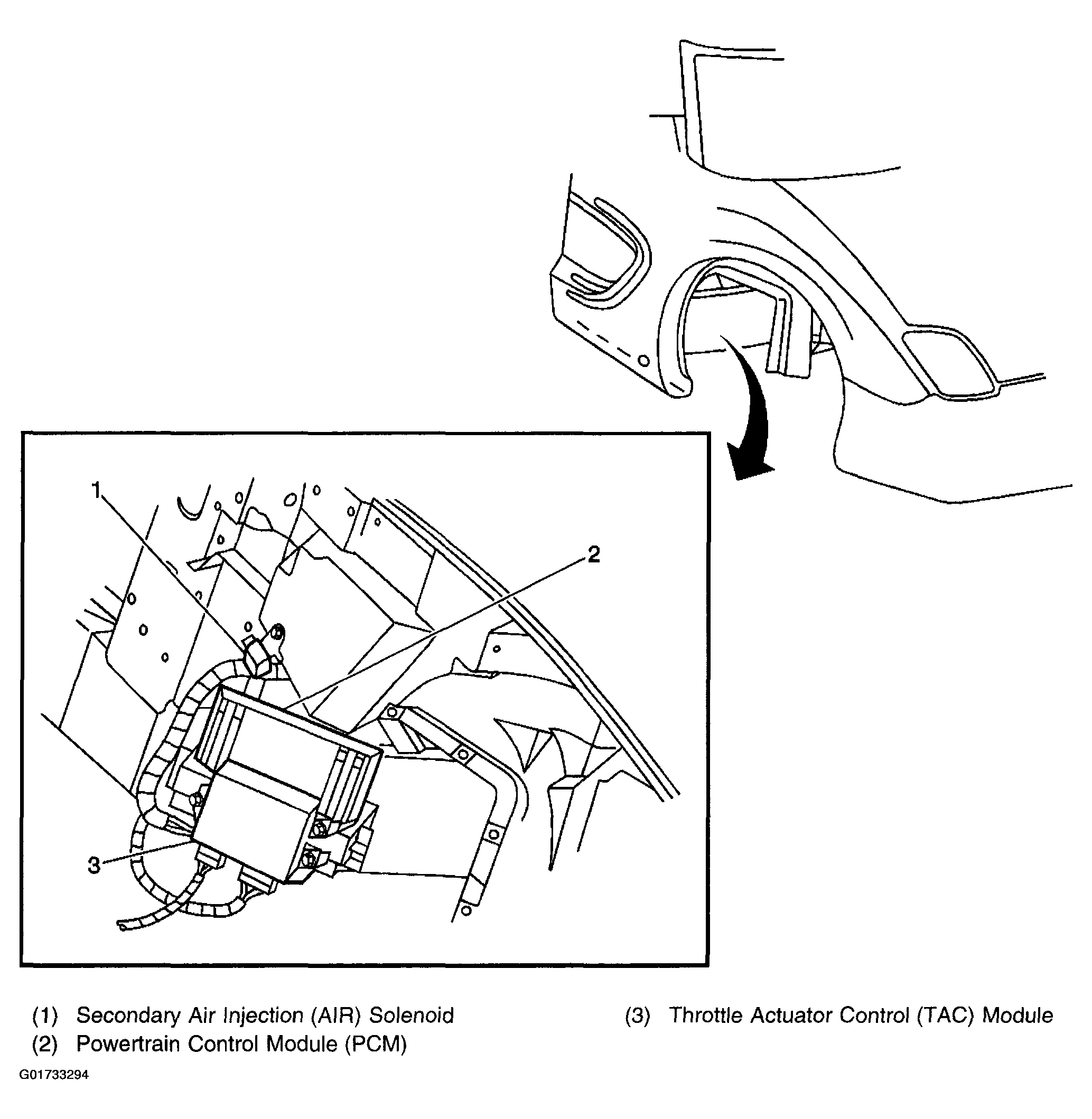

Fig 3: RH Wheel Well
G01733294Courtesy of GENERAL MOTORS CORP.
