Cruise Control Connector End Views

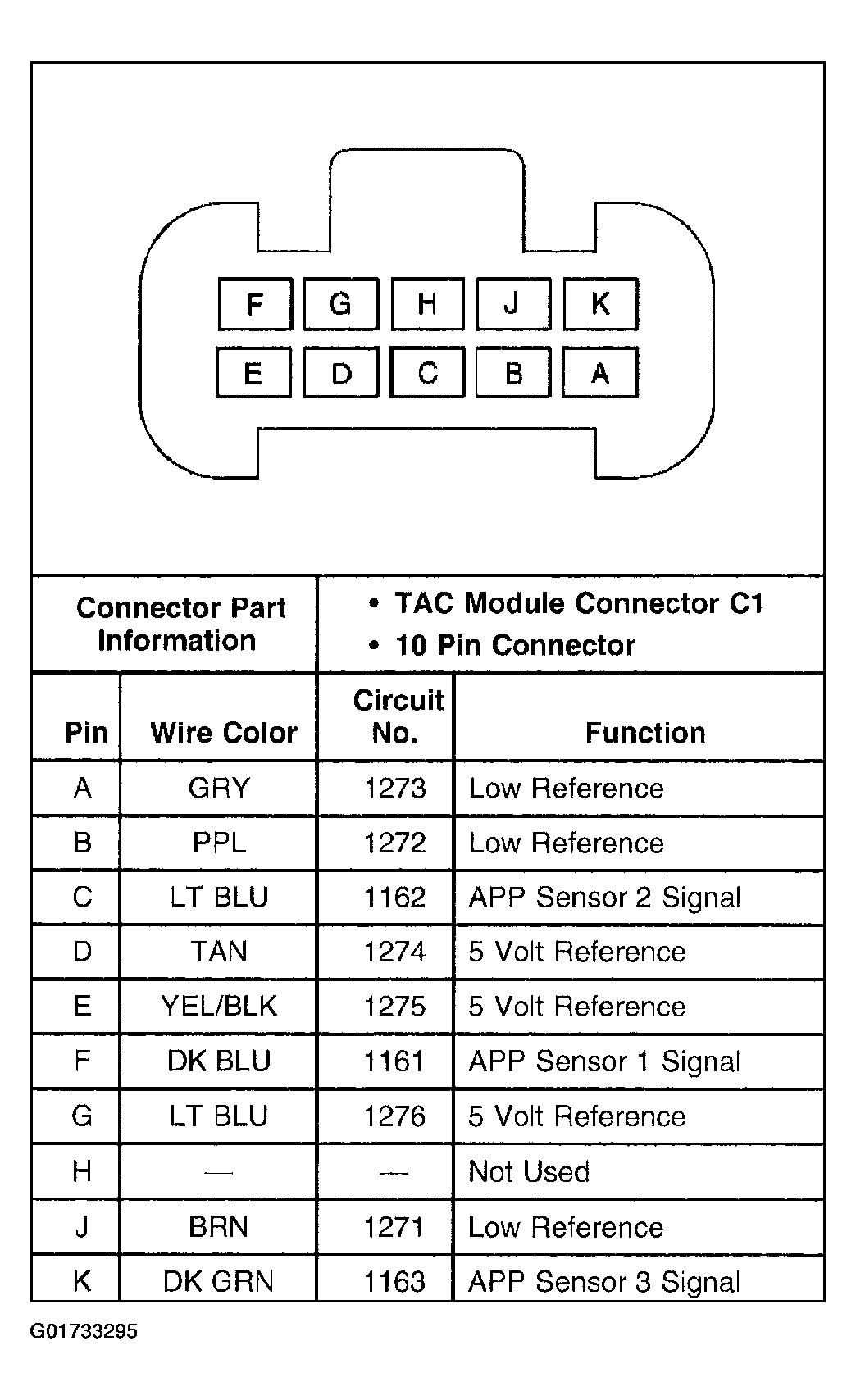

Fig 1: Throttle Actuator Control (TAC) Module C1
G01733295Courtesy of GENERAL MOTORS CORP.

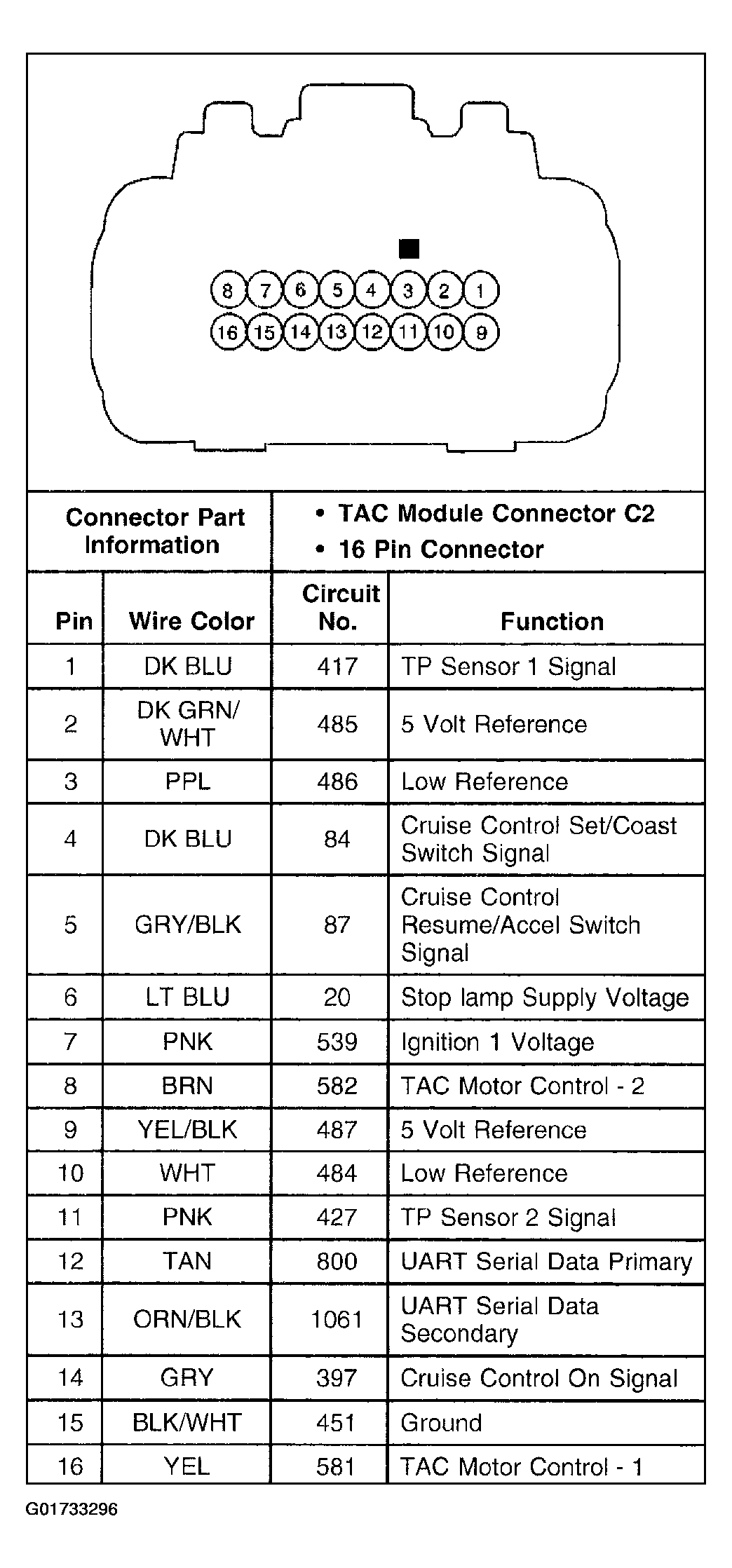

Fig 2: Throttle Actuator Control (TAC) Module C2
G01733296Courtesy of GENERAL MOTORS CORP.

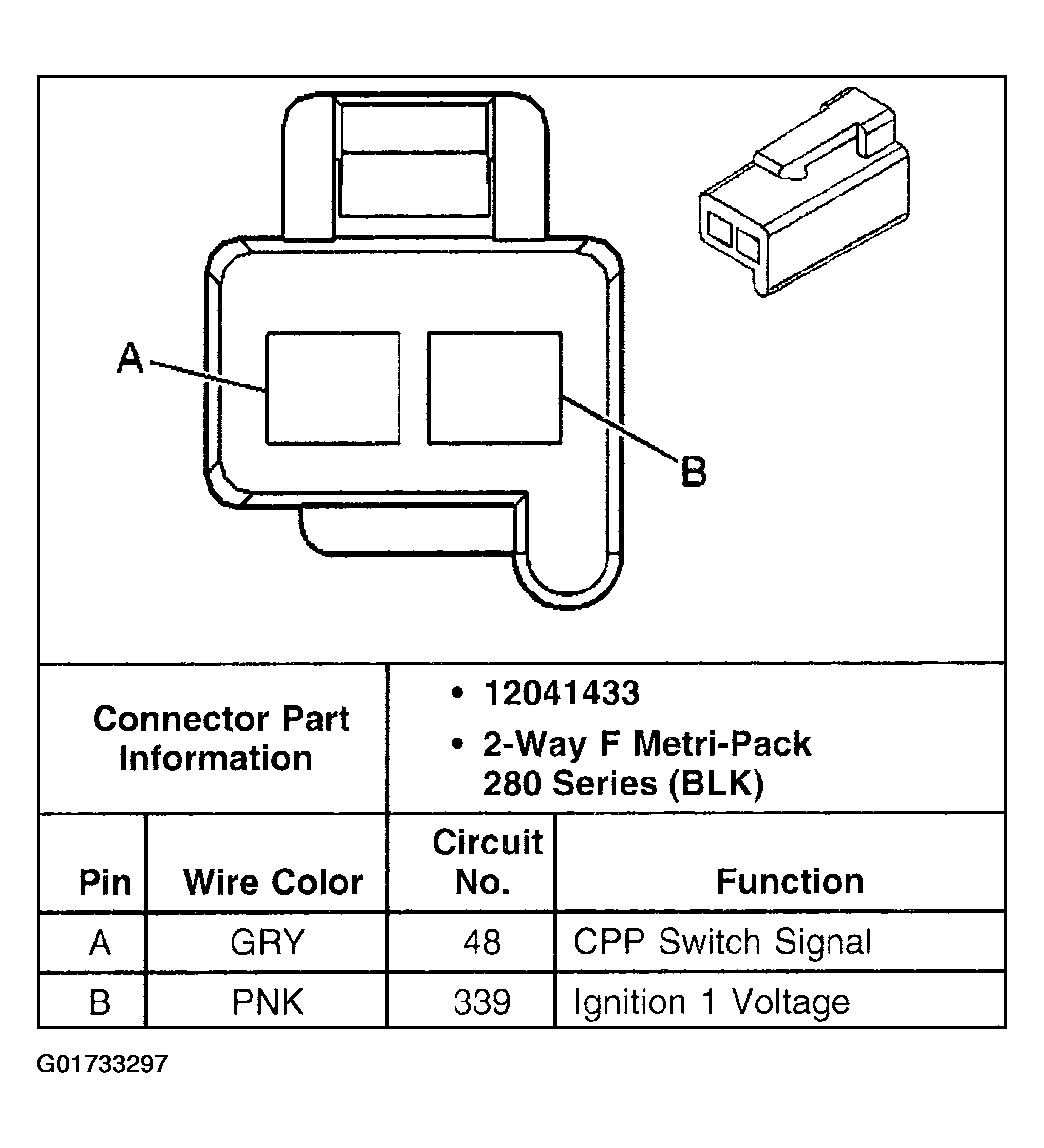

Fig 3: Clutch Pedal Position (CPP) Switch
G01733297Courtesy of GENERAL MOTORS CORP.
