Stationary Windows Connector End Views

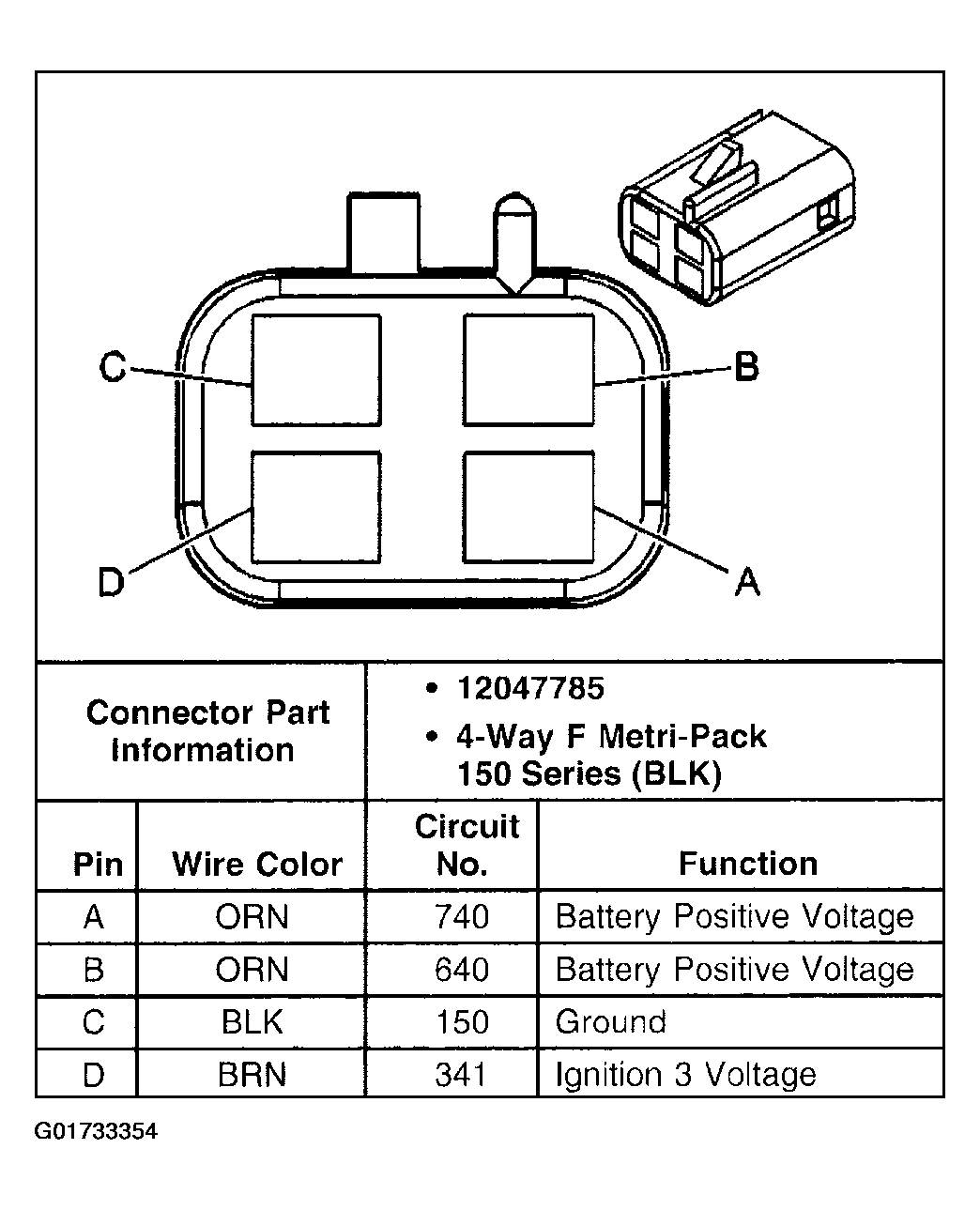

Fig 1: Inside Rearview Mirror - W/O DDO
Courtesy of GENERAL MOTORS CORP.

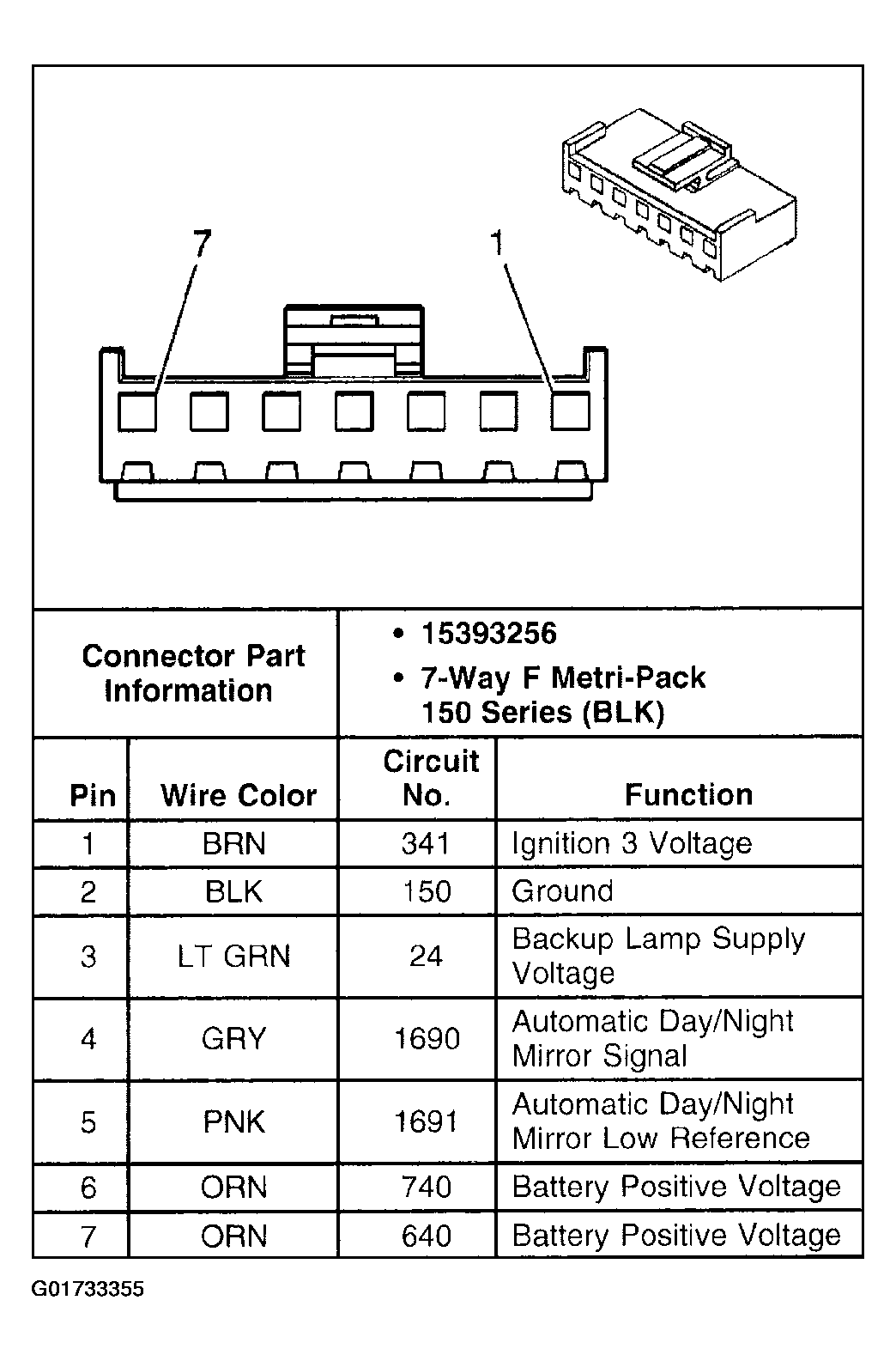

Fig 2: Inside Rearview Mirror - DDO
Courtesy of GENERAL MOTORS CORP.

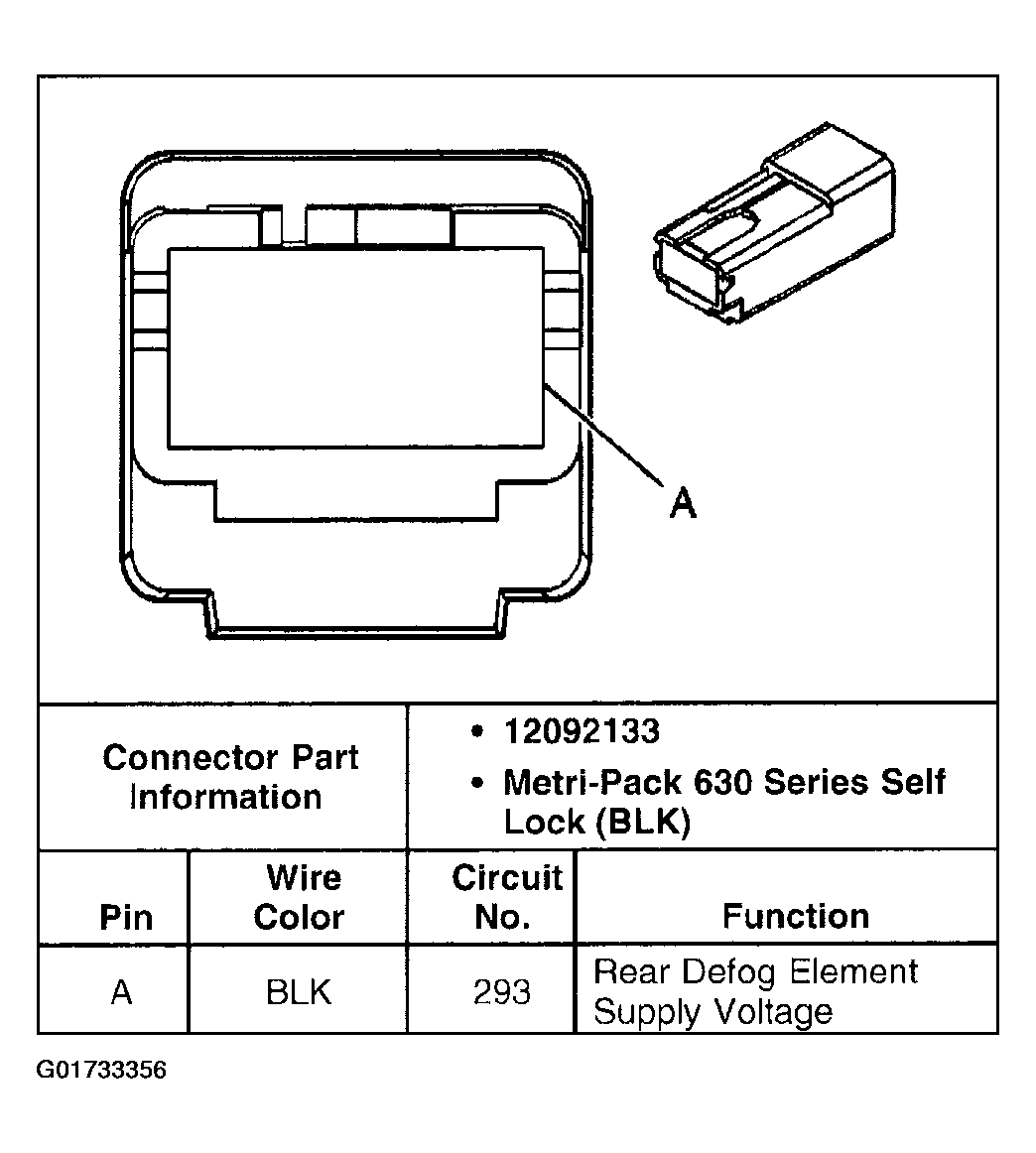

Fig 3: Rear Defogger Grid Connector (C1)
Courtesy of GENERAL MOTORS CORP.

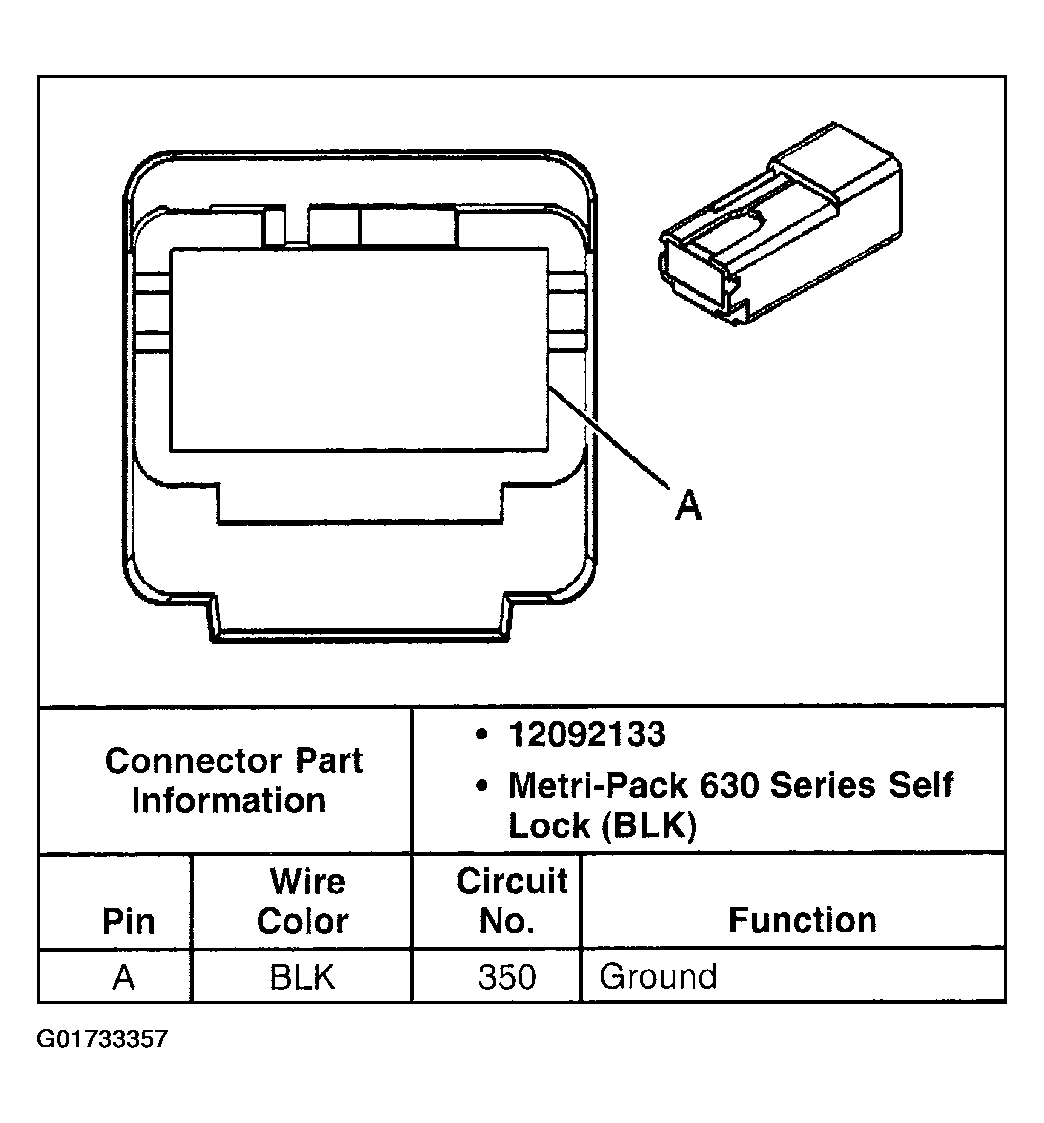

Fig 4: Rear Defogger Grid Connector (C2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
