4L60-E/4L65-E Automatic Transmission

Scan Tool Output Controls

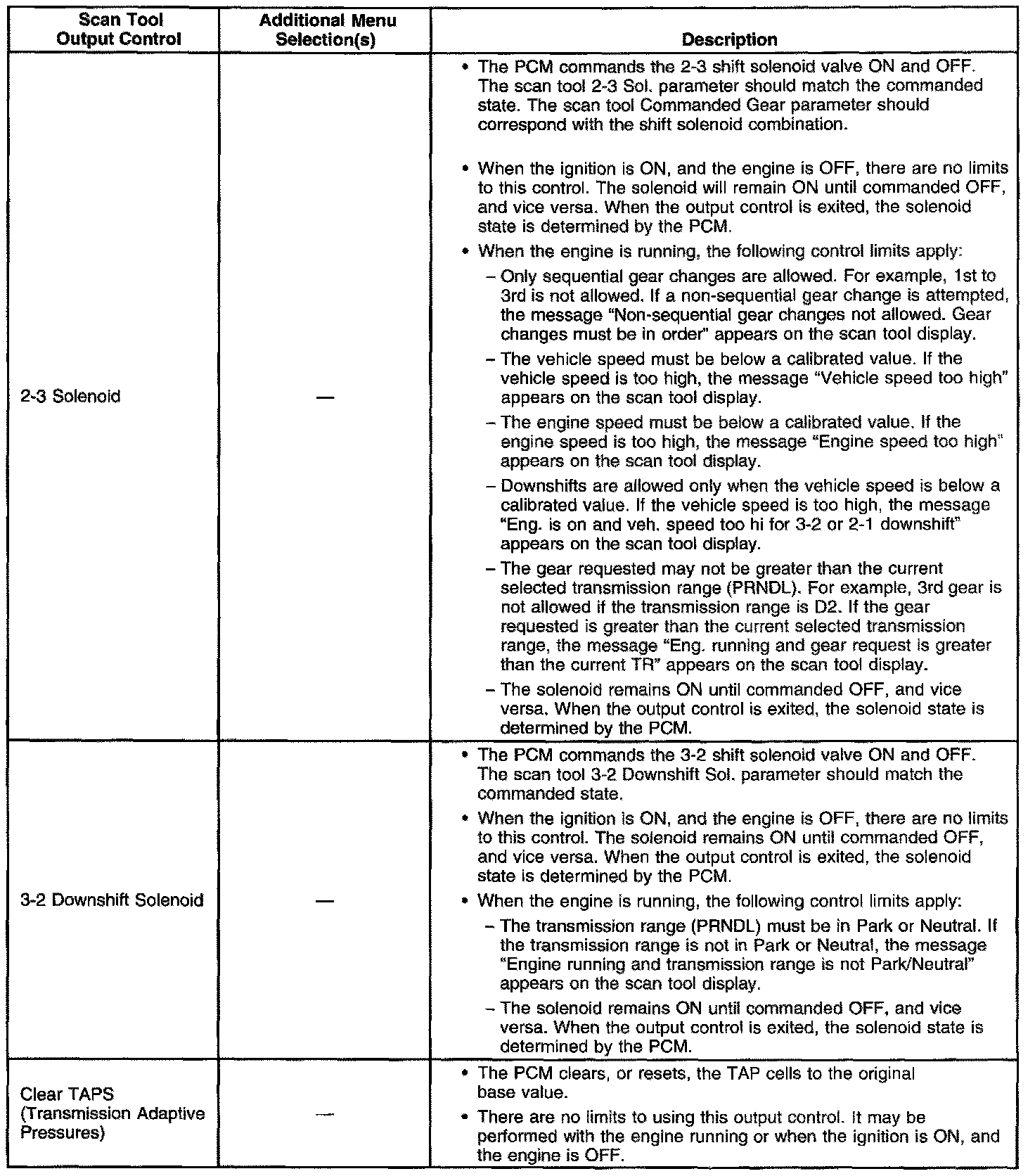

Part 1 of 4

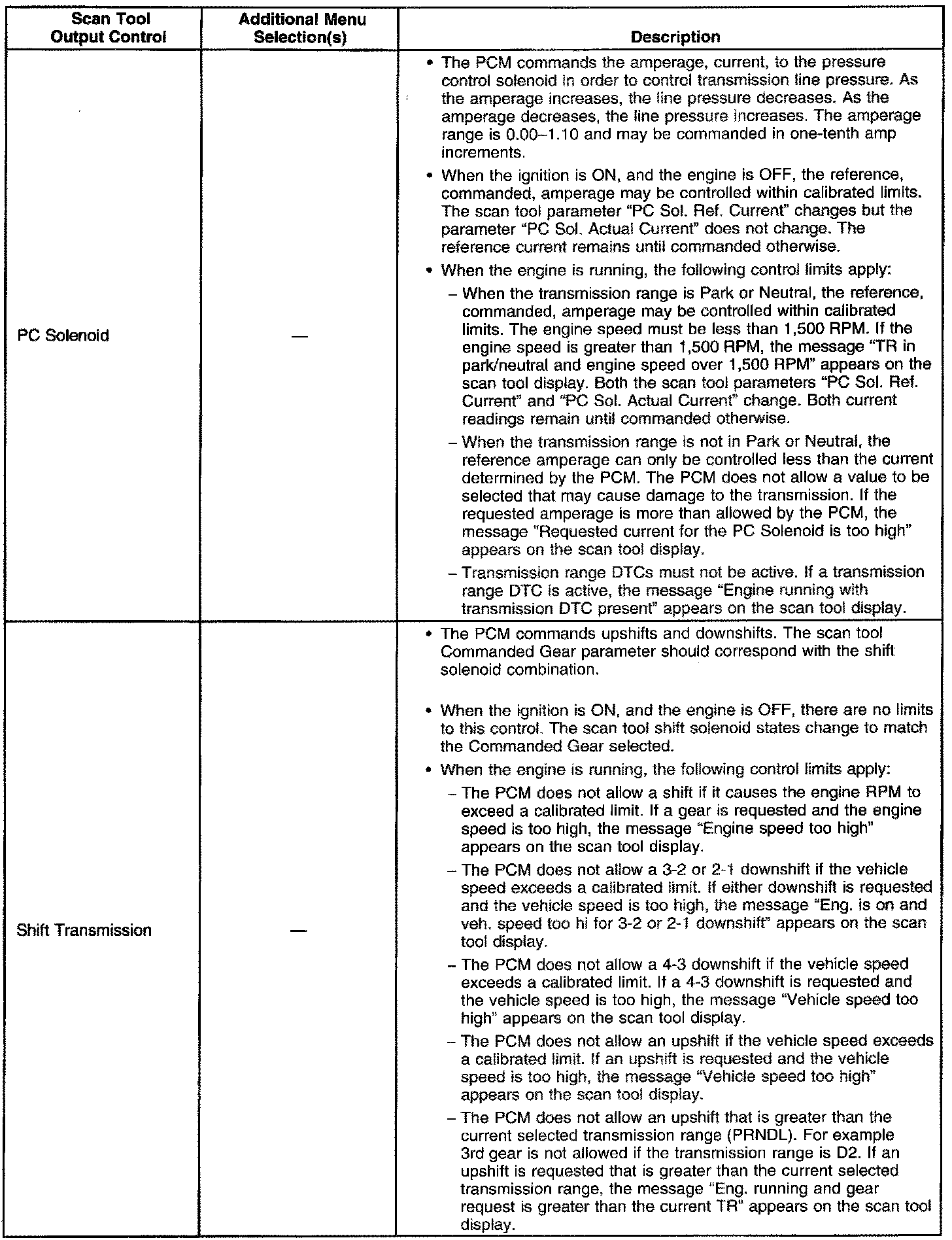

Part 2 of 4

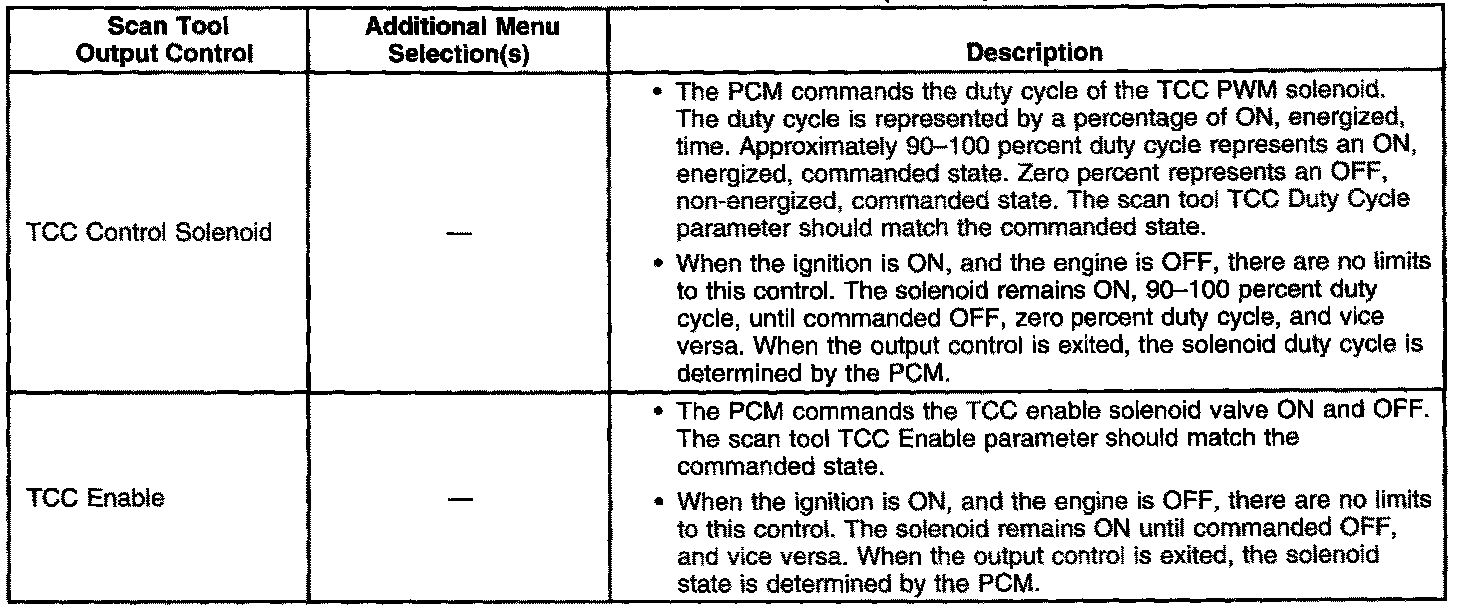

Part 3 of 4

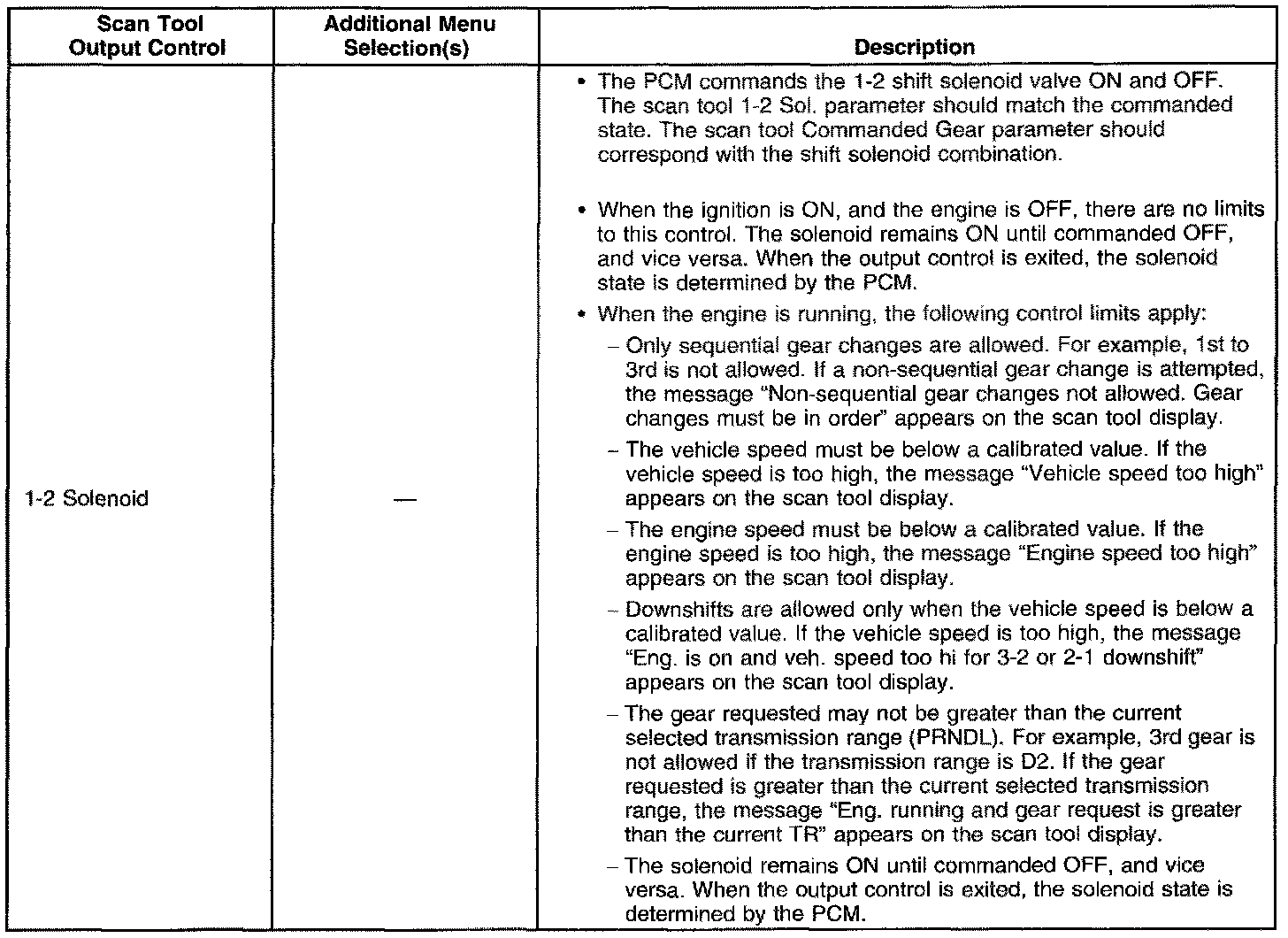

Part 4 of 4
