Cellular Communication Connector End Views

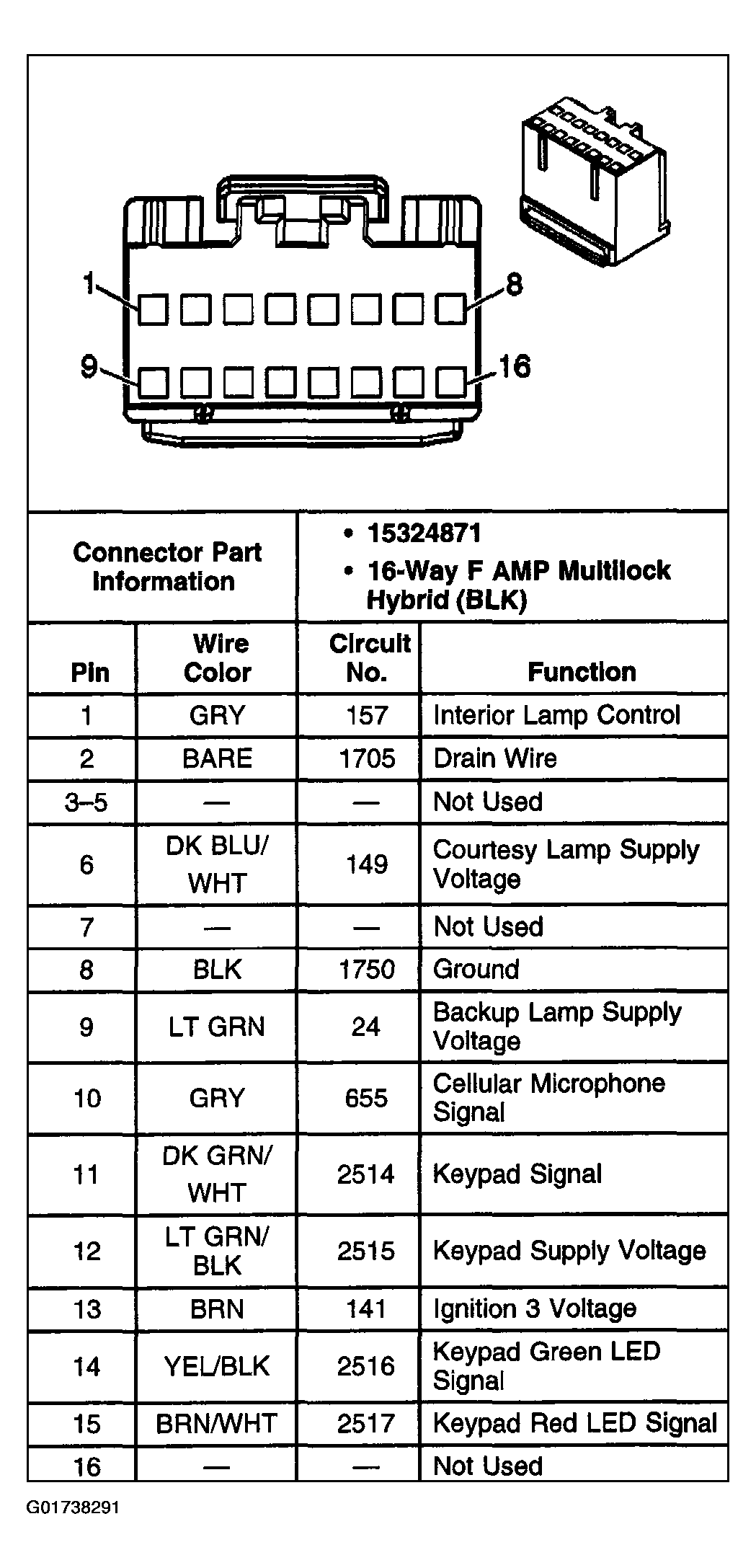

Fig 1: Identifying Inside Rearview Mirror (UE1) Connector Terminals
G01738291Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying OnStar® Module C1 Connector Terminals
G01738292Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying OnStar® Module C2 Connector Terminals
G01738293Courtesy of GENERAL MOTORS CORP.
