Horns Connector End Views

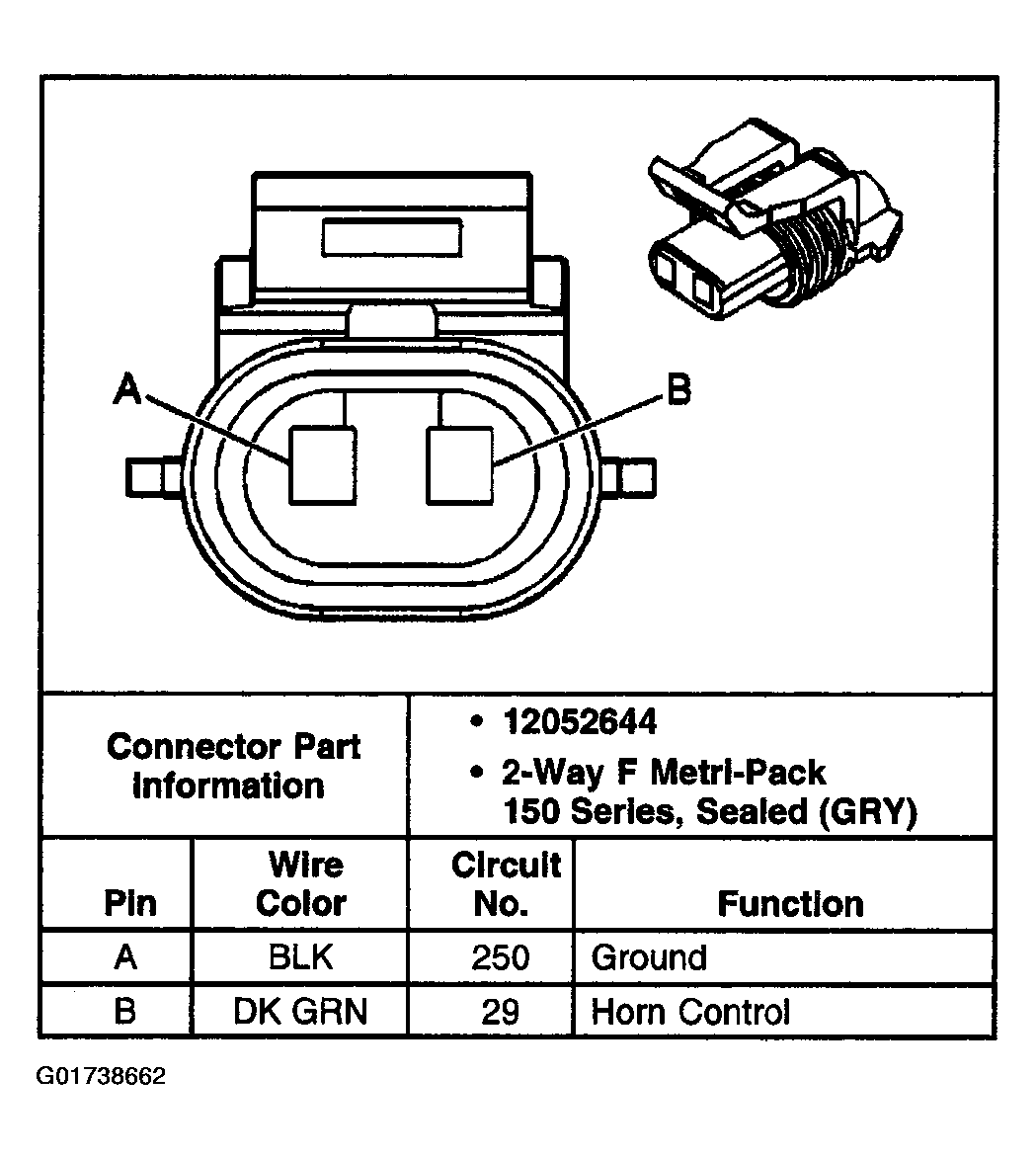

Fig 1: Identifying Horn Connector Terminals
Courtesy of GENERAL MOTORS CORP.
