Scan Tool Output Controls

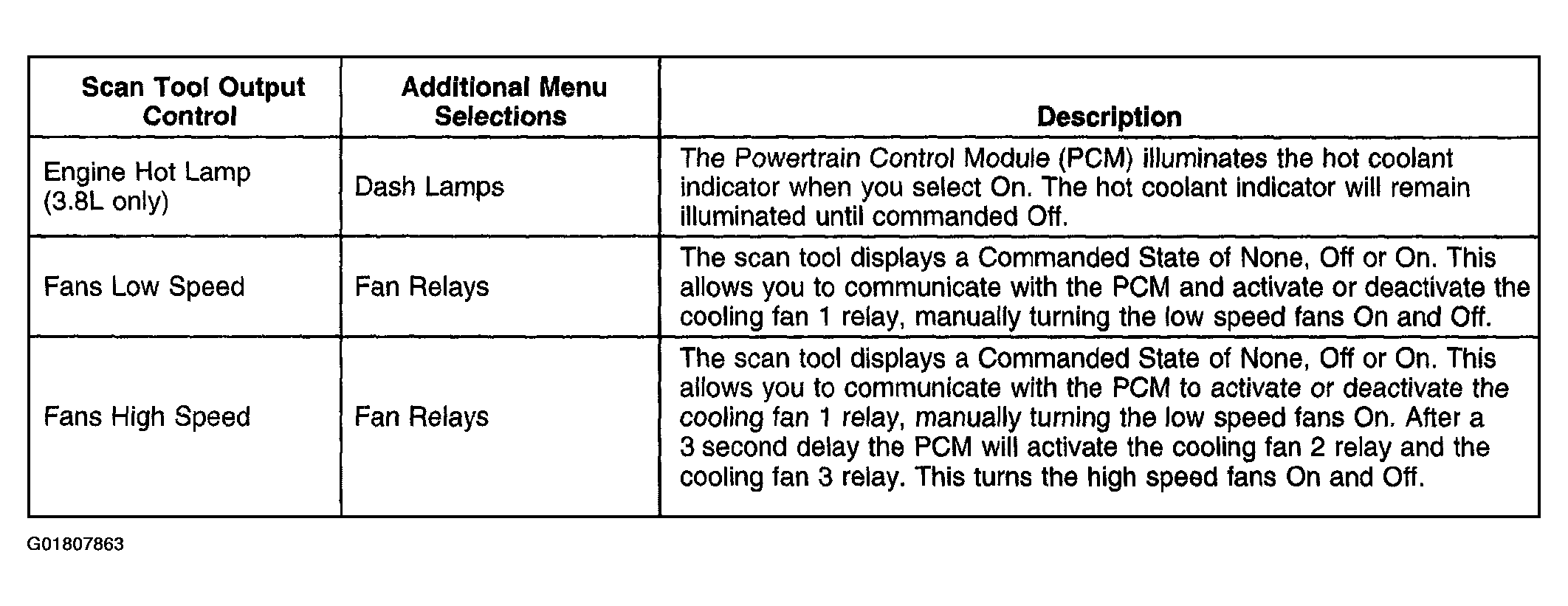

Fig 1: Powertrain Control Module (PCM) Scan Tool Output Controls
G01807863Courtesy of GENERAL MOTORS CORP.
