Body Control System Schematics

WARNING: This page is about a different car, the 2003 Chevrolet Monte Carlo and 2003 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

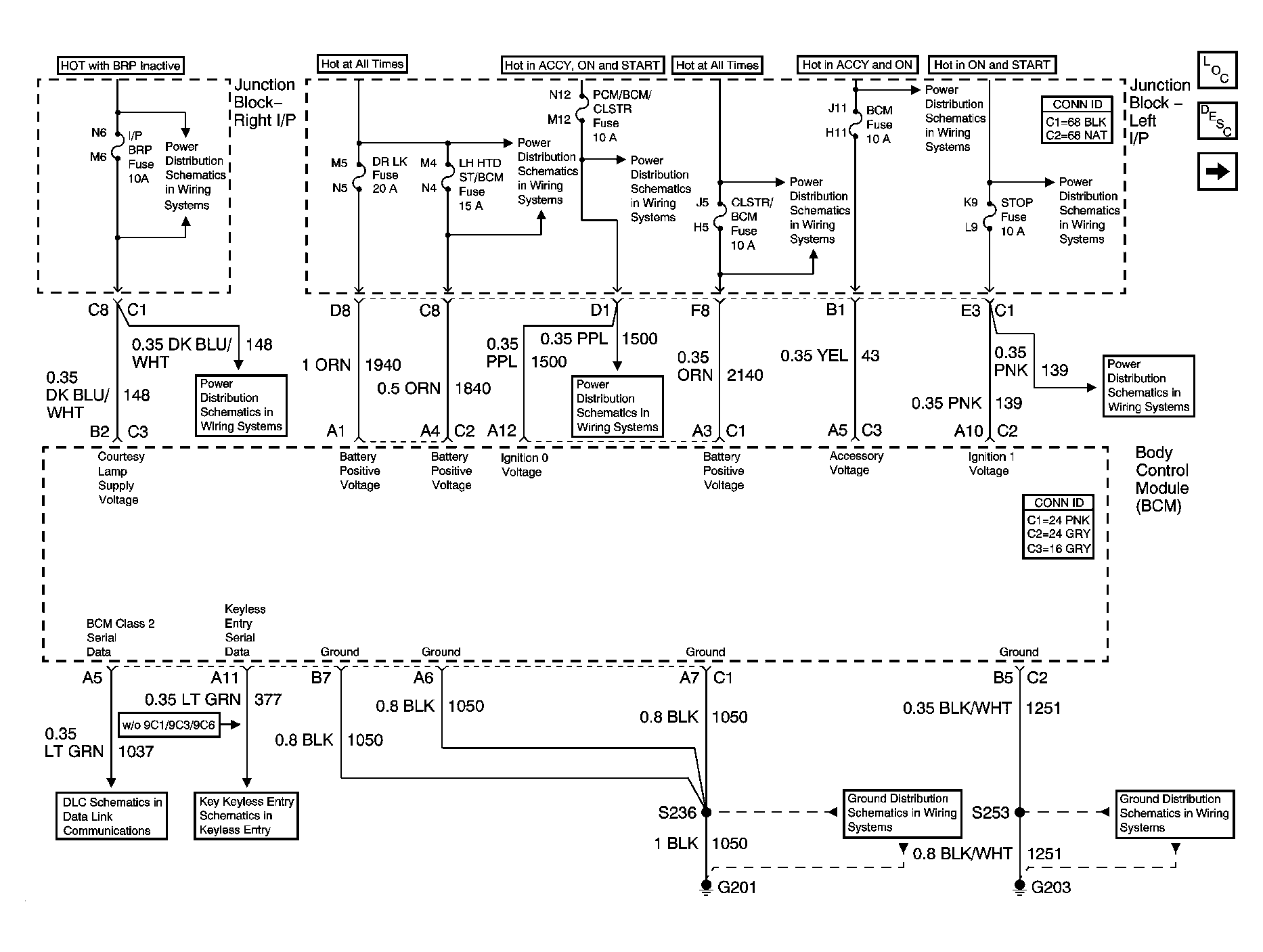

Fig 1: Grounds, Power & References To DLC & Keyless Entry Schematic

Courtesy of GENERAL MOTORS CORP.

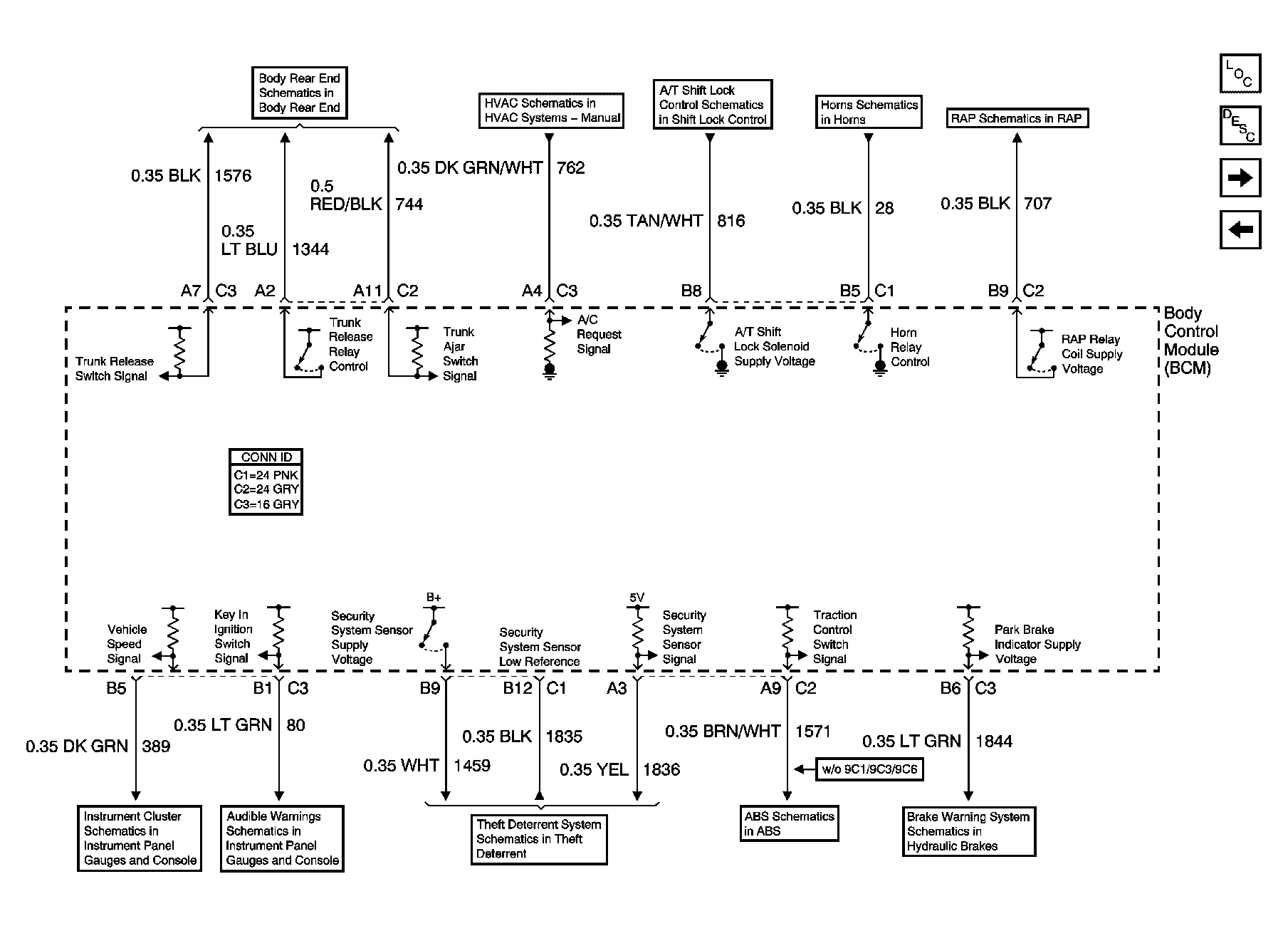

Fig 2: References To ABS, Audible Warnings, Body Rear End, Horns, HVAC, Hydraulic Brakes, I/P, RAP, Shift Lock & Theft Deterrent Schematic

Courtesy of GENERAL MOTORS CORP.

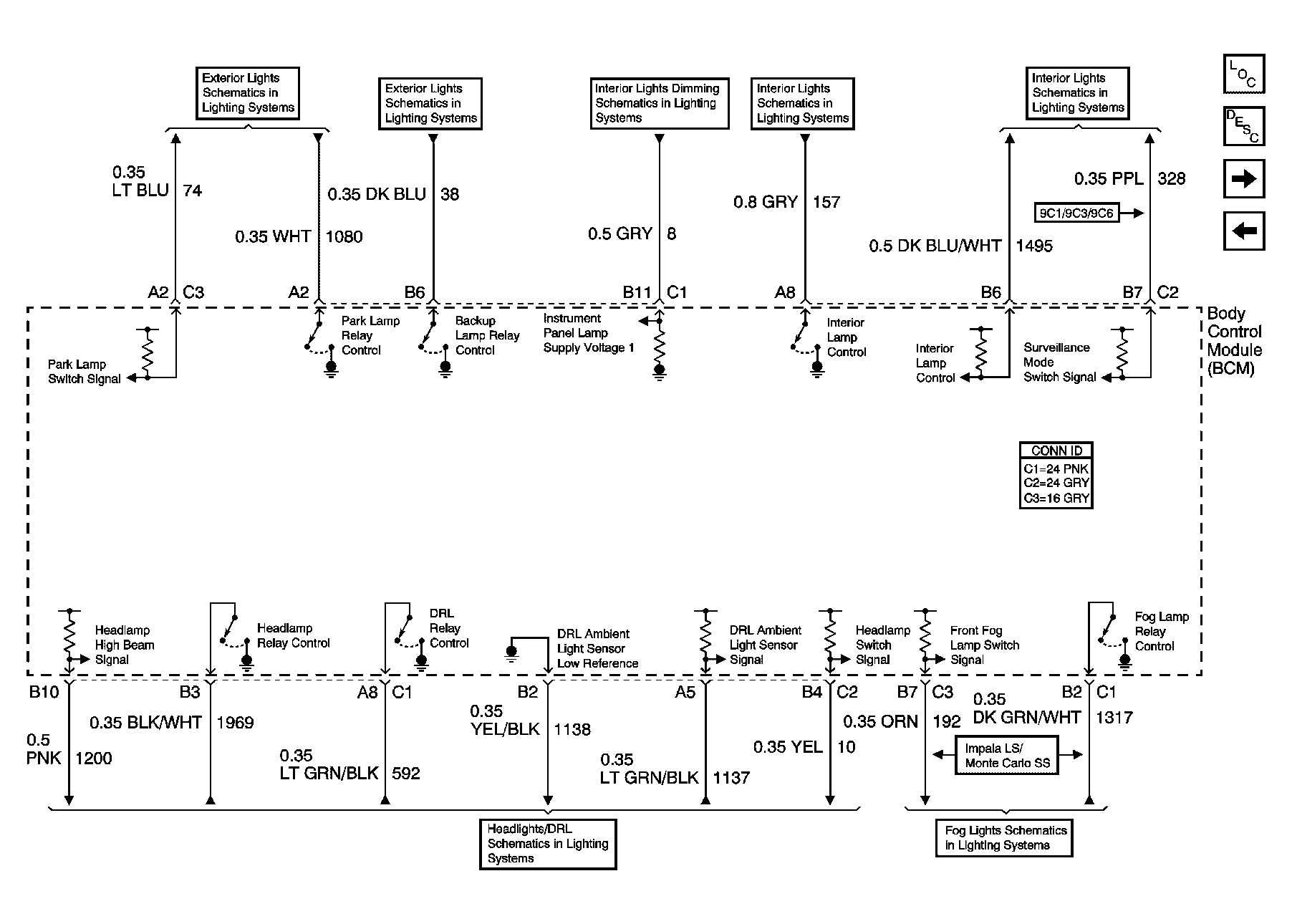

Fig 3: References To Lighting Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: References To Doors, Engine Electrical & Lighting Schematic

Courtesy of GENERAL MOTORS CORP.
