Disassembly Procedure
- Remove the strut from the vehicle. Refer to Strut Assembly Replacement .

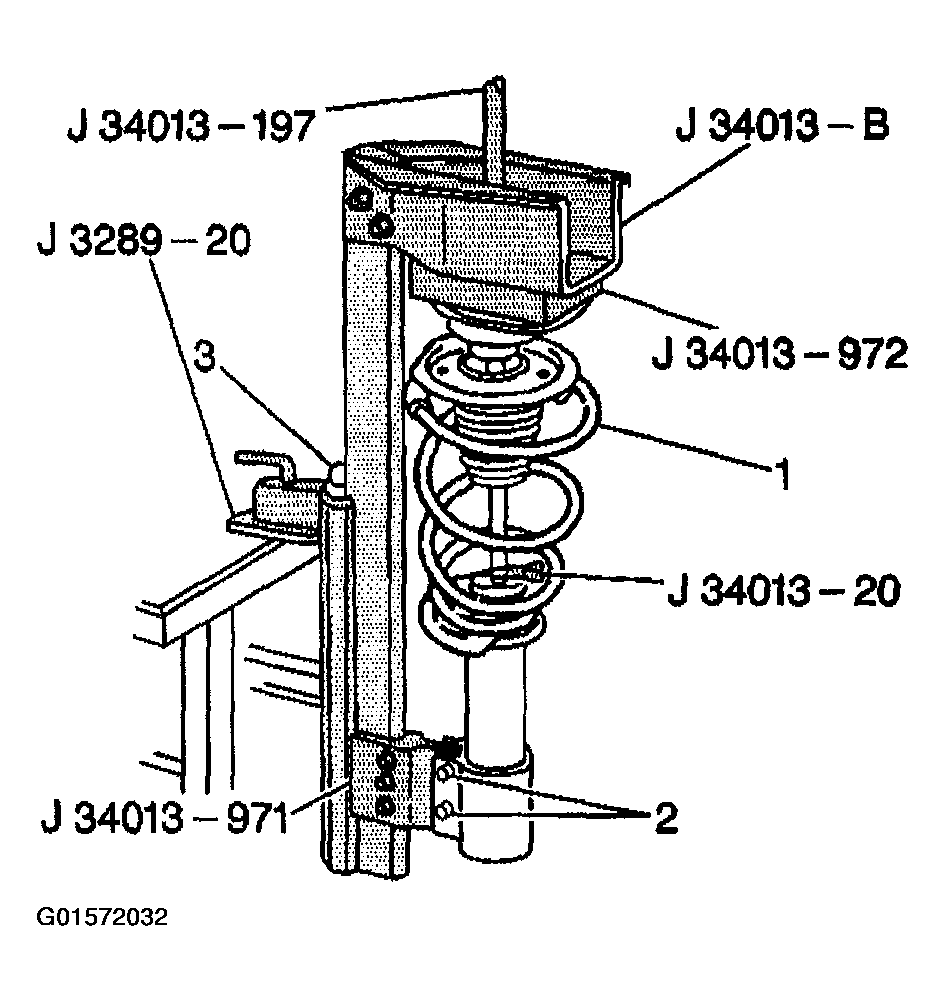

- Install the strut (1) in the J 34013-B
using adapters J 34013-971, J-34013-972
and the J 3289-20
.
- Turn the compressor forcing screw (3) until the spring compresses slightly.
Courtesy of GENERAL MOTORS CORP.

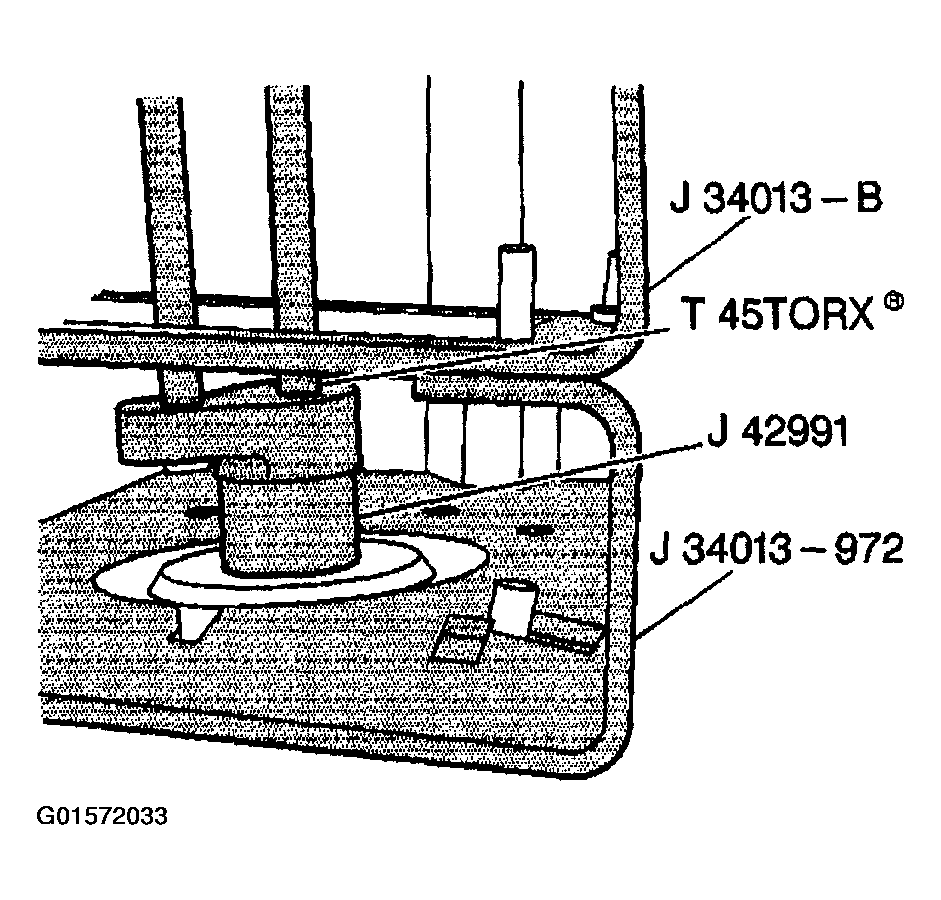

- Use a 45 TORX® socket in order to hold the strut shaft. Remove the strut mount nut by turning with J 42991
.
- Install the J 34013-197
to help guide the strut shaft out of the strut upper mount.
- Loosen the compressor screw while guiding the strut shaft out of the strut upper mount. Continue loosening the compressor forcing screw until you can remove the strut and the spring.
Courtesy of GENERAL MOTORS CORP.
