OnStar® Module Connector End View C1

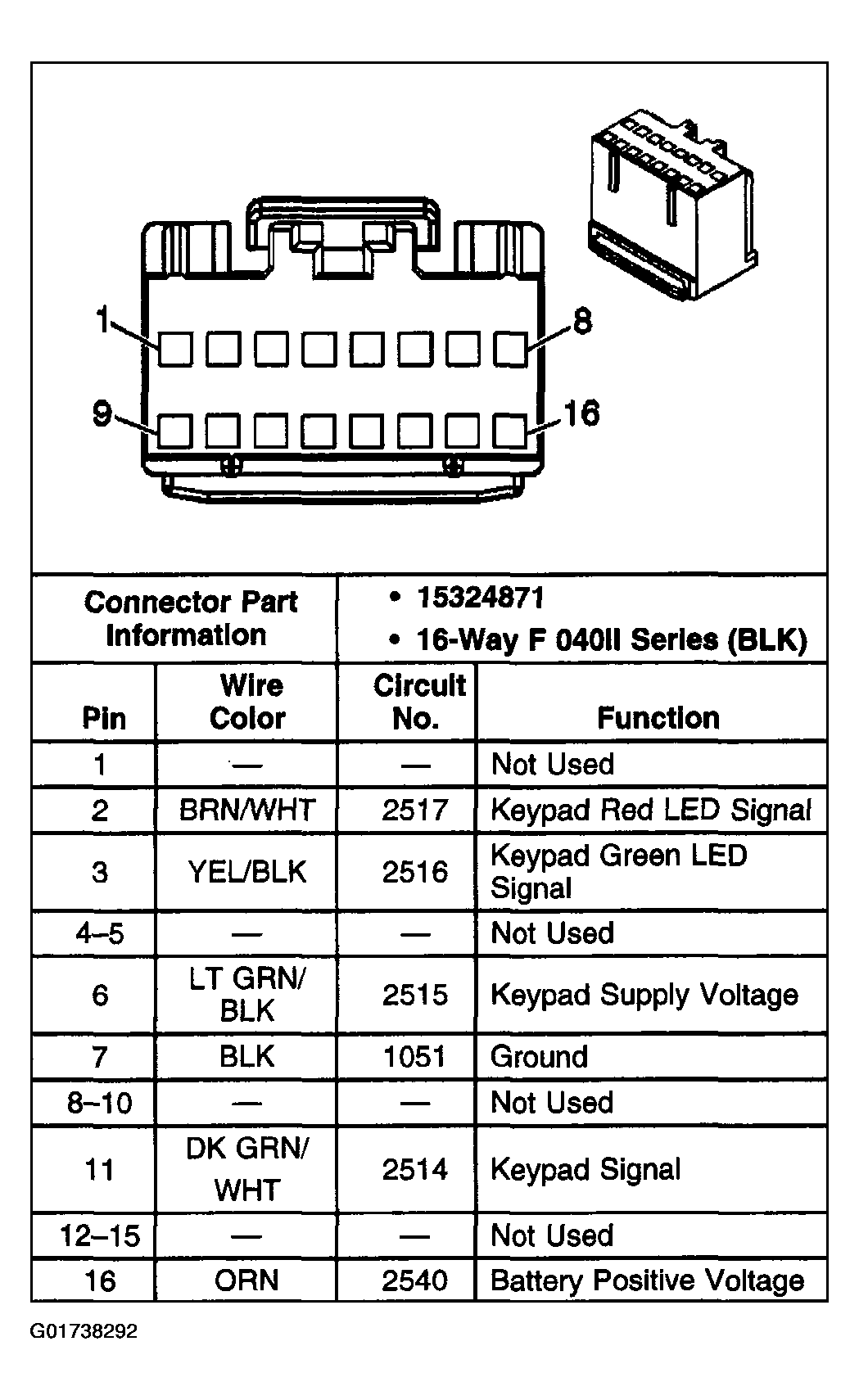

Fig 1: OnStar® Module C1

G01738292

Courtesy of GENERAL MOTORS CORP.
